Whirlpool EGAS80HLR Refrigerator Compressor Instruction Manual

1. Introduzzjoni

This manual provides essential information for the Whirlpool EGAS80HLR refrigerator compressor, part number 482000089839. This component is designed for use in various refrigerator models from brands including Whirlpool, FAR, Scholtes, Indesit, and Ariston. It is crucial to verify compatibility with your specific appliance model before installation.

The compressor is a vital part of your refrigerator's cooling system, responsible for circulating refrigerant and maintaining optimal temperatures. Proper installation and handling are paramount for its safe and efficient operation.

2. Prodott Aktarview

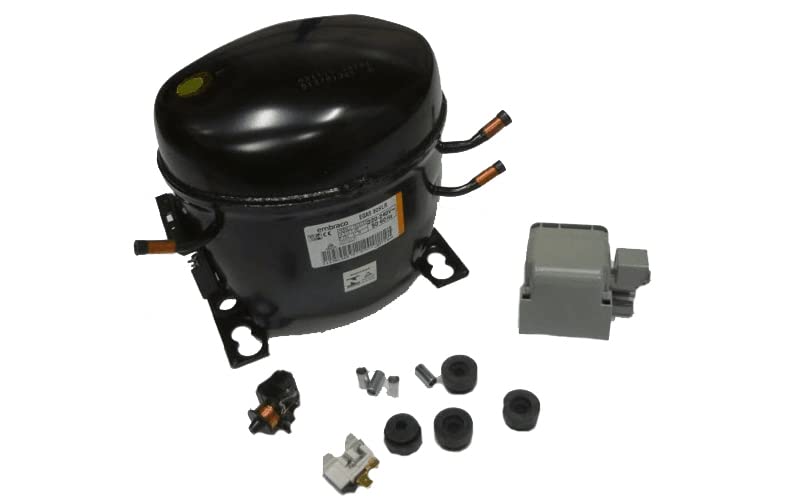

Figura 1: Whirlpool EGAS80HLR Refrigerator Compressor. This image displays the main compressor unit along with various associated components such as starting relays, overload protectors, and mounting grommets, which are typically included for installation.

Figura 2: Ġenb view of a refrigerator compressor. This image shows a different angle of a compressor, highlighting its connection points and a label indicating refrigerant type (R134a) and model details.

The EGAS80HLR is a 1/4 HP compressor designed for R134 refrigerant systems. It is supplied directly from manufacturers and undergoes factory testing. The product includes the compressor unit and necessary installation accessories.

3. Setup u Installazzjoni

Importanti: Installation of this refrigerator compressor requires specialized knowledge and tools. It must be installed by a qualified refrigeration technician. Attempting self-installation without proper expertise can lead to serious injury, damage to the appliance, and void any applicable warranties.

3.1 Compatibility Verification

Before installation, ensure this compressor is compatible with your refrigerator model. Refer to your appliance's service manual or contact a qualified technician for verification. Compatible brands include:

• Whirlpool
• BOGĦOD
• Scholtes
• Indesit
• Ariston

Specific compatible models include (but are not limited to): C3656, F7450 (FAR), F370 (SCHOLTES), ART731, BA 12 - F033821 (INDESIT), BO 3034 V EU - F030163 (ARISTON), BDZ M 33 IX - F033580 (ARISTON), X RC 45 NF - F025261 (SCHOLTES), BA 13 - F030236 (INDESIT), BA 14 - F030240 (INDESIT), BCS 311 - F027032 (ARISTON), BDO M33 IX - F028354 (ARISTON), TA 3 - F029505 (INDESIT), RD 29 V - F028203 (SCHOLTES), OF 370 - F026472 (INDESIT), OF 440 - F026473 (INDESIT), BDC M45 V IX - F029519 (ARISTON), BA 12 (FR) - F033818 (INDESIT), BA 12 (FR).9 - F032853 (INDESIT), BA 13 (FR) - F029296 (INDESIT), BA 14 (FR) - F032852 (INDESIT), BAG 18 (FR) - F032851 (INDESIT), DAN 31 V (FR) - F031996 (ARISTON), DAN 32 V (FR) - F031997 (ARISTON), MTA 351 C (FR) - F032002 (ARISTON), MTA 352 C (FR) - F032003 (ARISTON), TA 3 (FR) - F029297 (INDESIT), TA 5 (FR) - F031582 (INDESIT), R 48 NF (FR) - F029220 (INDESIT), MTB 4712 NF (FR) - F030985 (ARISTON), MTB 4711 NF (FR) - F030984 (ARISTON), RA 45 (FR) - F028296 (INDESIT), BAG 370 CH B.AIR - F011429, CH 375 G PHILCO - F011506, CO 300 PHILCO - F014482, CO 300/1 PHILCO - F016837, CPE 1290 B HIR. - F007984, E CH 295 (EU) - F007530 (ARISTON), E CH 375 FR - F008140 (ARISTON), E CH 375 NL - F011279, E CO 290 (IT) - F007536 (ARISTON), ECH 375 ES - F010789 (ARISTON), ECH 375 PT - F010805 (ARISTON), FRG 370 CH FRAU - F011465, GCOH 037 NS E - F008226 (INDESIT), GFP 370 NS BP - F008282 (INDESIT), GFP 4290W EU/1 - F016825.

3.2 Installazzjoni Professjonali

A certified refrigeration technician will perform the following steps:

1. Is-Sigurtà l-Ewwel: Skonnettja l-friġġ mill-provvista tal-enerġija.
2. Irkupru tar-Refriġerant: Safely recover existing refrigerant from the system.
3. Old Compressor Removal: Disconnect electrical connections and refrigerant lines, then remove the old compressor.
4. New Compressor Installation: Mount the new EGAS80HLR compressor securely.
5. Brazing and Connections: Braze new refrigerant lines and connect electrical components according to manufacturer specifications.
6. Ittestjar tat-tnixxija: Perform a pressure test to ensure there are no leaks in the system.
7. Evakwazzjoni: Evacuate the system to remove all moisture and non-condensable gases.
8. Iċċarġjar tar-refriġerant: Charge the system with the correct type and amount of R134 refrigerant.
9. Ittestjar: Test the refrigerator's operation to ensure proper cooling and compressor function.

4. Prinċipji Operattivi

The compressor is the "heart" of your refrigerator's sealed cooling system. It compresses low-pressure, low-temperature gaseous refrigerant, increasing its pressure and temperature. This high-pressure, high-temperature gas then flows to the condenser coils, where it releases heat to the surroundings and condenses into a liquid. The liquid refrigerant then passes through an expansion device, reducing its pressure and temperature, before entering the evaporator coils inside the refrigerator. Here, it absorbs heat from the refrigerator's interior, evaporating back into a low-pressure gas, and the cycle repeats. The EGAS80HLR compressor is designed to efficiently perform this compression cycle, ensuring consistent cooling performance.

5. Manutenzjoni

As a sealed component, the compressor itself requires no routine user maintenance. However, to ensure the longevity and efficient operation of your refrigerator and its compressor, consider the following general maintenance tips for the appliance:

• Nodfa l-Kojls tal-Kondensatur: Naddaf il-kolji tal-kondensatur (ġeneralment jinsabu fuq wara jew taħt il-friġġ) perjodikament biex tneħħi t-trab u l-fdalijiet. Kolji maħmuġin iġiegħlu lill-kompressur jaħdem aktar, u b'hekk inaqqas l-effiċjenza u l-ħajja tal-prodott.
• Żgura Ventilazzjoni xierqa: Make sure there is adequate space around the refrigerator for air circulation, especially around the compressor area.
• Iċċekkja s-Siġilli tal-Bieb: Inspect door seals for any gaps or damage that could allow cold air to escape, making the compressor run more frequently.
• Evita tagħbija żejda: Do not overload the refrigerator, as this can impede air circulation and strain the cooling system.

6 Issolvi l-problemi

If your refrigerator is experiencing cooling issues after compressor replacement, or if you suspect a problem with the compressor, it is essential to contact a qualified refrigeration technician. Troubleshooting a compressor involves specialized diagnostic tools and knowledge of refrigeration systems. Do not attempt to repair the compressor or sealed system yourself.

Common Symptoms Requiring Professional Attention:

• Refrigerator not cooling adequately.
• Compressor running continuously or not at all.
• Unusual noises (e.g., loud humming, rattling) coming from the compressor area.
• Excessive heat from the compressor.
• Visible leaks around the compressor or refrigerant lines.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Informazzjoni dwar il-garanzija: This compressor is supplied directly from the manufacturer and is factory tested. However, the warranty for the installed product is typically assumed by the refrigeration technician who performs the installation. By purchasing this product, you acknowledge and accept that any direct seller warranty may be waived if not installed by a certified professional. It is imperative to ensure installation is performed by a qualified technician to secure proper warranty coverage from the installer.

Appoġġ Tekniku: For technical assistance, compatibility verification, or professional installation services, please contact a certified refrigeration technician or the original seller of the product. The seller (SEMboutique) specializes in appliance spare parts and can provide advice.

Note: Information regarding the availability of spare parts is currently unavailable.
