Manwal tal-Utent tal-Kaxxa tal-Logħob GAMEMAX G561 FRGB Iswed ATX Mid Tower

1. Introduzzjoni

This manual provides instructions for the installation, operation, and maintenance of your GAMEMAX G561 FRGB Black ATX Mid Tower Gaming Case. The G561 is designed to accommodate ATX, Micro ATX, and Mini-ITX motherboards, featuring an acrylic front panel, an acrylic side window, and integrated FRGB fans for system cooling.

Please read this manual thoroughly before beginning installation to ensure proper setup and to prevent damage to the product or other components.

2. Informazzjoni dwar is-Sigurtà

• Dejjem skonnettja l-provvista tal-enerġija mis-sokit tal-ħajt qabel ma tinstalla jew tneħħi xi komponenti.
• Ilbes ċinga tal-polz anti-statika biex tevita ħsara minn skarika elettrostatika (ESD) lil komponenti sensittivi.
• Handle all components with care. Avoid touching circuit boards or connector pins directly.
• The case features rolled edges to minimize the risk of injury during installation. Exercise caution when working inside the case.
• Keep the case and components away from moisture, dust, and extreme temperatures.

3. Prodott Aktarview

The GAMEMAX G561 case features a transparent acrylic front panel and a clear acrylic side window, allowing visibility of internal components and the integrated FRGB fans. The I/O ports are located on the top panel for convenient access.

Figura 3.1: Naħa ta' quddiem view of the GAMEMAX G561 case with illuminated FRGB fans.

3.1 Front Panel and I/O Ports

The front panel includes three fixed-color FRGB fans. The top panel provides essential connectivity and control options.

Figure 3.2: Top I/O Panel layout.

• Buttuna Irrisettja: For system reset.
• Port USB 3.0: Trasferiment ta' dejta b'veloċità għolja.
• Portijiet USB 2.0 (x2): Standard data transfer.
• Mikrofonu Jack: Input awdjo.
• Jack tal-headphone: Output awdjo.
• Fan Control Key: Toggles fan speed and FRGB lighting (Off, Low speed/no LEDs, High speed/LEDs on).

3.2 Internal Layout and Component Support

The G561 case offers ample space for various components, including support for CPU coolers up to 160mm and VGA cards up to 360mm.

Figure 3.3: Internal dimensions for CPU cooler (160mm) and VGA card (360mm).

Drive bays are located behind the motherboard tray and at the bottom of the case for efficient cable management and airflow.

Figure 3.4: Drive bay locations for 2x 2.5" SSDs and 2x 3.5" HDDs.

4. Setup u Installazzjoni

4.1 Tħejjija tal-Każ

1. Poġġi l-kaxxa fuq wiċċ stabbli u ċatt.
2. Remove the side panel by unscrewing the thumbscrews at the rear and sliding the panel backward.


Figure 4.1: Side panel removal.

4.2 Installazzjoni tal-Motherboard

1. Install the I/O shield provided with your motherboard into the opening at the rear of the case.
2. Align the motherboard with the standoffs inside the case. Ensure the standoffs match your motherboard's form factor (ATX, Micro ATX, or Mini-ITX).
3. Waħħal il-motherboard bil-viti xierqa.

4.3 Drive Installation (SSD/HDD)

1. For 2.5" SSDs: Mount SSDs to the designated trays behind the motherboard tray using screws. Note that some mounts may use a combination of screws and retention clips.
2. For 3.5" HDDs: Slide HDDs into the drive cages located at the bottom of the case. Secure them with screws or tool-less clips if available.

4.4 Installazzjoni tal-Provvista tal-Enerġija

1. Position the power supply unit (PSU) in the dedicated compartment at the bottom rear of the case.
2. Secure the PSU to the case using screws from the rear.

4.5 Installazzjoni tal-Karta tal-Grafika u l-Karta tal-Espansjoni

1. Remove the necessary PCI-E slot covers from the rear of the case.
2. Insert the graphics card or other expansion cards into the appropriate PCI-E slots on the motherboard.
3. Waħħal il-karti bil-viti.

4.6 Ġestjoni tal-Cable

Utilize the cutouts and tie-down points behind the motherboard tray to route and secure cables. This improves airflow and maintains a clean internal appearance.

4.7 Installazzjoni tal-Fann u r-Radjatur

The case comes with four pre-installed FRGB fans (three front, one rear). The front panel supports a 240mm radiator for liquid cooling solutions.

1. If installing an additional radiator, ensure it is compatible with the designated mounting points.
2. Secure the radiator and any additional fans using the provided screws.

5. Istruzzjonijiet Operattivi

5.1 Tixgħel/Jitfi

Press the power button on the top I/O panel to turn your system on or off. A short press typically powers on, while a longer press (usually 4-5 seconds) forces a shutdown.

5.2 Fan and Lighting Control

Use the 'Fan Control Key' on the top I/O panel to adjust the speed of the pre-installed FRGB fans and their lighting:

• Mitfi: Fans and FRGB lighting are turned off.
• Baxx: Fans operate at a lower speed; FRGB lighting is off.
• Għoli: Fans operate at a higher speed; FRGB lighting is active.

6. Manutenzjoni

6.1 Cleaning the Case

Regular cleaning helps maintain optimal airflow and component longevity.

• Barra: Uża artab, damp drapp biex timsaħ l-uċuħ ta’ barra. Evita prodotti tat-tindif li joborxu.
• Filtri tat-Trab: The top panel features a magnetic dust filter. Periodically remove and clean it with water or a soft brush. Ensure it is completely dry before reattaching.

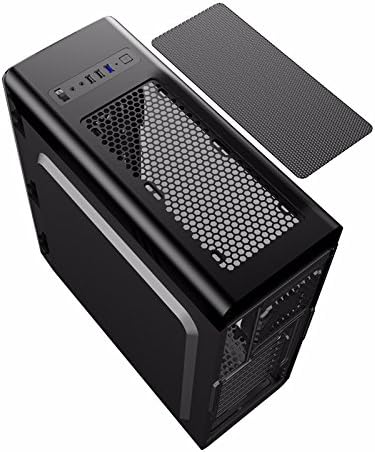

Figure 6.1: Top magnetic dust filter.

• Intern: Use compressed air to remove dust from internal components and fans. Hold fan blades gently to prevent over-spinning during cleaning.

7 Issolvi l-problemi

• Is-sistema mhux qed tixgħel: Check all power connections, including the 24-pin ATX power, 8-pin CPU power, and front panel power switch headers. Ensure the power supply is switched on.
• Fans not spinning/LEDs not lighting up: Verify that the fan control key is set to 'High'. Check fan power connections to the motherboard or fan controller.
• USB ports not working: Ensure the USB headers from the case are correctly connected to the motherboard.
• Audio jacks not working: Confirm the front panel audio header is securely connected to the motherboard's audio pins.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Għal informazzjoni dwar il-garanzija u appoġġ tekniku, jekk jogħġbok irreferi għall-paġna uffiċjali ta' GAMEMAX webis-sit jew ikkuntattja lill-bejjiegħ lokali tiegħek. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
