Manwal tal-Istruzzjonijiet tat-TOTU USB C Hub 9-f'1

Introduzzjoni

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your TOTU 9-in-1 USB C Hub. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Karatteristiċi tal-Prodott

The TOTU 9-in-1 USB C Hub is designed to expand the connectivity of your USB-C enabled devices, offering a versatile solution for various peripherals.

• Konnettività Multiport: Includes 1 Ethernet/RJ-45 Port, 1 USB Type-C Female PD charging port, 1 HDMI port, 1 Card Reader for SD, 1 Card Reader for TF, 1 USB 2.0 Type-A port, and 2 USB 3.0 Type-A ports.
• Trasferiment ta' Dejta bla Sforz: Connect smartphones, tablets, hard drives, or other USB peripherals via USB 3.0 Ports for high-speed data transfer (up to 5Gbps). The USB 2.0 port is ideal for low-rate devices like mice and keyboards.
• Qari ta' Karti Doppji: Built-in SD/TF card reader allows simultaneous access to files from universal memory cards.
• Gigabit-Ethernet: 1000Mbps Ethernet port ensures a stable and faster-wired network connection.
• Kunsinna tal-Enerġija (PD): Jappoġġja l-iċċarġjar PD b'massimu ta' 87W, li jippermettilek tiċċarġja b'mod sigur il-MacBook konness tiegħek jew laptops oħra tat-Tip C permezz tal-hub.
• Ħruġ HDMI 4K: Provides high-definition video output up to 4K resolution, perfect for connecting to external monitors, projectors, or HDTVs.
• Kompatt u portabbli: Lightweight and compact design makes it easy to carry for business travel and on-the-go use.

Figura 1: Aktarview of the TOTU 9-in-1 USB C Hub and its various connectivity options.

Figura 2: Dettaljat view of the hub's ports, including USB-C charging, HDMI, TF/SD card readers, Ethernet, USB 2.0, and USB 3.0 ports.

Figure 3: Illustration of the hub providing fast charging and 5Gbps data transfer to connected devices.

Figure 4: The hub enabling 4K HD video output from a laptop to a larger display, such as a monitor, projector, or HDTV.

Figure 5: The hub's USB 3.0 and USB 2.0 ports supporting various high-speed and low-speed devices like thumb drives, keyboards, mice, and phones.

Figure 6: The hub providing instant and stable wired internet access up to 1 Gbps via its Ethernet port.

Figure 7: The non-slip, compact design of the hub, making it an ideal accessory for MacBook Pro and similar devices.

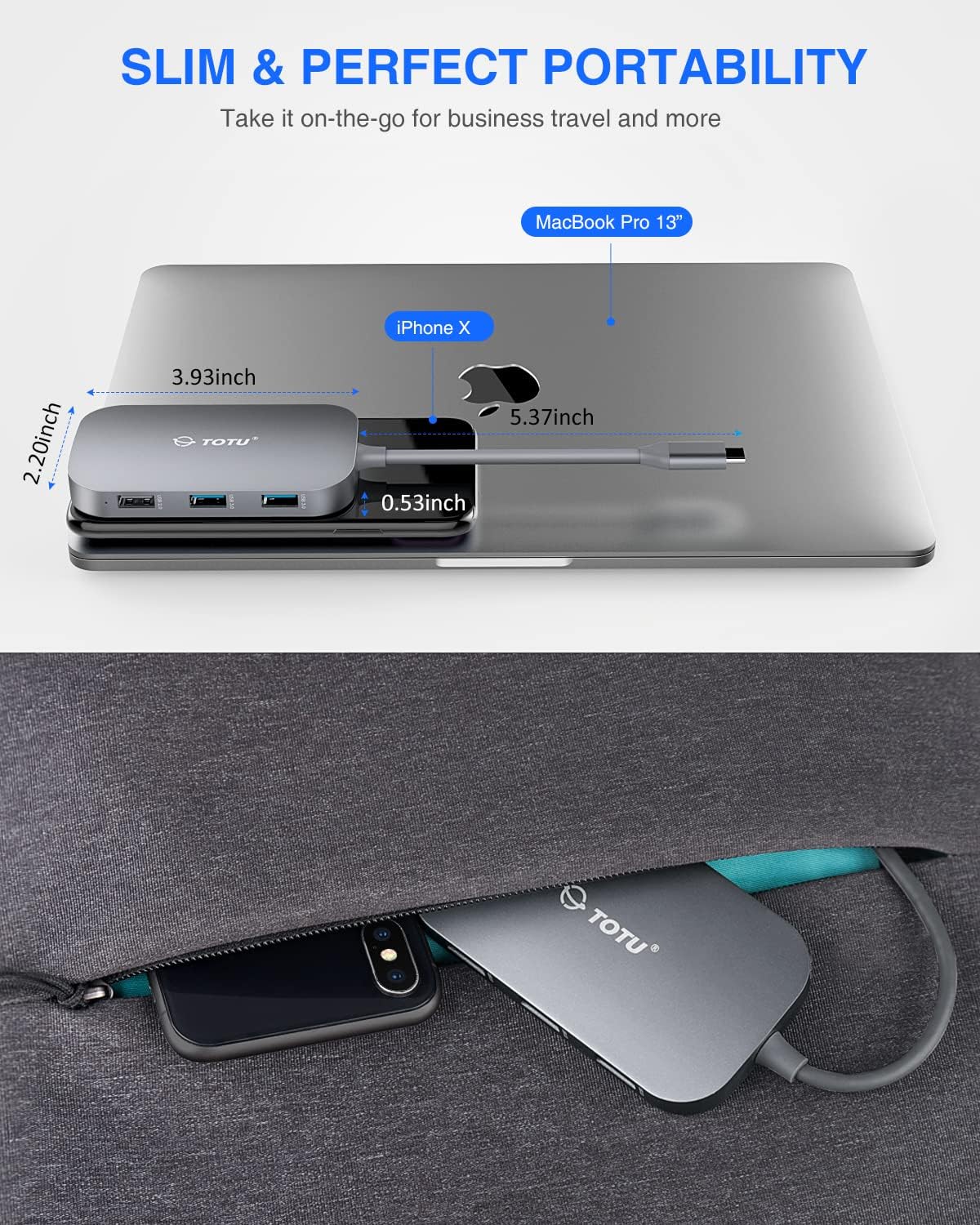

Figure 8: The slim and portable nature of the hub, demonstrating its ease of transport for business or travel.

Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• 1 x TOTU USB C Hub
• 1 x Manwal għall-Utent

Setup

1. Kontroll tal-Kompatibbiltà: Ensure your device's USB-C port supports DisplayPort Alt Mode and Power Delivery. Refer to your device's specifications for compatibility.
2. Qabbad il-Hub: Plug the USB-C connector of the TOTU hub into the USB-C port on your laptop or compatible device.
3. Konnessjoni tal-Enerġija (Mhux obbligatorja): If your laptop requires charging or if you are connecting power-intensive peripherals, connect your laptop's original USB-C power adapter to the USB Type-C Female PD charging port on the hub.
4. Ikkonnettja l-Periferali: Connect your desired peripherals (e.g., HDMI monitor, Ethernet cable, USB drives, SD/TF cards, keyboard, mouse) to the corresponding ports on the hub.
5. Installazzjoni tas-sewwieq: The hub is generally plug-and-play. For certain operating systems (e.g., Windows) or specific functions (e.g., Ethernet, SD card reader), manual driver installation might be required if not automatically recognized. Refer to the troubleshooting section if issues arise.

Istruzzjonijiet Operattivi

Once the hub is connected, you can utilize its various ports:

• Port HDMI: Connect an HDMI cable from the hub to your external monitor, projector, or HDTV. Your device should automatically detect the external display. Adjust display settings (resolution, mirroring/extending) through your operating system's display preferences. Supports up to 4K resolution.
• Port tal-Ethernet (RJ-45): Connect an Ethernet cable from your router or modem to the RJ-45 port on the hub for a stable wired network connection. Ensure your device's network settings are configured for wired connection.
• USB 3.0 Ports (2x): Use these ports for high-speed data transfer with USB 3.0 compatible devices such as external hard drives, SSDs, or high-speed flash drives. They are also backward compatible with USB 2.0/1.1 devices.
• USB 2.0 Port (1x): Ideal for connecting low-bandwidth devices like keyboards, mice, or printers to avoid interference with high-speed USB 3.0 devices.
• USB Type-C PD Charging Port: This port is for power input only. Connect your laptop's USB-C power adapter here to charge your laptop while using the hub. It supports up to 87W power delivery. This port does not support data transfer.
• Qarrejja tal-Kards SD/TF: Insert your SD or TF (microSD) cards into the respective slots. Both card slots can be used simultaneously for data access. Your device will recognize them as removable storage.

Manutenzjoni

• Tindif: Use a soft, dry cloth to clean the hub. Avoid using liquid cleaners or aerosols.
• Ħażna: Aħżen il-hub f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Immaniġġjar: Avoid dropping the hub or subjecting it to strong impacts. Do not attempt to disassemble or modify the device.
• Kura tal-Port: Ensure connectors are inserted gently and correctly into the ports to prevent damage.

Issolvi l-problemi

• No Display Output via HDMI:
  • Ensure your device's USB-C port supports DisplayPort Alt Mode.
  • Check the HDMI cable connection between the hub and the display.
  • Verify the input source on your monitor is set to the correct HDMI port.
  • Ipprova kejbil HDMI jew monitor differenti.
  • Ibda mill-ġdid il-kompjuter tiegħek.
• Kwistjonijiet ta' Konnessjoni Ethernet:
  • Ensure the Ethernet cable is securely connected to both the hub and your router/modem.
  • Check your computer's network settings to ensure the wired connection is enabled and configured correctly.
  • If using Windows, and the Ethernet port is not recognized, you may need to manually install a generic Broadcom NetXtreme driver.
  • Ipprova kejbil Ethernet differenti.
• Apparati USB Mhux Rikonoxxuti:
  • Kun żgur li l-apparat USB huwa mdaħħal sew fil-port tal-hub.
  • Try connecting the USB device to a different port on the hub or directly to your computer to rule out device issues.
  • Some high-power USB devices may require external power if the hub's PD port is not connected to a power source.
• Il-Qarrej tal-Kards SD/TF Mhux Jaħdem:
  • Kun żgur li l-kard hija mdaħħla kompletament fl-islott korrett.
  • Try a different SD/TF card.
  • On Windows, if the card reader is not recognized, try reinstalling the generic Microsoft driver and manually assigning a drive letter in Disk Management.
• Charging Issues (PD Port):
  • Ensure your laptop's original USB-C power adapter is connected to the hub's PD port.
  • Ivverifika li l-laptop tiegħek jappoġġja l-USB-C Power Delivery.
  • Note that the HDMI output may briefly interrupt (2-3 seconds) if external USB-C power is removed from the hub. This is normal behavior.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information and technical support, please refer to the official TOTU webis-sit jew ikkuntattja s-servizz tal-konsumatur tagħhom. Żomm l-irċevuta tax-xiri tiegħek għal talbiet ta’ garanzija.

You can visit the TOTU Store for more information: TOTU Store on Amazon
