1. Introduzzjoni
This manual provides detailed instructions for the assembly, use, and care of your new 45MinST 14 Inch Reinforced Platform Bed Frame. Designed for durability and ease of use, this bed frame offers robust support for your mattress without the need for a box spring, and provides ample under-bed storage space. Please read all instructions carefully before assembly and use.
Figure 1.1: The 45MinST 14 Inch Reinforced Platform Bed Frame, showcasing its sturdy black steel construction and slat design.
2. Informazzjoni dwar is-Sigurtà
Jekk jogħġbok osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment jew ħsara lill-prodott:
- Piż Tqil: Exercise caution when handling and assembling the bed frame due to its significant weight. It is recommended to have two people for assembly.
- Truf li jaqtgħu: Be cautious of sharp edges on metal components during unpacking and assembly.
- Periklu ta' tfixkil: The 14-inch height of the bed frame may present a tripping hazard. Watch your step, especially when getting in or out of bed.
- Kapaċità tal-piż: Teċċedix il-kapaċità ta' piż rakkomandata tal-qafas tas-sodda. Irreferi għat-taqsima tal-ispeċifikazzjonijiet għad-dettalji.
3. Lista tal-Komponenti u l-Partijiet
Before beginning assembly, ensure all parts are present and undamaged. The bed frame consists primarily of heavy-duty steel components designed for strength and stability.
Figure 3.1: Detail of the reinforced structure at the corners and the pre-drilled holes for headboard attachment.
Komponenti Inklużi:
- Main Frame Sections (typically two foldable halves)
- Paletti tal-Azzar
- Saqajn ta' Appoġġ
- Il-ħardwer kollu meħtieġ (boltijiet, skorfini, woxers)
- Għodda tal-Assemblaġġ (Allen wrench)
Nota: While an assembly tool is included, using a personal set of Allen wrenches may provide better leverage and ease of assembly.
4. Setup u Assemblea
The 45MinST platform bed frame features an integrated, compact design for extremely easy assembly, typically taking minutes. All required hardware and tools are included.
Passi tal-Assemblea:
- Ħoll il-Komponenti: Neħħi l-partijiet kollha mill-imballaġġ bir-reqqa. Poġġihom fuq wiċċ nadif u ċatt biex tiżgura li l-biċċiet kollha jkunu preżenti u ma jkollhomx ħsara.
- Iftaħ is-Sezzjonijiet tal-Qafas: The main frame typically comes in two foldable sections. Carefully unfold these sections.
- Connect Frame Halves: Align the two frame halves and connect them using the provided bolts and nuts. It is recommended to leave the screws and bolts slightly loose until all are aligned, then tighten them securely.
- Installa l-Paletti: Position the steel slats into their designated slots on the frame. Ensure they are evenly spaced and securely seated.
- Waħħal is-Saqajn ta' Appoġġ: Ensure all support legs are properly extended and locked into place.
- Issikkar finali: Once all components are in place and aligned, securely tighten all bolts and connections.
Figure 4.1: Visual representation of the integrated structure designed for extremely easy assembly.
Tip: Assembly is significantly easier with two people.
5. Istruzzjonijiet Operattivi (Użu)
Your 45MinST platform bed frame is designed for optimal mattress support and convenience.
Karatteristiċi Ewlenin u Użu:
- Appoġġ tas-Saqqu: The frame features tough square steel slats that provide robust support for your mattress, eliminating the need for a box spring and potentially extending your mattress's life expectancy.
- Disinn li ma jiżloqx: The frame includes a 1.4-inch subsidence to enclose the mattress, preventing it from slipping or wobbling during use.
Figure 5.1: The 1.4-inch recessed edge designed to keep the mattress securely in place.
- Ħażna taħt is-sodda: With 14 inches of clearance from the ground, the bed frame provides a significant amount of space for under-bed storage, helping to maximize your room's utility.
Figure 5.2: The bed frame integrated into a bedroom, highlighting the ample space available underneath for storage.
- Kompatibilità mal-Headboard: The frame is designed to be compatible with most standard headboards, featuring pre-drilled holes for easy attachment.
6. Manutenzjoni
To ensure the longevity and continued performance of your 45MinST bed frame, follow these simple maintenance guidelines:
- Tindif: Wipe the bed frame with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish.
- Iċċekkja l-Konnessjonijiet: Spezzjona perjodikament il-boltijiet u l-konnessjonijiet kollha biex tiżgura li jibqgħu ssikkati. Issikkahom mill-ġdid jekk meħtieġ biex iżżomm l-istabbiltà u tevita l-ħoss ta' ħsejjes.
- Spezzjoni tal-paletti: Occasionally check the steel slats to ensure they are properly seated and not dislodged.
7 Issolvi l-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom mal-qafas tas-sodda tiegħek.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-istruttura tas-sodda tgħajjat jew titħarrek. | Boltijiet jew konnessjonijiet maħlula. | Check and tighten all assembly bolts. Ensure all frame sections are securely connected. |
| Mattress sags or dips in one area. | A slat may have come loose or dislodged. | Lift the mattress and re-seat any loose slats into their designated slots. Consider adding a thin piece of plywood or hardboard between the mattress and slats for additional support if slats feel too far apart for your mattress type. |
| Bed frame slides on hard flooring. | Lack of friction between legs and floor. | Apply felt pads or furniture cups to the bottom of the bed frame legs to increase friction and prevent sliding. |
| Storage bins do not fit under the bed. | Bin height exceeds clearance. | The bed frame provides approximately 12 inches of usable clearance. Use storage bins that are 12 inches or less in height. |
| Stubbing toes on bed frame legs. | User proximity to frame legs. | Be mindful of the bed frame's perimeter, especially the legs, when moving around the bed. |
8. Speċifikazzjonijiet
Detailed specifications for the 45MinST 14 Inch Reinforced Platform Bed Frame (Queen size):
| Karatteristika | Dettall |
|---|---|
| Daqs | Reġina |
| Dimensjonijiet tal-Prodott (L x W x H) | 82.4" x 62.4" x 14" |
| Karatteristika Speċjali | Reżistenti għall-ħoss |
| Kulur | Iswed |
| Tip Finish | Lakkat |
| Komponenti Inklużi | Slat |
| Daqs tas-Saqqu Kompatibbli | Reġina |
| Brand | 45MinST |
| Għamara Finish | Azzar Liga |
| Istruzzjonijiet għall-Kura tal-Prodott | Imsaħ b'Ċarruta Niexfa |
| Assemblea Meħtieġa | Iva |
| Ground To Item Distance (Clearance) | 14 Pulzier |
| Piż tal-oġġett | 52 liri |
| Numru tal-Mudell | IM-P60-Q |

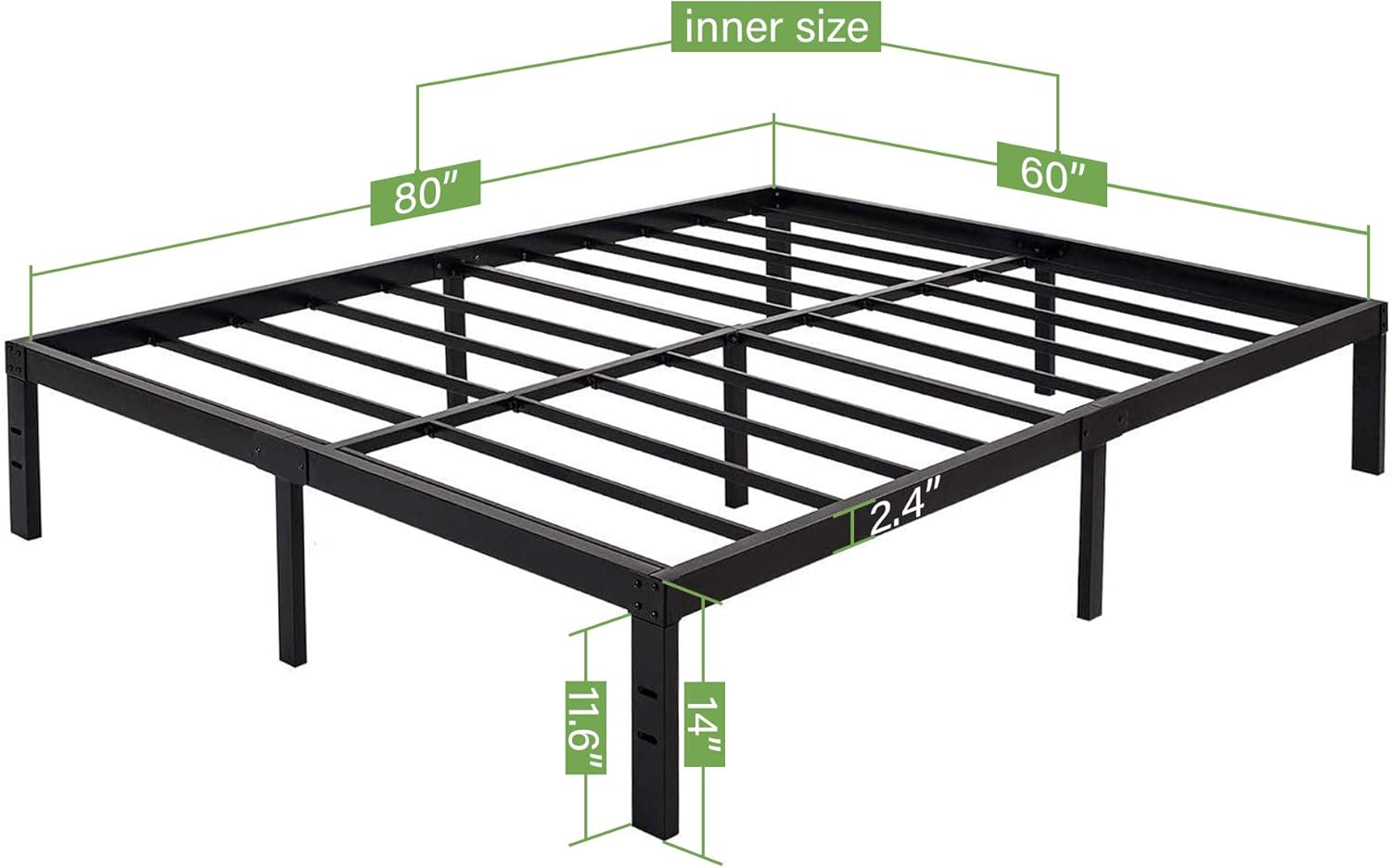

Figure 8.1: Key dimensions of the 45MinST Queen Platform Bed Frame.
9. Informazzjoni dwar Garanzija
Specific warranty details for the 45MinST 14 Inch Reinforced Platform Bed Frame are typically provided by the manufacturer or seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage, terms, and conditions.
Optional protection plans may be available for purchase separately. These plans are not provided by the manufacturer and their terms vary.
10. Appoġġ għall-Klijent
For any questions, concerns, or assistance with your 45MinST bed frame, please contact the seller directly. The seller, 45minBedFrame, offers 24-hour online support.
You can typically find seller contact information through your purchase platform or by visiting the seller's store page:
Contact 45minBedFrame Seller Support
Please have your model number (IM-P60-Q) and purchase details ready when contacting support to facilitate a quicker resolution.
