Pro Breeze Portable Oil-Filled Radiator (Model PB-H05)

1. Introduzzjoni

Thank you for choosing the Pro Breeze Portable Oil-Filled Radiator, Model PB-H05. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

Image 1: Pro Breeze Portable Oil-Filled Radiator (Model PB-H05) showing its full design with control panel and wheels.

2. Istruzzjonijiet tas-Sigurtà

To reduce the risk of fire, electric shock, or injury, always observe basic safety precautions when using this appliance.

• Protezzjoni mis-sħana żejda: The radiator is equipped with an integrated overheat protection system that automatically shuts off the unit if it becomes too hot.
• Swiċċ ta' Tidwib: An automatic tip-over switch will instantly turn off the radiator if it is accidentally knocked over.
• Always place the radiator on a firm, level surface.
• Do not cover the radiator or obstruct its air vents.
• Keep flammable materials at least 1 meter (3 feet) away from the radiator.
• Tużax fil-kmamar tal-banju, f'żoni tal-ħasil tal-ħwejjeġ, jew f'postijiet simili ġewwa fejn jista' jkun hemm l-ilma.
• Unplug the radiator when not in use.
• Toperax b'korda jew plagg bil-ħsara.
• Dan l-apparat huwa għall-użu fuq ġewwa biss.

Image 2: Illustration of the radiator's tip-over safety feature, showing the unit automatically shutting off if tilted.

3. Karatteristiċi tal-prodott

• 8 Oil-Filled Elements: Efficiently heats small to medium-sized rooms up to 28m².
• 3 Issettjar tas-Sħana: Select from 800W, 1200W, or 2000W power levels.
• Termostat aġġustabbli: Żomm it-temperatura mixtieqa tal-kamra.
• Timer ta' 24 siegħa: Program the radiator to turn on or off automatically.
• Chimney Effect Design: Accelerates hot air circulation for rapid heating.
• Disinn portabbli: Pre-assembled with 4 swivel casters and carry handles for easy movement.
• Karatteristiċi tas-Sigurtà: Integrated overheat protection and tip-over switch.

Immaġni 3: Fuqview of the radiator's key features, including power settings, chimney design, timer, temperature control, overheat protection, and 8 oil-filled elements.

Image 4: Diagram illustrating the advanced chimney-effect design, which enhances heat diffusion and speeds up room heating.

4. Setup

1. Spakkjar: Carefully remove the radiator from its packaging. Retain packaging for storage or disposal.
2. Pjazzament: Place the radiator on a stable, level surface. Ensure it is at least 1 meter (3 feet) away from walls, furniture, and other objects.
3. Konnessjoni tal-Enerġija: Plug the power cord into a suitable 240V AC electrical outlet. Ensure the outlet is properly grounded.

The radiator comes pre-assembled with swivel casters for easy mobility. No assembly is required for the wheels.

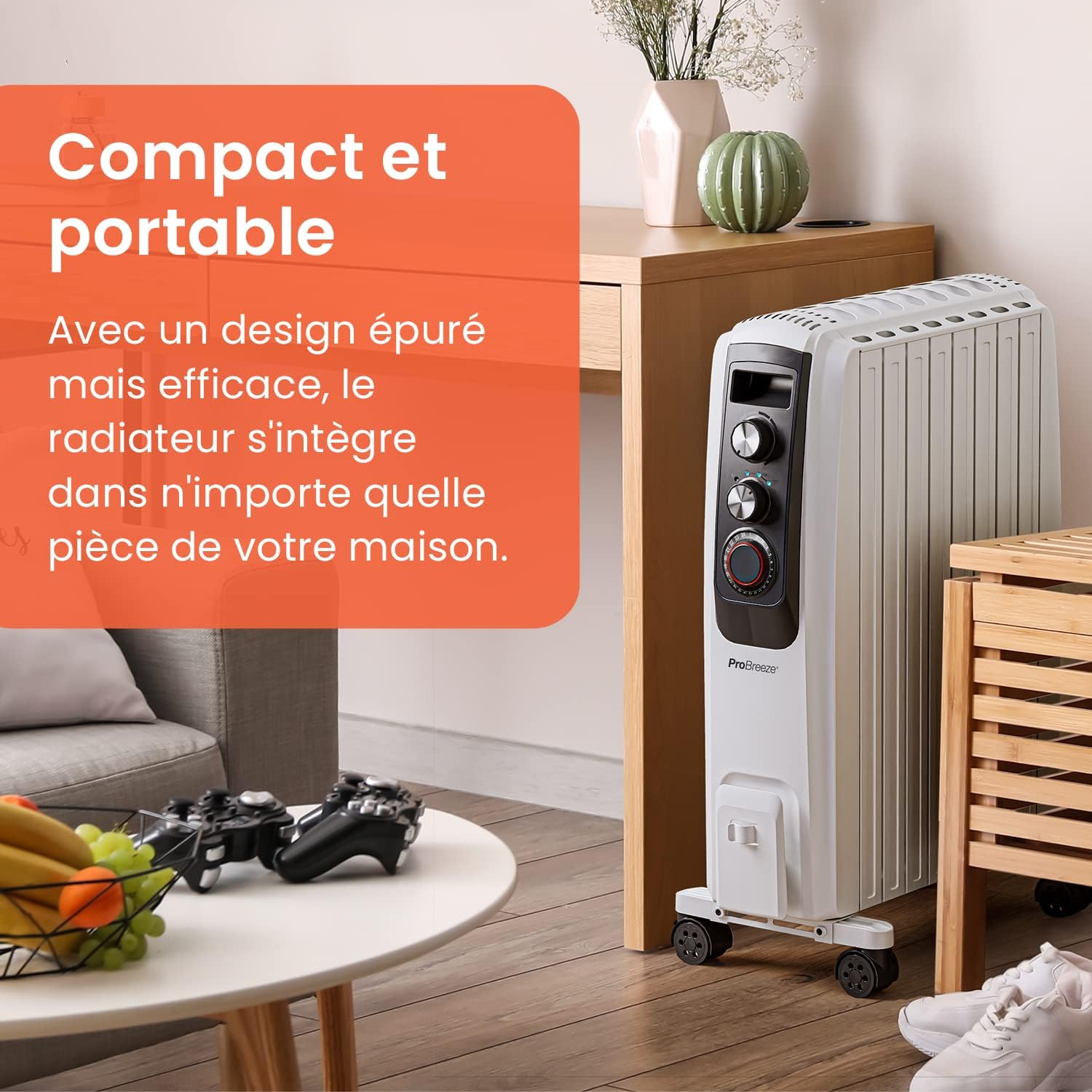

Image 5: The radiator positioned in a living space, demonstrating its compact and portable design.

5. Istruzzjonijiet Operattivi

5.1 Control Panel Overview

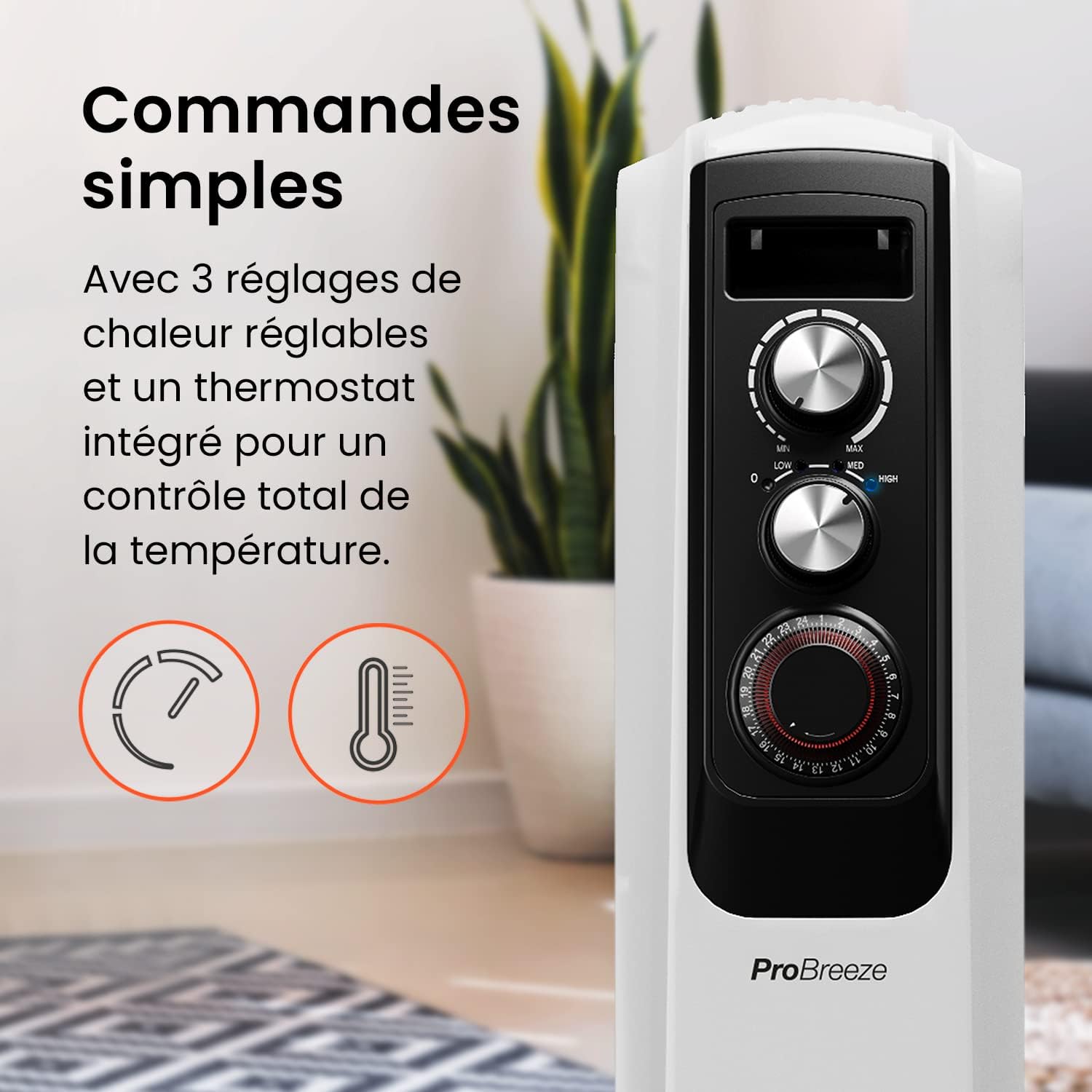

Immaġni 6: Mill-qrib view of the control panel, showing the power selector dial, thermostat dial, and 24-hour timer.

• Power Selector Dial: Used to choose the heat output (MIN, MED, MAX).
• Dial tat-termostat: Użat biex tissettja t-temperatura mixtieqa tal-kamra.
• Timer ta' 24 siegħa: Used to program automatic on/off times.

5.2 Operazzjoni Inizjali

1. Plug the radiator into a suitable power outlet.
2. Turn the Power Selector Dial to your desired heat setting:
   • MIN: 800W
   • MED: 1200W
   • MAX: 2000W
3. Turn the Thermostat Dial to the maximum setting. Once the room reaches your desired temperature, slowly turn the thermostat dial counter-clockwise until the indicator light turns off. The radiator will now maintain this temperature.

5.3 L-Użu tat-Tajmer ta' 24 Siegħa

The 24-hour timer allows you to program specific on/off periods for the radiator.

1. Ensure the radiator is plugged in and the Power Selector Dial is set to a desired heat level (MIN, MED, or MAX).
2. Each segment on the timer dial represents 15 minutes. Push the segments inwards for the periods you want the radiator to be ON. Leave segments outwards for periods you want the radiator to be OFF.
3. Rotate the timer dial clockwise until the current time aligns with the arrow indicator.
4. The radiator will now operate according to your programmed schedule.

Nota: If the timer is set, the radiator will only operate during the programmed "ON" periods, provided the thermostat is set above the ambient room temperature.

Image 7: A person relaxing, illustrating the convenience of the 24-hour timer for automatic operation.

6. Manutenzjoni

• Tindif: Dejjem aqla’ r-radjatur u ħallih jiksaħ kompletament qabel ma tnaddaf. Imsaħ l-uċuħ ta’ barra b’ċarruta ratba u nadifa.amp drapp. Tużax tindif jew solventi li joborxu.
• Ħażna: When not in use for extended periods, store the radiator in a cool, dry place. It is recommended to store it in its original packaging to protect it from dust and damage.
• Ebda Manutenzjoni Interna: The oil in this radiator is permanently sealed and never needs refilling or replacement. Do not attempt to open the unit.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

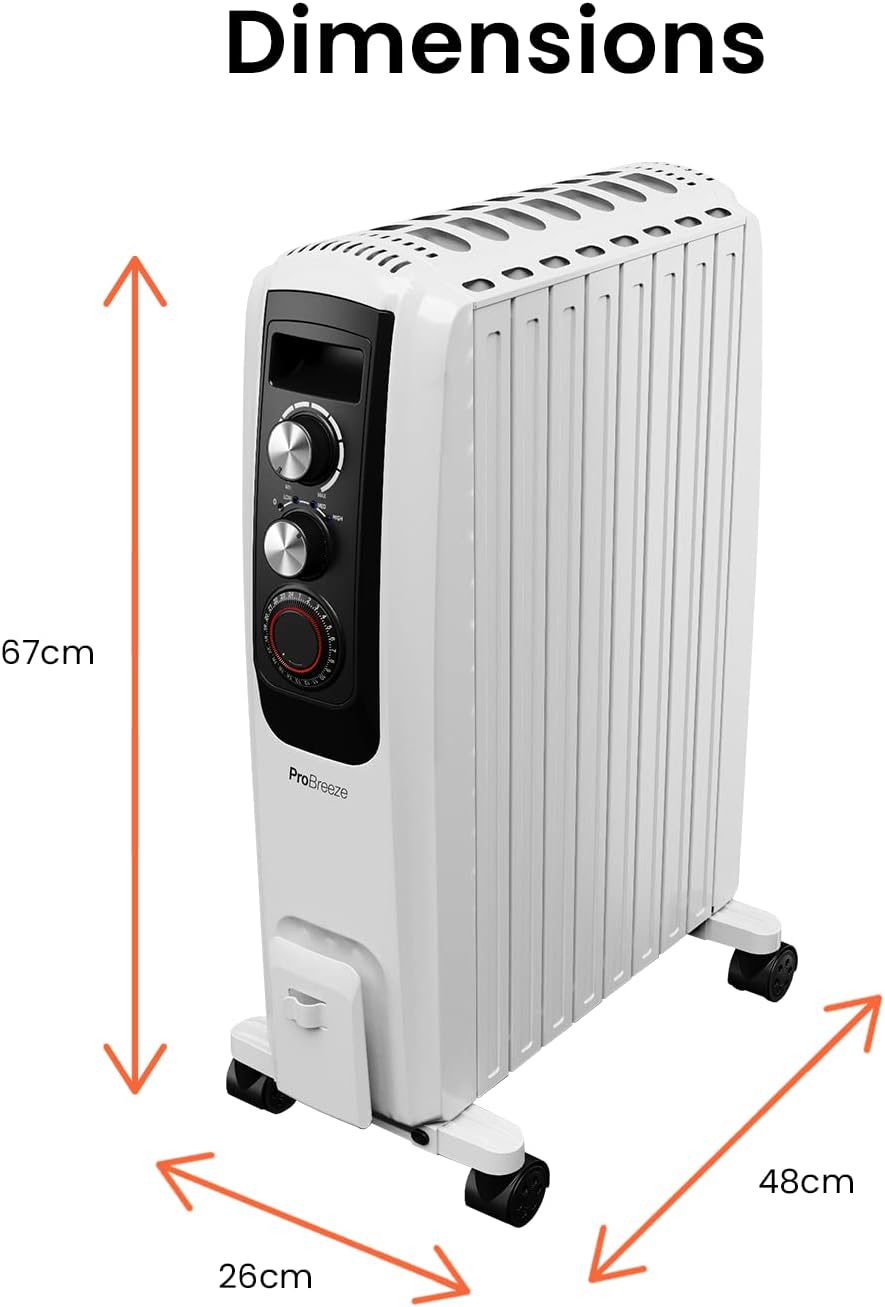

Image 8: Diagram showing the physical dimensions of the Pro Breeze Oil-Filled Radiator: 67cm height, 26cm width, and 48cm depth.

9. Garanzija u Appoġġ

For information regarding warranty coverage, technical support, or spare parts, please refer to the warranty card included with your product packaging or visit the official Pro Breeze website. Do not attempt to repair the appliance yourself; contact qualified personnel for service.

Pro Breeze Websit: Visit Pro Breeze Store
