Introduzzjoni

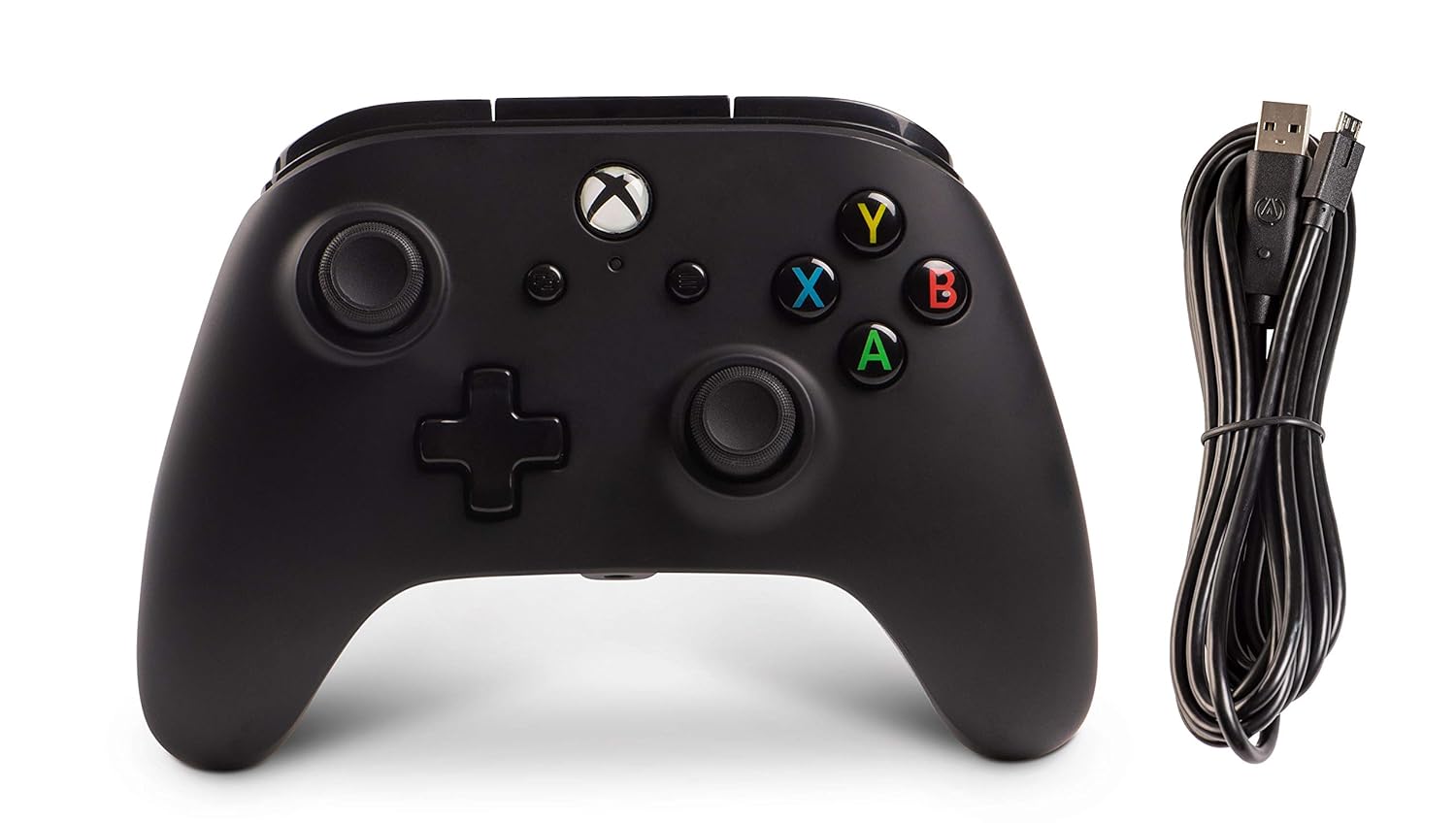

The PowerA Enhanced Wired Controller for Xbox One offers a familiar and comfortable form factor with a soft-touch rubberized finish, designed to work seamlessly with all your games. This officially licensed Xbox controller includes two mappable advanced gaming buttons on the back, dual rumble motors for immersive feedback, and a 3.5mm stereo headset jack for audio. It also features precision-tuned analog sticks, a plus-shaped D-pad, and a standard button/bumper/trigger layout. This controller provides a high-quality gaming experience at an accessible price point.
X'inhu Inkluż
- Kontrollur bil-wajer imtejjeb PowerA għal Xbox One
- Detachable 9.8 feet (3 meter) USB Cable
Setup
- Qabbad il-Kontrollur: Connect the small (micro) USB end of the cable into the port located on the back of the controller.
Immaġni: Ġenb view of the controller showing the micro USB port and connected cable. - Connect to Xbox One: Connect the large (standard) USB end of the cable into an available USB port on your Xbox One console.
- Qawwa Mixgħul: Turn on your Xbox One console by either touching the Xbox Button on the console itself or by pressing the Xbox Button located on the controller.
- Lest biex tilgħab: The white LED indicator light above the Xbox Button on the controller will illuminate, indicating that the controller is connected and ready for use.
Immaġni: Quddiem view of the controller with the Xbox button lit up, indicating power.
For a visual guide on how to connect and use the controller, please watch the official PowerA video below:
Istruzzjonijiet Operattivi
Buttuni Avvanzati tal-Logħob
The PowerA Enhanced Wired Controller features two mappable Advanced Gaming Buttons (AGB) on the back, labeled AGL (Advanced Gaming Button Left) and AGR (Advanced Gaming Button Right). These buttons allow you to assign functions from other controller buttons for quick access and improved response during gameplay.
Mapping Advanced Gaming Buttons:
- Press the Program Button (1) on the back of the controller. The Program LED (2) will flash, indicating programming mode.
- Press the button you wish to map (e.g., A/B/X/Y, LB/RB, LT/RT, D-pad, Left Stick Click, Right Stick Click).
- Press the AGL or AGR button (3) you wish to assign. The Program LED will stop flashing, indicating the button has been successfully mapped.
Resetting Advanced Gaming Buttons:
To reset the Advanced Gaming Buttons to their default settings, press and hold the Program Button for 5 seconds. The Program LED will flash rapidly, then turn off, indicating that all AGBs have been reset.
Jack tal-widna
The controller includes a 3.5mm stereo headset jack, allowing you to connect your gaming headset directly to the controller for in-game audio and chat functionality.
Muturi Doppji tar-Rumble
Experience enhanced immersion with dual rumble motors that provide tactile feedback during gameplay, reacting to in-game events like explosions, impacts, and more.
Manutenzjoni
- Żomm il-kontrollur nadif billi timsaħ b'ċarruta ratba u niexfa. Evita li tuża kimiċi ħarxa jew materjali li joborxu.
- Store the controller in a cool, dry place when not in use to prevent damage from extreme temperatures or humidity.
- Handle the detachable USB cable with care. Avoid sharp bends or excessive pulling to prevent damage to the cable or the controller's port.
Issolvi l-problemi
Controller Not Responding / Not Turning On
- Iċċekkja l-Konnessjoni tal-Cable: Ensure the USB cable is fully and securely inserted into both the controller and the Xbox One console's USB port. Sometimes, the cable may not be pushed in all the way.
Immaġni: Wara view of the controller, highlighting the cable connection point. - Reseat Xbox Power: Unplug your Xbox One console from its power source for a few seconds, then plug it back in. This can sometimes resolve connectivity issues.
- Spezzjona Portijiet: Gently inspect both the USB port on the Xbox One and the micro USB port on the controller for any debris or damage. If necessary, carefully clean the ports.
- Ipprova Port USB Differenti: Connect the controller to a different USB port on your Xbox One console to rule out a faulty port.
- Test on Another Device (PC): If possible, test the controller on a Windows 10 PC. The controller should be recognized automatically without additional drivers. This can help determine if the issue is with the controller or the Xbox console.
For additional troubleshooting tips, you may find this user-submitted video helpful:
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | 1505660-03 |
| Dimensjonijiet tal-Prodott | 5.43 x 4.06 x 2.64 pulzieri |
| Piż tal-oġġett | 11.7 uqija |
| Tul tal-Cable | 9.8 pied (3 metri) |
| Jack tal-widna | Stereo 3.5mm |
| Muturi Rumble | Doppju |
| Buttuni Avvanzati tal-Logħob | 2 (Mappable) |
| Kompatibilità | Xbox One, Windows 10 |
| Manifattur | QAWWA A |
| Data ta' Rilaxx | 15 ta’ Marzu, 2018 |
Garanzija u Appoġġ
This PowerA Enhanced Wired Controller comes with a Garanzija limitata ta 'sena. This warranty reinforces PowerA's commitment to quality, ensuring you can trust their products to perform.
Għal informazzjoni dettaljata dwar il-garanzija, appoġġ tekniku, jew biex view the official user manual in PDF format, please visit the PowerA website or refer to the provided user guide:
- Manwal Uffiċjali għall-Utent (PDF): Niżżel PDF
- PowerA Official Store: Żur il-Ħanut
