1. Istruzzjonijiet Importanti dwar is-Sigurtà
Please read all instructions carefully before using the Bestron AOV45 Mini Oven. Retain this manual for future reference.
- Sigurtà Elettrika: Tiżgura l-voltage rating on the appliance matches your local power supply. Do not immerse the appliance, cord, or plug in water or other liquids. Unplug from the outlet when not in use and before cleaning.
- Periklu ta' Sħana u Ħruq: The oven surfaces become very hot during and after operation. Always use oven mitts or gloves when handling hot items or reaching into the oven. Do not touch hot surfaces.
- Pjazzament: Place the oven on a stable, heat-resistant surface. Ensure adequate ventilation around the oven; do not block any ventilation openings. Do not place near flammable materials or objects.
- Superviżjoni: Close supervision is necessary when any appliance is used by or near children. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Użu xieraq: Do not use the appliance for anything other than its intended household use. Do not operate the oven with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Aċċessorji: L-użu ta' aċċessorji aċċessorji mhux rakkomandati mill-manifattur tal-apparat jista' jikkawża korrimenti.
- Tindif: Dejjem aqla’ l-forn mill-plagg u ħallih jiksaħ kompletament qabel ma tnaddfu.
2. Prodott Aktarview
The Bestron AOV45 is a versatile 45-liter mini oven designed for various cooking tasks, including baking, grilling, and rotisserie. It features a durable stainless steel construction and intuitive controls.
2.1 Komponenti
- Oven Housing: Main body of the oven.
- Bieb tal-Ħġieġ: Double-walled for insulation and safety.
- Panel tal-Kontroll: Located on the right side, featuring three rotary dials.
- Dial tat-temperatura: To set the desired cooking temperature.
- Dial tal-Funzjoni: To select cooking modes (e.g., top heat, bottom heat, convection, rotisserie).
- Dial tat-Tajmer: To set cooking time up to 60 minutes.
- Dawl Indikatur tal-Enerġija: Jixgħel meta l-forn ikun qed jaħdem.
- Rack tal-forn: For placing baking dishes or food directly.
- Trej tal-Ħami: Enamelled tray for baking or catching drips.
- Spit Rotisserie: Għall-inkaljar ta' tiġieġ sħaħ jew laħmijiet oħra.
- Immaniġġjar tar-Rotisserie: For safe insertion and removal of the rotisserie spit.

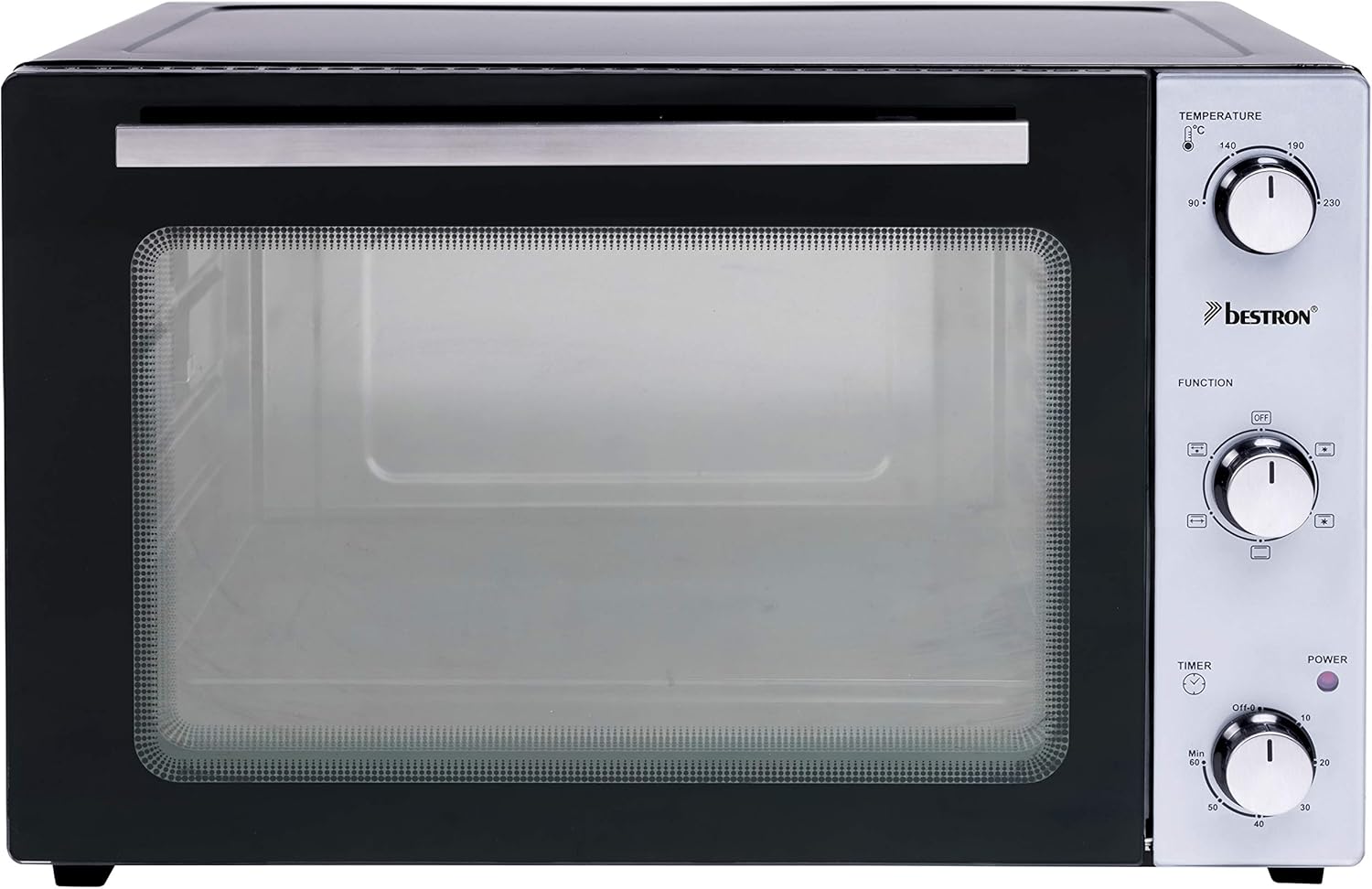

Figura 1: Quddiem view of the Bestron AOV45 Mini Oven, showing the glass door and control panel with temperature, function, and timer dials.
3. Setup
- Spakkjar: Carefully remove the oven and all accessories from the packaging. Remove any protective films or stickers.
- Pjazzament: Place the oven on a flat, stable, and heat-resistant surface. Ensure there is at least 10-15 cm of clear space on all sides (back, top, and sides) for proper ventilation. Do not place the oven directly against a wall or under cabinets.
- Tindif Inizjali: Imsaħ l-intern u l-barra tal-forn b'adamp cloth. Wash the oven rack, baking tray, rotisserie spit, and handle with warm, soapy water, then rinse and dry thoroughly.
- L-Ewwel Użu (Ħruq): Before cooking food, operate the oven empty for approximately 15 minutes to burn off any manufacturing residues.
- Insert the oven rack.
- Agħlaq il-bieb tal-forn.
- Set the Temperature Dial to 230°C.
- Set the Function Dial to Top and Bottom Heat with Convection.
- Set the Timer Dial to 15 minutes.
- Jista' jkun hemm riħa ħafifa jew duħħan waqt din l-operazzjoni inizjali; dan huwa normali. Kun żgur li ż-żona tkun ventilata sew.
- Once the timer rings, turn all dials to the "OFF" position and allow the oven to cool completely.
4. Istruzzjonijiet Operattivi
4.1 Tisjir Ġenerali
- Ipprepara l-Ikel: Place your food on the oven rack or baking tray.
- Daħħal l-Ikel: Carefully slide the rack or tray into the desired level within the oven. The oven has 3 levels.
- Agħlaq Bieb: Ensure the oven door is securely closed.
- Issettjat Temperatura: Turn the Temperature Dial to the desired cooking temperature (up to 230°C).
- Agħżel Funzjoni: Turn the Function Dial to select the appropriate cooking mode:
- Sħana ta' Fuq: For browning or grilling.
- Sħana tal-qiegħ: For baking bases or gentle heating.
- Top & Bottom Heat: Standard baking for most dishes.
- Top & Bottom Heat with Convection: For even cooking and faster results.
- Rotisserie with Top & Bottom Heat: For roasting with rotation.
- Issettja l-Timer: Turn the Timer Dial to the desired cooking time (up to 60 minutes). The power indicator light will illuminate.
- Tisjir Monitor: You can observe the cooking process through the glass door.
- Tlestija: The oven will automatically turn off and a bell will ring when the timer reaches zero.
- Neħħi l-Ikel: Carefully open the door and use oven mitts to remove the cooked food.
Figura 2: The Bestron AOV45 Mini Oven in operation, baking bread on the oven rack.
Figura 3: A chicken and vegetables cooking in a baking dish inside the Bestron AOV45 Mini Oven.
4.2 L-Użu tal-Funzjoni Rotisserie
- Ipprepara l-Laħam: Securely attach the meat (e.g., whole chicken) onto the rotisserie spit using the forks provided. Ensure it is balanced to prevent uneven rotation.
- Insert Spit: Carefully insert the rotisserie spit into the oven. One end fits into the drive socket on the left side, and the other rests on the support bracket on the right.
- Agħżel Funzjoni: Turn the Function Dial to the "Rotisserie with Top & Bottom Heat" setting.
- Issettja t-Temperatura u l-Ħin: Set the Temperature Dial and Timer Dial as required for your recipe.
- Monitor: The meat will rotate slowly, ensuring even cooking and browning.
- Neħħi: Once cooked, use the rotisserie handle to safely remove the hot spit and meat from the oven.
Figura 4: A whole chicken roasting on the rotisserie spit inside the Bestron AOV45 Mini Oven.
Figura 5: A hand demonstrating the safe removal of a cooked chicken from the rotisserie using the provided handle.
5. Manutenzjoni u Tindif
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Bestron AOV45 Mini Oven.
- Dejjem Skonnettja l-Plagg: Before cleaning, always unplug the oven from the power outlet and allow it to cool down completely.
- Tindif ta' barra: Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax prodotti tat-tindif li joborxu jew spondi tal-għorik, għax jistgħu jagħmlu ħsara lill-finitura.
- Tindif ta 'ġewwa: Għall-intern, imsaħ b'reklamaramp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for mini ovens can be used, following the product's instructions. Ensure all cleaner residue is wiped away.
- Bieb tal-Ħġieġ: Naddaf il-bieb tal-ħġieġ b'annunzjaamp cloth and a mild glass cleaner if necessary.
- Aċċessorji: The oven rack, baking tray, rotisserie spit, and handle can be washed in warm, soapy water. Rinse thoroughly and dry completely before storing or re-inserting into the oven.
- Tgħaddix: Never immerse the main oven unit in water or any other liquid.
6 Issolvi l-problemi
If you encounter issues with your Bestron AOV45 Mini Oven, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-forn ma jixgħelx. | Mhux imdaħħla fil-plakka; ħsara fis-sokit tal-elettriku; tajmer mhux issettjat. | Ensure the oven is securely plugged into a working outlet. Turn the Timer Dial to the desired cooking time. |
| Il-forn mhux qed jisħon sew. | Incorrect temperature or function setting; faulty heating element. | Verify temperature and function dials are set correctly. If the issue persists, contact customer support. |
| Ir-rotisserie mhux qed iddur. | Rotisserie function not selected; spit not correctly inserted; meat too heavy/unbalanced. | Ensure the Function Dial is set to a rotisserie mode. Check that the spit is properly seated in the drive socket and support. Re-balance the meat if necessary. |
| Storbju mhux tas-soltu waqt it-tħaddim. | Normal expansion/contraction of metal; loose component; fan noise. | Some minor noises are normal. If the noise is loud or persistent, or if it's a new development, discontinue use and contact customer support. |
| Duħħan jew riħa ta’ ħruq. | Food spills; residue from first use; excessive grease. | This can be normal during first use (burn-off). For subsequent uses, ensure the oven is clean and free of food debris or excessive grease. If smoke persists, unplug immediately and contact support. |
If the problem is not listed or persists after attempting the solutions, please contact Bestron customer support.
7. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Bestron |
| Numru tal-Mudell | AOV45 |
| Kulur | Iswed |
| Kapaċità | 45 Litri |
| Qawwa | 1800 Watts |
| Voltage | 240 Volts |
| Materjal | Stainless Steel |
| Dimensjonijiet tal-Prodott (L x W x H) | 46.2 x 61.1 x 40.3 ċm |
| Piż tal-oġġett | 13.2 Kilogrammi |
| Karatteristiċi Speċjali | Grill Option, Rotisserie, Convection |
| Timer | 60 minutes with automatic shut-off and bell signal |
| Temperatura Max | 230°C |
8. Garanzija u Appoġġ
The Bestron AOV45 Mini Oven comes with a garanzija ta 'sena, u tiżgura s-serħan tal-moħħ rigward il-kwalità u l-prestazzjoni tiegħu.
For further information, support, or to register your product, please visit the official Bestron websit:
Please have your model number (AOV45) and purchase date ready when contacting support.
