Manwal tal-Utent tar-Ras Termostatika IMI Heimeier 7500-00.500

1. Prodott Aktarview

The IMI Heimeier 7500-00.500 Thermostatic Head is designed for precise control of radiator temperatures. It features a fine cylindrical design and is certified KEYMARK, conforming to DIN EN 215 standards. This thermostatic head is equipped with an M30 x 1.5 threaded connection for easy installation on compatible radiator valves.

Threaded Connection: M30 x 1.5
Medda ta 'Setpoint: 6 °C sa 28 °C
Temperatura Massima tas-Sensor: 50 °C
Ċertifikazzjoni: KEYMARK certified, DIN EN 215 compliant

2. Setup u Installazzjoni

The thermostatic head is designed for straightforward installation on radiator valves with an M30 x 1.5 threaded connection. Ensure the valve body is compatible before proceeding with installation.

Preparazzjoni: Ensure the heating system is depressurized or the radiator valve is closed to prevent water leakage during installation.
Remove Old Head (if applicable): Unscrew any existing thermostatic or manual head from the radiator valve.
Waħħal Ras Ġdida: Align the IMI Heimeier 7500-00.500 Thermostatic Head with the M30 x 1.5 threaded connection on the radiator valve.
Sikur: Hand-tighten the head onto the valve until it is firmly seated. Avoid over-tightening, which could damage the threads.
Iċċekkja għal Tnixxijiet: If the system was depressurized, repressurize it and check for any leaks around the connection point.

IMI Heimeier Thermostatic Head M30 x 1.5 Threaded Connection — **Figura 2:** View of the M30 x 1.5 threaded connection on the IMI Heimeier Thermostatic Head. This image highlights the metal ring and internal mechanism that connects to the radiator valve.

3. Istruzzjonijiet Operattivi

The thermostatic head allows you to set the desired room temperature by rotating the control dial. The temperature range is from 6 °C (frost protection) to 28 °C.

Aġġusta tat-Temperatura: Rotate the outer ring of the thermostatic head to align the desired temperature setting with the indicator mark.
Skala tat-Temperatura: The scale typically ranges from '*' (frost protection, approximately 6 °C) to '5' (maximum heat, approximately 28 °C). Intermediate numbers like 20, 24, 28 represent specific temperature points.
Protezzjoni mill-ġlata: Setting the head to the '*' position will maintain a minimum temperature (around 6 °C) to prevent pipes from freezing.
Iffrankar tal-Enerġija: For optimal energy efficiency, set the thermostatic head to a comfortable temperature and avoid frequent, drastic adjustments.

IMI Heimeier Thermostatic Head Temperature Scale — **Figura 3:** Close-up view of the temperature scale on the IMI Heimeier Thermostatic Head. The numbers 20, 24, and 28 are visible, indicating temperature settings in degrees Celsius.

4. Manutenzjoni

To ensure the longevity and proper functioning of your thermostatic head, follow these simple maintenance guidelines:

Tindif: Clean the exterior of the thermostatic head with a soft, damp drapp. Tużax tindif jew solventi li joborxu.
Aħsel bl-idejn biss: As per manufacturer instructions, the unit is designed for hand washing only if deeper cleaning is required for the exterior. Do not immerse the entire unit in water.
Evita l-Ostruzzjonijiet: Ensure that curtains, furniture, or other objects do not obstruct the thermostatic head, as this can interfere with accurate temperature sensing.

5 Issolvi l-problemi

If you encounter issues with your IMI Heimeier Thermostatic Head, consider the following:

Problema	Kawża Possibbli	Soluzzjoni
Head does not fit the valve.	Incompatibility with the valve's threaded connection, even if marked M30 x 1.5. Some manufacturers may have slight variations.	Verify the specific valve manufacturer's compatibility requirements. Adapters may be available for certain valve types. Consult a plumbing professional if unsure.
Radiator not heating or overheating.	Thermostatic head sensor obstructed, valve pin stuck, or incorrect temperature setting.	Ensure the head is not covered. Remove the head and check if the valve pin moves freely. Adjust the temperature setting.

6. Speċifikazzjonijiet

Karatteristika	Dettall
Manifattur	IMI Heimeier
Numru tal-Mudell	7500-00.500
Konnessjoni bil-kamin	M30 x 1.5
Medda ta 'Setpoint	6 °C sa 28 °C
Max. Sensor Temperature	50 °C
Dimensjonijiet (Pakkett)	9.4 x 4.7 x 4.4 ċm
Piż (Pakkett)	130 gramma
Oriġini	il-Ġermanja
Istruzzjonijiet tal-Kura	Hand wash only (exterior)

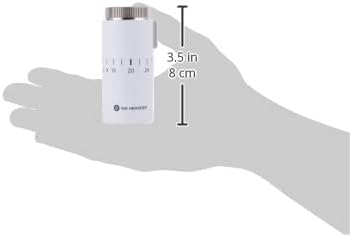

IMI Heimeier Thermostatic Head Dimensions — **Figura 4:** Image illustrating the approximate dimensions of the IMI Heimeier Thermostatic Head, showing a height of 3.5 inches (8 cm).

7. Garanzija u Appoġġ

Specific warranty details are not provided in the product information. For warranty claims, technical support, or further inquiries, please contact IMI Heimeier directly or the retailer from whom the product was purchased.

You can often find contact information on the official IMI Heimeier webis-sit jew permezz tad-dokumentazzjoni tal-prodott tiegħek.
