1. Introduzzjoni
This manual provides essential information for the safe and effective operation of your CHAUVET DJ B550 Bubble King Professional Bubble Machine. The B550 is designed to produce a high volume of bubbles for various event settings. For optimal performance, use only CHAUVET DJ bubble fluid.
Image 1.1: The CHAUVET DJ B550 Bubble King Professional Bubble Machine shown with two gallons of CHAUVET DJ BJG Bubble Fluid.
2. Informazzjoni dwar is-Sigurtà
Adhere to the following safety guidelines to prevent injury and ensure proper machine function:
- Sigurtà Elettrika: Ensure the machine is connected to a power supply matching the specified voltage (110V or 230V). Always use a grounded outlet. Disconnect power before cleaning or servicing.
- Immaniġġjar tal-Fluwidi:
- DO NOT SWALLOW FLUID.
- Żomm fejn ma jintlaħaqx mit-tfal.
- Individuals with asthma should avoid prolonged exposure to bubble output.
- CHAUVET DJ BJG Bubble Fluid is non-toxic, non-flammable, and unscented.
- Store fluid in a cool, dry place.
- Pjazzament: Position the machine on a stable, level surface. Ensure adequate ventilation around the unit and do not obstruct the fan vents.
Immaġni 2.1: Close-up view of the CHAUVET DJ BJG Bubble Juice Gallon, highlighting important safety warnings and specifications.
3. Kontenut tal-Pakkett
Ivverifika li l-pakkett tiegħek fih l-oġġetti li ġejjin:
- 1 x CHAUVET DJ B550 Bubble King Professional Bubble Machine
- 2 x CHAUVET DJ BJG Gallon Bubble Fluid
- Korda tal-Enerġija
4. Setup
- Ippakkja: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Żomm l-imballaġġ għal trasport jew ħażna fil-futur.
- Pjazzament: Place the B550 Bubble King machine on a stable, level, and dry surface. Ensure there is sufficient space around the unit for air circulation.
- Fill Fluid Tank: Locate the removable fluid tank. Fill the tank with CHAUVET DJ BJG Bubble Fluid. Do not overfill.
- Insert Fluid Tank: Securely insert the filled fluid tank into the designated compartment on the machine.
- Qabbad l-Enerġija: Connect the provided power cord to the machine's power inlet and then to a suitable grounded electrical outlet. Ensure the voltage matches the machine's requirements (110V or 230V).
Image 4.1: The interior of the B550 Bubble King, showing the bubble wands and the easily removable fluid tank.

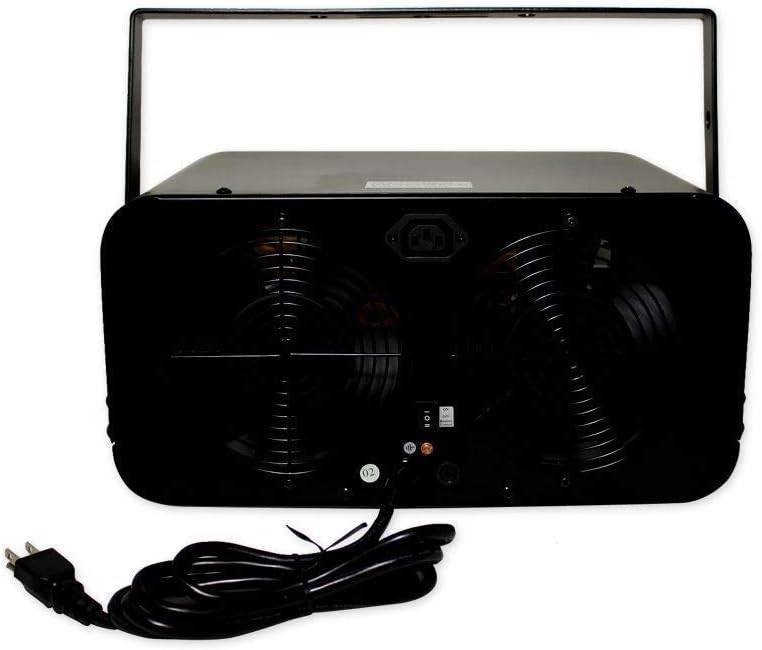

Image 4.2: The rear panel of the B550 Bubble King, illustrating the power inlet and cooling fans.
5. Istruzzjonijiet Operattivi
- Qawwa Mixgħul: Once setup is complete, turn on the machine using the power switch.
- Operazzjoni manwali: Press the manual bubble button to initiate bubble production.
- Kontrolluri mhux obbligatorji: For advanced control, the B550 is compatible with optional controllers (sold separately):
- FC-4 Timer Remote
- FC-5 Wireless Remote
- DMX-3F DMX Adapter/Timer
- Itfi: When finished, turn off the machine and disconnect it from the power supply.
6. Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your bubble machine.
- Tank tal-fluwidu: After each use, empty any remaining bubble fluid from the tank. Clean the tank with water and allow it to dry completely before storage.
- Bubble Wands: Periodically inspect and clean the bubble wands to prevent residue buildup, which can affect bubble production. Use a damp cloth to wipe away any dried fluid.
- Tindif ta' barra: Imsaħ il-barra tal-magna b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
- Tip ta' fluwidu: Always use CHAUVET DJ bubble fluid. Using other fluids may damage the machine and void the warranty.
7 Issolvi l-problemi
If you encounter issues with your B550 Bubble King, refer to the following common solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| No bubbles or very few bubbles | Low fluid level, clogged wands, improperly seated fluid tank. | Check fluid level and refill if necessary. Clean bubble wands. Ensure fluid tank is securely in place. |
| Poor bubble quality (small, blobs) | Incorrect fluid type, residue buildup on wands, old fluid. | Ensure you are using CHAUVET DJ BJG Bubble Fluid. Clean bubble wands and tank. Replace old fluid with fresh fluid. |
| Il-magna ma tixgħelx | Ebda qawwa, volum mhux korretttage, faulty power cord. | Check power connection and wall outlet. Verify correct voltage. Try a different power cord if available. |
If the problem persists after attempting these solutions, contact CHAUVET DJ customer support for further assistance.
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Qawwa | 110V jew 230V |
| Piż tal-Magni | 13.2 lbs (5.9 kg) |
| Dimensjonijiet tal-Magni (L x W x H) | 19 pulzieri x 15 pulzieri x 12 pulzieri (483 mm x 381 mm x 305 mm) |
| Fluid Capacity (per bottle) | 1 gal (3.8 L) |
| Fluid Weight (per bottle) | 9 lbs (4.1 kg) |
| Fluid Dimensions (L x W x H) | 6 pulzieri x 6 pulzieri x 11.8 pulzieri (155 mm x 155 mm x 300 mm) |
| Bastun | 3 double wands |
| Kontroll | Manual bubble button, optional remote control compatibility (FC-4, FC-5, DMX-3F) |
| Tank tal-fluwidu | Tneħħi faċilment |

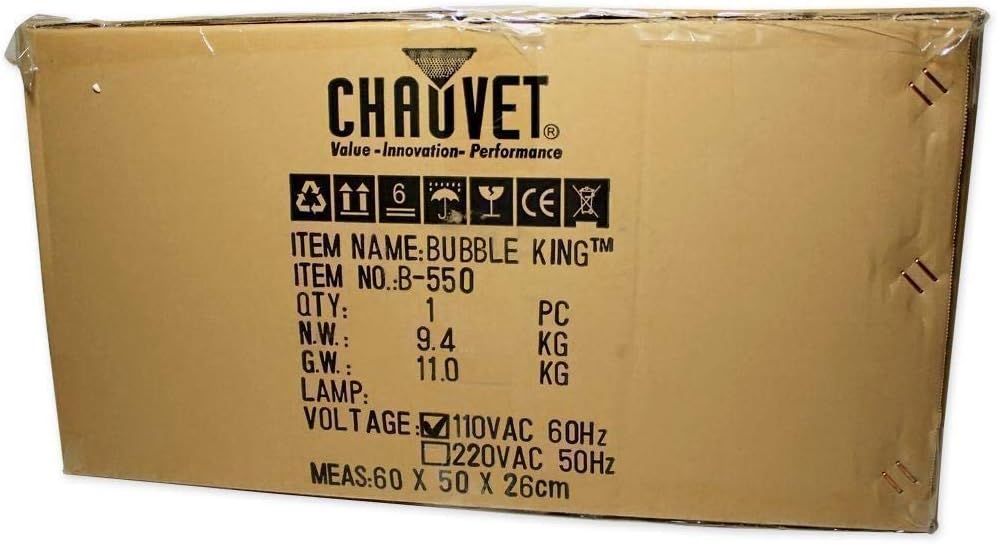

Image 8.1: A label from the product packaging displaying key specifications for the CHAUVET DJ B-550 Bubble King.
9. Garanzija u Appoġġ
For warranty information or technical support, please contact CHAUVET DJ directly. Keep your purchase receipt as proof of purchase. Do not attempt to repair the unit yourself, as this may void the warranty.
