MXBAOHENG Model A Sharp Blade Cutting Head for WBT-1 Electric Fabric Scissors: Instruction Manual

1. Introduzzjoni u Fuqview

This manual provides instructions for the MXBAOHENG Model A Sharp Blade Cutting Head, an accessory designed for the WBT-1 Electric Fabric Scissors. It covers essential information regarding the cutting head's features, proper installation, operational guidelines, maintenance procedures, and technical specifications to ensure safe and effective use.

Image: The MXBAOHENG Model A Sharp Blade Cutting Head, a replacement component for electric fabric scissors.

2. Kompatibilità tal-Prodott

The Model A Sharp Blade Cutting Head is specifically designed for use with the MXBAOHENG WBT-1 Fabric Electric Scissors. It is crucial to verify that your electric scissors are the WBT-1 model before attempting to install this cutting head. Using this cutting head with incompatible electric scissors may result in improper function or damage.

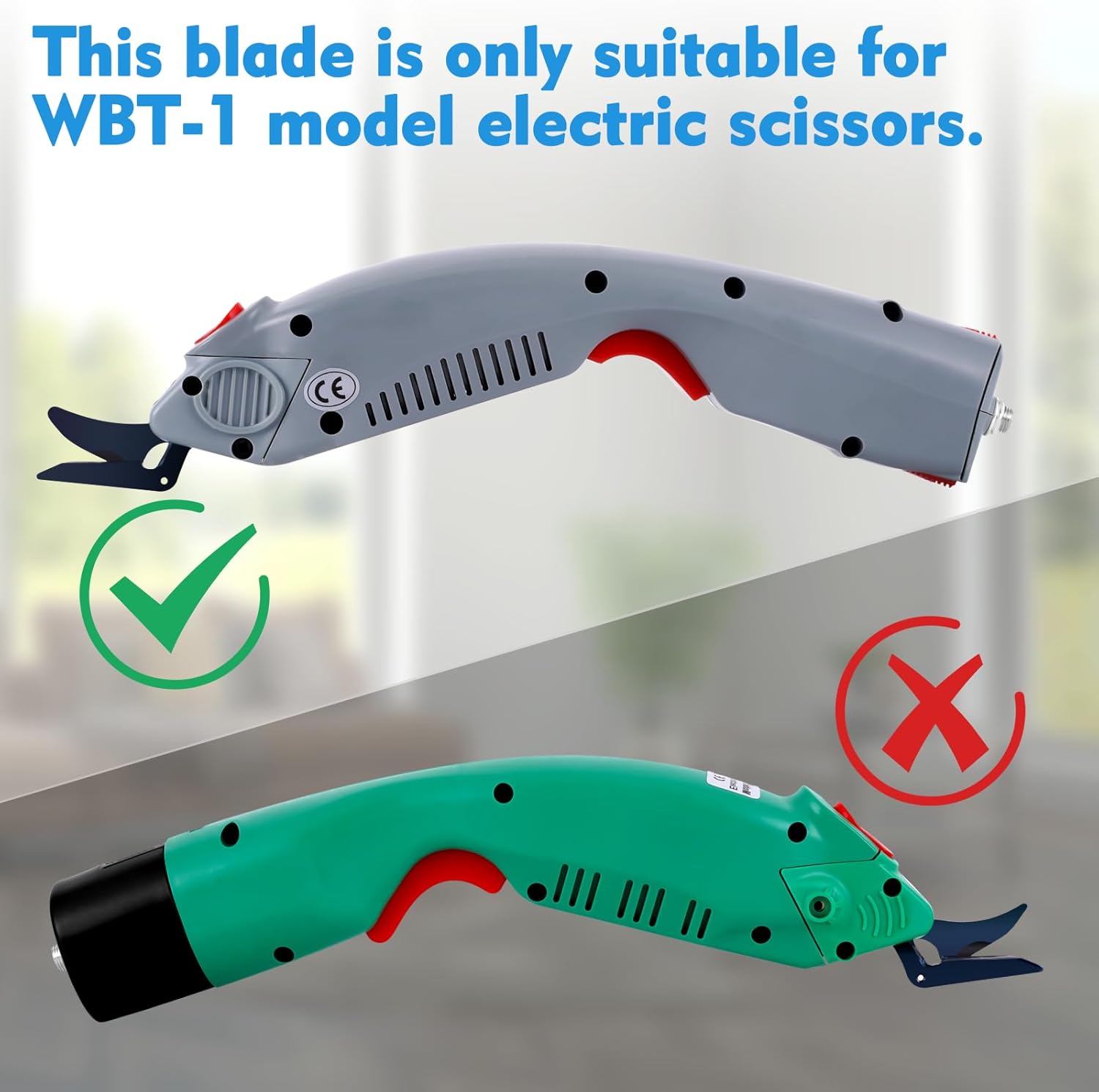

Image: Illustration showing the Model A blade is compatible with the WBT-1 electric scissors (gray model) and incompatible with other models (green model).

3. Features of Model A Cutting Head

• Materjal: Constructed from durable tungsten steel for enhanced hardness and wear resistance.
• Tip ta' xafra: Features a sharp blade edge, optimized for efficient cutting.
• Prestazzjoni tat-Tqattigħ: Designed for fast cutting speeds, particularly effective on thick materials.
• Durabilità: Offers long-lasting sharpness and wear resistance, though its lifespan may vary compared to other blade types depending on material usage.

Immaġni: Close-up view of the tungsten steel cutter head, highlighting its precision craftsmanship and sharp edge.

Image: Visual comparison between Model A and Model B cutting heads, detailing Model A's suitability for thick materials and sharp blade, and Model B's suitability for thinner materials and longer lifespan.

4. Installation (Cutter Head Replacement)

Follow these steps to safely replace the cutting head on your WBT-1 Electric Fabric Scissors:

1. Ensure the electric scissors are powered off and disconnected from any power source.
2. Locate the red release button on the side of the electric scissors, near the cutting head.
3. Push the red button backward.
4. While holding the button, push the existing cutter head forward to detach it from the scissors.
5. Align the new Model A cutting head with the slot on the scissors.
6. Push the new cutting head backward into place until you hear or feel a click, indicating it is securely locked.
7. Gently tug on the cutting head to confirm it is firmly attached before use.

Image: Step-by-step visual guide demonstrating how to push the red button backward and then push the cutter head forward for replacement.

Image: A detailed diagram illustrating the process of head replacement, showing the backward press, forward cutter head, and backward loading head actions.

5. Istruzzjonijiet Operattivi

With the Model A cutting head securely installed, you can begin cutting various materials. Ensure the WBT-1 electric scissors are fully charged or connected to a power source before operation.

• Place the material to be cut on a clean, flat, and stable surface.
• Hold the electric scissors firmly and activate the cutting mechanism.
• Guide the cutting head smoothly along the desired cutting line. The Model A is optimized for cutting thicker materials with precision.
• Avoid forcing the cutting head through materials; allow the blade to do the work.

Maximum Cutting Thickness Reference (Model A Blade)

Image: Visual reference for the maximum cutting thickness of various materials, including cotton fabric, felt, branches, corrugated board, carpet, plastic carpets, and leather.

Image: A table detailing the maximum cutting thickness reference values for the Model A blade across different materials.

Image: Collage showing the electric scissors with the Model A blade cutting various materials such as fabric, felt, and other textiles.

Image: Depiction of various application scenarios for the electric fabric scissors, including home use, tailor shops, and leather factories.

6. Manutenzjoni

Proper maintenance of the Model A cutting head will extend its lifespan and ensure consistent cutting performance.

• Tindif: After each use, ensure the electric scissors are powered off and disconnected. Carefully remove any fabric fibers, dust, or debris from the cutting head using a soft brush or a dry cloth.
• Ħażna: Store the cutting head in a clean, dry environment when not in use. Avoid exposing it to excessive moisture or corrosive substances.
• Spezzjoni: Periodically inspect the blade for signs of wear, damage, or dullness. A dull blade will reduce cutting efficiency and may require replacement.

7 Issolvi l-problemi

If you encounter issues with the Model A cutting head, consider the following:

• Prestazzjoni Fqira tal-Qtugħ:
  • Ensure the cutting head is securely installed and locked into the WBT-1 electric scissors.
  • Check for any accumulated material or debris obstructing the blade. Clean as per maintenance instructions.
  • If the blade appears dull or damaged, it may need to be replaced.
• Cutting Head Not Attaching Securely:
  • Verify that you are using the correct Model A cutting head for the WBT-1 electric scissors.
  • Ensure the red release button is fully depressed during installation and that the head is pushed backward until it clicks.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For specific warranty information regarding the Model A Sharp Blade Cutting Head, please refer to the documentation provided with your original MXBAOHENG WBT-1 Electric Fabric Scissors. MXBAOHENG is committed to providing high-quality products and professional service.

For technical support or inquiries, please contact MXBAOHENG customer service through their official channels. Contact information can typically be found on the product packaging or the manufacturer's websit.
