Elitech ECS-02CX Digital Temperature Controller User Manual

1. Introduzzjoni

The Elitech ECS-02CX is a versatile digital temperature controller designed for precise temperature management in various applications, including refrigeration, coolrooms, and heating equipment. Featuring a clear red/blue LED display and intuitive controls, it offers reliable performance for maintaining desired temperature ranges. This manual provides essential information for the safe and effective installation, operation, and maintenance of your ECS-02CX controller.

2. Informazzjoni dwar is-Sigurtà

Please read all safety warnings and instructions carefully before installing or operating the device. Failure to do so may result in electric shock, fire, or damage to the product.

Ensure the power supply is disconnected before any wiring or maintenance.
Installation and wiring should only be performed by qualified personnel.
Tesponix l-apparat għall-ilma jew għal umdità eċċessiva.
Verify all connections are secure and correct before applying power.
The compressor relay is rated for up to 30A, capable of directly driving a 1.5HP single-phase compressor. Ensure connected loads do not exceed this rating.

3. Prodott Aktarview

The Elitech ECS-02CX features a compact design with a clear digital display and user-friendly buttons for easy parameter setting. It includes dual-way sensor inputs for both cabinet temperature and defrost sensing.

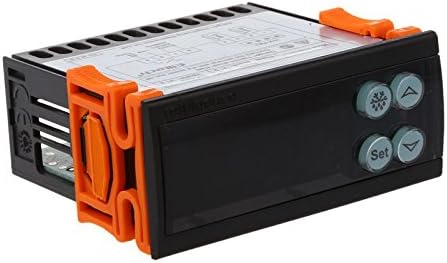

Elitech ECS-02CX Digital Temperature Controller, front view — Figura 3.1: Quddiem view of the ECS-02CX controller, showing the digital display and control buttons.

Elitech ECS-02CX Digital Temperature Controller, rear view with terminal blocks — Figura 3.2: Wara view of the ECS-02CX controller, illustrating the terminal blocks for electrical connections.

4. Installazzjoni

Proper installation is crucial for the correct functioning and longevity of the ECS-02CX controller. Follow these steps carefully.

4.1 Immuntar

The controller is designed for panel mounting. Ensure adequate space for ventilation and wiring connections. Secure the controller using the provided mounting clips.

4.2 Dijagramma tal-Wiring

Refer to the wiring diagrams below for correct electrical connections. Ensure all wires are properly insulated and secured.

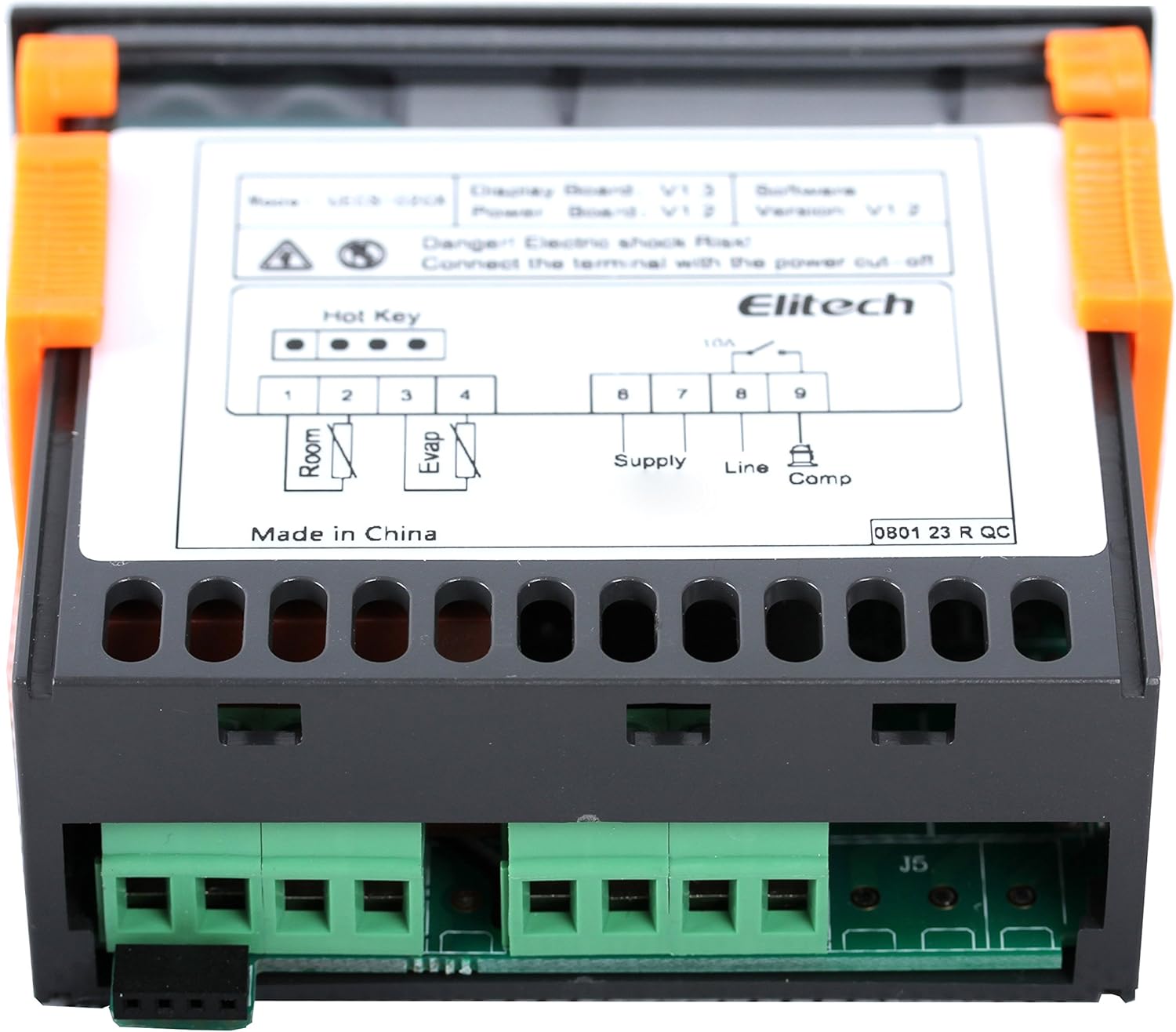

Elitech ECS-02CX wiring diagram label on device — Figure 4.1: Detailed wiring diagram as found on the ECS-02CX unit's label. This shows the terminal assignments for power, sensors, and compressor output.

Simplified wiring diagram for Elitech ECS-02CX — Figure 4.2: Simplified schematic of the ECS-02CX wiring, indicating connections for Room sensor, Evaporator sensor, Supply power (220VAC 50/60Hz), Line, and Compressor (Comp).

Konnessjonijiet Terminali:

Terminali 1 u 2: Room Temperature Sensor input.
Terminali 3 u 4: Evaporator (Defrost) Sensor input.
Terminali 6 u 7: Power Supply (220VAC, 50/60Hz).
Terminal 8: Line input for compressor relay.
Terminal 9: Output tal-kompressur.

5. Operazzjoni

The ECS-02CX features a user-friendly interface for setting and monitoring temperature parameters.

5.1 Wiri

The controller features a red/blue LED display that shows the current temperature and various parameter settings. The display area is designed for clear and intuitive readability.

5.2 Settings Bażiċi

To access and modify parameters, typically press and hold the 'Set' button. Use the Up and Down arrow buttons to navigate through parameters and adjust values. Press 'Set' again to confirm and save changes.

Specific parameter codes and their functions are detailed in the full product manual provided by Elitech. Common parameters include setpoint temperature, differential, defrost cycle settings, and sensor calibration.

6. Manutenzjoni

Regular maintenance ensures optimal performance and extends the lifespan of your ECS-02CX controller.

Tindif: Imsaħ id-displej u ċasinNaddaf b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
Konnessjonijiet: Iċċekkja l-konnessjonijiet tal-wajers kollha perjodikament biex tiżgura li huma sikuri u ħielsa mill-korrużjoni.
Sensers: Ensure temperature sensors are clean and properly positioned for accurate readings.
Ventilazzjoni: Ensure the controller has adequate ventilation to prevent overheating.

7 Issolvi l-problemi

If you encounter issues with your ECS-02CX controller, refer to the following common problems and solutions.

Problema	Kawża Possibbli	Soluzzjoni
Il-wiri huwa vojt	No power, incorrect wiring, or internal fault.	Check power supply and wiring connections. If problem persists, contact support.
Il-qari tat-temperatura mhuwiex preċiż	Sensor fault, incorrect sensor placement, or calibration issue.	Check sensor connections and placement. Refer to the full manual for sensor calibration. Replace sensor if damaged.
Compressor not turning on/off	Incorrect setpoint/differential, wiring error, or relay fault.	Verify setpoint and differential settings. Check compressor wiring. Ensure load does not exceed relay capacity.
Kodiċi ta 'żball murija	Ħsara speċifika tas-sistema.	Refer to the Elitech ECS-02CX full user manual for a list of error codes and their corresponding solutions.

If you cannot resolve the issue using the information above, please contact Elitech customer support.

8. Speċifikazzjonijiet

Detailed technical specifications for the Elitech ECS-02CX Digital Temperature Controller.

Karatteristika	Speċifikazzjoni
Mudell	ECS-02CX
Manifattur	Elitech
Stil	Diġitali
Tip ta 'Wiri	Digital (Red/Blue LED)
Inputs tas-Sensor	Dual-way (Cabinet Temperature, Defrost)
Kompressur Relay	30A (capable of driving 1.5HP single-phase compressor)
Użu Tipiku	Refrigerators, Coolrooms, Freezers, Heating Equipment
Piż tal-oġġett	500 Gramma (0.5 Kilogrammi)
L-Ewwel Data Disponibbli	23 L-2018 ta’ Marzu

9. Garanzija u Appoġġ

For warranty information and technical support, please refer to the official Elitech webis-sit jew ikkuntattja lis-servizz tal-konsumatur ta' Elitech direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.

Elitech Contact Information: Jekk jogħġbok żur is-sit uffiċjali ta' Elitech webis-sit għad-dettalji ta' kuntatt u r-riżorsi ta' appoġġ l-aktar aġġornati.
