SOMMER S10305-00001 Slider+ 4-Command Radio Transmitter User Manual

1. Introduzzjoni

The SOMMER S10305-00001 Slider+ is a compact, 4-command radio transmitter designed for controlling compatible SOMMER radio systems, such as garage door openers or gate operators. This manual provides essential information for the safe and effective use of your device.

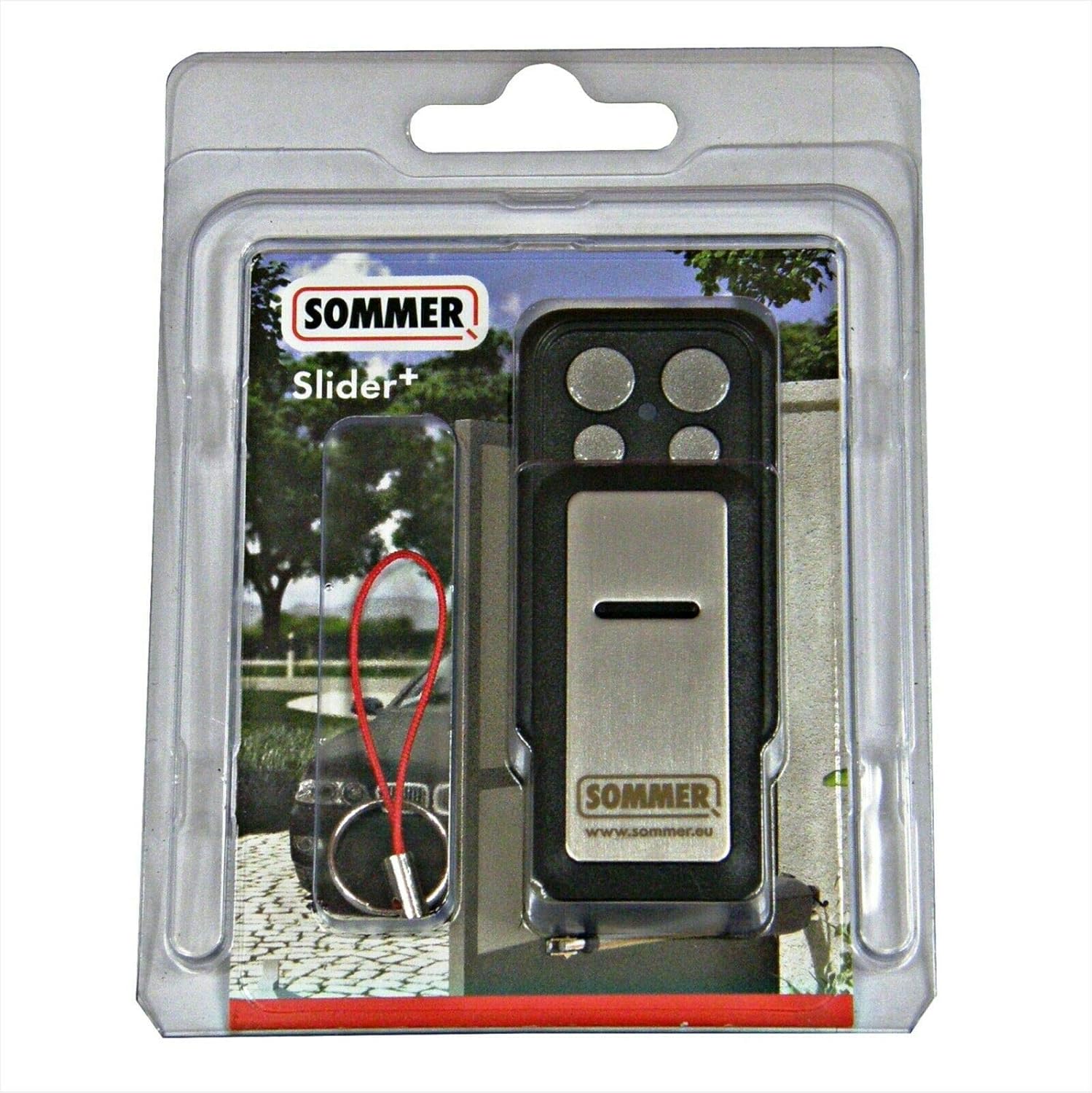

Image 1: SOMMER Slider+ 4-Command Radio Transmitter in its retail packaging.

It features a modern design with a stainless steel sliding key cover to prevent accidental activation, ensuring reliable operation.

2. Informazzjoni dwar is-Sigurtà

• Aqra l-istruzzjonijiet kollha bir-reqqa qabel tuża l-apparat.
• Keep the transmitter out of reach of children to prevent misuse.
• Tesponix l-apparat għall-umdità, temperaturi estremi, jew dawl tax-xemx dirett.
• Only use the specified battery type (CR2032).
• Armi batteriji użati skont ir-regolamenti ambjentali lokali.
• Do not attempt to open or repair the device yourself; contact qualified personnel for service.

3. Karatteristiċi tal-prodott

The SOMMER S10305-00001 Slider+ offers the following key features:

• Kompatibilità: Designed for use with SOMMER radio systems utilizing the same rolling code technology.
• Disinn: High-quality, modern, and compact design.
• Protezzjoni: Features a stainless steel sliding cover to protect buttons and prevent accidental activation.
• Kmandi: Provides 4 independent wireless command buttons.
• Frekwenza: Operates on a radio frequency of 868.8 MHz - 868.95 MHz.
• Modulazzjoni: Uses VHF (FM) modulation.
• Firxa: Offers an operating range of up to 140 meters in an open field.
• Dimensjonijiet: Approximately 55 x 30 x 14 mm.

Stampa 2: Quddiem view of the SOMMER Slider+ 4-Command Radio Transmitter, showing the sliding cover.

4. Setup

4.1 Installazzjoni tal-batterija

The SOMMER S10305-00001 Slider+ uses a single CR2032 3V coin cell battery.

1. Sib il-kompartiment tal-batterija fuq wara tat-trasmettitur.
2. Bl-użu ta' tornavit żgħir b'ras Phillips, neħħi bir-reqqa l-kamin li jżomm l-għatu tal-kompartiment tal-batterija.
3. Gently lift the cover to expose the battery slot.
4. Insert the CR2032 battery with the positive (+) side facing upwards, ensuring correct polarity.
5. Erġa' poġġi l-għatu tal-kompartiment tal-batterija u waħħalha bil-vit. Tissikkax iżżejjed.

Immaġni 3: Wara view of the SOMMER Slider+ remote, indicating the battery compartment.

4.2 Pairing/Programming with Receiver

To use your SOMMER S10305-00001 Slider+, it must be paired with a compatible SOMMER radio receiver (e.g., for a garage door or gate opener). The exact pairing procedure may vary slightly depending on your specific receiver model. Always refer to your receiver's instruction manual for detailed programming steps.

General Pairing Steps (Consult Receiver Manual for specifics):

1. Activate Learning Mode on Receiver: Locate the 'Learn' or 'Radio' button on your SOMMER receiver unit. Press and hold this button briefly until the receiver's indicator light (LED) illuminates or flashes, indicating it is in learning mode.
2. Transmit Signal from Slider+: Within a few seconds of activating the receiver's learning mode, slide down the stainless steel cover on your Slider+ transmitter to expose the buttons. Press and hold the desired button on the Slider+ that you wish to program.
3. Konferma: The receiver's indicator light should change (e.g., flash rapidly, turn solid, or turn off) to confirm successful pairing. Release the button on the Slider+.
4. Test: Test the programmed button on your Slider+ to ensure it operates the connected device correctly.

Nota Importanti: Some users have reported that the 'radio' button on the control unit might be small and require a fine tool, like a small screwdriver, to press. Be careful not to press this button for an extended period, as it may reset all existing paired remotes from the receiver's memory.

5. Istruzzjonijiet Operattivi

The SOMMER S10305-00001 Slider+ is designed for straightforward operation:

1. Access Buttons: Slide the stainless steel cover downwards to reveal the four command buttons.
2. Activate Command: Press the specific button that has been programmed to control your desired function (e.g., opening/closing a garage door, activating a gate).
3. Buttuni Ipproteġi: After use, slide the stainless steel cover back upwards to protect the buttons from accidental presses and keep them clean.

6. Manutenzjoni

6.1 Tindif

To clean your transmitter, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the device's casing jew komponenti interni.

6.2 Sostituzzjoni tal-batterija

If you notice a decrease in the operating range of your transmitter or if the device stops responding, the battery may need to be replaced. Follow the battery installation steps outlined in Section 4.1. Always use a fresh CR2032 3V battery.

7 Issolvi l-problemi

If you encounter issues with your SOMMER S10305-00001 Slider+, consider the following:

• Transmitter Not Responding:
  • Iċċekkja l-batterija: Ensure the CR2032 battery is correctly installed and not depleted. Replace if necessary.
  • Firxa: Verify that you are within the effective operating range of the receiver (up to 140 meters in open field). Obstacles like walls or vehicles can significantly reduce this range.
  • Tqabbil: Confirm that the transmitter is correctly paired with your receiver. If unsure, repeat the pairing process as described in Section 4.2.
  • Interferenza: Other radio devices or strong electromagnetic fields might cause interference. Try operating the transmitter from a different location.
• Firxa Operattiva Mnaqqsa:
  • Weak Battery: A weak battery is the most common cause of reduced range. Replace the CR2032 battery.
  • Ostruzzjonijiet: Physical obstructions between the transmitter and receiver can block the signal.
  • Fatturi Ambjentali: Weather conditions or other radio signals can affect range.

If troubleshooting steps do not resolve the issue, contact SOMMER customer support or your authorized dealer.

8. Speċifikazzjonijiet

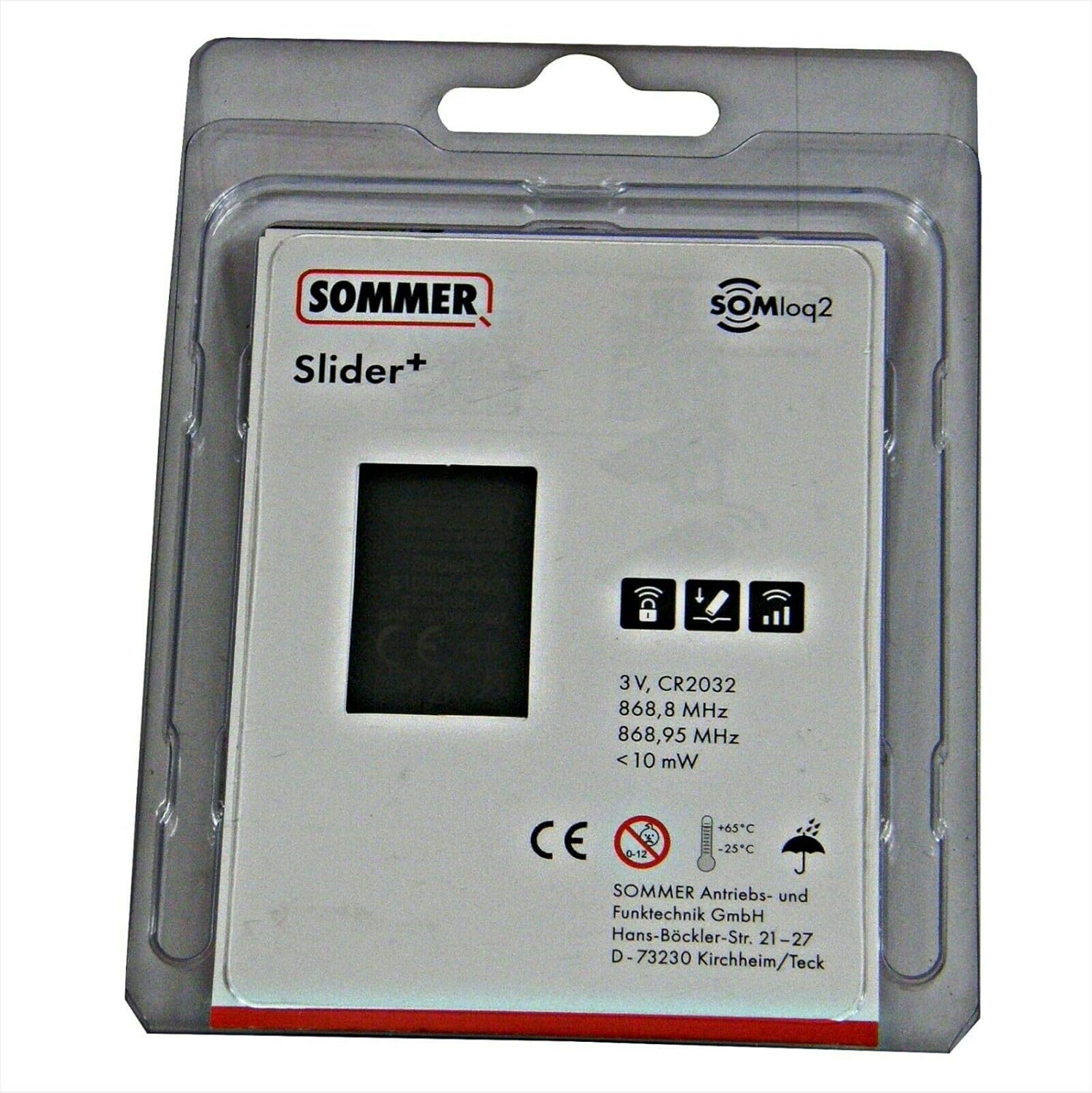

Image 4: Packaging displaying key technical specifications of the SOMMER Slider+.

9. Garanzija u Appoġġ

For detailed information regarding product warranty, technical support, or service, please visit the official SOMMER website or contact your authorized SOMMER dealer. Keep your purchase receipt as proof of purchase for any warranty claims.

You can find more information and contact details on the official SOMMER websit: www.sommer.eu
