Manwal ta' Istruzzjonijiet tal-Apparat tad-Dawl LED ta' Taħt il-Kabinett GE ta' 36 Pulzier (Mudell 38981)

Introduzzjoni

This manual provides comprehensive instructions for the installation, operation, and maintenance of your GE 36-Inch LED Under Cabinet Light Fixture, Model 38981. Please read this manual thoroughly before installation and retain it for future reference. This fixture is designed for direct wire installation and is compatible with in-wall dimmer switches.

Image: The GE 36-Inch LED Under Cabinet Light Fixture, showcasing its sleek white design and integrated on/off switch.

Informazzjoni Importanti dwar is-Sigurtà

TWISSIJA: To avoid fire, electric shock, or serious injury, always turn off power at the circuit breaker or fuse box before installing, servicing, or cleaning this product.

• Aqra l-istruzzjonijiet kollha bir-reqqa qabel l-installazzjoni.
• Dan il-prodott għandu jiġi installat skont il-kodiċi tal-installazzjoni applikabbli minn persuna familjari mal-kostruzzjoni u t-tħaddim tal-prodott u l-perikli involuti.
• Use only 120V AC, 60Hz power supply.
• Do not install in wet locations. Suitable for indoor, dry locations only.
• Kun żgur li l-konnessjonijiet elettriċi kollha huma sikuri u jikkonformaw mal-kodiċijiet u l-ordinanzi lokali.
• Tippruvax timmodifika l-apparat tat-tagħmir.

Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:

• GE 36-Inch LED Under Cabinet Light Fixture (Model 38981)
• Ħardwer tal-Immuntar (viti, ġewż tal-wajer)
• Manwal ta' Istruzzjoni

Installazzjoni

1. Ippjanar u Preparazzjoni

• Itfi l-enerġija mis-circuit breaker qabel tibda.
• Determine the desired mounting location under your cabinet. Ensure there is sufficient space for the 36-inch fixture.
• Gather necessary tools: screwdriver, wire strippers, drill, pencil, measuring tape.

Image: Diagram showing the fixture's dimensions (36.00in length, 3.00in width, 1.13in height) and the location of wire knockouts for electrical connections.

2. Immuntar tal-Apparat

1. Hold the fixture in the desired mounting location and mark the screw hole positions with a pencil.
2. Drill toqob pilota jekk meħtieġ.
3. Secure the fixture to the underside of the cabinet using the provided mounting screws.

3. Electrical Wiring (Direct Wire)

This fixture is designed for direct wiring to a 120V AC circuit. Consult a qualified electrician if you are unsure about wiring procedures.

1. Locate the wire knockouts on the fixture (refer to the dimensions diagram). Remove the appropriate knockout for your wiring entry point.
2. Feed the electrical supply wires (Black, White, Ground) through the knockout and into the fixture's wiring compartment.
3. Connect the fixture's wires to the supply wires using wire nuts:
   • Black (Fixture) to Black (Supply) - Live/Hot
   • White (Fixture) to White (Supply) - Neutral
   • Green/Bare Copper (Fixture) to Green/Bare Copper (Supply) - Ground
4. Ensure all connections are tight and secure. Carefully tuck wires into the compartment and close the cover.

Immaġni: Eksample of the GE 36-Inch LED Under Cabinet Light Fixture installed under a kitchen cabinet, demonstrating a clean, direct-wire setup without visible cords.

4. Dimmer Compatibility

This fixture is compatible with most in-wall dimmer switches (10-100% dimmable). For optimal performance, use a dimmer designed for LED lighting. Refer to the dimmer manufacturer's instructions for installation.

Image: A list of compatible in-wall dimmers, including various GE Z-Wave and Jasco Zigbee models, illustrating options for streamlined control.

Operazzjoni

Once installed and wired, restore power at the circuit breaker.

• Swiċċ mixgħul/mitfi: The fixture features a built-in rocker switch for manual control. Flip the switch to the 'ON' position to turn the light on, and to the 'OFF' position to turn it off.
• Dimming: If connected to a compatible in-wall dimmer, use the dimmer switch to adjust the light intensity from 10% to 100%.

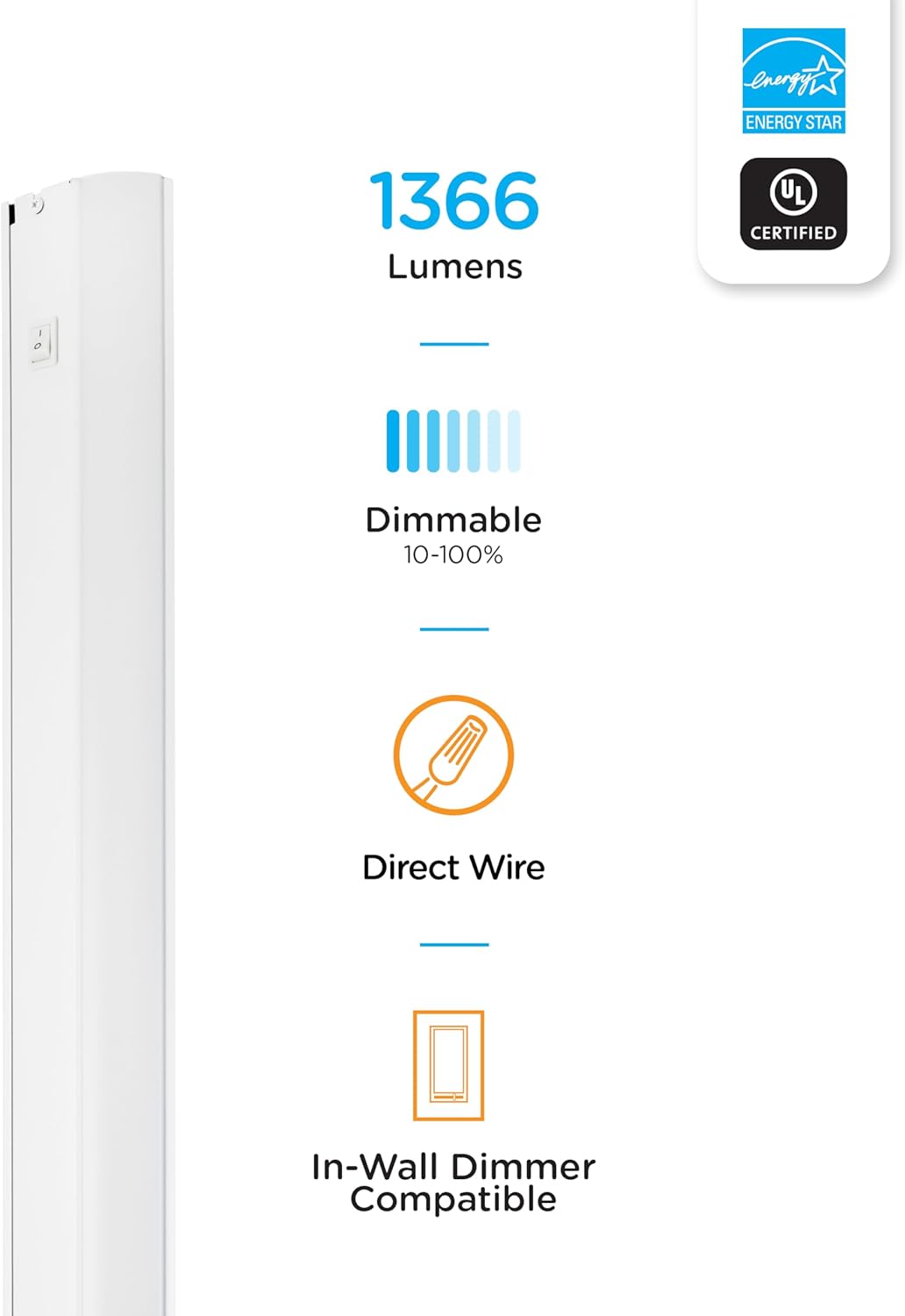

Image: Close-up of the integrated ON/OFF rocker switch on the fixture, alongside key specifications such as 1366 Lumens, 10-100% Dimmable, Direct Wire, In-Wall Dimmer Compatible, Energy Star, and UL Certified.

Manutenzjoni

The GE LED Under Cabinet Light Fixture is designed for long-lasting performance with minimal maintenance.

• Tindif: Kun żgur li l-elettriku jkun mitfi qabel ma tnaddaf. Imsaħ l-apparat b'ċarruta ratba, niexfa, jew kemxejn imxarrba.amp drapp. Tużax tindif jew solventi li joborxu.
• Ħajja LED: The integrated LEDs have a long life expectancy of approximately 50,000 hours and do not require replacement.

Issolvi l-problemi

Speċifikazzjonijiet

Immaġni: Eksample of the 3000K Soft Warm White light output from the fixture, illuminating a kitchen countertop and backsplash, highlighting its ability to enhance space with quality light.

Garanzija u Appoġġ

Garanzija: This GE LED Under Cabinet Light Fixture is backed by a Limited Lifetime Warranty. Please refer to the warranty card included with your product or visit the manufacturer's websit għal dettalji sħaħ dwar il-kopertura u t-termini.

Appoġġ għall-Klijent: For technical assistance, troubleshooting, or warranty claims, please contact ENBRIGHTEN customer support. Contact information can typically be found on the product packaging or the official ENBRIGHTEN websit.

Riżorsi onlajn: For additional information, FAQs, or product registration, visit the official ENBRIGHTEN websit.
