Prodott Overview
The MACAP M42D R Chrom Model 2018 is a high-performance digital espresso grinder designed for precision and consistency. It features a robust construction with 58 mm flat burrs, offering stepless grind size adjustment for optimal control over your coffee extraction. The integrated digital dosing system allows for precise grinding by time, ensuring repeatable results for your espresso.

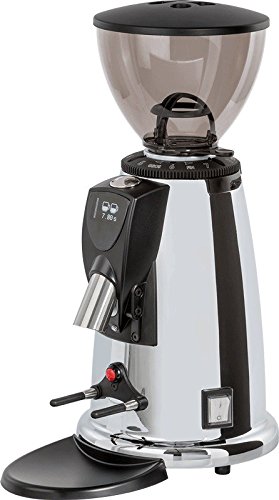

Immaġni: Quddiem view of the Macap M42D R Chrom coffee grinder, showcasing its chrome finish, bean hopper, digital display, and portafilter holder.
Karatteristiċi ewlenin:
- Electric Grinder with powerful motor.
- Digital Timer for precise dosing control.
- Durable 58 mm Flat Burrs for consistent grinding.
- Stepless grind size adjustment for fine-tuning.
- Plastic bean hopper with approximately 500 grams capacity.
Setup u Installazzjoni
- Spakkjar: Carefully remove the grinder from its packaging. Retain all packaging materials for future transport or storage.
- Pjazzament: Place the grinder on a stable, flat, and dry surface. Ensure adequate ventilation around the unit.
- Tindif Inizjali: Qabel l-ewwel użu, imsaħ il-barra b'adamp cloth. Remove the bean hopper and wash it with mild soap and water, then dry thoroughly. Do not immerse the main unit in water.
- Installa l-Fażola Hopper: Securely place the bean hopper onto the top of the grinder. Ensure it is properly seated to prevent beans from spilling.
- Konnessjoni tal-Enerġija: Connect the power cord to a grounded electrical outlet. Verify that the voltage matches the specifications listed on the grinder's rating label.
Istruzzjonijiet Operattivi
- Imla l-Fażola Hopper: Pour fresh, roasted coffee beans into the bean hopper. Do not overfill.
- Aġġusta d-Daqs tat-Tħin: The M42D R Chrom features stepless grind adjustment. Rotate the adjustment collar located below the bean hopper to achieve the desired fineness. Rotate clockwise for finer grind and counter-clockwise for coarser grind. A finer grind is typically required for espresso.
- Set Dosing Time: Use the digital display and control buttons to set the desired grinding time. This controls the amount of coffee dispensed. Refer to the grinder's specific interface for detailed instructions on setting single and double shot times.
- Tħin: Position your portafilter or coffee container under the dispensing chute. Activate the grinding process by pressing the appropriate button or engaging the portafilter switch. The grinder will dispense coffee for the set duration.
- Optimal Use Tips:
- Always use fresh, quality coffee beans for best results.
- Adjust grind size incrementally and test with your espresso machine to find the perfect setting.
- Clean the grinder regularly to maintain performance and flavor.
Manutenzjoni u Tindif
Regular cleaning is essential for maintaining the performance and longevity of your MACAP M42D R Chrom grinder and for ensuring the best coffee flavor.
Tindif ta 'Kuljum:
- Wipe down the exterior of the grinder with a soft, damp drapp.
- Brush away any loose coffee grounds from the dispensing chute and portafilter holder.
Weekly Cleaning (or as needed):
- Skonnettja l-Grinder: Always disconnect the power cord before performing any cleaning or maintenance.
- Neħħi Bean Hopper: Empty any remaining beans and remove the bean hopper.
- Burrs Nodfa: Use a stiff brush (a dedicated coffee grinder brush is recommended) to clean the grinding burrs. You may need to remove the upper burr assembly for thorough cleaning. Refer to the grinder's specific design for burr removal.
- Clean Grinding Chamber and Chute: Use a vacuum cleaner with a narrow attachment to remove fine coffee dust from the grinding chamber and dispensing chute.
- Erġa' arma: Once clean, reassemble the burr assembly and bean hopper, ensuring all parts are securely in place.
Caution: Do not use water or abrasive cleaners inside the grinding mechanism. Do not immerse the main unit in water.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-grinder ma jixgħelx. | Mhux imdaħħla fil-plakka; is-swiċċ tad-dawl mitfi; is-circuit breaker qabad. | Ensure power cord is securely plugged in. Turn power switch to ON. Check household circuit breaker. |
| Tħin inkonsistenti. | Burrs are dirty or worn; old/oily beans; grind setting too coarse/fine. | Clean burrs thoroughly. Use fresh, quality beans. Adjust grind setting incrementally. |
| Grinder motor runs but no coffee dispenses. | Beans not feeding; chute clogged; burrs jammed. | Ensure beans are in hopper. Clear any clogs in the dispensing chute. Clean burrs and grinding chamber. |
| Grinder is excessively noisy. | Foreign object in burrs; loose components. | Unplug and inspect burrs for foreign objects. If noise persists, contact customer support. |
If you encounter issues not listed here, or if the suggested solutions do not resolve the problem, please contact MACAP customer support.
Speċifikazzjonijiet
- Ditta: MACAP
- Mudell: M42D R Chrom Model 2018
- Grinding Speed: Approximately 2 grams per second
- Tip ta' burr: Flat Burrs
- Burr Diameter: 58 mm
- Aġġustament tat-Tħan: Stepless
- Dosing Control: Timer Diġitali
- Kapaċità tad-delu tal-fażola: Approximately 500 grams (plastic)
- Piż tal-oġġett: 7.5 Kilogrammi
- Użu Rakkomandat: Coffee Bean Grinding
- Użu Speċifiku: Tħin
Garanzija u Appoġġ
MACAP products are manufactured to high quality standards and are covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty period and coverage details.
For technical assistance, spare parts, or warranty claims, please contact your authorized MACAP dealer or visit the official MACAP websit għal informazzjoni dwar l-appoġġ għall-klijenti.
Nota: Tiswijiet jew modifiki mhux awtorizzati jistgħu jannullaw il-garanzija tiegħek.
