1. Introduzzjoni u Fuqview
The Hoshizaki AM-50BAJ-AD is an air-cooled, self-contained undercounter ice machine designed for commercial and residential use. It produces clear, top hat style ice cubes and features a durable stainless steel exterior. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ice machine.
Figura 1.1: Quddiem view of the Hoshizaki AM-50BAJ-AD Ice Machine.
Karatteristiċi ewlenin:
- Jipproduċi sa 51 lbs ta' silġ kull 24 siegħa.
- Built-in storage capacity of up to 22 lbs.
- Generates unique Top Hat style clear ice cubes.
- UL approved for outdoor installation.
- Operates on single phase 115V/60Hz power with a 6 ft cord and NEMA 5-15 plug.
- ADA Compliant design.
2. Informazzjoni dwar is-Sigurtà
Read all instructions thoroughly before operating the appliance. Failure to follow these instructions may result in property damage, personal injury, or death.
Prekawzjonijiet ta' Sigurtà Importanti:
- Sigurtà Elettrika: Ensure the unit is connected to a properly grounded 115V/60Hz electrical outlet. Do not use extension cords. Disconnect power before any service or maintenance.
- Konnessjoni tal-Ilma: Connect the unit to a potable water supply with appropriate pressure. Ensure all water connections are secure to prevent leaks.
- Ventilazzjoni: This is an air-cooled unit. Ensure adequate airflow around the machine, especially at the front grille, to prevent overheating. Do not block vents.
- Pjazzament: Install the unit on a level, stable surface capable of supporting its weight when full of ice.
- Tfal: Keep children away from the appliance. Do not allow them to play with or operate the ice machine.
- Propożizzjoni 65 Twissija: Dan il-prodott jista’ jesponik għal kimiċi inkluż iċ-ċomb, li huwa magħruf mill-Istat ta’ Kalifornja li jikkawża kanċer u difetti fit-twelid jew ħsara riproduttiva oħra. Għal aktar informazzjoni mur fuq www.P65Warnings.ca.gov.
3. Setup u Installazzjoni
The Hoshizaki AM-50BAJ-AD is designed for undercounter installation. Proper setup is crucial for optimal performance and longevity.
Passi ta' Installazzjoni:
- Spakkjar: Carefully remove the ice machine from its packaging. Inspect for any shipping damage.
- Post: Choose a location that allows for proper ventilation (front air intake/exhaust), access to a potable water supply, and a drain. Ensure the ambient temperature is within the recommended operating range.
- Invellar: Use the adjustable leveling legs to ensure the unit is perfectly level. This is critical for proper ice production and drainage.
- Konnessjoni tal-Ilma: Connect the ice machine to a cold water supply line using appropriate plumbing fittings. An inline water filter is highly recommended to improve ice quality and reduce mineral buildup.
- Drenaġġ: Connect the drain line from the ice machine to an open, gravity-fed drain. Ensure there is a proper air gap to prevent backflow.
- Konnessjoni Elettrika: Plug the 6 ft power cord into a dedicated 115V/60Hz, 1-phase, 3.8 amp grounded electrical outlet (NEMA 5-15 plug).
- Treġġigħ lura tal-Bieb (Mhux obbligatorju): The door hinge can be reversed to open from either the left or right side, depending on your installation needs. Refer to the detailed instructions in the full installation guide for this procedure.
Figura 3.1: Eżample of undercounter installation.
4. Istruzzjonijiet Operattivi
Once properly installed and connected, operating your Hoshizaki ice machine is straightforward.
Istartjar Inizjali:
- Żgura li l-valv tal-provvista tal-ilma jkun miftuħ.
- Ipplaggja l-unità jew ixgħel is-circuit breaker apposta.
- The machine will begin its ice-making cycle automatically. The first few batches of ice may be smaller or irregular; this is normal as the system stabilizes.
Produzzjoni tas-Silġ:
The AM-50BAJ-AD produces clear, Top Hat style ice cubes. It can produce up to 51 pounds of ice per 24 hours under optimal conditions. The internal bin has a storage capacity of 22 pounds.
Figure 4.1: Close-up of Top Hat style ice cubes.
Aċċess għas-Silġ:
To access the ice, simply pull the full-length stainless steel handle to open the door. The ice bin is located inside. Use the provided ice scoop to retrieve ice. Close the door firmly after use to maintain ice quality and temperature.
Figure 4.2: Top Hat ice cubes in a glass.
5. Manutenzjoni
Regular maintenance ensures your Hoshizaki ice machine operates efficiently and produces high-quality ice.
Tindif ta' barra:
Wipe down the stainless steel exterior with a soft cloth and a mild, non-abrasive cleaner. For stubborn marks, a stainless steel cleaner can be used. Always wipe in the direction of the grain.
Cleaning the Interior and Ice Bin:
Periodically clean the ice bin and internal components. Turn off the unit and disconnect power before cleaning. Remove all ice. Use a solution of mild soap and warm water to wipe down surfaces. Rinse thoroughly with clean water and allow to air dry before restarting the machine.
Descaling and Sanitizing:
Depending on water hardness, the ice machine may require periodic descaling to remove mineral buildup and sanitizing to prevent mold and bacteria growth. Refer to the full product manual for detailed instructions on descaling and sanitizing procedures, including recommended cleaning solutions.
Tindif tal-filtru tal-arja:
The air-cooled condenser has an air filter that should be cleaned regularly (monthly or more often in dusty environments) to ensure proper airflow and prevent reduced ice production. Locate the air filter (typically behind the front grille), remove it, wash with warm, soapy water, rinse, dry completely, and reinsert.
6 Issolvi l-problemi
This section provides solutions to common issues you might encounter with your ice machine. For more complex problems, contact qualified service personnel.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda produzzjoni tas-silġ | No power; Water supply off; Clogged water filter; Ice bin full sensor issue. | Check power connection and circuit breaker. Ensure water supply valve is open. Replace or clean water filter. Check ice bin sensor for obstructions. |
| Produzzjoni baxxa tas-silġ | Poor ventilation; Dirty air filter; High ambient temperature; Mineral buildup. | Ensure adequate airflow around the unit. Clean the air filter. Verify operating environment temperature. Perform descaling. |
| Ħoss mhux tas-soltu | Loose components; Fan obstruction; Compressor issue. | Check for loose parts. Ensure nothing is obstructing the fan. If noise persists, contact service. |
| Ice is cloudy or soft | Poor water quality; Mineral buildup; Incorrect water temperature. | Install a water filter or replace existing one. Perform descaling. Ensure water supply temperature is within recommended range. |
7. Speċifikazzjonijiet
Detailed technical specifications for the Hoshizaki AM-50BAJ-AD Ice Machine.
| Speċifikazzjoni | Valur |
|---|---|
| Numru tal-Mudell | AM-50BAJ-AD |
| Brand | Hoshizaki |
| Dimensjonijiet tal-Prodott (P x W x H) | 22.63"D x 14.88"W x 31.5"H |
| Piż | 120.8 Liri |
| Ice Production Capacity (per 24 hours) | Up to 55 lbs (70°/50°), 34 lbs (AHRI certified at 90°/70°) |
| Kapaċità tal-Ħżin tas-Silġ | 22 Liri |
| Tip tas-Silġ | Top Hat Cube |
| Tip ta 'tkessiħ | Imkessaħ bl-Arja |
| Ħtiġiet Elettriku | 115V/60Hz/1-ph, 3.8 Amps |
| Wattage | 16.8 kWh |
| Ċertifikazzjonijiet | NSF, UL, ADA Compliant |

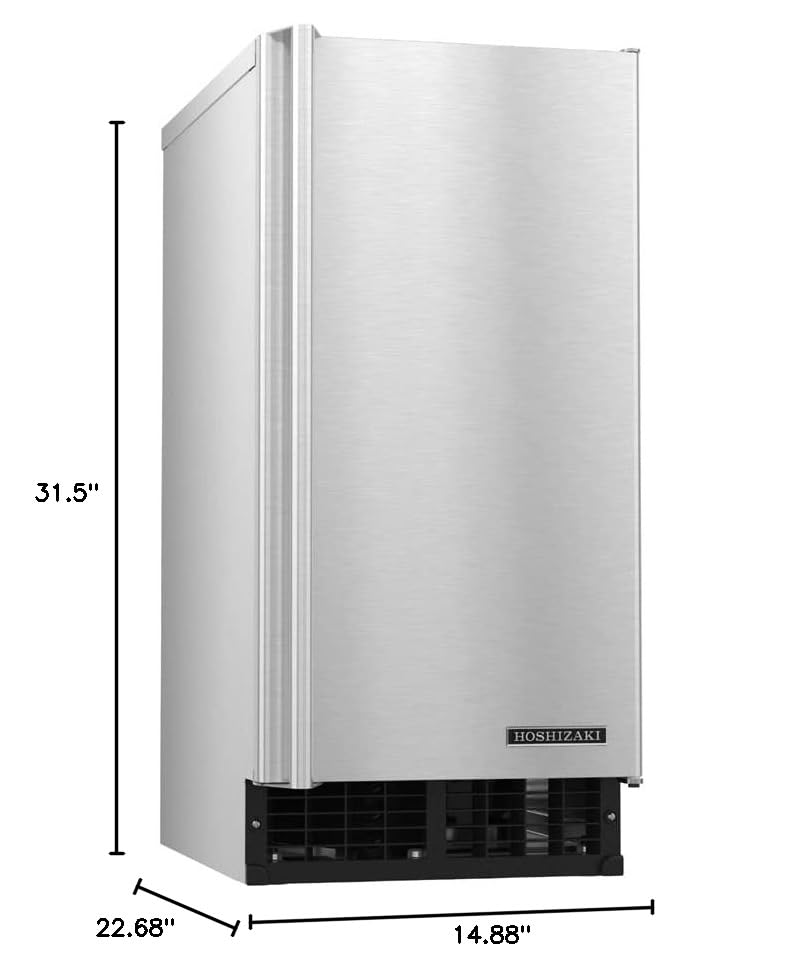

Figura 7.1: Dimensjonijiet tal-prodott għall-ippjanar tal-installazzjoni.
8. Garanzija u Appoġġ
Specific warranty details are not provided in the available product data. Please refer to the warranty card included with your ice machine or visit the official Hoshizaki website for comprehensive warranty information.
Appoġġ għall-Klijent:
For technical assistance, service requests, or parts inquiries, please contact Hoshizaki customer support. Contact information can typically be found on the manufacturer's webis-sit jew fid-dokumentazzjoni pprovduta mat-tagħmir tiegħek.
You may also find helpful resources and FAQs on the Hoshizaki websit.
