Introduzzjoni

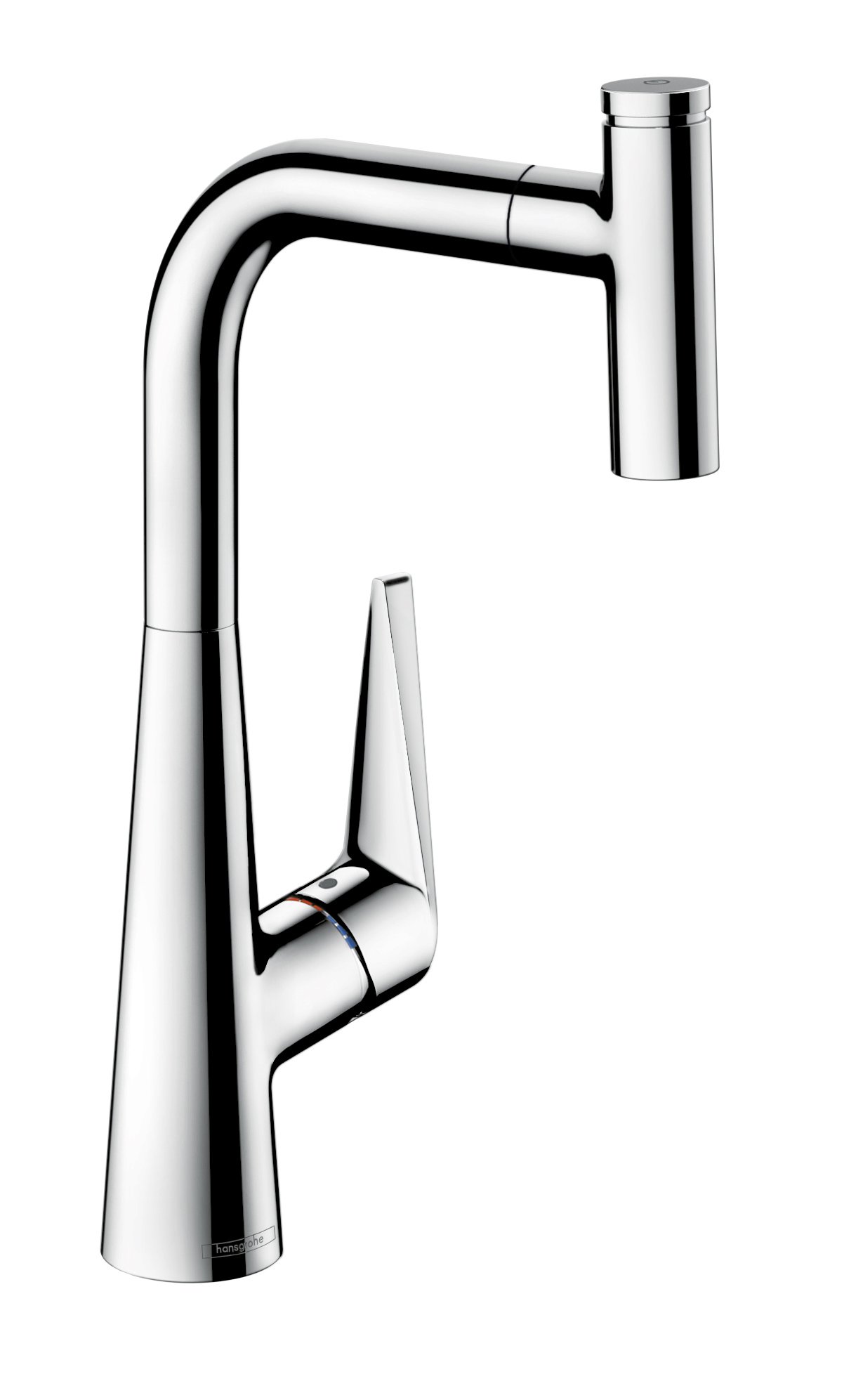

This manual provides comprehensive instructions for the installation, operation, and maintenance of your hansgrohe Talis Select S Kitchen Faucet, model 72822001. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Karatteristiċi Ewlenin
- Swivel range 110/150 degrees for robust sink access.
- Aerated spray for reduced splashing.
- Select button for convenient start/stop of water flow at the spray head.
- Designed for single-hole installation.
- Low-flow compliant with 1.75 GPM.
- Equipped with a durable ceramic cartridge for extended product life.
Informazzjoni dwar is-Sigurtà
Always observe local plumbing and building codes. Ensure water supply is turned off before beginning any installation or maintenance. If you are unsure about any installation steps, consult a qualified plumber. Use appropriate safety gear, such as eye protection, during installation.
Kontenut tal-Pakkett
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:
- hansgrohe Talis Select S Kitchen Faucet (Main Unit)
- Pull-Out Sprayer Head
- Ħardwer tal-Immuntar
- Manek tal-Provvista
- Counterweight for Pull-Out Hose
- Istruzzjonijiet għall-installazzjoni
Setup u Installazzjoni
Qabel Tibda
- Itfi l-provvista prinċipali tal-ilma fil-kċina tiegħek.
- Naddaf iż-żona taħt is-sink.
- Ensure your sink has a single-hole opening for faucet installation.
- Gather necessary tools (e.g., adjustable wrench, screwdriver, plumber's putty/silicone sealant).
Passi ta 'installazzjoni
- Insert the faucet body into the single-hole opening on your sink or countertop.
- Secure the faucet from underneath the sink using the provided mounting hardware (washer and nut).
- Connect the hot and cold water supply lines to the corresponding valves. Ensure connections are tight to prevent leaks.
- Attach the pull-out hose to the faucet's connection point under the sink.
- Install the counterweight onto the pull-out hose at the specified location to ensure smooth retraction.
- Connect the spray head to the pull-out hose.
- Once all connections are secure, slowly turn on the main water supply and check for leaks.
- Flush the faucet for a few minutes to clear any debris from the lines.
Istruzzjonijiet Operattivi
Kontroll tal-Fluss tal-Ilma u t-Temperatura
The faucet features a single lever handle for controlling both water flow and temperature. Lift the handle to increase water flow. Move the handle left for hot water and right for cold water.
Pull-Out Sprayer Functionality
- Pull-Out: Gently pull the spray head from the spout to extend the hose for increased reach.
- Docking Manjetiku: The spray head features magnetic docking for secure and smooth retraction back into the spout when not in use.
- Agħżel Buttuna: Press the "Select" button located on the spray head to conveniently start or stop the water flow directly from the spray head, without needing to adjust the main handle.
- Aerated Spray: The faucet delivers an aerated spray, designed to reduce splashing and provide a consistent water stream.
Funzjoni Swivel
The faucet spout can swivel 110 or 150 degrees, providing flexible access to different areas of your sink. This range allows for versatile use and easy maneuvering.
Manutenzjoni
Tindif tal-faucet
To maintain the chrome finish, clean the faucet regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive sponges, or acidic cleaners, as these can damage the finish. Rinse thoroughly with water after cleaning and dry with a soft cloth.
Ceramic Cartridge Care
Your hansgrohe faucet is equipped with a high-quality ceramic cartridge designed for extended product life and drip-free performance. No routine maintenance is typically required for the cartridge itself. If you experience persistent drips or issues with water flow control, it may indicate a need for professional inspection or cartridge replacement.
Spray Head Nozzle Cleaning
Mineral deposits can accumulate on the spray head nozzles over time. To clean, gently rub the rubber nozzles with your finger or a soft brush to dislodge any buildup. For stubborn deposits, a solution of equal parts white vinegar and water can be used, applied with a soft cloth.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Flow Ilma Baxx | Aerator clogged with debris; supply lines partially closed; water pressure issue. | Remove and clean the aerator. Ensure supply valves are fully open. Check household water pressure. |
| Tnixxija mill-bokka | Kartriġ taċ-ċeramika mikul; debris fil-kartriġ. | Contact customer support for cartridge inspection or replacement. |
| Spray Head Not Retracting Properly | Counterweight improperly positioned or obstructed; hose kinked. | Check counterweight position and ensure it moves freely. Inspect hose for kinks or obstructions. |
| No Water (Hot or Cold) | Supply valve closed; water heater issue (for hot water); clogged supply line. | Ensure supply valves are open. Check water heater. Consult a plumber if lines are clogged. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | hansgrohe |
| Isem tal-Mudell | Talis Select S Kitchen Faucet |
| Numru tal-Mudell | 72822001 |
| Tip ta 'Immuntar | Toqba waħda |
| Tip Finish | Chrome |
| Materjal | Brass (Body), Ceramic (Handle) |
| Kulur | Chrome |
| Numru ta 'Mankijiet | 1 |
| Karatteristika Speċjali | Pull Down Sprayer, Magnetic Docking, Select Button |
| Rata tal-Fluss | 1.75 GPM (Low-flow compliant) |
| Medda li ddur | 110/150 grad |
| Piż tal-oġġett | 7.03 Liri |
| Dimensjonijiet tal-Prodott | 21.65 x 12.4 x 3.25 pulzieri |
| Jilħaq spout | 13 Pulzier |
Garanzija u Appoġġ
Informazzjoni dwar Garanzija
This hansgrohe product is covered by a Garanzija Limitata tul il-Ħajja. This warranty covers defects in material and workmanship under normal use. For full details regarding warranty terms and conditions, please refer to the official hansgrohe warranty documentation or visit their official websit.
Appoġġ għall-Klijent
Should you have any questions, require technical assistance, or need to report a warranty claim, please contact hansgrohe customer support. Contact information can typically be found on the hansgrohe official webis-sit jew fuq l-imballaġġ tal-prodott tiegħek.
