Outsunny 8' x 6.6' x 6.6' Walk-in Tunnel Greenhouse Model 845-071 Instruction Manual

1. Introduzzjoni

This manual provides essential instructions for the assembly, operation, and maintenance of your Outsunny 8' x 6.6' x 6.6' Walk-in Tunnel Greenhouse. This greenhouse is designed to extend your growing season, protect plants from extreme temperatures, and provide a controlled environment for various plants.

Figure 1: Outsunny 8' x 6.6' x 6.6' Walk-in Tunnel Greenhouse.

2. Informazzjoni dwar is-Sigurtà

• Dejjem segwi l-istruzzjonijiet tal-assemblaġġ bir-reqqa.
• Wear gloves when handling the steel frame to prevent injury.
• Before use, ensure the greenhouse is properly anchored and ventilated to prevent damage or injury from wind, rain, or extreme temperatures.
• Do not use chemical treatments on the PE cover as it may damage the material.

3. Lista tal-Partijiet

Before assembly, ensure all components are present and undamaged. Refer to the assembly video for visual identification of parts.

• Galvanized Steel Frame Tubes (various lengths and bends)
• Connectors (T-joints, corner joints)
• PE Cover (White, 140GSM, tear-resistant, UV-resistant)
• Imsiemer tal-art / Zalz
• Pull Ropes / Guy Ropes
• Fasteners (bolts, nuts, clips)

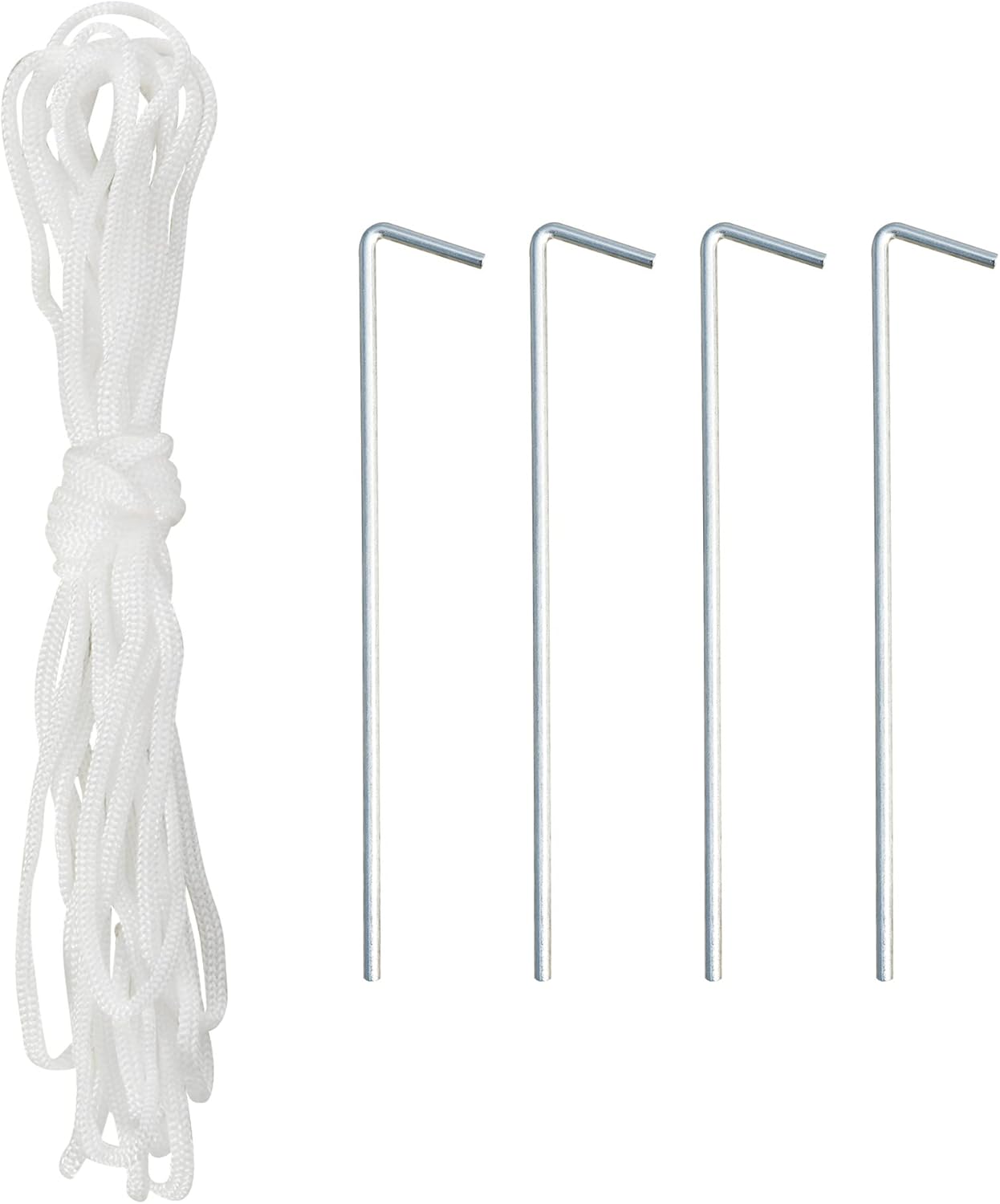

Figure 2: Included ground nails and pull ropes.

4. Setup u Assemblea

Segwi dawn il-passi għal assemblaġġ xieraq. Huwa rakkomandat li jkun hemm mill-inqas żewġ persuni għall-assemblaġġ.

1. Ipprepara ż-Żona: Choose a flat, level surface for your greenhouse. Clear any debris or sharp objects.
2. Arma l-Qafas tal-Bażi: Connect the straight steel tubes using the appropriate connectors to form the rectangular base of the greenhouse. Ensure all connections are secure.
3. Installa Appoġġi Vertikali: Attach the vertical steel tubes to the base frame.
4. Construct the Arch Supports: Assemble the curved steel tubes to form the arched sections of the greenhouse.
5. Connect Arch Supports: Raise the assembled arch supports and connect them to the vertical supports and to each other using the horizontal connecting tubes. Secure all connections with provided fasteners.
6. Għatti l-Qoxra tal-PE: Carefully drape the PE cover over the assembled frame. Ensure the zippered door is positioned correctly at the front.
7. Sikura l-Qoxra: Attach the cover to the frame using the fixing straps and ties. Ensure the 5.9-inch extended edges of the cover are buried deep in the soil to tighten the cover and provide stability against wind and rain.
8. Ankra s-Serra: Use the ground stakes and guy ropes to firmly anchor the entire frame to the ground, especially in windy conditions.

Gwida tal-Vidjo tal-Assemblea

Video 1: Assembly guide for a similar Outsunny Tunnel Greenhouse (Model 845-068). The assembly process is largely identical for Model 845-071.

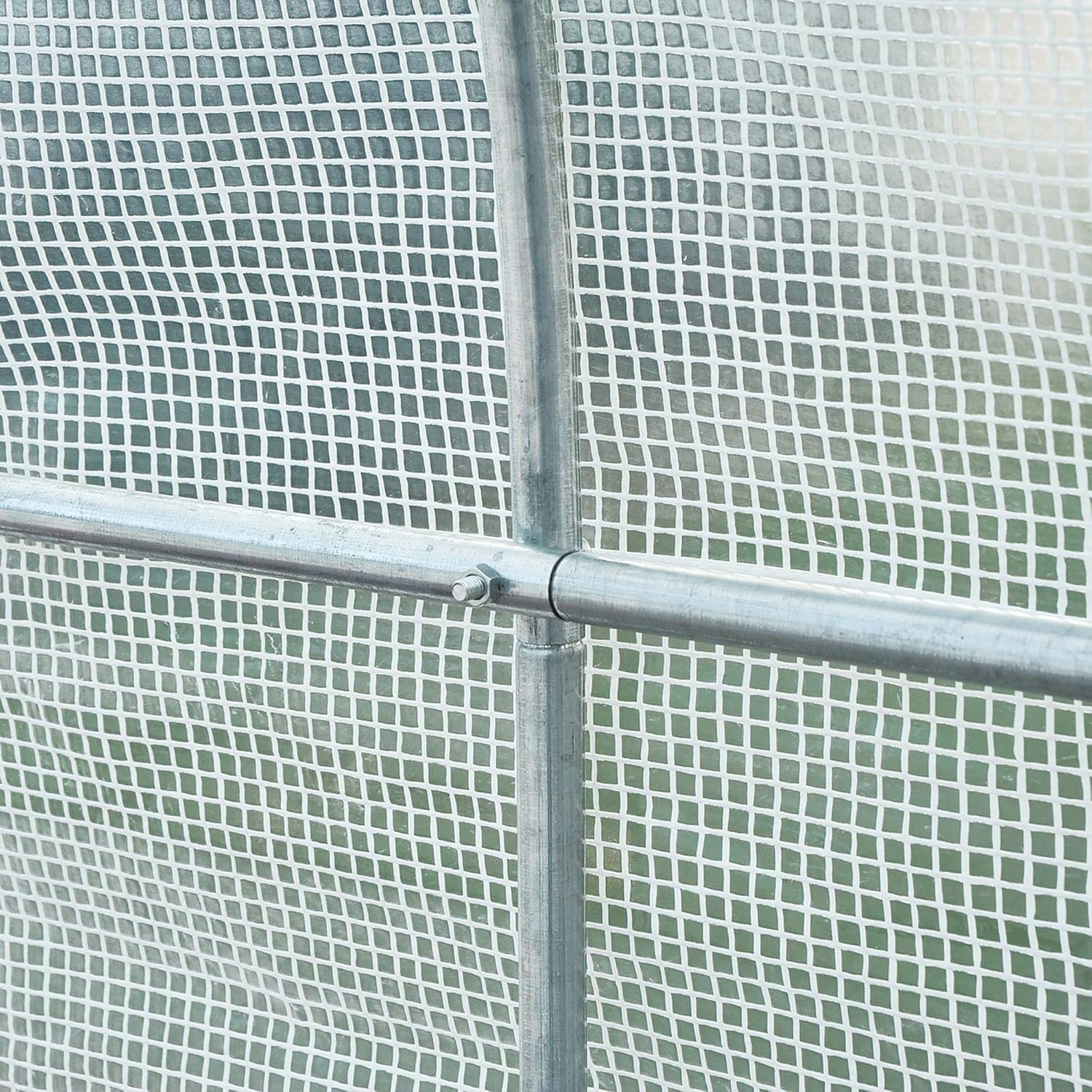

Figure 3: Detail of a secure frame connection.

5. Istruzzjonijiet Operattivi

• Door Access: The zippered roll-up door can be opened fully for easy access to plants and for moving equipment in and out.
• Ventilazzjoni: Utilize the mesh windows to provide better air circulation for your plants. These windows also serve as observation points. Roll them up and secure them to increase airflow and regulate internal temperature.
• Kontroll tal-umdità: The fully closed PE cover helps maintain high humidity levels, beneficial for growing tropical plants. Monitor humidity with a hygrometer and adjust ventilation as needed.
• Regolament tat-Temperatura: On sunny days, especially when temperatures exceed 20°C, open the door and windows to prevent overheating and plant stress. Close them during colder periods or at night to retain warmth.

Figure 4: Key features including roll-up windows and door.

6. Manutenzjoni

• Seasonal Strengthening: To prolong the service life, strengthen the outdoor greenhouse yourself before bad weather conditions (windy, rainy, snowy, hailing, etc.). Additional anchoring or internal supports may be necessary.
• Qoxra Kura: Regularly inspect the PE cover for any tears or damage. Patch small holes promptly to prevent them from enlarging. Avoid using harsh chemical cleaners on the cover. Clean with mild soap and water if necessary.
• Spezzjoni tal-qafas: Periodically check all steel frame connections and fasteners to ensure they remain tight and secure. Tighten any loose bolts.
• Akkumulazzjoni tas-Silġ: In areas with heavy snowfall, regularly clear snow from the greenhouse roof to prevent structural damage due to excessive weight.

7 Issolvi l-problemi

• Tferrigħ ta' Serra fir-Riħ: Ensure the greenhouse is properly anchored using all provided ground stakes and guy ropes. Consider adding additional weights (e.g., logs, sandbags) to the extended edges of the cover.
• Overheating Inside: Open the roll-up door and mesh windows to increase ventilation. Consider using shade cloth during peak sun hours if plants are sensitive to high temperatures.
• Insufficient Warmth: Ensure all doors and windows are securely closed. Check for any gaps in the cover. For extreme cold, consider adding an internal heat source (e.g., a small electric heater, not included) with proper safety precautions.
• Akkumulazzjoni ta' Ilma fuq is-Saqaf: Ensure the frame is correctly assembled to maintain the arched shape, which helps shed water. Regularly check and clear any debris that might impede water runoff.

8. Speċifikazzjonijiet

Figure 5: Greenhouse dimensions diagram.

9. Garanzija u Appoġġ

This Outsunny greenhouse comes with a Garanzija ta' 90 Jum Kontra Difetti tal-Manifattur. For any inquiries or support, please contact Aosom Canada at 1-416-792-6088.
