Gastroback 42709 Design Espresso Pro Machine Instruction Manual

Introduzzjoni

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Gastroback 42709 Design Espresso Pro Machine. Please read all instructions carefully before using the appliance and retain this manual for future reference.

The Gastroback 42709 is designed for preparing espresso, cappuccino, latte macchiato, and other coffee specialties. It features a professional ULKA espresso pump with 15 bar pressure, a thermoblock heating system for quick use, and a rotating milk frothing nozzle.

Istruzzjonijiet Importanti dwar is-Sigurtà

• Dejjem kun żgur li l-apparat jitqiegħed fuq wiċċ stabbli, livellat u reżistenti għas-sħana.
• Tgħaddasx l-apparat, il-korda tal-enerġija, jew il-plagg fl-ilma jew f'likwidi oħra.
• Żomm lit-tfal u persuni mhux awtorizzati 'l bogħod mill-apparat waqt it-tħaddim.
• Unplug the appliance from the power outlet before cleaning and when not in use.
• Tħaddimx l-apparat b'korda jew plagg bil-ħsara, jew wara li l-apparat ma jaħdimx jew ikun ġie bil-ħsara b'xi mod.
• Uża biss aċċessorji oriġinali u spare parts.
• Hot surfaces: Avoid contact with hot parts of the machine, such as the brewing head, portafilter, and steam wand, during and immediately after operation.
• Steam hazard: Be cautious when using the steam wand as hot steam can cause burns.

Komponenti tal-Prodott

Iffamiljarizza ruħek mad-diversi partijiet tal-magna tal-espresso tiegħek.

• Tank tal-Ilma: Removable, 1.5-liter capacity.
• Pjanċa għat-Tisħin tat-Tazza: Jinsab fuq nett tal-magna.
• Panel tal-Kontroll: Power button, espresso brewing button, steam function button.
• Portafiltru: Heavy stainless steel portafilter.
• Filter Inserts: Stainless steel filters for 1 cup, 2 cups, and E.S.E. pads.
• Steam Wand/Milk Frothing Nozzle: Rotatable for frothing milk and dispensing hot water.
• Trej tat-taqtir: Jitneħħa għal tindif faċli.
• Measuring Spoon with Tamper: For dosing and tamping kafè mitħun.
• Stainless Steel Milk Frothing Jug: Included accessory.

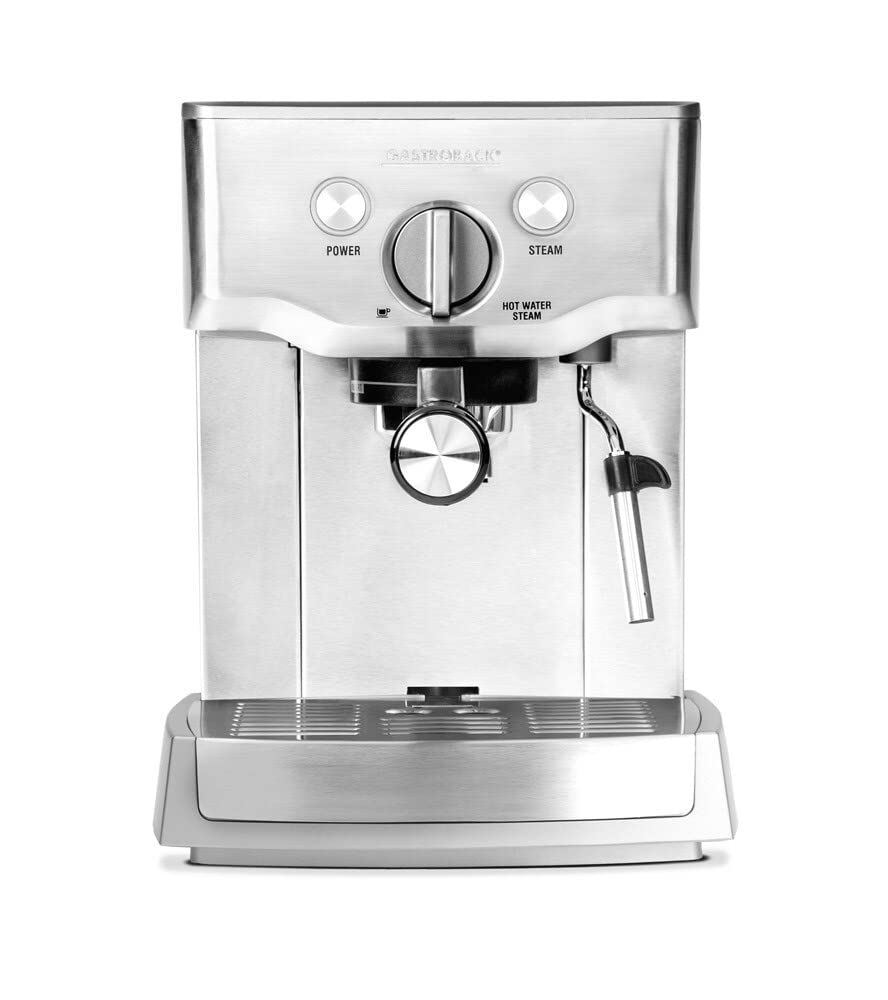

Immaġni: Quddiem view of the Gastroback 42709 Design Espresso Pro Machine, showcasinbil-finitura tal-istainless steel u l-pannell tal-kontroll tiegħu.

Twaqqif u l-Ewwel Użu

1. Spakkjar: Carefully remove all packaging materials. Check that all accessories are present.
2. Tindif Inizjali: Before first use, clean the water tank, portafilter, and filter inserts with warm water and a mild detergent. Rinse thoroughly. Wipe the exterior of the machine with a damp drapp.
3. Mili tat-Tank tal-Ilma: Remove the water tank from the back of the machine. Fill it with fresh, cold water up to the MAX mark. Replace the water tank securely.

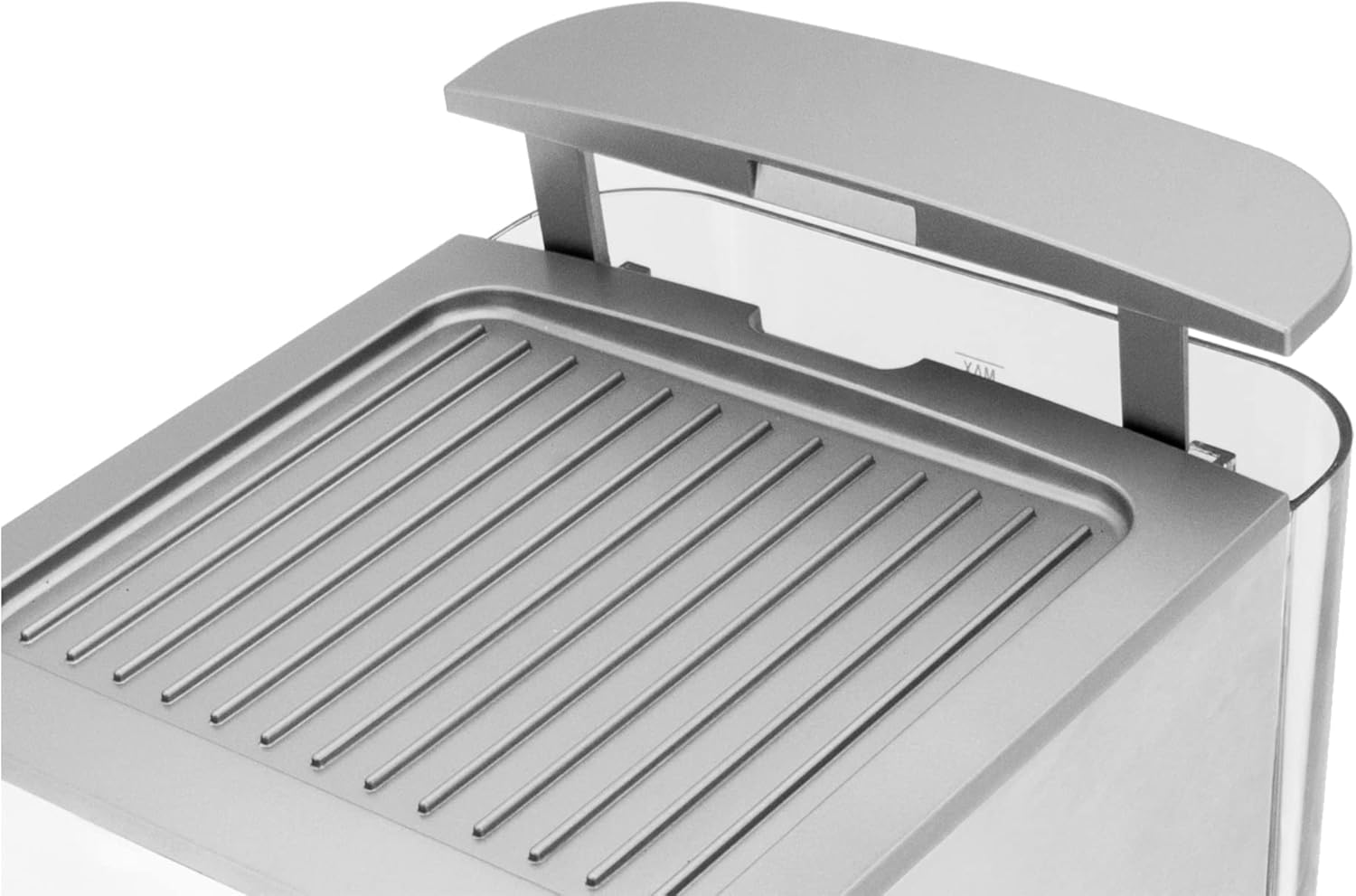

Image: Close-up of the removable water tank with its lid open, showing the MAX fill line.

4. Ipprajmjar tas-Sistema:
   • Ipplaggja l-magna f'sokit tal-elettriku ertjat.
   • Press the POWER button. The indicator light will flash as the machine heats up.
   • Once the light stops flashing and remains steady, the machine is ready.
   • Place a cup under the steam wand. Turn the steam/hot water knob to the hot water position to dispense about 100ml of hot water. This primes the pump and heating system.
   • Turn the knob back to the closed position. The machine is now ready for use.

Istruzzjonijiet Operattivi

Nagħmlu Espresso

1. Ipprepara l-Portafilter: Daħħal il-filtru mixtieq (tazza waħda jew ta’ 2 tazzi) fil-portafilter.


Image: Stainless steel portafilter with various filter inserts for single, double espresso, and E.S.E. pads, alongside a measuring spoon.

2. Żid il-Kafè Mitħun: Fill the filter with finely ground espresso coffee. Use the measuring spoon provided. For a single espresso, use one level spoon; for a double, use two.


Image: A hand using the measuring spoon to scoop ground coffee into the portafilter.

3. Tamp il-Kafè: Uża t-tamper end of the measuring spoon to firmly press the coffee grounds. Ensure the surface is level.

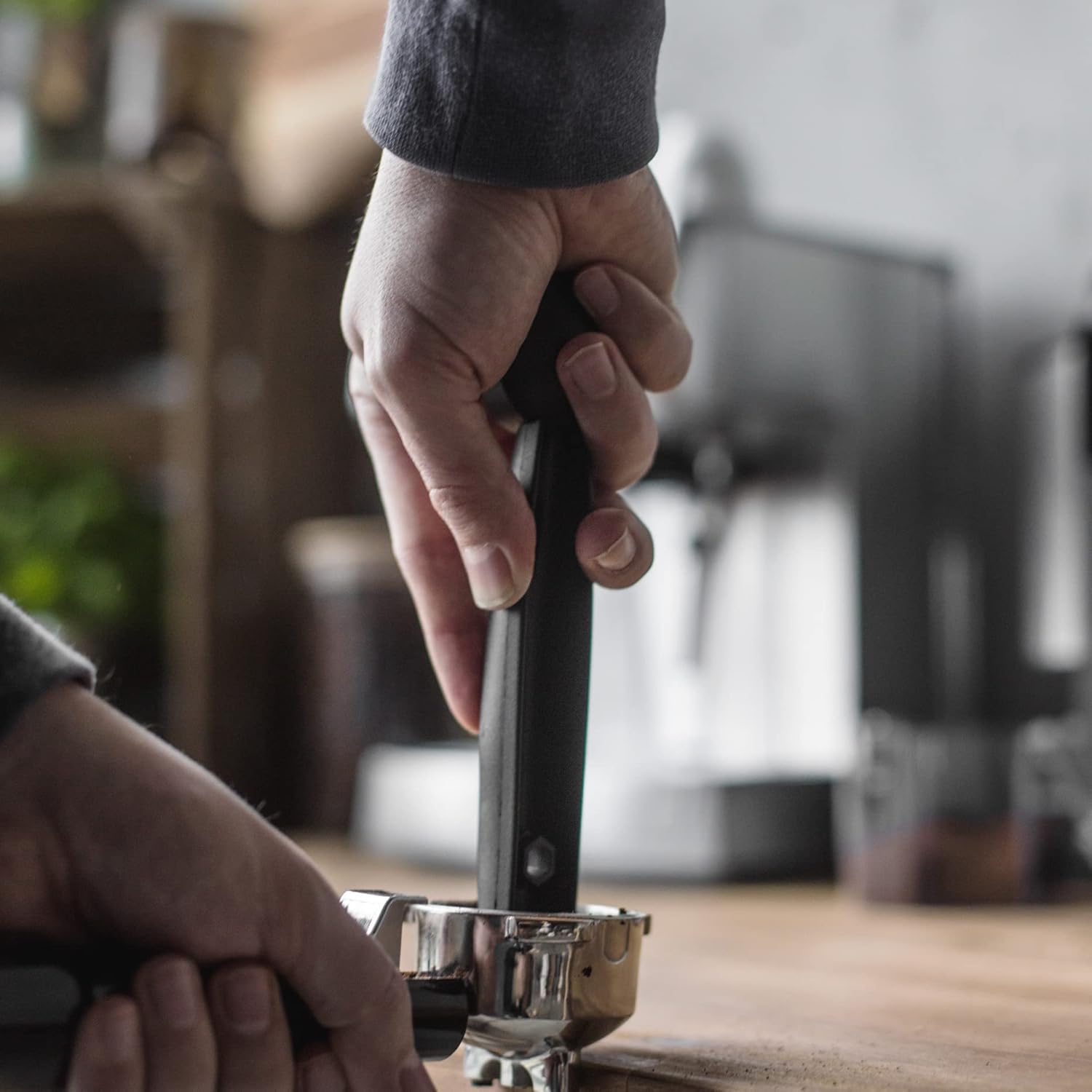

Image: A hand firmly tamping ground coffee in the portafilter using the integrated tamper.

4. Waħħal il-Portafilter: Align the portafilter with the brewing head and insert it. Turn it firmly to the right until it is securely locked.

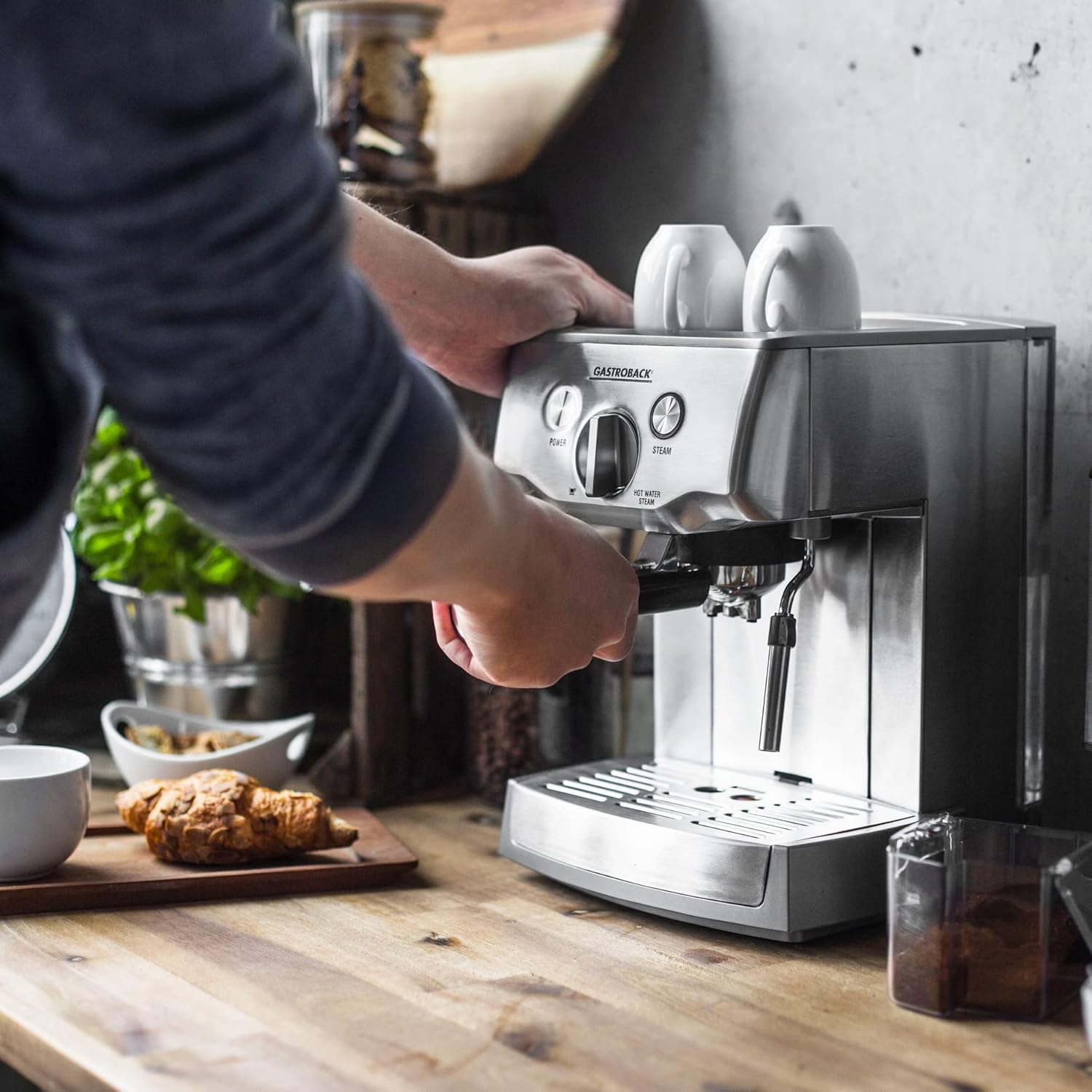

Image: A hand attaching the portafilter to the brewing head of the espresso machine.

5. Brew Espresso: Place one or two pre-warmed espresso cups under the portafilter spouts. Press the ESPRESSO button. The machine will start brewing. Press the button again to stop brewing when the desired amount of espresso is reached.

Using E.S.E. Pads

• Insert the E.S.E. pad filter into the portafilter.
• Place one E.S.E. pad into the filter.


Image: A single E.S.E. (Easy Serving Espresso) pad next to its dedicated filter insert.

• Follow steps 4 and 5 from "Making Espresso" to brew.

Ħalib tar-ragħwa

1. Fill the stainless steel milk frothing jug with cold milk (approximately 1/3 full).
2. Press the STEAM button. The indicator light will flash as the machine heats up to steam temperature. Once steady, the machine is ready for steaming.
3. Poġġi l-bastun tal-fwar fil-ħalib, eżatt taħt il-wiċċ.
4. Turn the steam/hot water knob to the steam position. Steam will be released.
5. Move the jug slowly up and down to create foam. Once the desired texture and temperature are reached, turn the knob back to the closed position.


Image: A hand frothing milk in a stainless steel jug using the steam wand of the espresso machine.

6. Immediately after frothing, clean the steam wand by wiping it with a damp drapp u ħelsu fil-qosorasinFwar ġo tazza vojta biex tneħħi kwalunkwe residwu tal-ħalib.

Funzjoni ta 'Ilma sħun

• Ensure the machine is heated (POWER light steady).
• Poġġi tazza taħt il-bastun tal-fwar.
• Turn the steam/hot water knob to the hot water position to dispense hot water. Turn it back to close when done.

Tindif u Manutenzjoni

Regular cleaning ensures optimal performance and extends the lifespan of your espresso machine. Always unplug the machine and allow it to cool before cleaning.

• Trej tat-taqtir: Empty and clean the drip tray regularly. It is removable for easy access.
• Tank tal-Ilma: Clean the water tank weekly with warm water and a mild detergent. Rinse thoroughly to prevent mineral buildup.
• Portafilter u Filtri: After each use, remove the spent coffee grounds and rinse the portafilter and filter inserts under running water. Use a brush to remove any coffee residue.
• Ras tal-Birra: Imsaħ ir-ras tal-birra b'reklamaramp cloth after each use to remove any coffee grounds.
• Bastun tal-Fwar: As mentioned in the operating section, clean the steam wand immediately after each use to prevent milk residue from drying and blocking the nozzle.
• Tneħħija tal-Ġebla: Depending on water hardness and frequency of use, descaling should be performed every 2-3 months. Use a suitable descaling solution for espresso machines and follow the manufacturer's instructions for the descaler.
• Barra: Imsaħ il-barra tal-magna b'artab, damp drapp. Tużax cleaners li joborxu jew għorik.

Issolvi l-problemi

Speċifikazzjonijiet Tekniċi

Garanzija u Appoġġ għall-Klijent

Your Gastroback 42709 Design Espresso Pro Machine comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or service inquiries, please contact Gastroback customer support. Contact information can typically be found on the manufacturer's official webis-sit jew fuq l-imballaġġ tal-prodott.

Nota: L-informazzjoni dwar id-disponibbiltà tal-ispare parts ma ġietx ipprovduta fid-dejta tal-prodott.
