GROHE Tempesta Cosmopolitan III 100 Rod Set

1. Prodott Aktarview

The GROHE Tempesta Cosmopolitan III 100 Rod Set, model 27576002, is a complete shower system designed for wall-mounted installation. This set includes a Tempesta 100 hand shower, a 600 mm shower rail, a 1750 mm Relexaflex shower hose, and a GROHE EasyReach resting element. It features GROHE DreamSpray technology for a perfect spray pattern, GROHE EcoJoy for reduced water consumption (9.5 l/min flow regulator), a GROHE StarLight surface for durability, and a SpeedClean anti-limescale system. The internal separate water guide ensures suitability for use with tankless water heaters, requiring a minimum pressure of 1.0 bar.

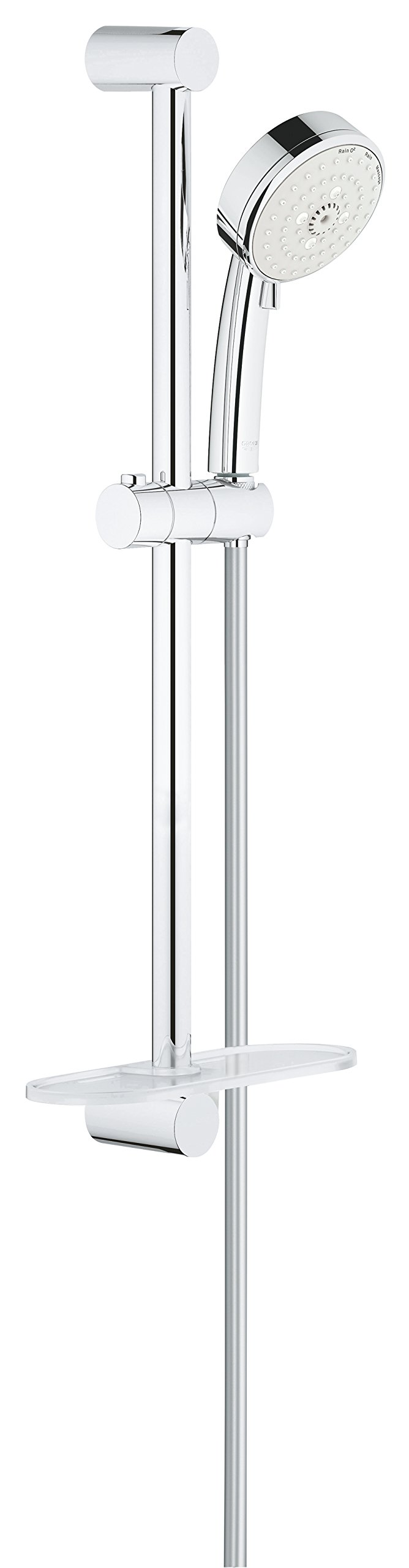

Image 1.1: GROHE Tempesta Cosmopolitan III 100 Rod Set, showcasing the hand shower, rail, and hose.

2. Informazzjoni dwar is-Sigurtà

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or property damage.

• Kun żgur li l-provvista prinċipali tal-ilma tkun mitfija qabel tibda kwalunkwe xogħol ta' installazzjoni.
• Ilbes tagħmir protettiv personali xieraq, bħal nuċċalijiet tas-sigurtà u ingwanti.
• Jekk m'intix ċert dwar xi parti tal-proċess tal-installazzjoni, ikkonsulta plamer kwalifikat.
• Do not use abrasive cleaners or solvents on the product, as this may damage the finish.
• Kun żgur li l-konnessjonijiet kollha huma reżistenti għall-ilma biex tevita t-tnixxijiet.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra qabel ma tipproċedi bl-installazzjoni:

• Tempesta 100 Hand Shower (3 jet types)
• Shower Rail (600 mm length)
• Relexaflex Shower Hose (1750 mm length)
• GROHE EasyReach Resting Element
• Ħardwer tal-immuntar (viti, tappijiet tal-ħajt)

4. Setup u Installazzjoni

This section provides general guidelines for installing your GROHE Tempesta Cosmopolitan III 100 Rod Set. For detailed, step-by-step instructions, refer to the included installation diagram and any specific instructions provided with the product packaging.

4.1 Għodda Meħtieġa (Tipika)

• Drill
• Drill bits (appropriate for wall material)
• Lapes
• Tejp tal-kejl
• Livell
• Tornavit
• Wrench aġġustabbli
• Tejp tas-siġillant (tejp tal-PTFE)

4.2 Passi ta' Installazzjoni

1. Ipprepara ż-Żona tal-Installazzjoni: Turn off the water supply. Determine the desired height and position for the shower rail on the wall. Ensure the location allows for comfortable use of the hand shower.
2. Immarka l-Punti tat-Tħaffir: Use the shower rail brackets as a template to mark the drilling points on the wall. Use a level to ensure the marks are perfectly vertical.
3. Drill toqob: Drill holes at the marked points, ensuring the correct drill bit size for the wall plugs. Insert the wall plugs flush with the wall surface.
4. Mount the Shower Rail: Secure the shower rail brackets to the wall using the provided screws. Attach the shower rail to the mounted brackets.
5. Connect the Shower Hose: Apply sealant tape to the threads of the shower hose connections. Connect one end of the 1750 mm Relexaflex shower hose to the water outlet on the wall and the other end to the hand shower. Hand-tighten, then use an adjustable wrench for a final snug fit, being careful not to overtighten.
6. Attach Hand Shower and EasyReach: Place the hand shower into its holder on the shower rail. Attach the GROHE EasyReach resting element to the rail as desired.
7. Test għal Tnixxijiet: Turn the main water supply back on and check all connections for leaks. Run the shower briefly to ensure proper function.

Image 4.1: Installation diagram showing dimensions and connection points for the GROHE Tempesta Cosmopolitan III 100 Rod Set. Key dimensions include a rail length of 620mm, a hose length of 1750mm, and a hand shower diameter of 100mm. The wall connection is G 1/2.

5. Istruzzjonijiet Operattivi

The GROHE Tempesta Cosmopolitan III 100 Hand Shower offers three distinct jet types for a personalized shower experience.

• Tibdil fil-Mudelli tal-Isprej: Rotate the spray plate on the hand shower head to cycle through the available jet types.
• Aġġustament tal-Għoli tad-Doċċa tal-Idejn: The hand shower holder can be easily adjusted up or down along the shower rail to suit individual preferences. Simply press the release button or lever on the holder, slide it to the desired position, and release to secure.

6. Manutenzjoni

Regular cleaning and maintenance will ensure the longevity and optimal performance of your GROHE shower set.

• Tindif tal-wiċċ: The GROHE StarLight chrome finish is durable and easy to clean. Use only a soft cloth and mild soap or a non-abrasive liquid cleaner. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. Avoid cleaners containing abrasive agents, alcohol, or corrosive chemicals.
• SpeedClean Anti-Limescale System: The nozzles on the hand shower are equipped with the SpeedClean system. To remove limescale deposits, simply wipe the silicone nozzles with your finger or a cloth. This flexible material allows for easy removal of mineral buildup.
• Kura tal-Pajp: Periodically check the shower hose for any signs of wear or damage. Clean the hose with a soft cloth and mild soap.

7 Issolvi l-problemi

If you encounter any issues with your GROHE Tempesta Cosmopolitan III 100 Rod Set, refer to the following common problems and solutions:

• Pressjoni Baxxa tal-Ilma:
  • Iċċekkja jekk il-valv prinċipali tal-provvista tal-ilma huwiex miftuħ għalkollox.
  • Inspect the shower hose and hand shower nozzles for limescale buildup. Clean using the SpeedClean system or by soaking in a mild descaling solution if necessary.
  • Ensure there are no kinks in the shower hose.
• Tnixxijiet minn Konnessjonijiet:
  • Itfi l-provvista tal-ilma.
  • Check that all connections are securely tightened. Do not overtighten.
  • Ensure sealant tape (PTFE tape) was properly applied to threaded connections. Reapply if necessary.
  • Inspect rubber washers for damage and replace if worn.
• Id-doċċa tal-idejn ma tibqax f'postha:
  • Ensure the hand shower holder is properly tightened on the rail.
  • Check for any debris or damage within the holder mechanism.

If the problem persists after attempting these solutions, please contact GROHE customer support or a qualified plumber.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For information regarding product warranty, please refer to the warranty documentation included with your purchase or visit the official GROHE website. For technical support, spare parts, or further assistance, please contact GROHE customer service directly.

GROHE Contact Information: Please refer to your product packaging or the official GROHE websit għad-dettalji ta' kuntatt l-aktar aġġornati fir-reġjun tiegħek.
