Fujifilm XF80mmF2.8 R LM OIS WR Lens Instruction Manual

Introduzzjoni

The Fujifilm XF80mmF2.8 R LM OIS WR Macro Lens is a mid-telephoto macro lens designed to deliver high-quality results with Fujifilm's X-Trans CMOS sensors. This lens features an optical construction of 16 elements in 12 groups, including one aspherical lens, one Super ED lens, and three ED lenses. It incorporates a floating focus system for precise macro shooting from close-up to distant subjects. With a focal length equivalent to 122mm (on a 35mm format) and a maximum aperture of F2.8, it offers 1.0X magnification, making it suitable for detailed macro photography of flowers and nature, as well as portraits with pleasing bokeh.

Figura 1: The Fujifilm XF80mmF2.8 R LM OIS WR Macro Lens. This image displays the lens from the front, showing the aperture ring, focus ring, and the lens barrel with its various markings.

X'hemm fil-Kaxxa

Iċċekkja li l-oġġetti kollha li ġejjin huma inklużi fil-pakkett tiegħek:

• Fujifilm XF80mmF2.8 R LM OIS WR Lens
• Kap tal-Lenti ta 'Quddiem
• Kap tal-Lenti ta 'wara
• Borża tal-Lenti
• Manwal ta 'Istruzzjoni (dan id-dokument)

Karatteristiċi Ewlenin

• High Resolving Power and Bokeh: Optical construction with 16 elements in 12 groups, including one aspherical, one Super ED, and three ED lenses, ensures sharp images and pleasinċċajpar fl-isfond.
• New AF System: Employs a floating focus system that divides the focus lens group into "front focus group" and "rear focus group" for accurate focusing across various shooting distances.
• Stabbilizzazzjoni tal-Immaġni Ottiċi (OIS): Features a 5-stop image stabilization system, suppressing angle and shift shake using a gyro sensor and an acceleration sensor.
• Weather and Dust Resistant: Designed for operation in temperatures down to -10°C (14°F) and includes a fluorine coating on the front element for added protection.

Setup

It-twaħħil tal-Lenti

1. Żgura li l-kamera tkun mitfija.
2. Neħħi l-għatu tal-lenti ta' wara mil-lenti u l-għatu tal-body mill-kamera.
3. Align the mounting marks on the lens with the corresponding marks on the camera body.
4. Mount the lens by rotating it clockwise until it clicks into place. Do not force the lens.

It-twaħħil tal-Lens Hood

The lens hood helps to prevent stray light from entering the lens, reducing flare and ghosting, and also offers some physical protection to the front element.

Figura 2: The dedicated lens hood for the XF80mmF2.8 R LM OIS WR lens. This image shows the cylindrical shape of the hood, designed to block unwanted light.

1. Allinja l-punt aħmar fuq il-kappa tal-lenti mal-punt aħmar fuq quddiem tal-kanna tal-lenti.
2. Rotate the hood clockwise until it locks securely into position.

Tħaddim tal-Lenti

Kontroll tal-Apertura

The lens features an aperture ring for direct control over the F-stop. Rotate the aperture ring to select your desired aperture value. For automatic aperture control, set the ring to the 'A' position.

Iffukar

The XF80mmF2.8 R LM OIS WR lens supports both autofocus (AF) and manual focus (MF). The focus mode can be selected on your camera body.

• Awtomatiku: When the camera is set to AF, the lens will automatically focus on your subject. The linear motor ensures fast and quiet autofocus performance.
• Focus Manwal: When the camera is set to MF, rotate the focus ring on the lens to adjust focus manually. Utilize your camera's focus peaking or magnification features for precise manual focusing.

Swiċċ Limitatur tal-Focus

The lens is equipped with a focus limiter switch to optimize autofocus speed by restricting the focus range. This is particularly useful in macro photography.

• SĦIĦA: The lens will focus across its entire range (0.25m to infinity).
• 0.5m - ∞: Limits focus to subjects from 0.5 meters to infinity. Use this setting for non-macro subjects to speed up AF.
• 0.25m - 0.5m: Limits focus to subjects within the macro range of 0.25 meters to 0.5 meters. Use this for close-up macro shots.

Stabbilizzazzjoni tal-Immaġni Ottika (OIS)

The built-in OIS system helps to reduce camera shake, allowing for sharper images at slower shutter speeds, especially beneficial in low light or when shooting handheld macro. The OIS function is typically controlled via a switch on the camera body or through the camera's menu system.

Manutenzjoni

Tindif tal-Lenti

• Uża pinzell tal-blower biex tneħħi t-trab u l-partiċelli maħlula mill-wiċċ tal-lenti.
• For smudges or fingerprints, use a clean, soft microfiber cloth specifically designed for optics. Apply a small amount of lens cleaning solution to the cloth, not directly to the lens.
• The front element features a fluorine coating, which repels water and dirt, making it easier to clean.

Ħażna

• Dejjem waħħal l-għotjien tal-lenti ta’ quddiem u ta’ wara meta l-lenti ma tkunx qed tintuża.
• Aħżen il-lenti f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Jekk taħżen għal perjodi twal, ikkunsidra li tuża kabinett tad-deumidifikazzjoni jew pakketti tal-ġel tas-silika biex tevita t-tkabbir tal-moffa.

Reżistenza għat-temp

This lens is weather and dust resistant. While it is designed to withstand splashes and dust, it is not fully waterproof. Avoid submerging the lens in water or exposing it to heavy rain for prolonged periods. Ensure the lens is properly mounted to a weather-resistant camera body to maintain the system's overall resistance.

Issolvi l-problemi

Speċifikazzjonijiet

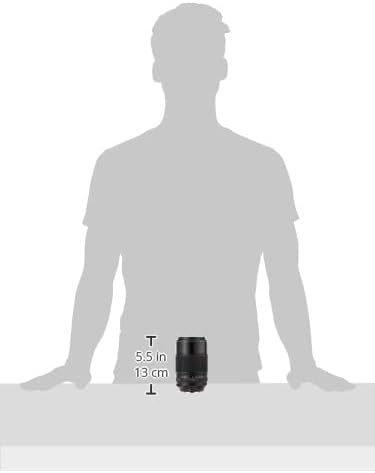

Figura 3: A size comparison image of the Fujifilm XF80mmF2.8 R LM OIS WR lens, indicating its approximate dimensions of 5.5 inches (13 cm) in height.

Garanzija u Appoġġ

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Fujifilm website. For technical support, service, or inquiries about your Fujifilm XF80mmF2.8 R LM OIS WR Lens, please contact Fujifilm customer service or an authorized service center in your region. Contact details can typically be found on the Fujifilm webis-sit jew fid-dokumentazzjoni pprovduta mal-prodott tiegħek.
