Manwal tal-Utent tal-Batterija TROJAN T-105 PLUS 6V 225Ah Deep Cycle Flooded

1. Introduzzjoni

This manual provides essential information for the safe and effective use of your TROJAN T-105 PLUS 6V 225Ah Deep Cycle Flooded Batteries. Please read these instructions thoroughly before installation, operation, or maintenance to ensure optimal performance and longevity of your batteries. This product typically includes six (6) TROJAN T-105 PLUS batteries, designed for deep cycle applications.

2. Informazzjoni dwar is-Sigurtà

Deep cycle flooded batteries contain corrosive sulfuric acid and produce explosive hydrogen gas. Improper handling can lead to severe injury or property damage. Always adhere to the following safety precautions:

Tagħmir Protettiv Personali (PPE): Always wear safety glasses, acid-resistant gloves, and protective clothing when handling batteries.
Ventilazzjoni: Ensure adequate ventilation during charging and operation to disperse hydrogen gas. Avoid enclosed spaces.
Sorsi tat-tqabbid: Keep sparks, flames, and smoking materials away from batteries. Hydrogen gas is highly flammable.
Kuntatt mal-Aċidu: If acid contacts skin or eyes, flush immediately with water for at least 15 minutes and seek medical attention. Neutralize spills with baking soda.
Irfigħ: These batteries are heavy. Use proper lifting techniques or equipment to prevent injury.
Għodod: Use insulated tools to prevent short circuits. Remove jewelry before working with batteries.
Tbaħħir u Immaniġġjar: Inspect packaging for damage upon delivery. Verify the quantity and condition of batteries before signing for shipment.

Palletized battery shipment with warning labels — Figure 2.1: Palletized shipment of batteries with a 'NO STACK' warning and corrosive material labels. Always inspect for damage before accepting delivery.

3. Prodott Aktarview

The TROJAN T-105 PLUS is a 6-volt, 225 amp-hour (Ah) deep cycle flooded lead-acid battery, engineered for robust performance in demanding applications such as golf carts, renewable energy systems, floor machines, and aerial work platforms. Its deep cycle design allows for repeated discharge and recharge cycles, providing reliable power over an extended lifespan.

Six Trojan T-105 Plus deep cycle batteries — Figure 3.1: A set of six TROJAN T-105 PLUS 6V 225Ah Deep Cycle Flooded Batteries.

Fuq view of a single Trojan T-105 Plus battery showing terminals and label — Figura 3.2: Parti ta' fuq dettaljata view of a single TROJAN T-105 PLUS battery, highlighting the 'MOTIVE' branding, 6 Volt, 225 Ah rating, and safety warnings.

4. Setup u Installazzjoni

Proper installation is critical for safety and performance. Follow these steps carefully:

Spezzjoni: Before installation, visually inspect each battery for any signs of damage, cracks, or leaks. Ensure terminals are clean and free of corrosion.
Ventilazzjoni: Install batteries in a well-ventilated area, away from heat sources and direct sunlight.
Orjentazzjoni: Always install batteries in an upright position.
Konnessjonijiet: Connect batteries in series or parallel according to your system's voltage and capacity requirements. For a 36V system using six 6V batteries, connect them in series. For a 48V system using eight 6V batteries, connect them in series. Ensure all connections are tight and secure.
Torque terminali: Apply the specified torque to terminal connections to prevent loose connections, which can cause overheating and damage.

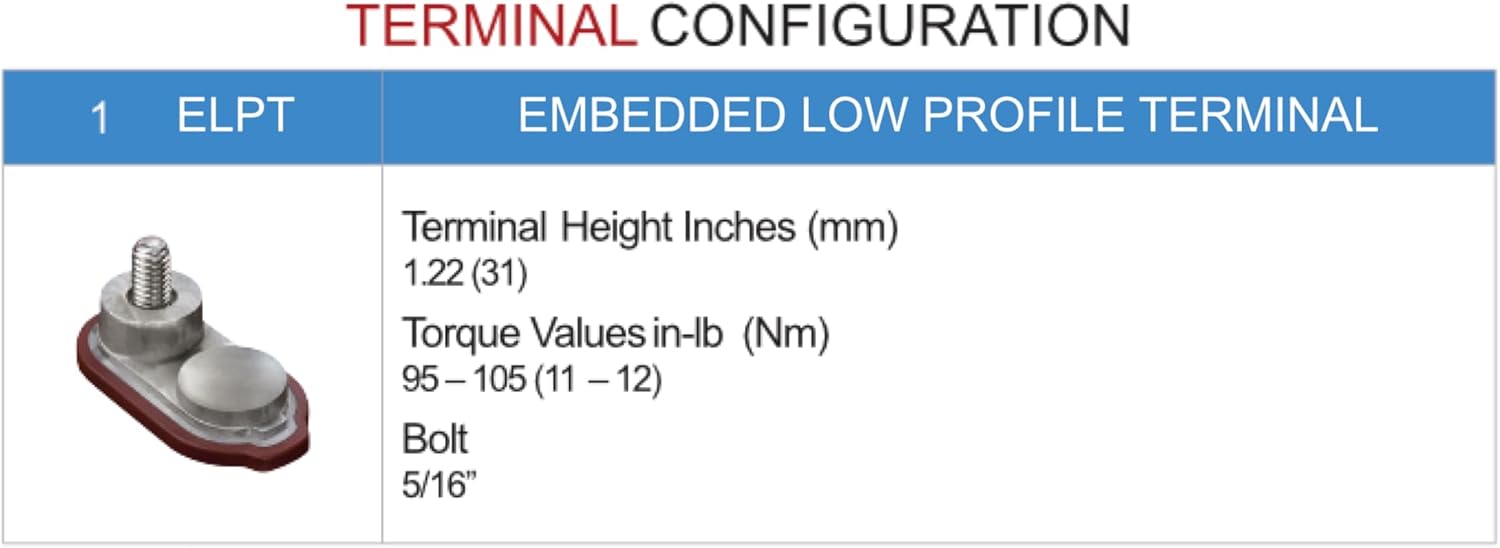

Figure 4.1: Terminal Configuration for the Embedded Low Profile Terminal (ELPT). Terminal Height: 1.22 inches (31 mm). Recommended Torque Values: 95-105 in-lb (11-12 Nm). Bolt size: 5/16 inches.

Dijagramma tal-Wajers Eżample (for 36V system with 6 batteries):

Connect the positive terminal of Battery 1 to the negative terminal of Battery 2.
Connect the positive terminal of Battery 2 to the negative terminal of Battery 3.
Continue this pattern until the positive terminal of Battery 5 is connected to the negative terminal of Battery 6.
The remaining negative terminal of Battery 1 and positive terminal of Battery 6 will be your main system terminals.

5. Istruzzjonijiet Operattivi

Once installed, your TROJAN T-105 PLUS batteries are ready for operation. Adhere to these guidelines for optimal performance:

Ħlas Inizjali: Fully charge new batteries before their first use. This conditions the battery for optimal performance.
Iċċarġjar: Use a charger specifically designed for flooded lead-acid deep cycle batteries. Follow the charger manufacturer's instructions. Avoid overcharging or undercharging.
Ħruġ: Avoid discharging batteries below 50% Depth of Discharge (DoD) for maximum cycle life. Occasional deeper discharges are acceptable but will reduce overall battery life.
Temperatura: Battery performance is affected by temperature. Operate batteries within recommended temperature ranges (typically 77°F / 25°C). Extreme temperatures can reduce capacity and lifespan.

6. Manutenzjoni

Regular maintenance is crucial for extending the life and performance of your flooded deep cycle batteries:

Tisqija: Check electrolyte levels regularly (monthly or more frequently in hot climates or with heavy use). Add distilled water to cover the plates, but do not overfill. Never add acid.
Tindif: Keep battery tops and terminals clean and dry. Use a solution of baking soda and water to neutralize any acid residue, then rinse with clean water and dry thoroughly.
Spezzjoni tat-Terminal: Periodically inspect terminals for corrosion and tightness. Clean corroded terminals with a wire brush and apply a thin layer of anti-corrosion grease.
Voltage Kontrolli: Monitor individual battery voltages to ensure they are balanced. Significant voltage differences may indicate an issue.
Gravità speċifika: Use a hydrometer to check the specific gravity of the electrolyte in each cell. This indicates the state of charge and health of the battery.

7 Issolvi l-problemi

If you encounter issues with your TROJAN T-105 PLUS batteries, consider the following common problems and solutions:

Problema	Kawża Possibbli	Soluzzjoni
Reduced Run Time / Low Capacity	Undercharging, sulfation, low electrolyte level, aging battery	Ensure full charge cycles, check electrolyte levels and add distilled water, perform equalization charge if recommended by manufacturer, consider battery replacement if aged.
Batterija Mhux Żomm Ħlas	Internal short circuit, severe sulfation, faulty charger	Test individual battery voltage, check charger output, consult a battery specialist.
Corrosion on Terminals	Acid leakage, loose connections, lack of maintenance	Clean terminals with baking soda solution, tighten connections, apply anti-corrosion grease.
Overheating During Charge	Overcharging, faulty charger, poor ventilation	Check charger settings, ensure adequate ventilation, discontinue charging if severe.

8. Speċifikazzjonijiet

Karatteristika	Speċifikazzjoni
Brand	TROJAN
Mudell	T-105 PLUS
Voltage	6 Volts
Amperage (20 Hr Rate)	225 Amps
Piż tal-Oġġett (Kull Wieħed)	Approx. 550 pounds (for 6 batteries, individual battery weight not specified but implied by total)
Dimensjonijiet tal-Prodott (Kull Wieħed)	10 x 7 x 11 pulzieri
Tip ta 'batterija	Deep Cycle Flooded Lead-Acid

9. Garanzija u Appoġġ

For warranty information and technical support, please contact TROJAN Battery Company directly or an authorized TROJAN dealer. It is important to purchase batteries from authorized distributors to ensure warranty validity. Keep your proof of purchase for any warranty claims.

For further assistance, visit the official TROJAN webis-sit jew ikkonsulta n-negozjant awtorizzat lokali tiegħek.
