Bilstein 4600 Series Rear Monotube Shock Absorber

Introduzzjoni

This manual provides essential information for the proper installation, operation, and maintenance of your Bilstein 4600 Series Rear Monotube Shock Absorber (Model 24-269439). Designed as a direct fit upgrade for OE shock absorbers on stock height light trucks and SUVs, this product is specifically tuned for 2014-2017 Dodge Ram 2500 vehicles. It features a monotube design for consistent fade-free performance and a velocity-sensitive, digressive piston that adapts to changing road conditions.

Informazzjoni dwar is-Sigurtà

TWISSIJA:

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling and installing shock absorbers.
• Kun żgur li l-vettura hija appoġġjata sew fuq stands tal-ġakk jew lift qabel tibda kwalunkwe xogħol. Qatt ma tiddependi biss fuq ġakk.
• Exercise caution when compressing springs or handling components under tension.
• Irreferi għall-manwal tas-servizz tal-vettura tiegħek għal speċifikazzjonijiet u proċeduri speċifiċi tat-torque.
• Dan il-prodott fih kimiċi magħrufa mill-Istat ta’ Kalifornja li jikkawżaw kanċer u difetti fit-twelid jew ħsara riproduttiva oħra. Aħsel idejk wara l-immaniġġjar.

Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni.

• 1x Bilstein 4600 Series Rear Monotube Shock Absorber (24-269439)
• Necessary bushings and washers (may be pre-installed or separate)
• Mounting hardware (if applicable, check specific kit)

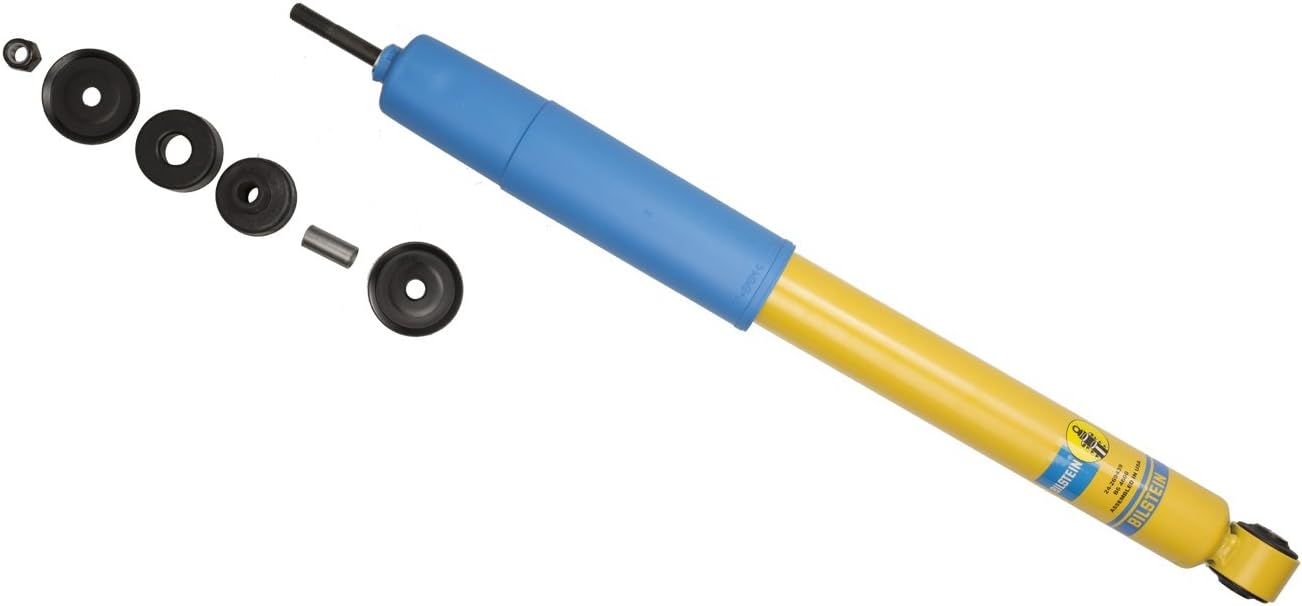

Image: Bilstein 4600 Series shock absorber with its accompanying bushings and mounting hardware laid out.

Setup u Installazzjoni

Professional installation is recommended. The following steps are general guidelines and may vary based on vehicle configuration. Always consult your vehicle's specific service manual.

Għodod Meħtieġa:

• Vehicle lift or jack and jack stands
• Socket set and wrenches (metric and/or standard, as required by vehicle)
• Torque wrench
• Penetrating oil (optional, for rusted fasteners)
• Pinzell tal-wajer (mhux obbligatorju, għat-tindif tal-ħjut)

Passi ta' Installazzjoni:

1. Ipprepara Vettura: Park the vehicle on a level surface. Engage the parking brake. Lift the rear of the vehicle using a suitable lift or jack and secure it with jack stands. Remove the rear wheels for better access.
2. Locate and Remove Old Shock: Identify the rear shock absorbers. Using appropriate wrenches, loosen and remove the upper and lower mounting bolts/nuts securing the old shock absorber. Carefully remove the old shock from the vehicle.
3. Spezzjona l-Punti tal-Immuntar: Clean any dirt or rust from the mounting points on the vehicle frame and axle. Inspect for any damage or wear.
4. Ipprepara Xokk Ġdid: If not pre-installed, install the supplied bushings and washers onto the new Bilstein shock absorber according to the manufacturer's diagram. Ensure proper orientation.
5. Installa Xokk Ġdid: Position the new Bilstein shock absorber into the mounting locations. Insert the upper and lower mounting bolts/nuts. Hand-tighten the fasteners.
6. Qafliet tat-torque: Using a torque wrench, tighten the upper and lower mounting bolts/nuts to the vehicle manufacturer's specified torque settings. Refer to your vehicle's service manual for exact values.
7. Irrepeti għan-Naħa l-Oħra: Repeat the process for the other rear shock absorber.
8. Passi Finali: Reinstall the rear wheels and lower the vehicle. Perform a final check of all tightened fasteners.

Image: The Bilstein 4600 Series Rear Monotube Shock Absorber, ready for installation.

Karatteristiċi Operattivi

The Bilstein 4600 Series shock absorber is a passive component designed to control suspension movement. It does not require active user operation. Its performance characteristics include:

• Monotube Design: Provides consistent, fade-free damping performance under various driving conditions.
• Velocity Sensitive Digressive Piston: Reacts instantly to changing road surface conditions, offering optimal comfort and control.
• Gas-Pressure Technology: Enhances responsiveness and prevents cavitation, contributing to a longer service life.
• Application Specific Tuning: Individually fine-tuned for the 2014-2017 Dodge Ram 2500 to ensure optimal ride quality, handling, and safety.

Manutenzjoni

Bilstein 4600 Series shock absorbers are designed for long-term, maintenance-free operation. However, periodic inspection is recommended:

• Spezzjoni Viżwali (Kull 12,000 mil jew kull sena): Check for any signs of fluid leaks around the shock body or shaft.
• Bushing Inspection: Examine the rubber bushings at the mounting points for cracks, tears, or excessive wear. Replace if necessary.
• Ħardwer tal-Immuntar: Periodically check that all mounting bolts and nuts remain tight. Re-torque to specifications if loose.
• Indafa: Keep the shock absorbers free from excessive dirt and debris, especially around the shaft and seals.

Issolvi l-problemi

If you experience issues after installation, consider the following common problems and solutions:

If problems persist, contact a certified automotive technician or Bilstein customer support.

Speċifikazzjonijiet

Garanzija u Appoġġ

Bilstein products are manufactured to high standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty documentation included with your product or visit the official Bilstein website. The warranty typically covers defects in material and workmanship.

Appoġġ għall-Klijent:

For technical assistance, warranty claims, or further inquiries, please contact Bilstein customer support directly. Contact information can typically be found on their official webis-sit jew l-imballaġġ tal-prodott.
