Manwal tal-Utent tal-Headphones Wireless Bluedio F2

1. Introduzzjoni

Thank you for choosing the Bluedio F2 Wireless Bluetooth Headphones. These over-ear headphones are designed to provide a superior audio experience with advanced features such as Active Noise Cancelling (ANC) and Bluedio's unique Vector Flow Technology (VFT) for enhanced bass. The F2 model combines comfort, durability, and high-fidelity sound, making it ideal for various listening environments.

This manual provides essential information on setting up, operating, maintaining, and troubleshooting your Bluedio F2 headphones to ensure optimal performance and longevity.

Figura 1.1: Quddiem view of the Bluedio F2 Wireless Headphones, showcasing id-disinn eleganti tagħhom.

2. X'hemm fil-Kaxxa

Upon unboxing your Bluedio F2 headphones, please verify that all components are present:

• Bluedio F2 Headphones
• Cable tal-Iċċarġjar tal-USB tat-Tip-Ċ
• 3.5mm to Type-C Audio Cable
• Hard Carrying Case with Buckle
• Drawstring Carry Bag for Cables
• Manwal għall-Utent (dan id-dokument)

Figure 2.1: All items included in the Bluedio F2 retail package.

3. Gwida ta' Setup

3.1 Iċċarġjar tal-Headphones

Before first use, fully charge your Bluedio F2 headphones. Connect the provided USB Type-C charging cable to the charging port on the headphones and the other end to a USB power source (e.g., computer USB port, wall adapter). The ANC indicator light will show charging status. A full charge provides approximately 16 hours of Bluetooth music or talk time.

3.2 Tqabbil tal-Bluetooth

To pair your Bluedio F2 headphones with a Bluetooth-enabled device:

1. Kun żgur li l-headphones huma mitfija.
2. Press and hold the Multi-function (MF) button until the ANC indicator light flashes blue and red alternately, indicating pairing mode.
3. Fuq it-tagħmir tiegħek, ippermetti l-Bluetooth u fittex tagħmir disponibbli.
4. Select "Bluedio F2" from the list of found devices.
5. Once paired, the ANC indicator light will turn solid blue or flash blue slowly.

Il-headphones jippruvaw jerġgħu jikkonnettjaw awtomatikament mal-aħħar apparat imqabbad meta jinxtegħlu.

4. Istruzzjonijiet Operattivi

4.1 Headphone Controls Overview

Familiarize yourself with the control buttons located on the earcups:

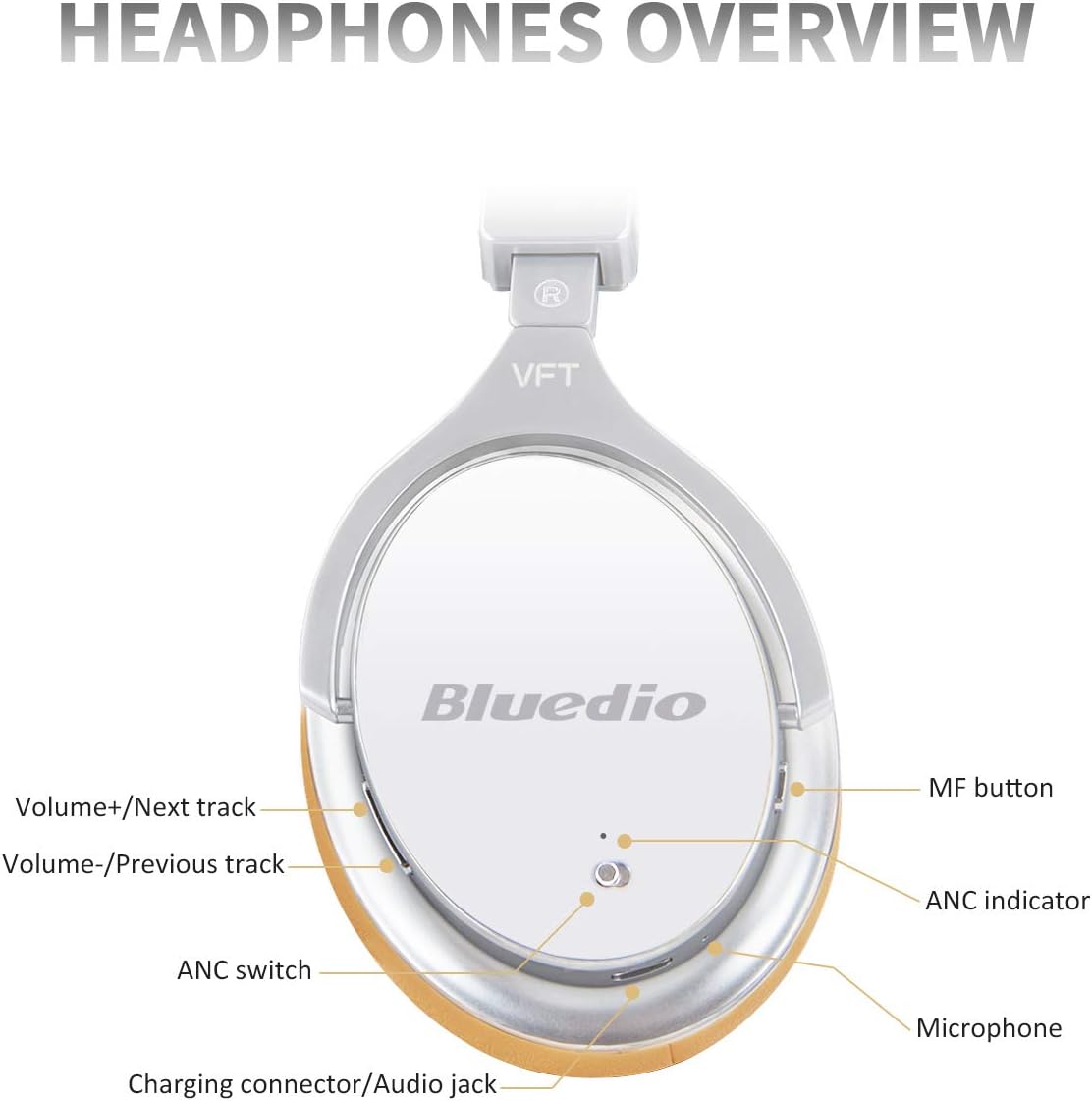

Figura 4.1: Dettaljat fuqview of the Bluedio F2 headphone controls and ports.

• Buttuna MF: Power on/off, play/pause music, answer/end calls, activate voice assistant.
• Volum+/Track Li jmiss: Agħfas qasir biex tgħolli l-volum, agħfas twil għat-trakka li jmiss.
• Volume-/Previous Track: Agħfas qasir biex tnaqqas il-volum, agħfas twil għat-trakka ta' qabel.
• Swiċċ ANC: Slide to activate or deactivate Active Noise Cancelling.
• Indikatur tal-ANC: Shows ANC status and charging status.
• Mikrofonu: Għal sejħiet hands-free.
• Charging Connector/Audio Jack: USB Type-C port for charging and 3.5mm audio input via adapter cable.

4.2 Kanċellazzjoni Attiva tal-Istorbju (ANC)

The Bluedio F2 features advanced ANC technology to reduce ambient noise. To activate ANC, slide the ANC switch. When ANC is active, you may notice a slight change in the audio profile, typically a subtle compression of highs and lows, resulting in a flatter sound reproduction. This is a normal characteristic of active noise cancellation and is designed to provide a more isolated listening environment.

4.3 Wired Mode Operation

Your Bluedio F2 headphones can be used in wired mode, even if the battery is depleted. Connect one end of the provided 3.5mm to Type-C audio cable to the headphone's Type-C port and the other end to your audio source's 3.5mm jack. In wired mode, Bluetooth and ANC functions are typically disabled.

Figure 4.2: The Bluedio F2 offers both wireless freedom and a wired backup option for continuous listening.

4.4 Kumdità u Disinn

The Bluedio F2 headphones feature an oval over-ear design with soft protein padding for extended comfort. The adjustable headband and rotatable earcups ensure a snug and comfortable fit for various head sizes, minimizing fatigue during long listening sessions.

Figure 4.3: The ergonomic design of the Bluedio F2, emphasizing comfort features like soft earcups and an adjustable headband.

Figure 4.4: The Bluedio F2 headphones feature earcups that can twist 180 degrees, allowing them to rest comfortably around the neck when not in use.

5. Manutenzjoni u Kura

To ensure the longevity and optimal performance of your Bluedio F2 headphones, follow these maintenance guidelines:

• Tindif: Use a soft, dry cloth to clean the surfaces of the headphones. Avoid using abrasive cleaners or solvents.
• Ħażna: When not in use, store the headphones in their provided hard carrying case to protect them from dust, scratches, and impacts.
• Temperatura: Avoid exposing the headphones to extreme temperatures (hot or cold) or high humidity, as this can damage internal components and the battery.
• Kura tal-batterija: For best battery life, avoid fully discharging the headphones frequently. Charge them regularly, even if not in constant use.
• Kejbils: Immaniġġja l-kejbils tal-iċċarġjar u tal-awdjo bil-mod. Evita liwi qawwi jew ġbid eċċessiv biex tevita ħsara.

6 Issolvi l-problemi

If you encounter issues with your Bluedio F2 headphones, refer to the following common problems and solutions:

6.1 No Power / Cannot Turn On

• Ensure the headphones are fully charged. Connect them to a power source using the USB Type-C cable and allow sufficient time for charging.

6.2 Ma tistax tqabbad mat-tagħmir

• Ensure the headphones are in pairing mode (ANC indicator flashing blue and red alternately).
• Make sure Bluetooth is enabled on your device and it is within range (approximately 30 feet).
• Try forgetting "Bluedio F2" from your device's Bluetooth settings and re-pairing.
• Erġa' ibda kemm il-headphones kif ukoll l-apparat tiegħek.

6.3 Poor Sound Quality / No Sound

• Iċċekkja l-livelli tal-volum kemm fuq il-headphones kif ukoll fuq l-apparat konness tiegħek.
• Ensure the headphones are fully charged, as low battery can affect connection stability and sound quality.
• If using ANC, be aware that it can slightly alter the sound profile. If you prefer the original sound, deactivate ANC when not needed.
• If using wired mode, ensure the 3.5mm to Type-C audio cable is securely connected at both ends.
• Imxi eqreb lejn it-tagħmir Bluetooth tiegħek biex ittejjeb is-saħħa tas-sinjal.

6.4 ANC Affects Volume (Volume Drops When ANC Off)

• Some users may experience a noticeable drop in volume when ANC is deactivated. This is a known characteristic for some ANC implementations. If you require consistent volume, it is recommended to use ANC when listening in noisy environments or adjust your device's volume accordingly when ANC is off.

6.5 Connection Drops Frequently

• Ensure the headphones have sufficient battery charge. Connection stability can degrade when the battery is low.
• Minimize obstructions between the headphones and your device.
• Evita interferenza elettromanjetika qawwija minn apparati oħra.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For information regarding warranty coverage, technical support, or service inquiries for your Bluedio F2 headphones, please refer to the warranty card included with your product or visit the official Bluedio websit. Tista' wkoll tikkuntattja lill-bejjiegħ bl-imnut mingħand min xtrajt il-prodott għall-assistenza.

Nota: Ma kien hemm l-ebda vidjow uffiċjali tal-prodott mill-bejjiegħ disponibbli fid-dejta pprovduta biex tiġi inkorporata f'dan il-manwal.
