1. Introduzzjoni
The AUTOOL SDT106 Automotive Smoke Leak Detector is a professional tool designed for quickly and accurately diagnosing leaks in various automotive pipe systems. This device generates smoke to help visualize leaks in systems such as EVAP, intake, exhaust, fuel pipes, and general car sealing. It features a built-in air pump and operates on a DC 12V vehicle battery, making it a portable and efficient solution for automotive diagnostics.
2. Informazzjoni dwar is-Sigurtà
Għal tħaddim sikur, jekk jogħġbok osserva dan li ġej:
- The Smoke Leak Detector is equipped with high-temperature protection. If the equipment senses a temperature above 75°C, the power supply will automatically shut off to prevent overheating.
- The device also features a pressure-limit protection. If the air pressure exceeds the Standard mode (35psi) or EVAP mode (10psi), the air pump will stop working. This ensures the safety of both the operator and the equipment.
- Always ensure proper ventilation when operating the device.
- Use only recommended test oil (baby oil or mineral oil) for smoke generation.
- Avoid overfilling the oil reservoir.
- Connect the device only to a DC 12V car battery, observing correct polarity (red to positive, black to negative).
3. Kontenut tal-Pakkett
The AUTOOL SDT106 Smoke Leak Detector package includes the following items:
- AUTOOL SDT106 Main Unit
- Kurdun tal-Enerġija Clamp (for 12V battery connection)
- Smoke Tube/Hose (1.5m oil-resistant hose)
- Standard Cone Adapter (Ø30-85mm, for sealing air intake ports and introducing smoke into exhaust systems)
- EVAP Special Connector (Ø12.7mm, connects to car's EVAP access port)
- Test Oil Refill Bottle (100ml capacity)
- Rubber Connector Parts (Ø16/10mm and Ø4/3mm, for connecting hose mouth to smaller interfaces)
- Hard Rubber Hose Plugs (various sizes for sealing hoses)
- Valve Core Wrench (Ø4/6mm, for removing and installing EVAP service port valve core)
- Hook (for hanging the unit)
- Manwal għall-Utent
4. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | AUTOOL |
| Mudell | SDT-106 |
| Sors tal-Enerġija | DC 12V (Battery Powered) |
| Pressjoni tal-Ħruġ | 9-11 psi (Standard Mode), 10 psi (EVAP Mode) |
| Fluss tal-Output | 6 L/min |
| Air Pressure Output | Built-in Pompa ta 'l-Ajru |
| Klassifikazzjoni tat-Temperatura Għolja | 75°C (Auto Power Off) |
| Umdità Operattiva | 95% |
| Piż tal-oġġett | 7.55 Liri |
| Dimensjonijiet tal-Prodott | 11 x 10.2 x 8.8 pulzieri |
5. Setup
- Add Test Oil: Unscrew the oil filler cap on the top of the unit. Using the provided refill bottle, add 10-20ml of baby oil or mineral oil. Do not overfill. Ensure the oil filler cap is securely tightened after filling.
Image: Close-up of the oil filler port on the AUTOOL SDT106 unit. Text Description: A hand is shown unscrewing the oil filler cap on the top of the yellow smoke leak detector. Another image shows a small bottle of test oil being poured into the filler port using a funnel.
- Connect Smoke Tube: Connect one end of the smoke tube to the "Smoke Output" port on the side of the unit. Ensure it is securely attached.
Image: A hand connecting the smoke tube to the smoke output port on the AUTOOL SDT106. Deskrizzjoni tat-Test: Close-up view of a hand attaching the black smoke tube to the designated smoke output port on the yellow diagnostic device.
- Qabbad l-Enerġija: Qabbad il-korda tad-dawl clamps to your vehicle's 12V battery. Attach the red clamp għat-terminal pożittiv (+) u l-iswed clamp to the negative (-) terminal. Then, plug the power cord into the DC 12V input port on the unit.
Image: A hand connecting the red power clamp to the positive terminal of a car battery. Text Description: A person is shown connecting the red alligator clip of the power cable to the positive terminal of a car battery. The black clip is connected to the negative terminal, and the other end of the cable is plugged into the smoke leak detector.
- Pożizzjona l-Unità: Use the provided hook to hang the smoke leak detector under the vehicle's hood for convenient access during testing.
Image: The AUTOOL SDT106 unit hanging from the vehicle's hood using its integrated hook. Text Description: The yellow smoke leak detector is shown hanging from the underside of a car's open hood using a metal hook, positioned above the engine bay.
Video: This video demonstrates the unboxing and initial setup of the AUTOOL SDT106, including connecting the power and smoke hose, and adding test oil.
6. Istruzzjonijiet Operattivi
- Ixgħel: Flip the power switch on the unit to the "ON" position. The unit will begin to warm up and generate smoke within 30 seconds.
Image: A close-up of the power switch on the AUTOOL SDT106 unit, indicating the "ON" position. Text Description: A finger is shown flipping the power switch on the front panel of the yellow smoke leak detector to the 'on' position.
- Prepare for Test: Identify the pipe system you wish to test for leaks. Disconnect the pipe that needs to be connected with the detector. Use appropriate adapters (cone, rubber plugs, EVAP connector) to seal off the system and introduce the smoke hose.
Image: A mechanic preparing a car engine for a smoke test, showing the intake system. Text Description: A person is shown inserting the smoke hose into a car's intake system, which is sealed with a black cone adapter. The smoke machine is visible in the background.
- Agħmel Test tat-Tnixxija: Insert the smoke hose into the system being tested. The smoke will fill the pipe system. Observe for any visible smoke escaping from cracks, loose connections, or damaged areas, which indicates a leak.
Image: Smoke being injected into a car engine's pipe system to detect leaks. Text Description: A person is directing the smoke output from the detector into a hose within the car's engine bay. Smoke is visibly escaping from a connection point, indicating a leak.
- Pressjoni tal-monitor: The unit features a pressure gauge with precise scales. Monitor the pressure during the test to ensure it remains within safe operating limits (35psi for Standard, 10psi for EVAP). The air pump will automatically stop if pressure limits are exceeded.
- After Test: Once the leak is identified or the test is complete, turn off the unit. Disconnect the power clamps from the battery and remove the smoke hose and adapters from the vehicle.
Video: This video demonstrates the quick smoke output and the process of using the smoke leak detector to identify leaks in a car's engine bay.

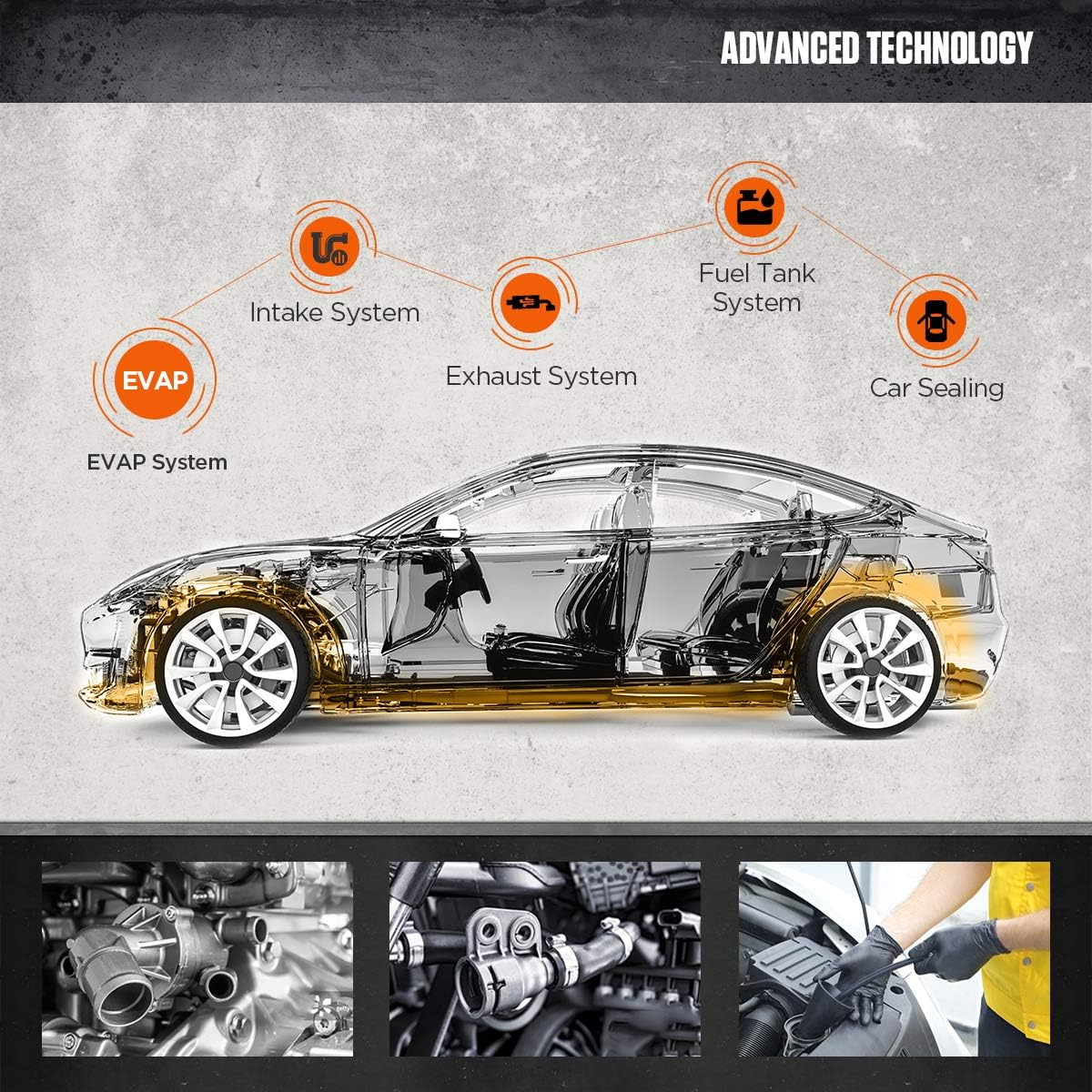

7. Wide Range of Applications
The AUTOOL SDT106 Smoke Leak Detector is versatile and supports DC 12V car batteries, making it suitable for a wide range of vehicles and systems:
- EVAP System Leak Detection: Specifically designed to work on the EVAP system to find evaporative emission leaks.
- Intake System Test: Detects leaks in the intake manifold and associated hoses.
- Exhaust System Test: Identifies leaks in the exhaust pipes, mufflers, and catalytic converters.
- Fuel Pipe Leakage Test: Locates leaks in fuel lines and connections.
- Car Sealing Test: Checks for leaks in various seals and gaskets throughout the vehicle.
- Vetturi applikabbli: Cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats.
8. Manutenzjoni
To ensure the longevity and optimal performance of your AUTOOL SDT106 Smoke Leak Detector, follow these maintenance guidelines:
- Regularly check the oil level and refill as needed, ensuring not to exceed the MAX line.
- After each use, ensure the unit is clean and free from any oil residue or debris.
- Store the device and its accessories in a dry, cool place away from direct sunlight and extreme temperatures.
- Inspect hoses and adapters for any signs of wear, cracks, or damage before each use. Replace damaged parts immediately.
9. Garanzija u Appoġġ
AUTOOL provides a garanzija ta 'sena for damages caused by non-human factors. For any technical assistance, product inquiries, or warranty claims, please contact AUTOOL customer support. We are committed to responding to your needs within 24 hours.
