MIPRO MA-101C/MM-107 Portable PA System User Manual

Introduzzjoni

This manual provides comprehensive instructions for the safe and efficient operation of your MIPRO MA-101C/MM-107 Portable PA System. Please read this manual thoroughly before using the device and retain it for future reference. This system is designed for small-scale public address applications, offering clear audio amplification with portability.

Istruzzjonijiet tas-Sigurtà

Tesponix l-unità għax-xita jew għall-umdità biex tevita nar jew xokk elettriku.
Tiftaħx is-casing. Irreferi s-servizz kollu lil persunal kwalifikat.
Kun żgur li l-adapter tal-enerġija huwa kompatibbli mal-provvista tal-enerġija lokali tiegħek.
Żomm l-unità 'l bogħod minn sorsi ta' sħana u dawl tax-xemx dirett.
Evita li twaqqa' l-unità jew li tissottomettiha għal impatti qawwija.
Use only the specified charging cable and accessories.

Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

MIPRO MA-101C Portable PA Speaker Unit
MIPRO MM-107 Handheld Microphone
Kejbil tal-mikrofonu
Adapter/Ċarġer tal-Enerġija AC
Manwal għall-Utent (dan id-dokument)

Prodott Overview

The MIPRO MA-101C/MM-107 system consists of a compact PA speaker and a wired handheld microphone, designed for clear vocal amplifikazzjoni.

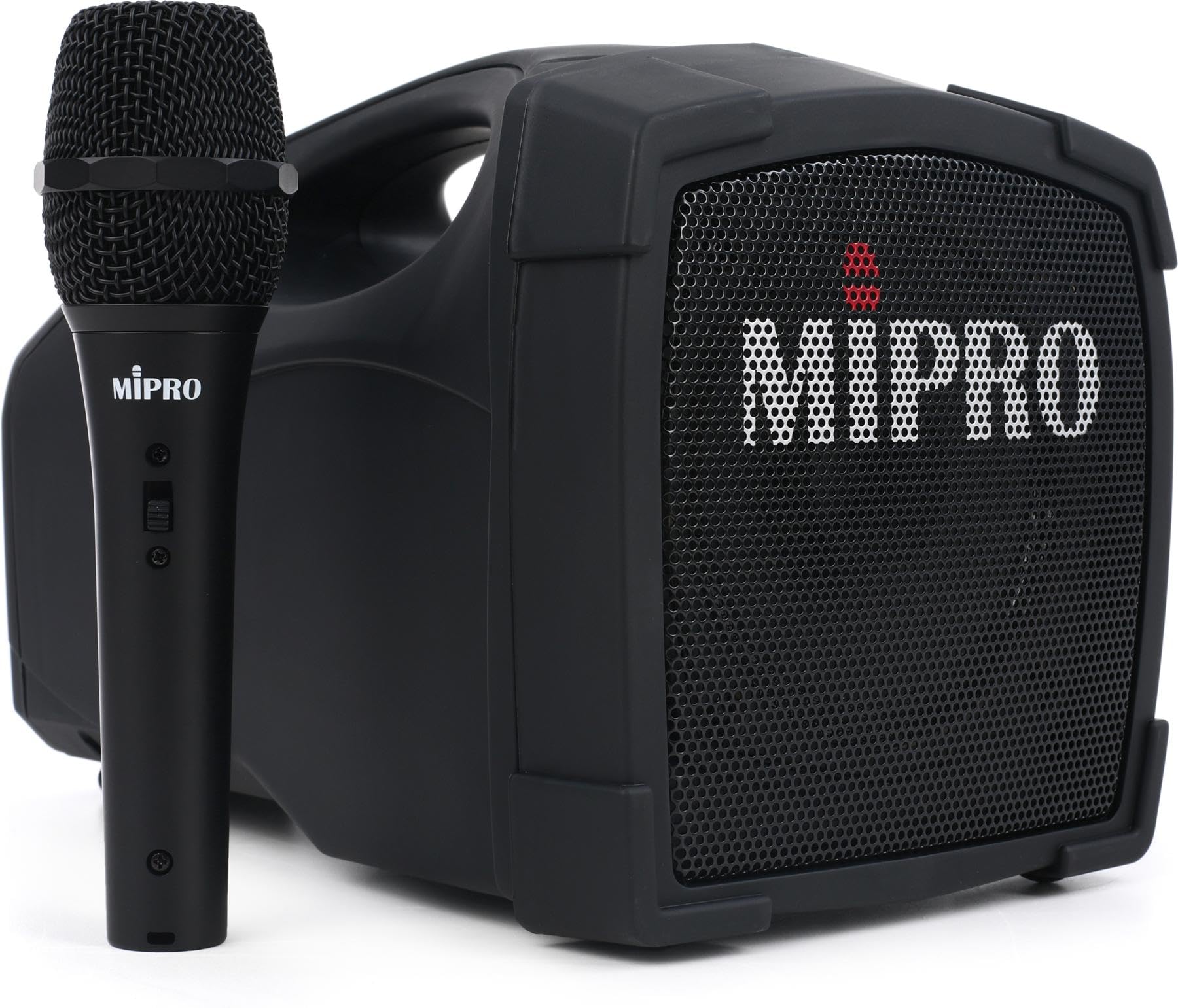

MIPRO MA-101C/MM-107 Portable PA System with handheld microphone

Figure 1: MIPRO MA-101C Portable PA Speaker and MM-107 Handheld Microphone. The image displays the compact speaker unit with its controls and the included wired microphone.

Komponenti Ewlenin:

MA-101C Speaker Unit: Features a 5-inch speaker, amplifier, control panel, and rechargeable battery.
MM-107 Handheld Microphone: A wired dynamic vocal microphone with a supercardioid polar pattern for feedback resistance.
Panel tal-Kontroll: Includes power switch, volume control, and input jacks.

Setup

1. Iċċarġjar tal-Unità

Connect the AC power adapter to the charging port on the MA-101C speaker unit.
Ipplaggja l-adapter f'sokit elettriku standard.
Id-dawl indikatur tal-iċċarġjar se jixgħel. Iċċarġjar sħiħ tipikament jieħu madwar sagħtejn.
Once fully charged, the indicator light may change color or turn off, depending on the model. Disconnect the charger when charging is complete to preserve battery life.

2. Konnessjoni tal-Mikrofonu

Locate the microphone input jack on the MA-101C speaker unit. This is typically an XLR or 1/4-inch jack.
Connect the microphone cable to the MM-107 handheld microphone.
Connect the other end of the microphone cable to the input jack on the MA-101C unit. Ensure a secure connection.

3. Tixgħil / Mitfi

To power on, locate the power switch on the MA-101C unit and switch it to the "ON" position.
To power off, switch the power switch to the "OFF" position.

Istruzzjonijiet Operattivi

1. Volum ta 'aġġustament

After powering on, slowly turn the master volume knob clockwise to increase the output volume.
Adjust the volume to a comfortable listening level, avoiding feedback (a high-pitched squeal).

2. Bl-użu tal-Mikrofonu

Hold the MM-107 microphone approximately 2-6 inches from your mouth for optimal sound pickup.
Tkellem b'mod ċar u direttament fil-mikrofonu.
If feedback occurs, reduce the volume or reposition the microphone and speaker to prevent the microphone from picking up its own ampħoss lifikat.

3. Ħajja tal-batterija

The built-in rechargeable battery provides up to eight hours of continuous operation on a single full charge, depending on usage volume. Monitor the battery indicator (if available) to determine remaining power.

Manutenzjoni

1. Tindif

Wipe the exterior of the speaker unit and microphone with a soft, dry cloth.
Tużax prodotti tat-tindif likwidi, aerosols, jew solventi, għax dawn jistgħu jagħmlu ħsara lill-finitura jew lill-komponenti interni.

2. Ħażna

Aħżen l-unità f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
If storing for extended periods, ensure the battery is partially charged (around 50%) and recharge it every few months to maintain battery health.

3. Kura tal-batterija

Evita li l-batterija tixxotta kompletament ta' spiss.
Do not leave the unit connected to the charger indefinitely after it is fully charged.

Issolvi l-problemi

Problema	Kawża Possibbli	Soluzzjoni
Ebda output tal-ħoss	Unit is not powered on; Volume is too low; Microphone not connected; Microphone faulty.	Ensure unit is powered on; Increase master volume; Check microphone cable connection; Test with another microphone if available.
Ħoss distort	Volume too high; Microphone too close to speaker; Low battery.	Reduce volume; Reposition microphone and speaker; Recharge the unit.
Feedback (tgħajjat)	Microphone too close to speaker; Volume too high.	Move microphone further from speaker; Reduce volume; Point microphone away from speaker.
L-unità mhix qed tiċċarġja	Power adapter not connected properly; Faulty power outlet; Damaged adapter.	Check all connections; Try a different power outlet; Contact support for adapter replacement.

Speċifikazzjonijiet

Karatteristika	Dettall
Brand	MIPRO
Numru tal-Mudell	MA-101C/MM-107
Output Wattage	42 Watts
Daqs tal-Kelliem	5 pulzieri
Teknoloġija tal-Konnettività	Wired (for microphone)
Sors tal-Enerġija	Mħaddma bil-batterija
Ħajja tal-batterija	Sa 8 sigħat (fuq ċarġ wieħed)
Ħin tal-Iċċarġjar	Madwar sagħtejn
Tip ta 'mikrofonu	Handheld Dynamic Vocal Microphone (MM-107)
Mudell Polari Mikrofonu	Superkardjoid
Dimensjonijiet tal-oġġett (L x W x H)	14.05 x 13.45 x 8.7 pulzieri
Materjal tal-għeluq	Stainless Steel

Informazzjoni dwar Garanzija

The MIPRO MA-101C/MM-107 Portable PA System comes with a 2-Sena Garanzija mid-data tax-xiri. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali. Ma tkoprix ħsara kkawżata minn użu ħażin, inċidenti, modifiki mhux awtorizzati, jew xedd u kedd normali. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

Appoġġ għall-Klijent

For technical assistance, warranty service, or product inquiries, please contact MIPRO customer support. Refer to the official MIPRO webis-sit jew id-dokumentazzjoni tax-xiri tiegħek għall-aktar informazzjoni ta' kuntatt aġġornata.
