1. Introduzzjoni
The SMARTGEN MGC100 Petrol Genset Controller is designed for the manual and remote start and protection of single gensets. This controller provides essential functions including data measurement, alarm indication, and shutdown protection. It features an LED display and button-press operation for precise measurement of various parameters, ensuring effective control and protection of your genset. The MGC100 is suitable for a wide range of small diesel and petrol gensets, offering ease of operation, reliable performance, a compact structure, and simple connections.
2. Karatteristiċi ewlenin
- Cost-effective controller designed for manual and remote start/stop of generators.
- Compatible with 1-3 phase gasoline and diesel gensets.
- Designed for convenient front panel mounting.
- Engineered to withstand cranking dropouts, ensuring reliable operation.
- Includes comprehensive generator protection features, with built-in alarms and warnings for operational safety.
3. Setup u Installazzjoni
Proper installation is crucial for the safe and effective operation of your MGC100 controller. Ensure all connections are secure and follow the wiring diagrams carefully.
Figura 3.1: Il-Panel ta' Quddiem Fuqview. This image displays the front face of the SmartGen MGC100 controller, featuring the LED display, control buttons (Stop/-, Page/✓, Run/+), and alarm indicators for various operational statuses such as low oil pressure, high temperature, and emergency stop.
Figure 3.2: Rear Panel and Terminal Layout. This image shows the back of the MGC100 controller, detailing the numbered terminal connections for various inputs and outputs, including B-, B+, Crank, Fuel, Optional, High Temp, Low Oil Press, EM.STOP, Remote, Aux. Output, Magnetic Pickup, and Gens AC Voltage (N, W, V, U). This diagram is essential for correct wiring.
Figure 3.3: Typical Application Wiring Diagram. This schematic illustrates a standard wiring configuration for the MGC100 controller with a genset and load. It shows connections for B-, B+, Crank, Fuel, Aux. Output, High Temp, Low Oil Pressure, EM Stop, Remote Start, Magnetic Pickup, and AC Voltage inputs (U, V, W, N). A critical note highlights that for petrol gensets, terminal 4 connects to ignition control, while for diesel gensets, terminal 5 shorts to B+ and terminal 4 connects to fuel output.
3.1 Konnessjonijiet tal-Wiring
- Provvista tal-Enerġija: Connect DC9.0V to 18.0V continuous power supply to the B+ and B- terminals.
- Crank Output: Connect the crank relay to the designated crank terminal.
- Fuel Output: Connect the fuel relay to the fuel terminal. Note: For petrol gensets, terminal 4 connects to ignition control. For diesel gensets, terminal 5 needs to be shorted with B+, and terminal 4 connects to fuel output.
- Inputs tas-Sensor: Connect high temperature, low oil pressure, and magnetic pickup sensors to their respective terminals.
- Emergency Stop & Remote Start: Wire the emergency stop button and remote start signal to their dedicated terminals.
- AC Voltage Input: Connect the genset's AC voltage (U, V, W, N) to terminals 13-16 for monitoring.
Nota Importanti: Refer to Figure 3.3 for detailed wiring diagrams. Incorrect wiring can damage the controller or the genset. If unsure, consult a qualified technician.
4. Istruzzjonijiet Operattivi
The MGC100 controller supports both manual and remote operation modes.
4.1 Operazzjoni manwali
- Ibda: Agħfas il- Mexxi/+ button to initiate the genset start sequence. The controller will engage the crank and fuel outputs as configured.
- Waqqaf: Agħfas il- Waqqaf/- button to shut down the genset.
- Page/View Parametri: Uża l- Page/✓ button to cycle through various monitored parameters displayed on the LED screen, such as voltage, frekwenza, u sigħat operattivi.
4.2 Operazzjoni mill-Bogħod
The MGC100 can be started and stopped remotely via the dedicated remote start input. When a valid remote start signal is received, the controller will automatically initiate the genset start sequence. Removing the signal will trigger the shutdown sequence.
5. Manutenzjoni
The MGC100 controller is designed for reliable operation with minimal maintenance. However, regular checks can ensure its longevity and performance:
- Spezzjoni Viżwali: Periodically inspect the controller and its wiring for any signs of damage, loose connections, or corrosion.
- Indafa: Keep the controller's surface clean and free from dust and debris. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- Kundizzjonijiet Ambjentali: Kun żgur li l-ambjent operattiv jibqa' fil-firxiet speċifikati tat-temperatura u l-umdità biex tevita l-ħsara.
6 Issolvi l-problemi
The MGC100 controller includes built-in diagnostic features to assist with troubleshooting. Alarms and warnings are indicated on the front panel LED display.
Kwistjonijiet Komuni u Soluzzjonijiet:
- Il-Kontrollur Mhux Qed Jixgħel:
- Check the DC power supply (9.0V to 18.0V) to terminals B+ and B-.
- Verify all power connections are secure and free from corrosion.
- Il-Ġenset Ma Jibdiex:
- Check the fuel supply and ignition system of the genset.
- Verify the crank and fuel output wiring from the controller to the genset.
- Ensure the remote start signal (if used) is correctly applied.
- Check for any active alarm indicators on the controller's display (e.g., low oil pressure, high temperature, emergency stop). Address the underlying issue indicated by the alarm.
- Qari Mhux Korrett fuq id-Displej:
- Ivverifika l-AC voltage input connections (U, V, W, N) are correct and secure.
- Check the magnetic pickup sensor connection and ensure it is properly calibrated for speed sensing.
- Controller Shuts Down Unexpectedly:
- The controller has shutdown protection functions. Check the alarm indicators for the cause (e.g., over-voltage, taħt il-voltage, over-frequency, under-frequency, high temperature, low oil pressure).
- Address the condition that triggered the shutdown.
If the issue persists after following these steps, contact SMARTGEN customer support for further assistance.
7. Speċifikazzjonijiet
The following table details the technical specifications of the SMARTGEN MGC100 controller:

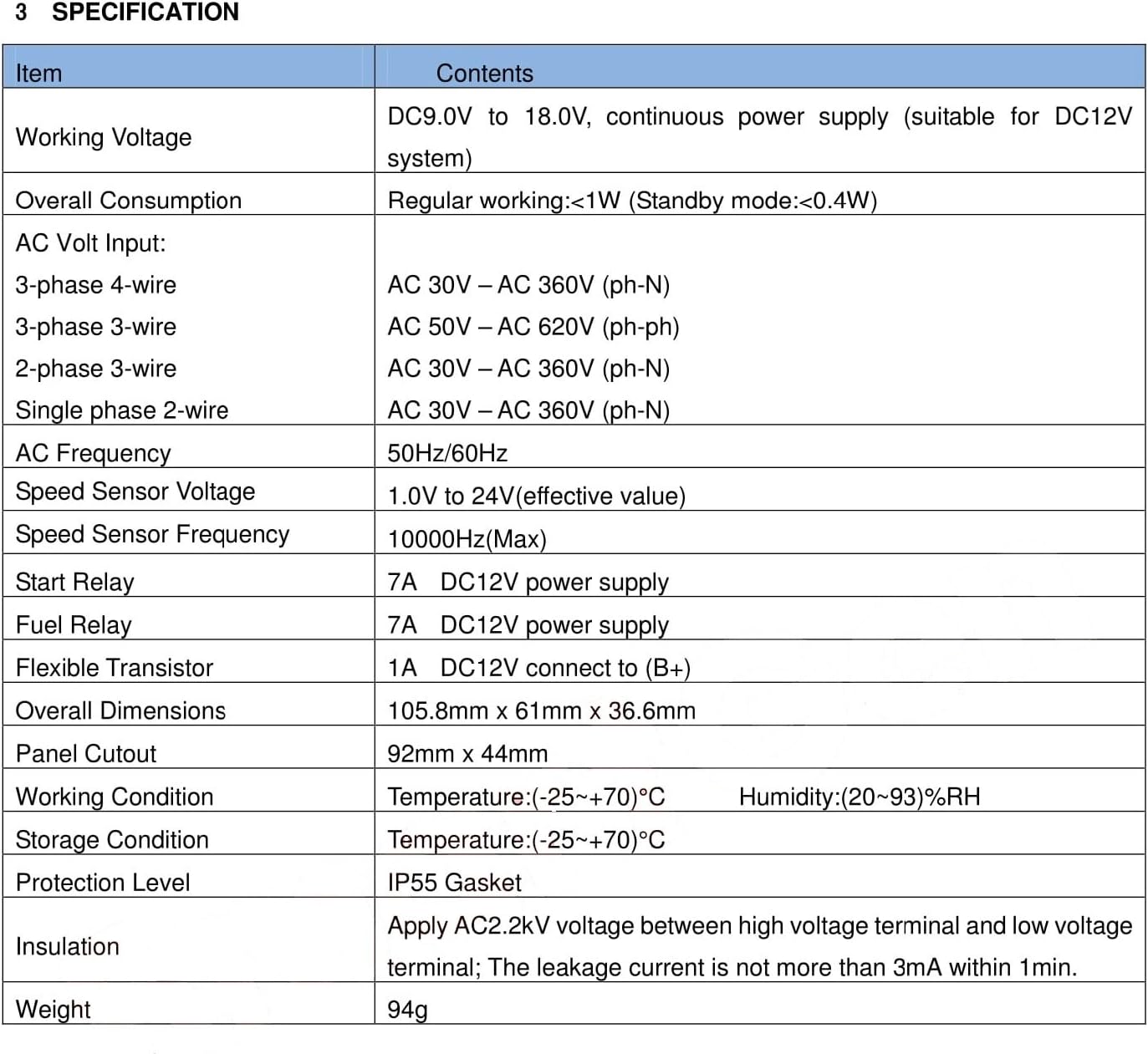

Figure 7.1: MGC100 Specification Table. This image presents a detailed table outlining the electrical, physical, and environmental specifications of the MGC100 controller, including working voltage, power consumption, AC input ranges, relay capacities, dimensions, working conditions, and protection level.
| Oġġett | Speċifikazzjoni |
|---|---|
| Ħidma Voltage | DC9.0V sa 18.0V, provvista ta 'enerġija kontinwa (adattat għal sistema DC12V) |
| Konsum Ġenerali | Xogħol regolari: <1W (modalità Standby: <0.4W) |
| AC Volt Input (3-phase 4-wire) | AC 30V - AC 360V (ph-ph) |
| AC Volt Input (3-phase 3-wire) | AC 50V - AC 620V (ph-ph) |
| AC Volt Input (2-phase 3-wire) | AC 30V - AC 360V (ph-ph) |
| AC Volt Input (Single phase 2-wire) | AC 30V - AC 360V (ph-N) |
| Frekwenza AC | 50Hz/60Hz |
| Sensor tal-veloċità Voltage | 1.0V to 24V (effective value) |
| Frekwenza tas-Sensor tal-Veloċità | 10000Hz (Max) |
| Ibda Relay | 7A DC12V power supply |
| Relay tal-Fjuwil | 7A DC12V power supply |
| Transistor flessibbli | 1A DC12V connect to (B+) |
| Dimensjonijiet ġenerali | 105.8mm x 61mm x 36.6mm |
| Qtugħ tal-Panew | 92mm x 44mm |
| Working Condition (Temperature) | (-25 ~ + 70) °C |
| Working Condition (Humidity) | (20 ~ 93)% RH |
| Storage Condition (Temperature) | (-25 ~ + 70) °C |
| Livell ta' Protezzjoni | Siegla IP55 |
| Insulazzjoni | Applika AC2.2kV voltage bejn vol għolitage terminali u vol baxxtage terminal; Il-kurrent tat-tnixxija mhuwiex aktar minn 3mA fi żmien 1min. |
| Piż | 94g |
8. Garanzija u Appoġġ
For warranty information and technical support, please refer to the official SMARTGEN webis-sit jew ikkuntattja lin-negozjant awtorizzat tiegħek. Żomm l-irċevuta tax-xiri tiegħek għal talbiet ta' garanzija.
Għal aktar riżorsi u informazzjoni dwar il-prodott, tista' żżur paġna tal-prodott fuq Amazon.
