Graco RAC X Airless Spray Gun Tip 0.014 Inch User Manual

1. Introduzzjoni

This manual provides essential information for the safe and effective use of your Graco RAC X Airless Spray Gun Tip, 0.014 inch size. This reversible tip is designed for precision paint application with airless spray systems. Please read this manual thoroughly before installation or operation.

2. Informazzjoni dwar is-Sigurtà

Always prioritize safety when operating paint spraying equipment. High-pressure spray can cause serious injury. Refer to your main airless spray gun manual for comprehensive safety guidelines.

Protezzjoni tal-għajnejn: Always wear appropriate eye protection, such as safety glasses or goggles, to shield against paint spray and debris.
Protezzjoni Respiratorja: Use a respirator or mask suitable for paint fumes and particulates, especially in enclosed spaces. Ensure adequate ventilation.
Protezzjoni tal-ġilda: Wear gloves and protective clothing to prevent skin contact with paint and solvents.
Materjali li jaqbdu: Exercise extreme caution when spraying flammable materials. Ensure no ignition sources are present and maintain proper ventilation.
Periklu ta' Pressjoni Għolja: Never point the spray gun at yourself or others. Do not place hands or other body parts in front of the spray tip. Always engage the trigger lock when not spraying or when changing tips.
Sistema ta' Depressurizzazzjoni: Always relieve system pressure before cleaning, checking, or servicing any part of the spray gun or tip.

3. Komponenti tal-Prodott

The Graco RAC X Airless Spray Gun Tip is a precision-engineered component for your airless sprayer. It features a durable design for consistent performance.

Graco RAC X Airless Spray Gun Tip, 0.014 inch size, green color

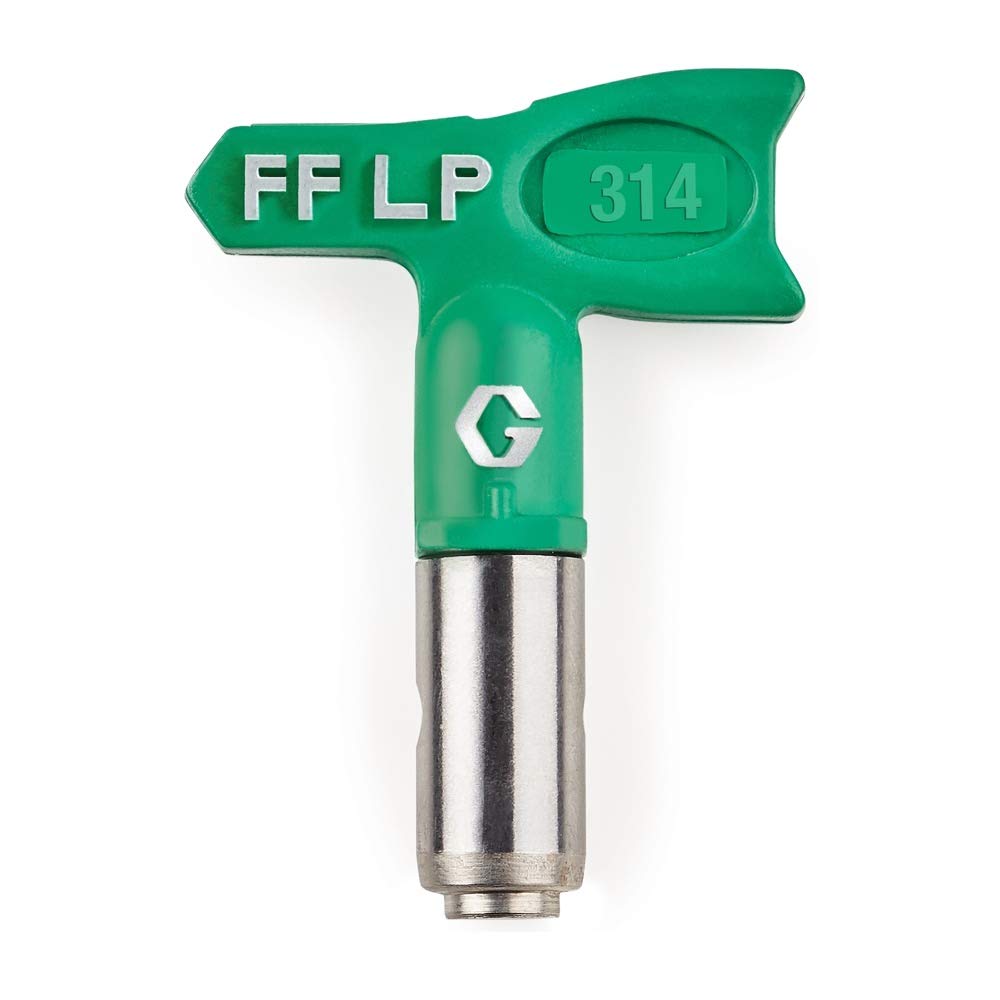

Image 1: The Graco RAC X Airless Spray Gun Tip, featuring its green body and metal tip section. This specific tip is 0.014 inches in size.

Karatteristiċi ewlenin:

Daqs tal-ponta: 0.014 pulzieri
Pattern Size: 6 sa 8 pulzier
Daqs tal-ħajta: 7/8 pulzier
Kulur: Aħdar
Pressjoni Massima ta ’Ħidma: 3600 psi
Karatteristiċi: Reversible for easy clog clearing
Jinkludi: Guard Combination (for use with RAC X guards)

4. Setup u Installazzjoni

Proper installation of the spray tip is crucial for optimal performance and safety. This tip is designed for use with Graco spray guns, specifically Mfr. No. 246215 and 246437, and requires a RAC X tip guard.

Sistema ta' Depressurizzazzjoni: Before handling the spray gun or tip, ensure the airless spray system is completely depressurized. Refer to your spray gun manual for the correct procedure.
Attach Tip to Guard: Insert the Graco RAC X tip into the appropriate RAC X tip guard. Ensure it seats correctly.
Attach Guard to Gun: Thread the tip guard (with the tip installed) onto the spray gun. Hand-tighten securely. Do not overtighten.
Ivverifika l-Konnessjoni: Double-check that the tip and guard are firmly attached to prevent leaks or dislodgement during operation.

5. Istruzzjonijiet Operattivi

Achieving a smooth, even finish requires correct spraying technique and pressure settings.

Person using an airless spray gun with a green tip to paint a wall

Image 2: A person demonstrating the use of an airless spray gun, equipped with a green tip, to apply paint to a wall. Proper safety gear, including a respirator and eye protection, is worn.

L-issettjar tal-pressjoni: Begin with the lowest effective pressure setting that produces a consistent spray pattern without
