Yale YMG40 Digital Door Lock User Manual

Introduzzjoni

This manual provides essential instructions for the installation, operation, and maintenance of your Yale YMG40 Digital Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and security.

Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:

• Yale YMG40 Digital Door Lock (Front and Back Body)
• Mortise Lock Assembly
• 2 Ċwievet Mekkaniċi
• Installation Hardware (screws, strike plate, etc.)
• Manwal għall-Utent (dan id-dokument)

Karatteristiċi Ewlenin

• Manku Push-Pull: Designed for convenient operation; push to enter, pull to exit.
• Metodi ta' Aċċess Multipli: Biometric fingerprint recognition, PIN code entry, and mechanical key override.
• Optional Connectivity: Compatible with Z-Wave and Bluetooth modules for smart home integration (modules sold separately).
• Gwida tal-Vuċi: Provides audio prompts for setup and operation.
• Safe Handle Mechanism: Enhances security by preventing unauthorized entry.
• Qfil awtomatiku: Configurable to automatically lock the door after closing.
• Aċċess ta' Emerġenza: Low battery warning and external power terminal for emergency situations.

Setup u Installazzjoni

Professional installation is recommended for optimal performance and security. Ensure your door meets the following specifications:

• Ħxuna tal-Bieb: 40-75mm (wooden doors).
• Tip ta' Bieb: Suitable for both inswing and outswing doors.

Passi Inizjali:

1. Ipprepara l-Bieb: Ensure the door is properly prepped according to the provided template (if applicable) for the mortise lock and lock body.
2. Install Mortise Lock: Insert the mortise lock into the door edge and secure it.
3. Install Lock Bodies: Mount the front and back lock bodies, ensuring cables are correctly routed and connected.
4. Daħħal Batteriji: Install the required batteries into the back body.
5. Programmazzjoni Inizjali: Follow the voice guide prompts to set up the master PIN code.

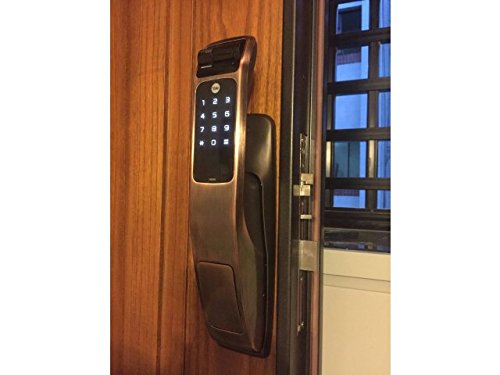

Image: Yale YMG40 Digital Door Lock installed on a wooden door, showing the sleek design and integration.

Istruzzjonijiet Operattivi

1. Accessing the Door

a. Fingerprint Access

The lock supports up to 20 different fingerprints. To unlock using a fingerprint:

1. Place your registered finger on the fingerprint scanner.
2. The lock will verify the fingerprint and unlock.
3. Use the push-pull handle to open the door.

Immaġni: Dettaljata view of the fingerprint scan area on the Yale YMG40 lock.

b. PIN Code Access

The lock supports up to 30 different user codes. To unlock using a PIN code:

1. Tmiss it-tastiera biex tattivaha.
2. Enter your registered PIN code followed by the '*' or '#' button (refer to specific model instructions for exact key).
3. The lock will verify the code and unlock.
4. Use the push-pull handle to open the door.

Immaġni: Quddiem view of the Yale YMG40 Digital Door Lock, showcasing the illuminated keypad and push-pull handle.

c. Mechanical Key Override

In case of emergency or battery failure, the lock can be opened using the provided mechanical keys.

1. Locate the mechanical key slot, typically hidden under a cover on the front body.
2. Insert one of the 2 ċwievet mekkaniċi and turn to unlock.
3. Use the push-pull handle to open the door.

Immaġni: Close-up view of the mechanical key override cylinder on the Yale YMG40 lock.

d. Push-Pull Handle Operation

The ergonomic push-pull handle simplifies door opening:

• Minn Barra: After successful authentication (fingerprint, PIN, or key), simply imbotta the handle down to open the door.
• Minn Ġewwa: Sempliċement iġbed the handle down to open the door.

Image: A hand demonstrating the push-pull action of the Yale YMG40 door handle.

2. Serratura Awtomatika

The YMG40 can be configured to automatically lock the door after it closes. Refer to the full programming guide for instructions on enabling or disabling this feature.

3. Optional Accessories (Z-Wave & Bluetooth)

The Yale YMG40 is compatible with optional Z-Wave and Bluetooth modules, allowing integration with smart home systems and remote control capabilities. These modules are sold separately. Consult the specific module's instructions for pairing and setup.

A remote control accessory is also available, utilizing wireless floating ID technology with a range of up to 50 meters.

Manutenzjoni

• Sostituzzjoni tal-batterija: The lock will provide a low battery warning. Replace all batteries promptly when this warning appears to ensure continuous operation.
• Tindif: Clean the lock's exterior with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the finish or electronic components.
• Sensor tal-marki tas-swaba': Keep the fingerprint sensor clean and free of debris for accurate readings.
• Ċavetta Mekkanika: Store the mechanical keys in a safe, accessible location outside the property for emergency use.

Issolvi l-problemi

• Is-Serratura Ma Tirrispondix: Check battery levels. If batteries are depleted, use the mechanical key or connect a 9V battery to the emergency power terminal (if available on your model) to provide temporary power.
• Marka tas-Swaba' Mhux Rikonoxxuta: Kun żgur li subgħajk ikun nadif u niexef. Ipprova erġa' rreġistra l-marka tas-swaba' tiegħek jekk il-problemi jippersistu.
• Il-Kodiċi PIN Mhux Jaħdem: Verify the correct PIN is being entered. Ensure the keypad is active before entering the code.
• Door Not Locking/Unlocking Properly: Check for any obstructions in the door frame or latch mechanism. Ensure the lock is properly aligned with the strike plate.
• Kwistjonijiet bil-Gwida tal-Vuċi: Ensure the volume is set appropriately.

For persistent issues, consult the full product manual or contact Yale customer support.

Speċifikazzjonijiet

Appoġġ u Garanzija

For technical assistance, warranty information, or service requests, please contact Yale customer support. Refer to your product packaging or the official Yale websit għal dettalji ta' kuntatt speċifiċi għar-reġjun tiegħek.

Note: Installation charges may be extra and are typically not covered under product warranty.
