1. Introduzzjoni
This manual provides instructions for the proper installation and use of your Amazon Basics Speaker Connector Banana Plugs. These connectors are designed to simplify speaker wire connections, offering a secure and corrosion-resistant interface for your audio system.

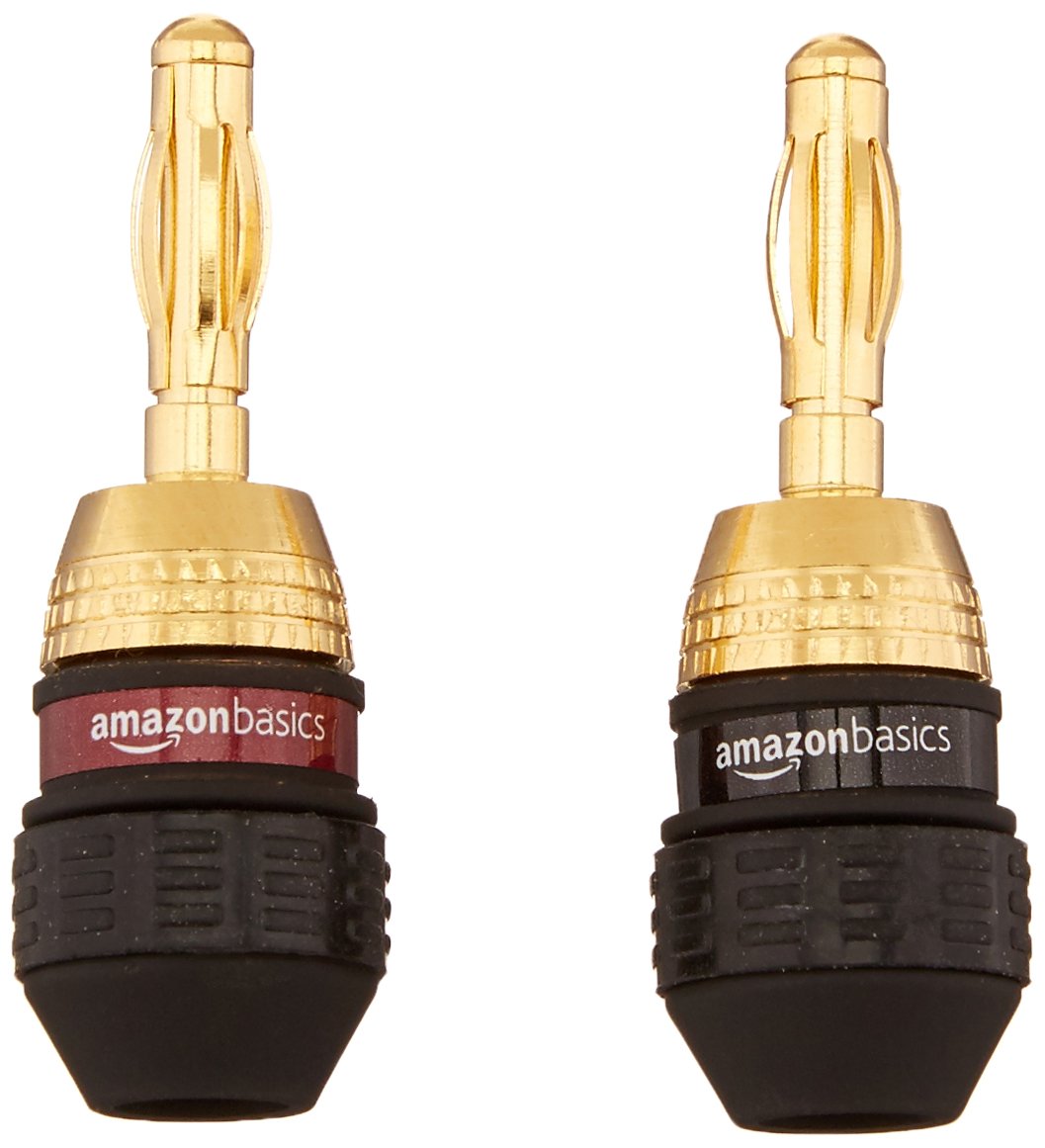

Image 1: Amazon Basics Speaker Connector Banana Plugs
2. Prodott Aktarview
The Amazon Basics Speaker Connector Banana Plugs offer a reliable solution for connecting speaker wires to audio equipment. Key features include:
- Kwantità: 12 pairs (24 plugs total) for comprehensive speaker setups.
- Installazzjoni faċli: Features self-crimping teeth for straightforward wire attachment.
- Awdjo ta' kwalità għolja: Durable 24k gold plating provides corrosion protection and ensures optimal signal transfer.
- Konnessjoni versatili: Female connection on the base of each plug allows for connecting multiple speakers from a single output.
- Kompatibilità tal-Wajer: Accepts 12 to 18 AWG speaker wires.
- Identifikazzjoni: Includes black and red rings for clear color coding of positive and negative terminals.
3. Setup u Installazzjoni
Follow these steps to properly install your speaker wires into the banana plugs:
- Prepare the Speaker Wire: Carefully strip approximately 1/2 inch (1.27 cm) of insulation from the end of your speaker wire. Twist the exposed copper strands tightly together to prevent fraying.
- Disassemble the Banana Plug: Unscrew the black or red base from the gold-plated tip of the banana plug.
- Daħħal il-Wajer: Feed the stripped end of the speaker wire through the hole in the side of the black or red base. Ensure the copper strands are fully exposed and extend past the internal self-crimping teeth.
- Sikura l-Konnessjoni: While holding the wire in place, screw the gold-plated tip back onto the base. The self-crimping teeth inside the base will securely grip the copper strands, creating a firm connection. Tighten until snug, but do not overtighten.
- Ivverifika l-Polarità: Use the red ring for the positive (+) terminal and the black ring for the negative (-) terminal to maintain correct audio polarity.
Image 2: Disassembled Banana Plug with Self-Crimping Teeth
For a visual guide on the installation process, please refer to the official product video below:
Video 1: Official AmazonBasics Gold Banana Plugs Installation Guide. This video demonstrates the process of attaching speaker wire to the banana plugs and connecting them to a speaker terminal.
4. Istruzzjonijiet Operattivi
Once the speaker wires are securely attached to the banana plugs, connecting them to your audio equipment is simple:
- Identifika Terminals: Locate the corresponding banana plug compatible binding posts on your amplifier, receiver, or speakers. These are typically color-coded red for positive (+) and black for negative (-).
- Insert Plugs: Gently push the banana plugs into the appropriate binding posts. Ensure a firm and complete insertion for optimal contact.
- Iċċekkja l-Konnessjoni: Lightly tug on the speaker wire to confirm the banana plug is securely seated and does not feel loose.
Image 3: Banana Plugs Connected to Speaker Terminals
5. Manutenzjoni
To ensure long-lasting performance and optimal audio quality from your Amazon Basics Speaker Connector Banana Plugs, consider the following maintenance tips:
- Żomm Nadif: Periodically inspect the gold-plated tips for dust or debris. Clean with a soft, dry cloth if necessary. Avoid abrasive cleaners.
- Iċċekkja l-Konnessjonijiet: Occasionally verify that the speaker wire remains securely fastened within the banana plug and that the plug itself is firmly inserted into the audio component's binding post.
- Evita l-Istress: Do not pull on the speaker wires to disconnect the plugs. Always grasp the plug body when connecting or disconnecting.
6 Issolvi l-problemi
If you encounter issues with your banana plugs, consider these common troubleshooting steps:
- Konnessjoni Laxka: If the banana plug feels loose in the binding post or the wire feels loose within the plug, disconnect and re-secure the connection. Ensure the self-crimping teeth are properly engaging the wire strands and the plug is fully inserted into the binding post.
- Ebda Awdjo jew Kwalità Awdjo Fqira:
- Verify that the red and black rings on the banana plugs match the positive (+) and negative (-) terminals on both your speaker and amplifier/receiver. Incorrect polarity can lead to poor sound.
- Check all connections for tightness and ensure no stray wire strands are touching other terminals, which could cause a short circuit.
- Ensure the speaker wire gauge (12-18 AWG) is appropriate for your setup and that the wire itself is not damaged.
7. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Dimensjonijiet tal-Prodott | 0.54 x 0.54 x 1.61 pulzieri |
| Numru tal-Mudell tal-Oġġett | AMZN0360-12 |
| Brand | Bażi tal-Amazon |
| Tip ta' Konnettur | Ipplagg tal-banana |
| Kompatibilità tat-Tip ta' Kejbil | Kejbil tal-Ispeaker |
| Apparati Kompatibbli | Kelliema |
| Wire Gauge Acceptance | 12 sa 18 AWG |
| Kisi | Deheb 24k |
8. Garanzija u Appoġġ
Għal informazzjoni dwar il-garanzija u l-appoġġ għall-klijenti, jekk jogħġbok irreferi għall-Amazon Basics uffiċjali webis-sit jew ikkuntattja lis-servizz tal-klijenti tal-Amazon direttament. Żomm l-irċevuta tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
