1. Introduzzjoni
This manual provides comprehensive instructions for the installation, operation, and maintenance of your WiZ Smart LED Ceiling Light, model WZ509089. Please read this manual carefully before using the product to ensure safe and efficient operation. Keep this manual for future reference.
2. Prodott Aktarview
The WiZ Smart LED Ceiling Light WZ509089 is a versatile lighting solution offering advanced features for modern homes. It provides 2100 lumens of brightness and a wide spectrum of lighting options, including 64,000 shades of white (from 2200K warm white to 6500K cool white) and 16 million colors. This smart light integrates seamlessly with Wi-Fi networks, allowing control via the WiZ app, remote control, and voice commands through Amazon Alexa or Google Home.

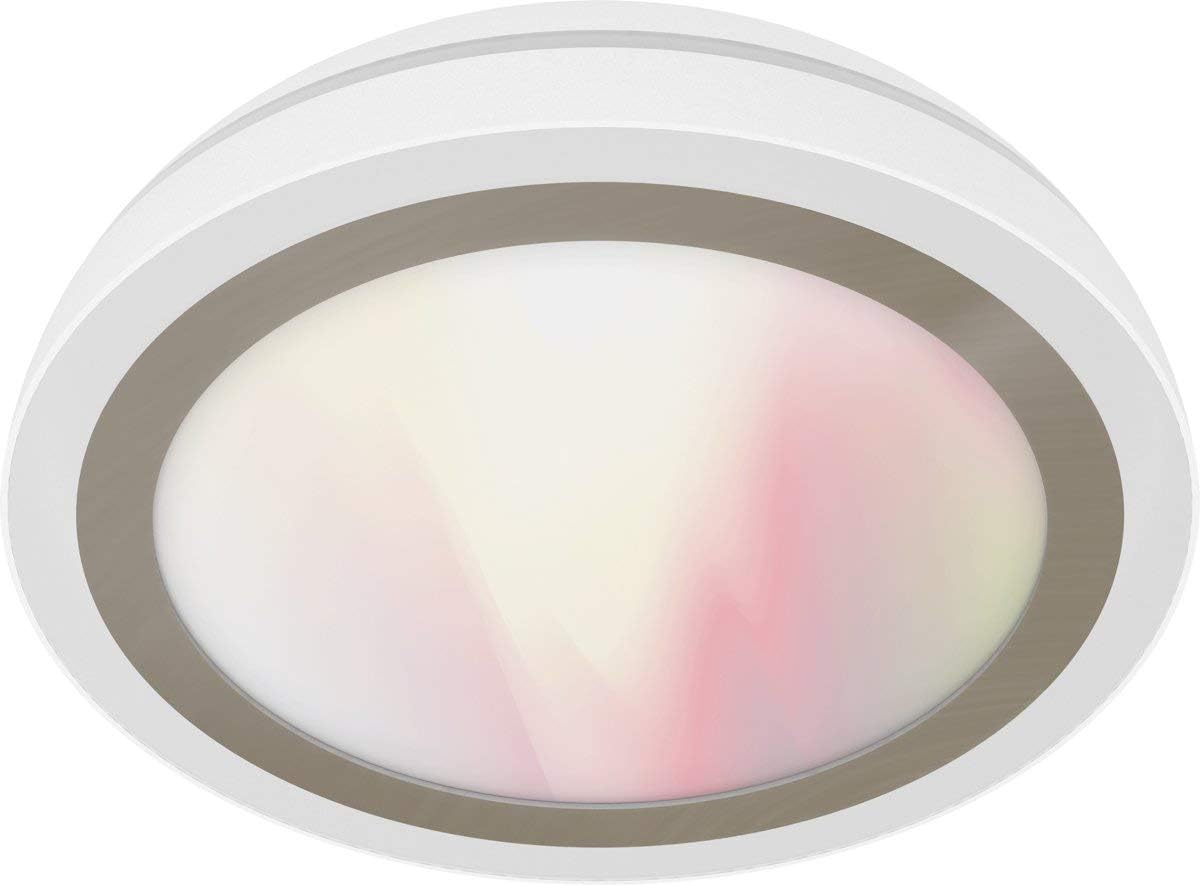

Figure 1: WiZ Smart LED Ceiling Light WZ509089. A white, circular WiZ Smart LED Ceiling Light, model WZ509089, with a translucent diffuser showing a soft gradient of white and pink light.
Karatteristiċi ewlenin:
- Dawl li jista' jitbaxxa: Aġġusta l-luminożità minn 1% sa 100%.
- Abjad sintonizzat: Select from 64,000 shades of white light (2200K-6500K).
- Full Color Spectrum: Access 16 million colors for personalized ambiance.
- Kontroll intelliġenti: Wi-Fi enabled for control via WiZ app (iOS/Android), IR remote control, Amazon Alexa, and Google Home.
- Mhux Meħtieġ Hub: Connects directly to your existing Wi-Fi network.
- Dynamic Light Modes: Pre-set modes for various activities and moods.
- Skedar: Program lighting schedules and presence modes.
3. Istruzzjonijiet ta' Setup
3.1. Installazzjoni
- Is-Sigurtà l-Ewwel: Before beginning installation, ensure the power supply to the ceiling fixture is turned off at the circuit breaker.
- Ippakkja: Carefully remove the WiZ Smart LED Ceiling Light from its packaging.
- Immuntar:
- Attach the mounting bracket to the ceiling junction box using appropriate screws.
- Connect the electrical wires (Live, Neutral, Ground) from the ceiling to the corresponding wires on the light fixture. Ensure connections are secure.
- Waħħal l-apparat tad-dawl mal-bracket tal-immuntar.
- Irrestawra l-Enerġija: Once installed, restore power at the circuit breaker. The light should turn on, indicating it is ready for pairing.
3.2. Wi-Fi Pairing (WiZ App)
- Niżżel l-App: Download the WiZ app from the Apple App Store or Google Play Store.
- Oħloq Kont: Open the app and create a new WiZ account or log in to an existing one.
- Żid Apparat: Fl-app, agħfas l-ikona "+" biex iżżid apparat ġdid.
- Agħżel it-Tip tad-Dawl: Choose "Light" and follow the on-screen instructions.
- Mod ta 'tqabbil: The light should be blinking, indicating it's in pairing mode. If not, turn the light off and on three times to activate pairing mode.
- Qabbad mal-Wi-Fi: The app will guide you to connect the light to your 2.4 GHz Wi-Fi network. Ensure your phone is also connected to the same network during setup.
- Imla Setup: Once connected, you can name your light and assign it to a room.
4. Istruzzjonijiet Operattivi
4.1. WiZ App Control
The WiZ app provides full control over your light:
- Mixgħul/Mitfi: Tap the light icon to turn it on or off.
- Luminożità: Use the slider to adjust brightness levels.
- Color/White Selection: Choose from the color wheel for 16 million colors or the white spectrum for various white shades.
- Modi: Select from pre-set dynamic light modes (e.g., Cozy, Focus, Party).
- Skedi: Set timers for the light to turn on/off or change modes automatically.
- Monitoraġġ tal-Enerġija: Track energy consumption (if supported by the app version).
4.2. Remote Control (Sold Separately or Included)
If you have a WiZ remote control, you can perform basic functions:
- Buttuna mixgħul/mitfi: Toggle power.
- Buttuni tad-Dimming: Żid jew tnaqqas il-luminożità.
- Buttuni tax-Xena: Cycle through pre-set scenes or favorite modes.
4.3. Voice Control (Amazon Alexa / Google Home)
To enable voice control, link your WiZ account with your Amazon Alexa or Google Home app:
- Iftaħ l-App tad-Dar Intelliġenti: Iftaħ l-app Amazon Alexa jew l-app Google Home.
- Add Device/Skill:
- For Alexa: Go to "Skills & Games," search for "WiZ," and enable the skill.
- For Google Home: Go to "Set up device," then "Works with Google," and search for "WiZ."
- Kont tal-Kont: Follow the prompts to link your WiZ account.
- Skopri Mezzi: Itlob lil Alexa jew lil Google biex "jiskopru apparati."
Ladarba tkun illinkjat, tista' tuża kmandi bħal:
- "Alexa, ixgħel [Isem tad-Dawl]."
- "Ħej Google, naqqas id-dawl ta' [Isem tad-Dawl] għal 50%."
- "Alexa, set [Light Name] to blue."
- "Hey Google, change [Light Name] to warm white."
5. Manutenzjoni
The WiZ Smart LED Ceiling Light WZ509089 requires minimal maintenance.
- Tindif: Ensure the power is off before cleaning. Use a soft, dry cloth to wipe the surface of the light. Do not use abrasive cleaners or solvents, as they may damage the finish.
- L-ebda Partijiet li jistgħu jservu mill-utent: Il-komponenti tal-LED huma integrati u ma jistgħux jiġu sostitwiti mill-utent. Tippruvax tiftaħ jew issewwi l-apparat tad-dawl.
- Aġġornamenti tas-Software: Keep your WiZ app updated to ensure you have the latest features and security enhancements. The light's firmware may also update automatically via the app.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx. | Ebda provvista tal-enerġija; wajers maħlula; apparat difettuż. | Check circuit breaker. Verify wiring connections. Contact customer support if issue persists. |
| Ma tistax tikkonnettja mal-Wi-Fi. | Incorrect Wi-Fi password; 5GHz network; light too far from router; light not in pairing mode. | Ensure 2.4GHz Wi-Fi. Re-enter password. Move light closer to router. Cycle power (off/on 3 times) to enter pairing mode. |
| Il-kontroll mill-bogħod ma jaħdimx. | Batteries dead; remote not paired. | Replace batteries. Follow remote pairing instructions (refer to remote's manual). |
| Il-kontroll tal-vuċi mhux qed jirrispondi. | WiZ account not linked; device not discovered; internet connection issue. | Verify WiZ skill/service is enabled and linked in Alexa/Google Home app. Ask to "discover devices." Check internet connection. |
7. Speċifikazzjonijiet tal-Prodott
| Karatteristika | Dettall |
|---|---|
| Brand | WiZ |
| Numru tal-Mudell | WZ509089 |
| Manifattur | Jedi |
| Tip ta' Sors tad-Dawl | LED |
| Fluss Luminuż | 2100 lumens (as per product title) |
| Temperatura tal-Kulur | 2200K - 6500K (64,000 white shades) + 16 million colors |
| Wattage | 100 watt |
| Ekwivalenti Inkandexxenti | 130 Watts |
| Voltage | 230 Volts |
| Materjal | Akriliku |
| Kulur | Abjad |
| Dimensjonijiet tal-Prodott | 17 x 17 x 9 ċm |
| Piż tal-oġġett | 1874 Gramma (1.87 kg) |
| Metodu ta' Kontroll | WiZ App, Remote Control, Voice (Alexa, Google Home) |
| Konnettività | Wi-Fi (2.4GHz) |
| Klassifikazzjoni tad-Dawl taż-Żona | IP00 |
| CRI | 85 |
8. Garanzija u Appoġġ
8.1. Informazzjoni dwar Garanzija
WiZ products are designed for reliability and performance. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official WiZ websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
8.2. Appoġġ għall-Klijent
If you encounter any issues not covered in this manual or require further assistance, please contact WiZ customer support. You can typically find contact information on the WiZ website or within the WiZ app.
- Appoġġ onlajn: Żur www.wizconnected.com/support (eżampil-link, il-link attwali jista' jvarja).
- Appoġġ fl-App: Access support options directly through the WiZ app.
