Sperry Instruments DSA600TRMS Digital Clamp Manwal għall-Utent tal-Meter

Introduzzjoni

This manual provides comprehensive instructions for the safe and effective use of your Sperry Instruments DSA600TRMS 12 Function True RMS Digital Clamp Meter. This advanced electrical meter offers precise True RMS circuitry, integrated non-contact voltage detection, data hold capability, and an audible beeper for continuity checks. Designed for professional use, it is compact, lightweight, and durable, featuring a 250 lbs crush rating and a 10-foot drop rating. Please read this manual thoroughly before operation to ensure proper functionality and safety.

Informazzjoni Importanti dwar is-Sigurtà

TWISSIJA: Electrical testing can be hazardous. Always exercise extreme caution when working with electrical systems. Failure to follow safety precautions can result in serious injury or death.

• Always consult all technical literature before operating any electrical testing tools.
• Always reference the National Electric Code (NEC) and local electrical codes before performing any type of electrical work.
• Ensure the meter is in good working condition and test leads are not damaged before each use.
• Tużax il-miter jekk jidher li għandu ħsara jew jekk il-wajers tat-test huma kompromessi.
• Wear appropriate personal protective equipment (PPE), including safety glasses and insulated gloves, when working with electrical circuits.
• Verify the meter's range and function settings are appropriate for the measurement being taken.
• Avoid contact with live circuits. Use non-contact voltage detection where applicable to confirm de-energization.
• Taqbiżx il-vol massimutage or current ratings specified for the meter.

Remember: Safety first.

Prodott Overview

The Sperry Instruments DSA600TRMS is a versatile digital clamp meter designed for accurate electrical measurements. It combines the functionalities of a multimeter with the added benefit of a jaw clamp for contactless current measurement.

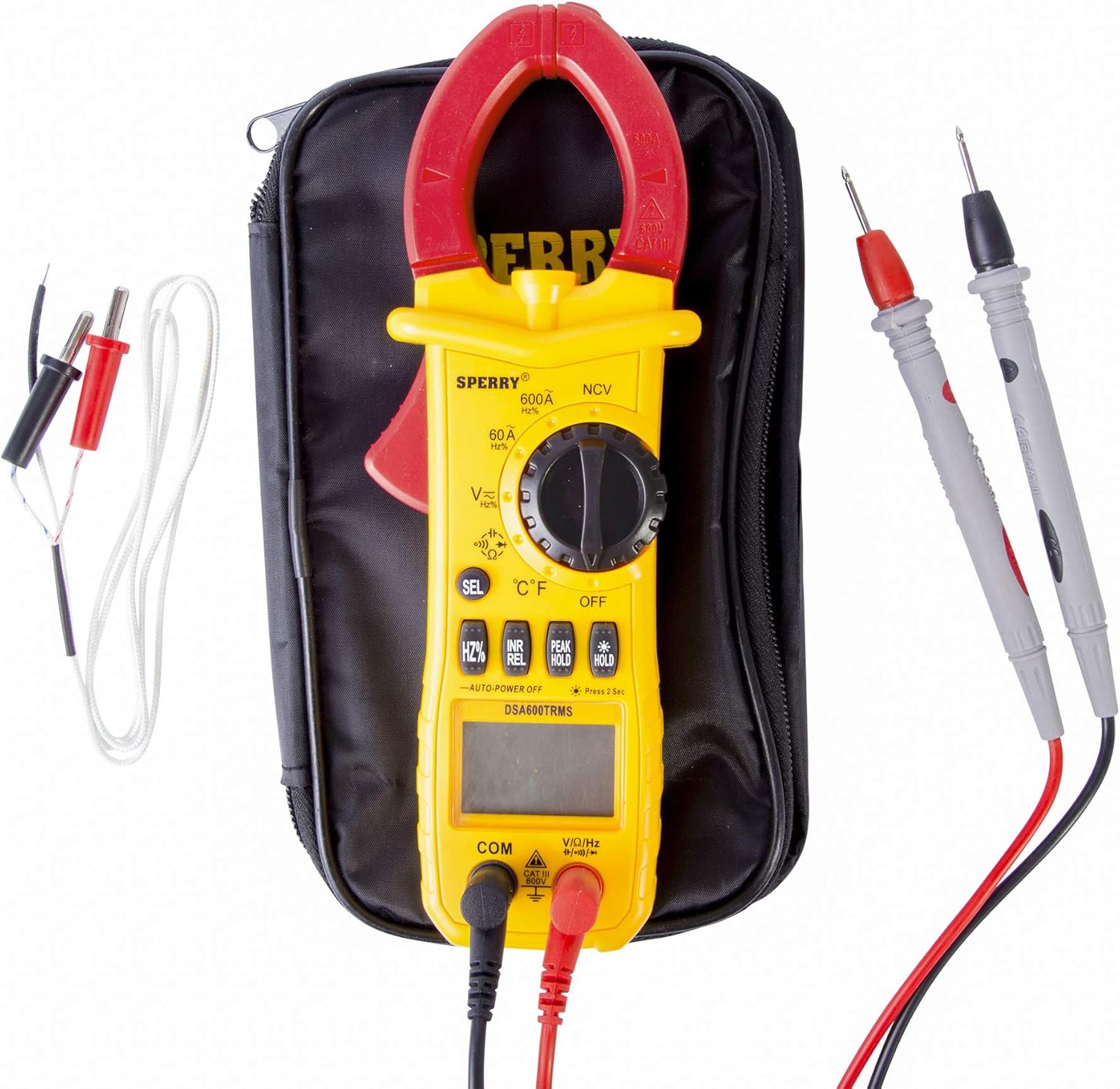

Figura 1: The Sperry Instruments DSA600TRMS Digital Clamp Meter, shown with its included test leads and protective carrying case. This image highlights the complete kit for electrical testing.

Karatteristiċi ewlenin:

• True RMS Circuitry: Provides accurate readings for both sinusoidal and non-sinusoidal waveforms.
• 12 Functions, 28 Ranges: Comprehensive measurement capabilities including AC/DC voltage, AC current, resistance, continuity, diode test, frequency, capacitance, and temperature.
• Mhux Kuntatt VoltagSejbien ta' e (NCV): For quick and safe identification of live wires without direct contact.
• Żamma tad-Data: Jiffriża l-qari muri għal reġistrazzjoni konvenjenti.
• Peak Hold: Captures the maximum value of a transient signal.
• Backlit 5999-Count Display: Clear and easy-to-read display in various lighting conditions.
• Funzjoni Auto-Off: Jikkonserva l-ħajja tal-batterija.
• Indikatur tal-Batterija Baxxa: Alerts when batteries need replacement.
• Disinn Durabbli: Crush rating of 250 lbs and 10-foot drop rating for robust performance.

Setup

Installazzjoni tal-batterija

The DSA600TRMS requires three (3) AAA batteries for operation, which are included with the meter. To install or replace batteries:

1. Kun żgur li l-miter ikun MITFI.
2. Sib l-għatu tal-kompartiment tal-batterija fuq wara tal-miter.
3. Uża tornavit biex tiftaħ il-kompartiment tal-batterija.
4. Insert the three AAA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
5. Ibdel l-għatu tal-kompartiment tal-batterija u waħħalha bil-kamin.

Konnessjoni taċ-Ċombijiet tat-Test

Għal voltage, resistance, continuity, diode, frequency, capacitance, and temperature measurements, connect the test leads:

• Daħħal il- aħmar ċomb tat-test fil- VΩHzCAP°C jack tad-dħul.
• Daħħal il- iswed ċomb tat-test fil- COM jack tad-dħul (komuni).

Ensure connections are firm before taking any measurements.

Istruzzjonijiet Operattivi

Familiarize yourself with the rotary dial and function buttons before operation.

Kejl tal-Kurrent AC (Clamp Xedaq)

The jaw clamp allows for contactless measurement of AC current in a single conductor.

1. Turn the rotary dial to the desired AC current range (e.g., 60A or 600A).
2. Iftaħ il-clamp xedaq billi tagħfas il-grillu.
3. Enclose a single conductor (not a bundle of wires) within the clamp xedaq. Kun żgur li x-xedaq ikun magħluq għalkollox.
4. Aqra l-valur tal-kurrent AC fuq id-displej.

Figura 2: Il-clamp meter's jaw is used to measure AC current on a single conductor within an electrical panel, providing a contactless measurement.

Kejl AC/DC Voltage

Uża l-wajers tat-test għall-volumtage kejl.

1. Connect the test leads as described in the Setup section.
2. Turn the rotary dial to the 'V~' for AC voltage jew 'V=' għal volum DCtage. Use the 'SEL' button to toggle between AC and DC if on a combined setting.
3. Carefully touch the red probe to the positive or live point and the black probe to the negative or neutral/ground point of the circuit.
4. Aqra l-voltagIl-valur fuq il-wiri.

Figura 3: Il-clamp meter's test leads are used to measure voltage within an electrical panel, demonstrating direct contact measurement.

Figura 4: Kejl tal-voltage from a standard wall outlet using the test leads, illustrating a common application for voltage kejl.

Kontroll ta' Kontinwità

To check for continuity (a complete circuit):

1. Turn the rotary dial to the continuity/resistance setting (often indicated by a diode symbol or Ohm symbol). Use the 'SEL' button to select continuity if necessary.
2. Touch the test probes together to verify the meter beeps and displays a low resistance reading (e.g., 0 Ohms).
3. Apply the probes across the component or circuit you wish to test. An audible beep and a low resistance reading indicate continuity.

Mhux Kuntatt Voltage (NCV) Sejbien

To use the NCV feature:

1. Turn the rotary dial to the NCV position.
2. Hold the meter near a conductor or outlet. The meter will beep and an LED will illuminate if AC voltage jiġi skopert.

Data Hold and Peak Hold

• Agħfas il- ŻOMM buttuna biex tiffriża l-qari attwali fuq id-displej. Agħfas mill-ġdid biex tirrilaxxa.
• Agħfas u żomm il- ŻOMM buttuna għal 2 sekondi biex tattiva Peak Hold, which captures the highest transient value. Press again to release.

Using a Line Splitter

For precise current measurements on appliances, a line splitter can be used. This accessory allows you to separate the neutral and hot wires, enabling independent current testing.

1. Plug the line splitter into a standard wall outlet.
2. Plug the appliance into the line splitter.
3. For 1x current measurement, clamp the meter jaw around the single wire loop on the splitter.
4. For 10x current measurement (for lower currents), clamp the meter jaw around the 10x wire loop on the splitter and divide the reading by 10.

Manutenzjoni

Tindif

To maintain the meter's performance and appearance:

• Imsaħ il-barra tal-miter b'reklamaramp drapp. Tużax tindif jew solventi li joborxu.
• Ensure the meter is completely dry before storage or next use.

Kura tal-batterija

The meter features an auto-off function to conserve battery life. A low battery indicator will appear on the display when batteries need replacement. Replace batteries promptly to ensure accurate readings.

• Remove batteries if the meter will not be used for an extended period to prevent leakage.
• Armi batteriji użati skont ir-regolamenti lokali.

Issolvi l-problemi

If you encounter issues with your DSA600TRMS meter, refer to the following common problems and solutions:

Jekk il-passi għas-soluzzjoni tal-problemi ma jsolvux il-problema, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

Speċifikazzjonijiet

Garanzija

The Sperry Instruments DSA600TRMS Digital Clamp Il-miter jiġi ma’ Garanzija Limitata tul il-Ħajja. This warranty covers defects in material and workmanship under normal use and service. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official Sperry Instruments websit.

Appoġġ

For technical assistance, troubleshooting, or warranty claims, please contact Sperry Instruments customer support:

• Websit: Visit the official Sperry Instruments websit għal FAQs u riżorsi ta' appoġġ.
• Telefon: Irreferi għall-informazzjoni ta' kuntatt ipprovduta fuq l-imballaġġ tal-prodott jew fuq il-formola uffiċjali websit.
• Email: Use the contact form or email address available on the Sperry Instruments support page.

When contacting support, please have your product model number (DSA600TRMS) and purchase information readily available.
