1. Introduzzjoni
Welcome to the user manual for your HP T730 Thin Pro. This document provides essential information for setting up, operating, maintaining, and troubleshooting your device. Please read this manual thoroughly to ensure optimal performance and longevity of your thin client.
2. Prodott Aktarview
The HP T730 Thin Pro is a powerful and compact thin client designed for demanding virtualized environments. It features an AMD R-Series Rx-427Bb processor, ample memory, and dedicated graphics, making it suitable for a wide range of business applications.

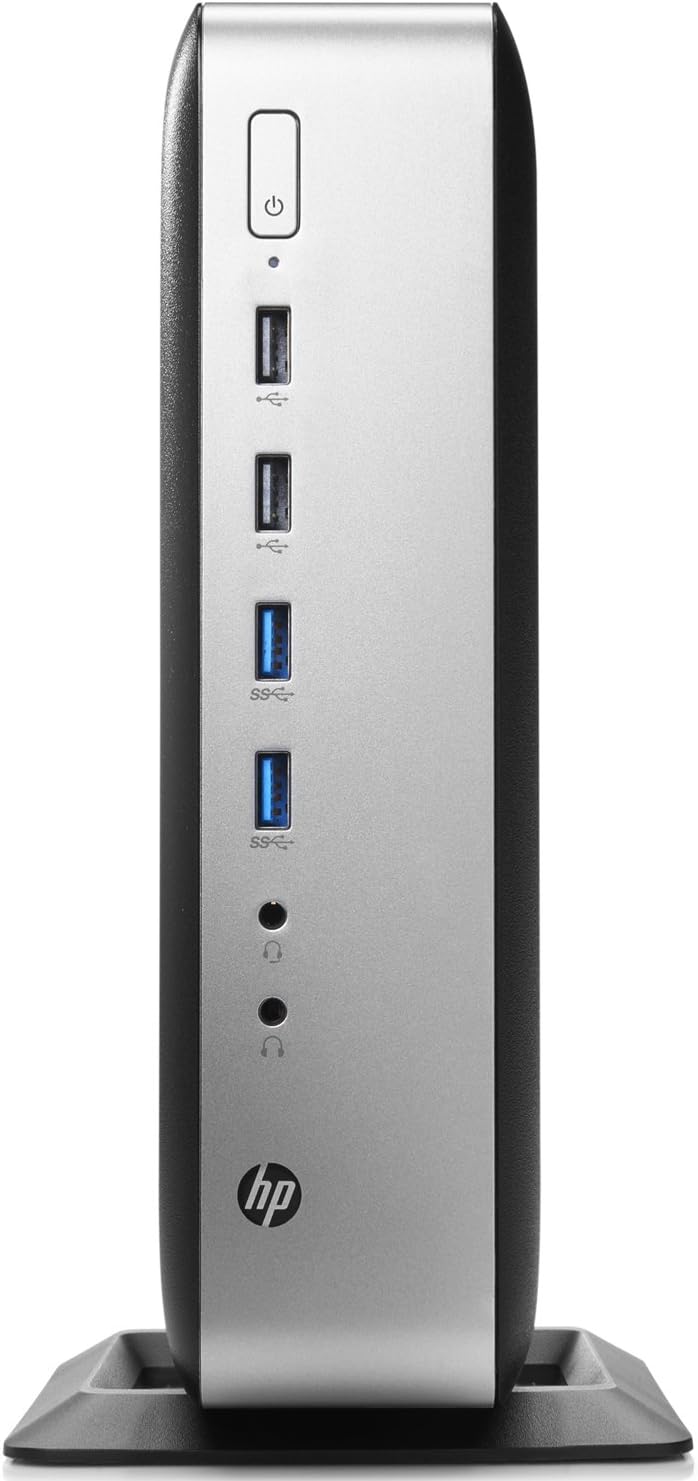

Figure 2.1: Front panel of the HP T730 Thin Pro, displaying the power button, multiple USB ports, and audio input/output jacks.
Figure 2.2: Rear panel of the HP T730 Thin Pro, featuring a comprehensive array of connectivity options including video outputs, USB ports, and network connections.

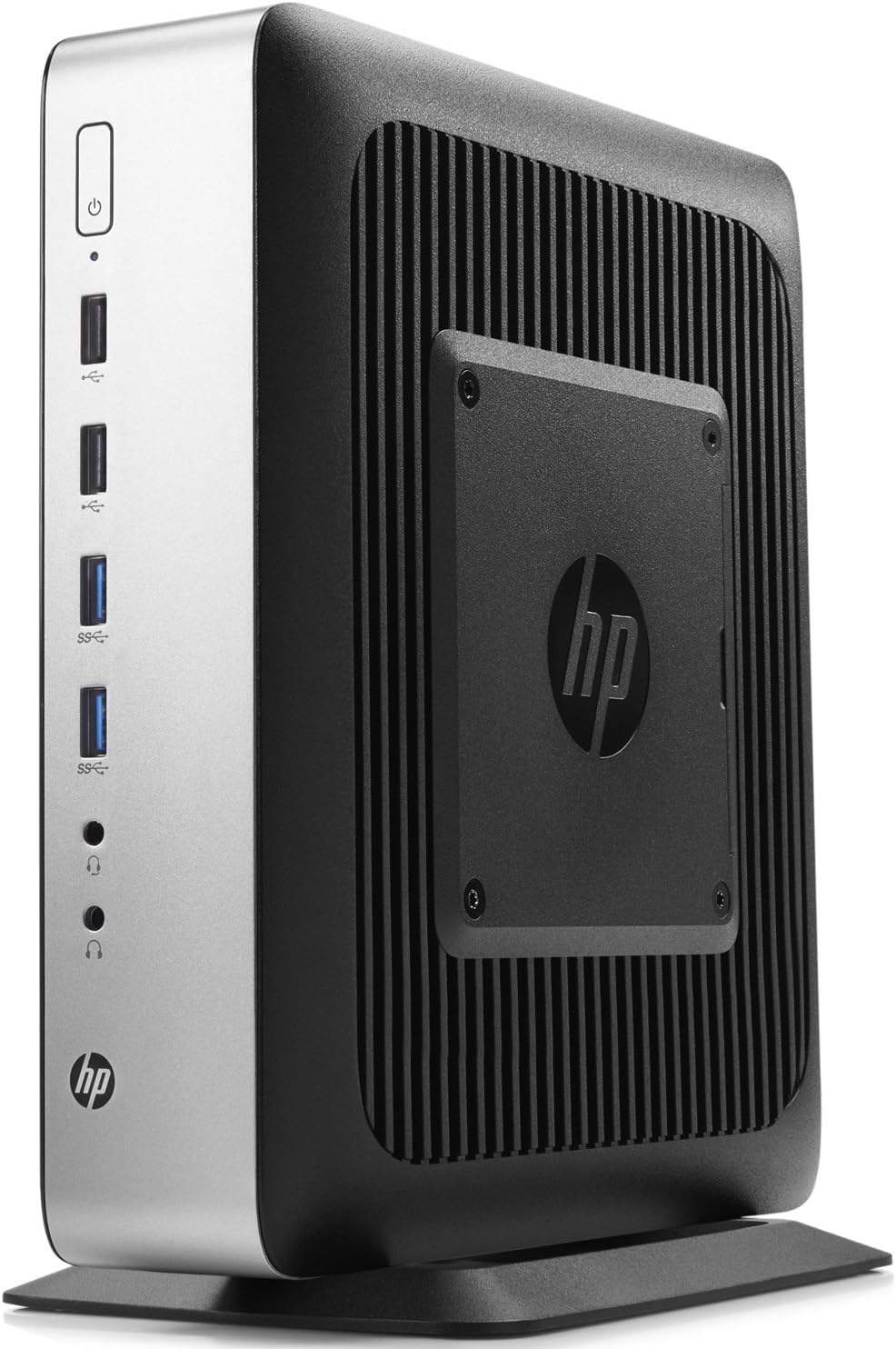

Figura 2.3: Angolat view of the HP T730 Thin Pro, highlighting its compact form factor and the integrated VESA mounting plate for flexible deployment.
3. Karatteristiċi ewlenin
- Proċessur: 2.7 GHz Quad Core AMD R-Series CPU
- Memorja: 16GB DDR4 RAM
- Ħażna: 16GB Solid State Drive
- Wiri: 15.6" FHD IPS Anti-glare Display
- Grafika: Dedicated AMD Radeon RX 427B graphics card
4. Gwida ta' Setup
4.1 Disimballaġġ
Carefully remove the HP T730 Thin Pro and all accessories from the packaging. Verify that all components listed in the packing slip are present.
4.2 Konnessjoni tal-Periferali
Qabel ma tixgħelha, qabbad il-periferali essenzjali tiegħek:
- Monitor: Connect your display cable (DisplayPort, DVI, or VGA) to the corresponding port on the rear of the thin client.
- Tastiera u maws: Connect your USB keyboard and mouse to any available USB ports.
- Netwerk: Connect an Ethernet cable from your network router or switch to the RJ-45 network port on the rear.
- Qawwa: Connect the power adapter to the thin client's power input, then plug the power cord into a wall outlet.
4.3 Tixgħel
Press the power button located on the front panel of the thin client. The power indicator light will illuminate, and the system will begin to boot.
5. Operating Your Thin Client
5.1 Initial Boot and OS Setup
Upon the first boot, the Windows 10 operating system may require initial setup, including language selection, network configuration, and user account creation. Follow the on-screen prompts to complete this process.
5.2 Konnessjoni ma' Netwerk
If you did not connect an Ethernet cable during setup, or if you need to configure Wi-Fi (if applicable), navigate to the network settings within the operating system to establish a connection.
5.3 Operazzjoni Bażika
Once the operating system is ready, you can begin using your thin client. Access your virtual desktop infrastructure (VDI) or cloud applications as configured by your IT administrator. The device functions similarly to a standard desktop computer for general tasks.
6. Manutenzjoni u Kura
- Tindif: Use a soft, dry cloth to clean the exterior of the thin client. For stubborn marks, slightly dampLaħlaħ id-drapp bl-ilma. Evita prodotti tat-tindif jew solventi li joborxu.
- Ventilazzjoni: Ensure that the ventilation openings are not blocked to prevent overheating. Do not place the device in an enclosed space without adequate airflow.
- Aġġornamenti tas-Software: Regularly check for and install operating system and driver updates to maintain security and performance.
- Kundizzjonijiet Ambjentali: Operate the thin client within recommended temperature and humidity ranges to prevent damage.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda qawwa | Kejbil tal-enerġija mhux imqabbad; problema bil-plakka tal-enerġija | Iċċekkja l-konnessjonijiet tal-kejbil tal-enerġija; ipprova sokit differenti. |
| L-ebda wiri | Monitor cable loose; monitor off; incorrect input selected on monitor | Ensure monitor cable is secure; turn on monitor; select correct input source. |
| Kwistjonijiet ta' konnettività tan-netwerk | Ethernet cable loose; network settings incorrect; router/switch issue | Check Ethernet cable; verify network settings; restart network equipment. |
| Sistema bil-mod jew ma tirrispondix | Too many applications open; outdated drivers; malware | Close unnecessary applications; update drivers; run a malware scan. |
8. Speċifikazzjonijiet Tekniċi
| Karatteristika | Speċifikazzjoni |
|---|---|
| Riżoluzzjoni tal-Iskrin | 1920 x 1080 |
| Proċessur | 2.7 GHz AMD R-Series |
| RAM | 16 GB |
| Hard Drive | SSD |
| Chipset Brand | AMD |
| Deskrizzjoni tal-Kard | Dedikat |
| Serje | Hp T730 |
| Numru tal-mudell tal-oġġett | V0C69UA |
| Sistema Operattiva | Windows 10 |
| Piż tal-oġġett | 11 liri |
| Dimensjonijiet tal-Prodott | 0.1 x 0.1 x 0.1 pulzieri |
| Kulur | Iswed |
| Brand tal-proċessur | AMD |
| Numru ta' Proċessuri | 4 |
| Mudell tas-CPU | AMD R Series |
| Veloċità tas-CPU | 2.7 GHz |
| Deskrizzjoni tal-Kard Grafika | Dedikat |
| Kapaċità tal-Ħżin tal-Memorja | 100 GB |
| Personal computer design type | Torri tal-Kompjuter |
| Daqs Installat tal-Memorja Ram | 4 GB |
9. Garanzija u Appoġġ
Għal informazzjoni dwar il-garanzija u appoġġ tekniku, jekk jogħġbok irreferi għad-dokumentazzjoni pprovduta max-xiri tiegħek jew żur is-sit uffiċjali tal-appoġġ tal-HP. websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
