Manwal tal-Utent tal-Ġeneratur tal-Funzjonijiet tal-Forma tal-Mewġa Arbitrarja ta' Siglent Technologies SDG1032X

Model: SDG1032X

1. Introduzzjoni u Fuqview

The Siglent SDG1032X is an advanced arbitrary waveform and function generator designed for a wide range of electronic testing and measurement applications. This instrument offers dual-channel output, various modulation types, and a harmonics generation mode, making it a versatile tool for engineers and hobbyists.

Key features of the SDG1032X include:

Ħruġ ta' Kanali Doppji
Sweep, Burst, Modulation, and Harmonics Generation capabilities
CH1 - CH2 Waveform Combining
Built-In Frequency Counter
Square Wave generation up to 30 MHz

Siglent SDG1032X Arbitrary Waveform Function Generator front view.

Quddiem view of the Siglent SDG1032X, showcasing its display, control panel, and dual output channels.

2. Setup

Follow these steps to set up your SDG1032X Function Generator:

Spakkjar: Carefully remove the instrument and all accessories from the packaging. Verify that all components listed in the packing list are present.
Konnessjoni tal-Enerġija: Connect the provided power cord to the instrument's power input on the rear panel, then plug it into a suitable AC power outlet.
Qawwa Inizjali Mixgħula: Press the power button on the front panel. The instrument will perform a self-test and display the startup screen.
Konnessjonijiet tal-Ħruġ: Connect BNC cables from the CH1 and CH2 output ports on the front panel to your desired test circuit or oscilloscope inputs.
USB/LAN Connection (Optional): For remote control or data transfer, connect a USB cable to the USB Host/Device port or an Ethernet cable to the LAN port on the rear panel.

3. Istruzzjonijiet Operattivi

Din it-taqsima tipprovdi overview of the SDG1032X's operational features.

3.1 Basic Waveform Generation

The SDG1032X can generate standard waveforms such as sine, square, ramp, pulse, and noise. Use the dedicated waveform buttons on the front panel to select the desired waveform. Parameters like frequency, amplitude, and offset can be adjusted using the numeric keypad, rotary knob, and corresponding menu soft keys.

Siglent SDG1032X display showing sine wave output settings.

The SDG1032X display illustrating the settings for a sine wave output, including frequency, amplitude, offset, and phase.

3.2 High-Quality Square Wave Output

The SDG1032X is capable of producing high-performance square wave outputs, even at frequencies up to 30 MHz. It features dedicated circuitry to ensure excellent signal integrity with rise/fall times less than 4.2 ns and low jitter performance.

Oscilloscope display showing a high-quality square wave generated by the SDG1032X.

An oscilloscope screen displaying a precise square wave, demonstrating the SDG1032X's capability to produce high-quality square wave outputs.

3.3 Innovative EasyPulse Technology

EasyPulse technology addresses the jitter issues common in conventional Direct Digital Synthesis (DDS) methods when the sampling rate and output frequency are not integer multiples. This technology ensures low-jitter square wave and pulse outputs with finely adjustable pulse width and rise/fall times down to 1 ns, and a minimum duty cycle of 0.001%.

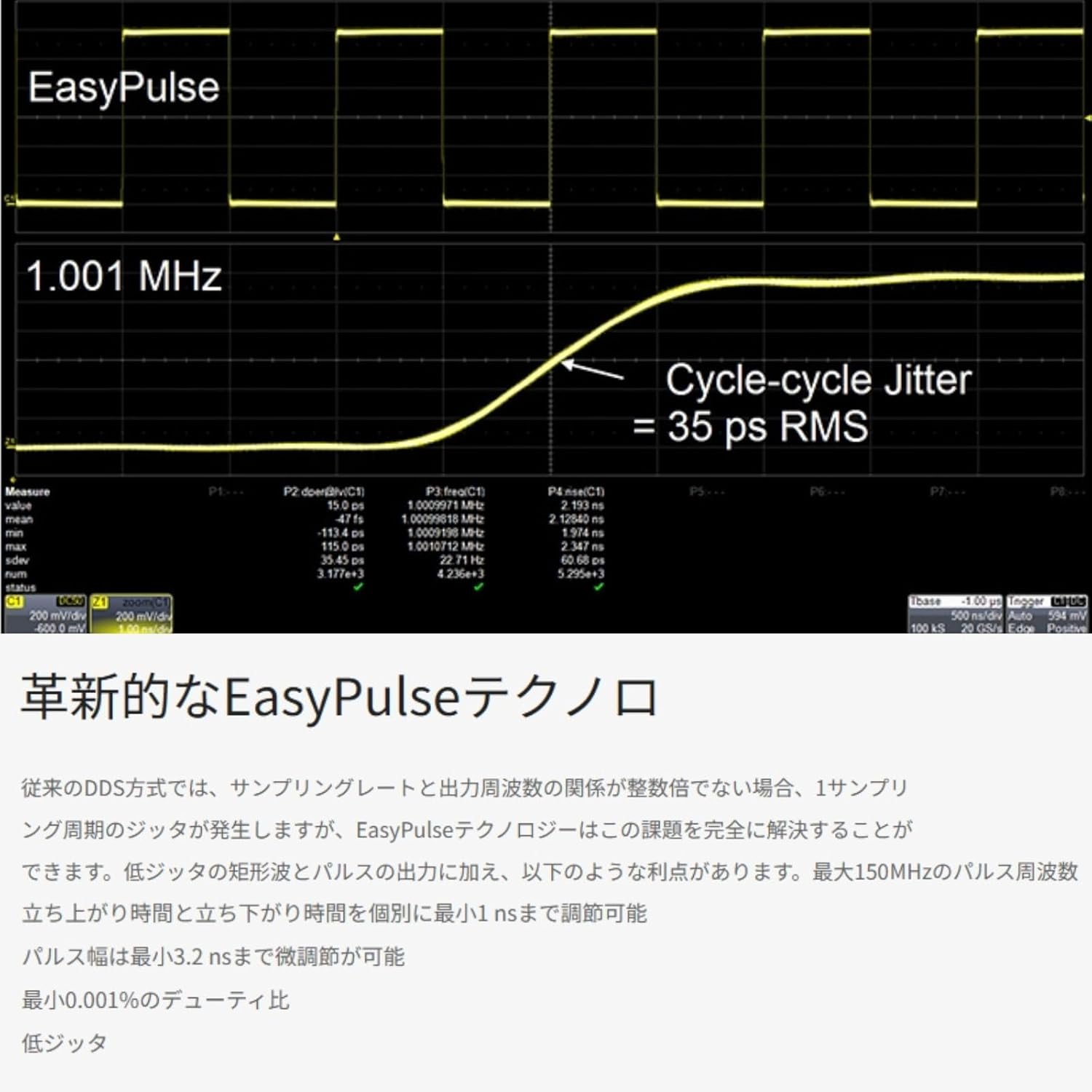

EasyPulse technology waveform with low jitter.

A waveform illustrating the EasyPulse technology, highlighting its ability to generate pulses with extremely low cycle-cycle jitter (35 ps RMS).

3.4 TrueArb Technology for Arbitrary Waveforms

TrueArb technology provides lower jitter and distortion output compared to traditional DDS methods. It allows for point-by-point output of arbitrary waveform data, ensuring high fidelity. The SDG1032X supports 16 kpts memory length for arbitrary waveforms and includes standard PC software, EasyWave, for generating and editing custom waveforms.

TrueArb technology waveform on an oscilloscope.

An oscilloscope display showing a complex waveform generated using TrueArb technology, emphasizing its high fidelity and detailed data retention capabilities.

3.5 Advanced Signal Generation Capabilities

The SDG1032X is equipped with comprehensive waveform generation functions supporting various modulation methods, sweep, burst output, and signal synthesis. Trigger sources can be set to internal, external, or manual. It supports AM, FM, PM, FSK, ASK, PSK, DSB-AM, and PWM modulation. Both linear and logarithmic sweeps are available, along with
