Manwal tal-Istruzzjonijiet tal-Kamera Wi-Fi ta' Barra ALC AWF61 SightHD 1080p Full HD

1. Introduzzjoni

This manual provides comprehensive instructions for the installation, operation, and maintenance of your ALC AWF61 SightHD 1080p Full HD Outdoor Wi-Fi Camera. Designed for outdoor security, this camera delivers crystal-clear 1080p video, robust night vision, and reliable Wi-Fi connectivity, allowing you to monitor your property remotely via your smartphone or tablet.

Please read this manual thoroughly before using the product to ensure proper setup and optimal performance.

2. Prodott Aktarview

2.1 Karatteristiċi ewlenin

• Vidjow Full HD 1080p: Captures high-definition video at 1280 x 1080 resolution for clear streaming, playback, and recording.
• Qasam Wiesgħa ta View: Joffri kamp ta' 90 grad ta' view to cover a broad area.
• Viżjoni bil-lejl Avvanzata: Equipped with 6 surface-mounted high-power infrared LEDs, providing sharp black and white contrast up to 65 feet (20 meters) in low-light or total darkness. Infrared (IR-cut) filters ensure accurate colors during daylight.
• Disinn reżistenti għat-temp: Features IP66-rated durable metal housing, designed to withstand various inclement weather conditions.
• Konnettività Wi-Fi: Connects wirelessly to your home network for remote access.
• Sejbien tal-Moviment: Smart motion detection triggers alerts and recording.
• Għażliet ta' Ħażna Flessibbli: Supports on-camera recording (microSD card not included) and free cloud storage integration with Google Drive and Dropbox.
• Monitoraġġ mill-bogħod: Accessible via smartphone and tablet applications (Android and Apple compatible).

2.2 Kontenut tal-Pakkett

Kun żgur li l-oġġetti kollha huma preżenti fil-pakkett:

• ALC AWF61 SightHD 1080p Full HD Outdoor Wi-Fi Camera
• Adapter tal-Enerġija (AC/DC)
• Ħardwer tal-Immuntar
• Manwal ta 'Istruzzjoni (dan id-dokument)

2.3 Komponenti tal-Kamera

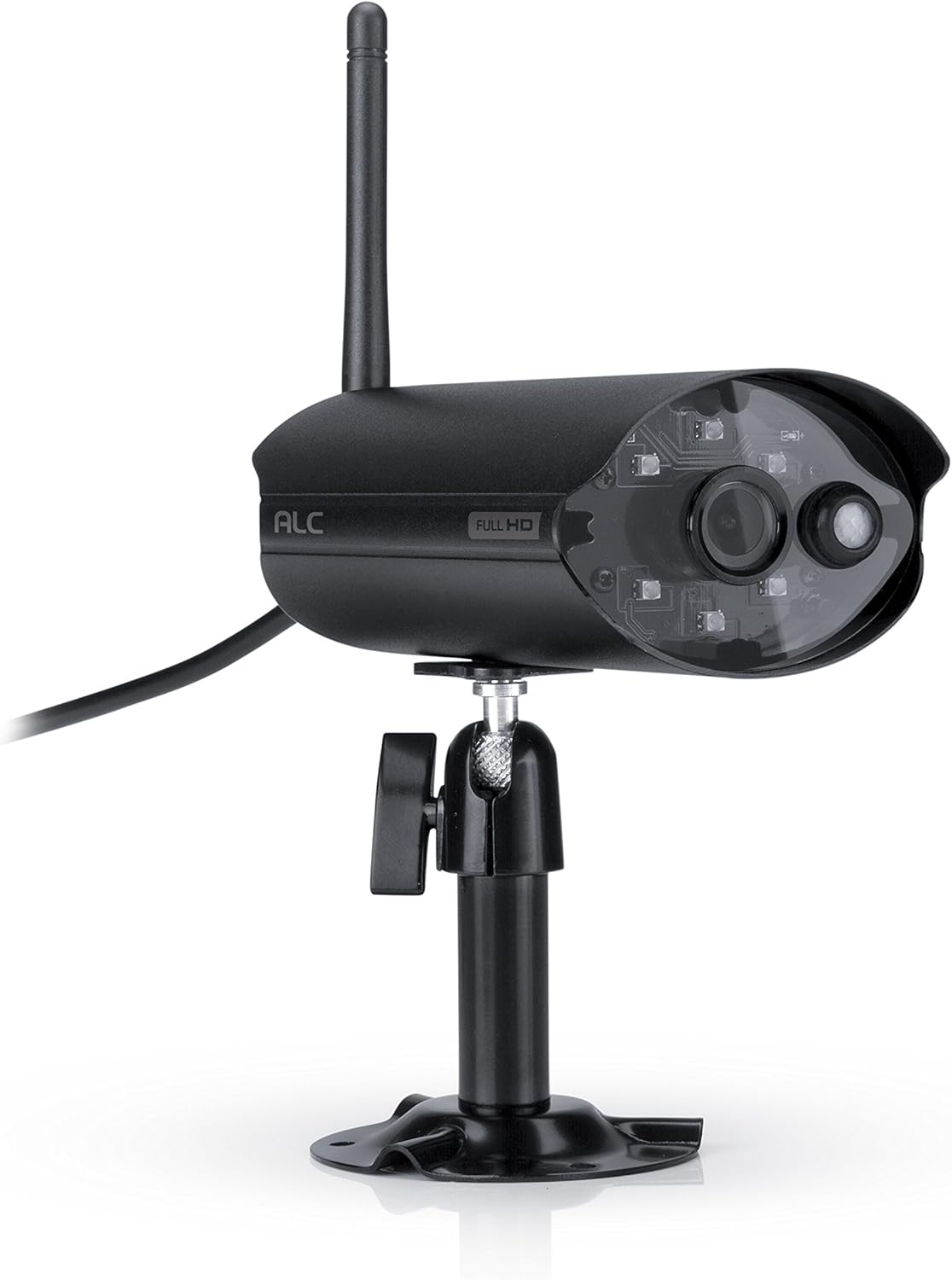

Figura 2.3.1: Quddiem view of the ALC AWF61 camera, showing the lens, infrared LEDs, and antenna. This image displays the camera's main body, mounted on its stand, with the antenna extending upwards and the power cable visible.

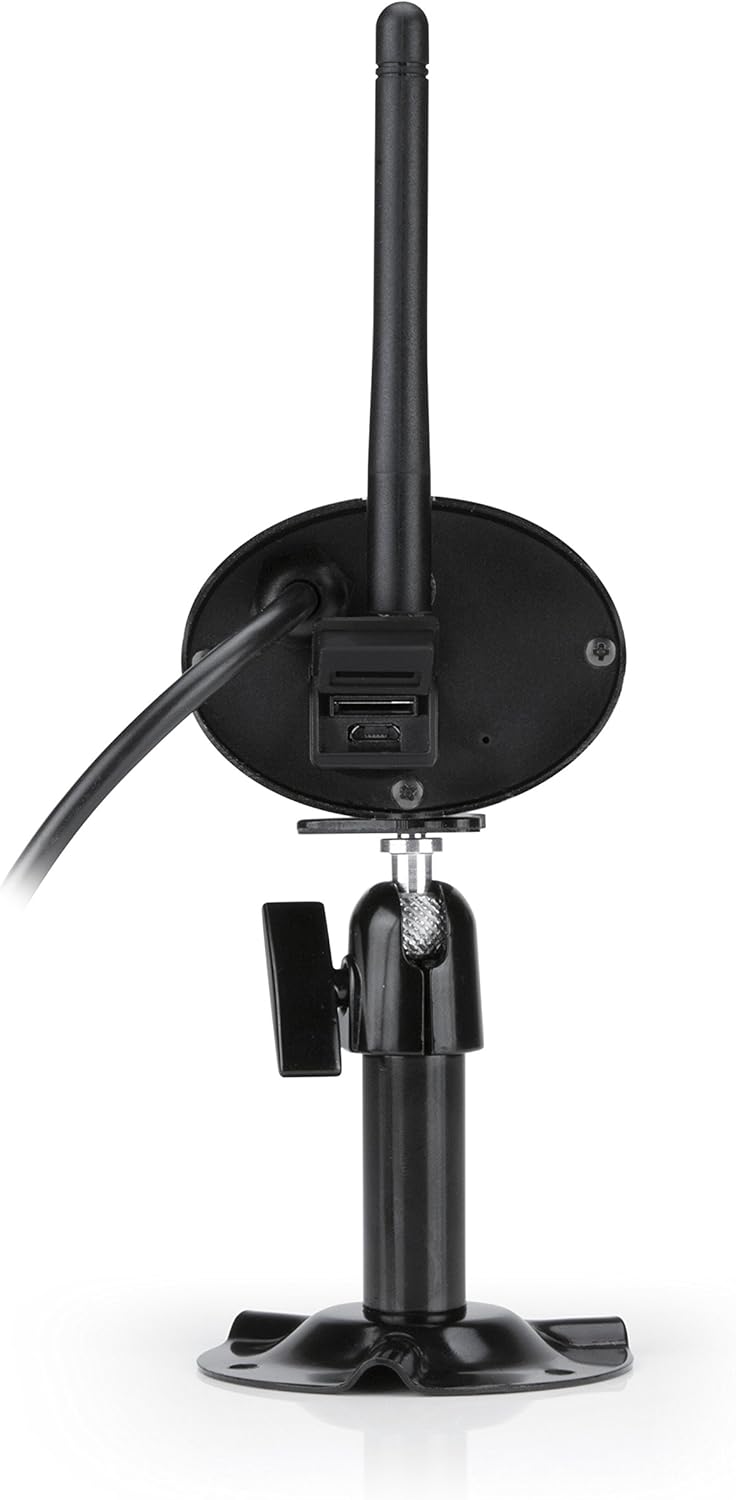

Figura 2.3.2: Wara view of the ALC AWF61 camera, showing the power input and possibly a microSD card slot (if applicable). This image highlights the back of the camera unit, including the base and connection points.

3. Setup u Installazzjoni

3.1 Qabel ma Tibda

• Ensure you have a stable Wi-Fi network with good signal strength at the camera's intended installation location.
• Have your Wi-Fi network name (SSID) and password ready.
• A smartphone or tablet (Android or iOS) is required for setup and operation.

3.2 Tniżżil tal-App u Ħolqien ta' Kont

1. Niżżel il- ALC SightHD app mill-Apple App Store (għal apparati iOS) jew mill-Google Play Store (għal apparati Android).
2. Installa l-app fuq l-ismartphone jew it-tablet tiegħek.
3. Iftaħ l-app u segwi l-istruzzjonijiet fuq l-iskrin biex toħloq kont ta' utent ġdid jew idħol jekk diġà għandek wieħed.

3.3 Camera Connection and Pairing

1. Connect the camera to the power adapter and plug it into a power outlet. The camera will power on and initiate its startup sequence.
2. Within the ALC SightHD app, select the option to add a new camera or device.
3. Follow the app's instructions to connect the camera to your Wi-Fi network. This typically involves scanning a QR code on the camera or entering your Wi-Fi credentials into the app.
4. Once connected, the camera will be paired with your account and ready for live viewing.

3.4 Immuntar tal-Kamera

The ALC AWF61 camera is designed for surface mounting. Choose a location that provides the desired field of view and has access to a power outlet. Ensure the mounting surface is stable and can support the camera's weight.

1. Use the provided mounting hardware to securely attach the camera's base to the chosen surface.
2. Adjust the camera's angle and orientation using the adjustable mount to achieve the optimal viewing żona.
3. Ensure the camera's antenna is positioned for best Wi-Fi signal reception.

4. Istruzzjonijiet Operattivi

4.1 Ħaj View u Daqq

• Open the ALC SightHD app on your smartphone or tablet.
• Select the AWF61 camera from your device list to access the live video feed.
• Use the app's interface to initiate manual recordings, take snapshots, or review irreġistrat footage from your microSD card or cloud storage.

4.2 Sejbien tal-Mozzjoni u Twissijiet

• Navigate to the camera settings within the ALC SightHD app.
• Enable and configure motion detection sensitivity and detection zones.
• Ensure push notifications are enabled in the app and on your device's operating system to receive alerts when motion is detected.

4.3 Viżjoni bil-lejl

The camera automatically switches to night vision mode in low-light conditions. The infrared LEDs will illuminate, providing clear black and white video up to 65 feet. No manual intervention is typically required for this feature.

4.4 Cloud Storage Integration

The ALC AWF61 supports free cloud storage integration with Google Drive and Dropbox. To utilize this feature:

1. Ensure you have an active Google Drive or Dropbox account.
2. Within the ALC SightHD app settings for your camera, link your preferred cloud storage account.
3. Recordings can then be automatically transferred from the camera's microSD card (if installed) to your linked cloud account.

5. Manutenzjoni

5.1 Tindif tal-Kamera

• Naddaf il-lenti u l-kaxxa tal-kamera perjodikament b'drapp artab u dryer.amp drapp.
• Do not use harsh chemicals or abrasive cleaners, as these can damage the camera's finish or lens.
• Kun żgur li l-kamera tkun mitfija qabel ma tnaddafha.

5.2 Aġġornamenti tal-Firmware

From time to time, ALC may release firmware updates to improve camera performance or add new features. Check the ALC SightHD app regularly for notifications regarding available firmware updates and follow the in-app instructions to apply them.

6 Issolvi l-problemi

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For warranty information, technical support, or service inquiries regarding your ALC AWF61 SightHD camera, please refer to the official ALC website or contact their customer support directly. Details for contacting support are typically found on the manufacturer's webis-sit jew fuq l-imballaġġ tal-prodott.

It is recommended to have your product model number (AWF61) and purchase date available when contacting support.
