1. Introduzzjoni
This manual provides essential information for the safe installation, operation, and maintenance of your Volteck Lait PLA-203L 6W LED Round Ceiling Light. Please read these instructions carefully before installation and retain them for future reference.
The Volteck Lait PLA-203L is a modern, round LED ceiling light designed for indoor use, offering instant illumination with 100% brightness upon activation. It features an aluminum body and a polystyrene screen, providing efficient and environmentally friendly lighting.
2. Informazzjoni dwar is-Sigurtà
WARNING: Risk of electric shock. Installation should only be performed by a qualified electrician or a person with adequate electrical knowledge.
- Always disconnect power at the circuit breaker or fuse box before installation, servicing, or cleaning.
- Tiżgura l-voltage supply is compatible with the light fixture (refer to specifications).
- Do not install in wet locations or areas exposed to direct water spray. This product is for indoor use only.
- Immaniġġja l-apparat tad-dawl b'attenzjoni biex tevita l-ħsara.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
3. Kontenut tal-Pakkett
Il-pakkett tipikament jinkludi:
- 1 x Volteck Lait PLA-203L LED Round Ceiling Light
- Ħardwer tal-immuntar (viti, ankri)
- Manwal ta' struzzjonijiet
Jekk jogħġbok ivverifika li l-komponenti kollha huma preżenti u mhux imħassra meta tiftaħ il-pakkett.
Image: Packaging of the Volteck Lait PLA-203L LED Ceiling Light, showing product details and specifications.
4. Setup u Installazzjoni
The Volteck Lait PLA-203L is designed for easy ceiling mount installation. Follow these steps carefully:
- Ipprepara għall-Installazzjoni:
a. Ensure the power supply to the installation area is turned off at the main circuit breaker.
b. Gather necessary tools: screwdriver, wire strippers, drill (if needed for anchors). - Immonta l-Bażi tal-Apparat:
a. Position the light fixture base against the ceiling where it will be installed.
b. Mark the locations for drilling pilot holes for the mounting screws.
c. Drill pilot holes and insert wall anchors if necessary.
d. Secure the fixture base to the ceiling using the provided screws. - Wajer l-Apparat:
a. Connect the electrical wires from the ceiling to the corresponding wires on the light fixture. Typically, the brown wire is live (L), and the blue wire is neutral (N). Ensure secure connections using appropriate wire connectors.
b. If a ground wire is present, connect it according to local electrical codes. - Attach the Light Cover:
a. Carefully align the light cover with the base.
b. Secure the cover to the base, ensuring it is firmly attached. - Irrestawra l-Enerġija:
a. Once installation is complete and all connections are secure, restore power at the circuit breaker.
b. Test the light fixture to ensure proper operation.

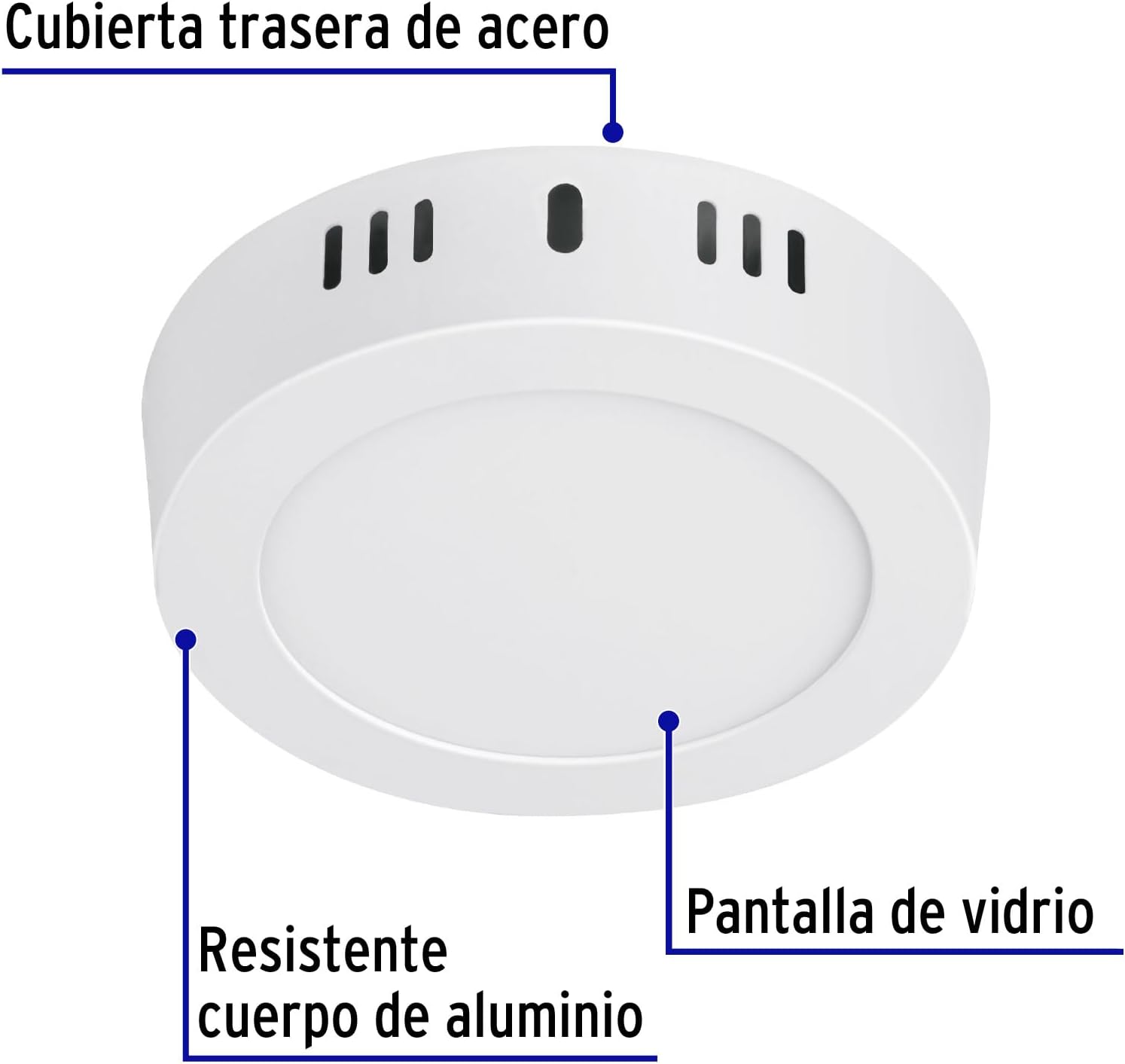

Immaġni: Quddiem view of the Volteck Lait PLA-203L LED Ceiling Light, showing its round design and ventilation holes.
Immaġni: Ġenb view of the Volteck Lait PLA-203L LED Ceiling Light, illustrating its compact dimensions of 11 cm diameter and 3 cm height.
5. Istruzzjonijiet Operattivi
The Volteck Lait PLA-203L LED Ceiling Light operates via a standard wall switch connected to its electrical circuit. It provides instant full brightness upon activation.
- Tixgħel/Jitfi: Uża s-swiċċ tal-ħajt imqabbad mal-apparat tad-dawl biex tixgħel jew titfi d-dawl.
- Illuminazzjoni Instant: The LED light will provide 100% of its brightness immediately upon being switched on.
Note: While some specifications mention a remote control style switch, this model typically operates with a standard wall switch. If your specific model includes a remote, refer to its separate instructions for pairing and operation.
6. Manutenzjoni
The Volteck Lait PLA-203L LED Ceiling Light is designed for long-lasting performance with minimal maintenance.
- Tindif: To clean the fixture, ensure the power is off. Use a soft, dry, or slightly damp drapp. Tużax prodotti tat-tindif li joborxu, solventi, jew kimiċi ħarxa, għax dawn jistgħu jagħmlu ħsara lill-finitura jew lill-komponenti elettriċi.
- Tul tal-ħajja LED: The integrated LED has an estimated lifespan of 15,000 hours, meaning bulb replacement is not required.
- Konsiderazzjonijiet Ambjentali: This product is designed to be environmentally friendly. Please dispose of it responsibly at the end of its life cycle according to local regulations.
7 Issolvi l-problemi
If you encounter issues with your Volteck Lait PLA-203L, refer to the following common troubleshooting steps:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx | Ebda provvista ta 'enerġija Konnessjoni tal-wajers sfużi Swiċċ difettuż | Iċċekkja circuit breaker/fjus. Kun żgur li l-konnessjonijiet tal-wajers kollha huma siguri (bil-kurrent mitfi). Test the wall switch or replace if faulty. |
| Teptip ħafif | Wiring maħlul Incompatible dimmer switch (if applicable) | Check all wiring connections (with power off). Ensure the fixture is not connected to an incompatible dimmer. This fixture is generally not designed for dimming unless specified. |
| Id-dawl huwa dgħajjef | Vol mhux korretttage Akkumulazzjoni tat-trab | Ivverifika l-provvista tal-enerġija voltage. Clean the light fixture surface. |
Jekk dawn il-passi ma jsolvux il-problema, ikkuntattja l-appoġġ għall-klijenti jew elettriċista kwalifikat.
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Volteck |
| Numru tal-Mudell | PLA-203L |
| Konsum tal-Enerġija | 6 Watts |
| Fluss Luminuż | 400 Lumens |
| Temperatura tal-Kulur | 6500K (Daylight Abjad) |
| Sors tad-Dawl | LED integrat |
| Ħajja Stmata | 15,000 sigħat |
| Materjal | Aluminum body, Polystyrene screen |
| Kulur | Abjad |
| Dimensjonijiet (Djametru x Għoli) | 10.92 cm x 3.05 cm (approx. 11 cm x 3 cm) |
| Piż | 920 g |
| Tip ta' Installazzjoni | Muntatura tal-Limitu |
| Sors tal-Enerġija | Corded Elettriku |
| Użu | Indoor use (Living room, bedroom, kitchen, bathroom, dining room, office, hallway, staircase, entrance) |
9. Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation included with your purchase or contact Volteck customer service directly. Keep your proof of purchase for any warranty claims.
