1. Introduzzjoni
Thank you for choosing the Volteck LED MR16 Lamp. This manual provides essential information for the safe and efficient use of your new LED lamp. This 4-watt LED lamp is designed to provide warm light, equivalent to a 30-watt incandescent bulb, operating at 127V with an MR16 GX5.3 base. It offers significant energy savings and a long operational life.

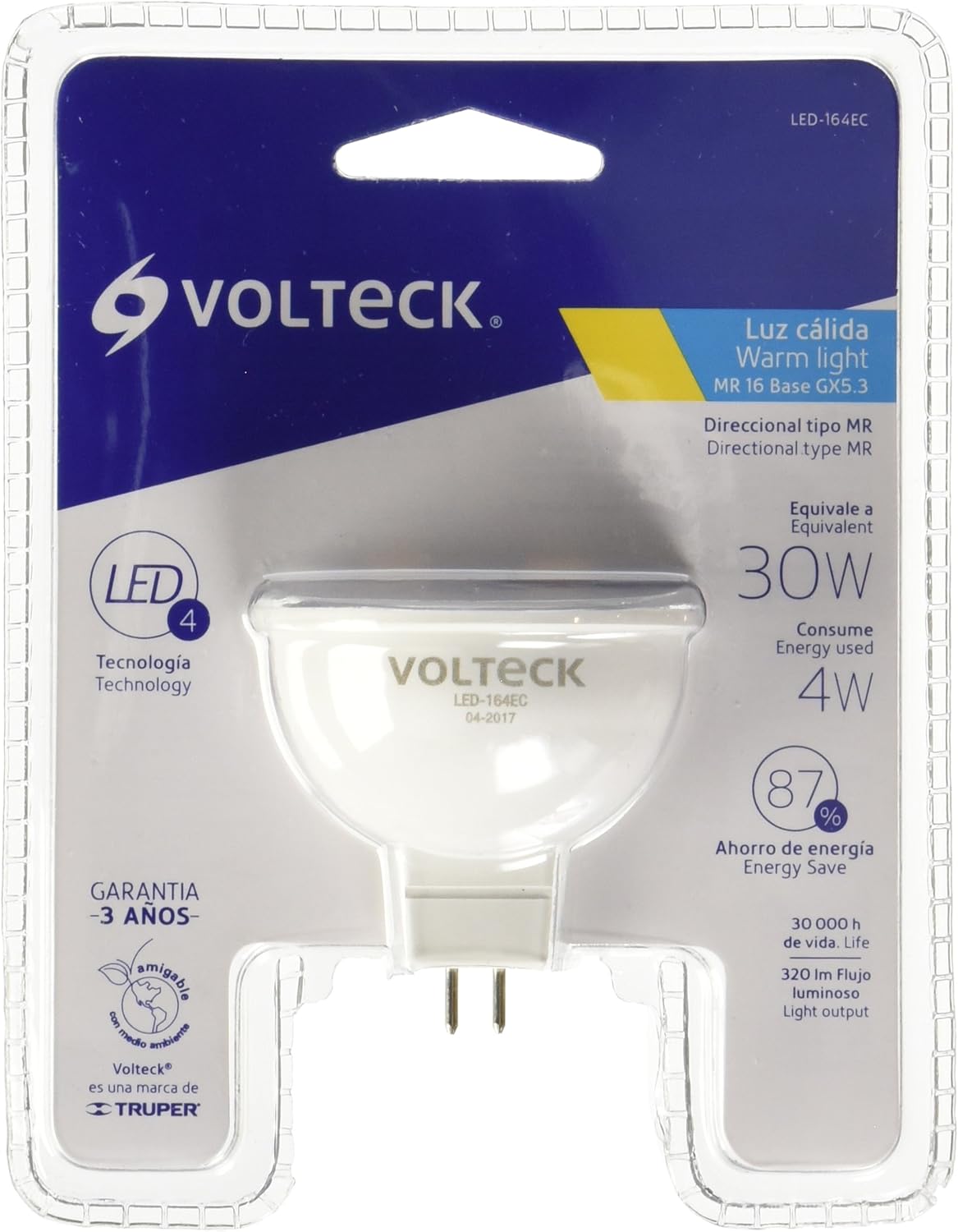

Stampa 1: Quddiem view of the Volteck LED MR16 4W Warm Light Lamp packaging, showing product features and specifications.
2. Istruzzjonijiet tas-Sigurtà
Please read and follow these safety instructions carefully before installation and use to prevent electrical discharge and ensure proper operation.
- Verify that the installation area is clean and free from debris to avoid electrical discharge.
- Disconnect the electrical current at the main power source before installing or replacing the LED lamp.
- Daħħal l-LED lamp into the socket by holding it firmly from its base.
- Once installed, restore power and turn on the switch.
Attenzjoni:
- Tużax dan l-LED lamp with dimmers (light intensity regulators).
- Tużax dan l-LED lamp with emergency exit lights.
- Tużax dan l-LED lamp in luminaires or circuits controlled by photocells.
- Żomm dan il-prodott fejn ma jintlaħaqx mit-tfal.
Immaġni 2: Wara view of the Volteck LED MR16 4W Warm Light Lamp packaging, detailing safety warnings, installation steps, and specifications.
3. Setup u Installazzjoni
Segwi dawn il-passi għal installazzjoni xierqa:
- Ensure the power supply to the fixture is turned off at the circuit breaker.
- Carefully remove the old bulb from the MR16 GX5.3 socket, if applicable.
- Align the two pins of the Volteck LED MR16 lamp with the holes in the socket.
- Imbotta bil-mod il-lamp into the socket until it is securely seated. Do not force it.
- Restore power to the fixture at the circuit breaker.
- Turn on the light switch to test the lamp.
4. Istruzzjonijiet Operattivi
The Volteck LED MR16 lamp operates like a standard light bulb. Simply use the wall switch or fixture switch to turn the light on or off. This lamp is not compatible with dimmers.
5. Manutenzjoni
The Volteck LED MR16 lamp jeħtieġ manutenzjoni minima.
- Tindif: Ensure the power is off before cleaning. Use a soft, dry cloth to wipe the lamp. Do not use liquid cleaners or abrasive materials.
- Sostituzzjoni: Due to its long lifespan, frequent replacement is not expected. When replacement is necessary, follow the installation steps outlined in Section 3.
6 Issolvi l-problemi
If your Volteck LED MR16 lamp is not functioning correctly, refer to the table below for common issues and solutions.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Lamp ma jixgħelx. | L-ebda qawwa għall-apparat. | Check the circuit breaker and wall switch. |
| Lamp is loose in the socket. | Tiżgura l-lamp is fully inserted into the socket. Turn off power before adjusting. | |
| Skorretta lamp type for fixture. | Verify the fixture requires an MR16 GX5.3 base and 127V. | |
| Lamp teptip. | Incompatible dimmer or circuit. | Tiżgura l-lamp is not connected to a dimmer or incompatible circuit (e.g., photocell). |
7. Speċifikazzjonijiet
Detailed technical specifications for the Volteck LED MR16 Lamp, mudell 46177.
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | Volteck |
| Numru tal-Mudell | 46177 (LED-164EC) |
| Tip Dawl | LED |
| Wattage | 4 Watts |
| Ekwivalenti Inkandexxenti | 30 Watts |
| Voltage | 127V |
| Frekwenza | 60 Hz |
| Kurrenti | 52 mA |
| Daqs tal-Forma tal-Bozza | MR16 |
| Tip ta' Bażi | GX5.3 |
| Kulur Dawl | Abjad sħun (3000K) |
| Fluss Luminuż | 320 lm |
| Ħajja Rated | 30,000 sigħat |
| Iffrankar tal-Enerġija | 87% |
| Piż tal-oġġett | 1.76 uqija |
| Dimensjonijiet tal-Pakkett | 5.12 x 4.02 x 1.93 pulzieri |
| UPC | 7506240638452 |
Image 3: Volteck LED MR16 4W Warm Light Lamp packaging showing approximate dimensions.
8. Garanzija u Appoġġ
This Volteck product, including its parts and components, is guaranteed for tliet snin against any manufacturing defects in material, workmanship, or operation, provided that:
- The product has been used under normal conditions.
- The product has not been altered or repaired by personnel not certified by Truper.
Volteck is a brand of Truper. For warranty claims, technical support, or further assistance, please visit the official Truper websit jew ikkuntattja lis-servizz tal-konsumatur tagħhom.
Appoġġ onlajn: www.truper.com
Servizz tal-Klijent: Please refer to the contact information provided on the product packaging or the official Truper websit għal numri ta' appoġġ reġjonali.
