Manwal ta' Istruzzjoni għas-Subwoofers tal-Awdjo tal-Karozza Kicker C104 ta' 10 pulzieri 300W Comp 4-Ohm

1. Introduzzjoni

This instruction manual provides essential information for the proper installation, operation, and maintenance of your Kicker C104 10-inch Comp Series Car Audio Subwoofers. Please read this manual thoroughly before attempting installation or use to ensure optimal performance and to prevent damage to the product or your vehicle's audio system. Retain this manual for future reference.

2. Prodott Aktarview

The Kicker C104 Comp Series Subwoofers are designed to deliver powerful and clear bass reproduction for your car audio system. These 10-inch subwoofers feature a robust construction for durability and consistent performance.

Karatteristiċi ewlenin:

• Daqs: 10 pulzieri (25.0 ċm)
• Impedenza: 4 ohms Single Voice Coil (SVC)
• Immaniġġjar tal-Enerġija: 300 Watts Peak, 150 Watts RMS (Recommended power range: 50 - 150 watts RMS)
• Materjal tal-kon: Injection molded SoloKon cone for rigidity
• Imdawwar: Optimized Polyfoam Ribbed Surround
• Durabilità: Double-stitched surround and 360-degree back bracing to eliminate distortion
• Voice Coil: Single high-temperature voice coil
• Struttura tal-kalamita: 45oz. Magnet
• Tinsel Leads: Woven into the spider with Kicker's Spiralead technology

X'hemm fil-Kaxxa:

• 2 x Kicker C104 10" Subwoofers

Immaġni: Quddiem view of two Kicker C104 10-inch subwoofers, showcasing the Kicker logo and 'Comp' branding on the cone.

3. Setup u Installazzjoni

Proper installation is crucial for the performance and longevity of your subwoofers. It is highly recommended that installation be performed by a qualified professional car audio installer.

Konsiderazzjonijiet tal-Immuntar:

• Fond tal-Immuntar: 5-1/16 pulzieri (12.8 ċm)
• Qtugħ tal-Immuntar: 9-1/8 pulzieri (23.1 ċm)

Ensure adequate clearance behind the subwoofer for proper ventilation and excursion. The mounting surface must be rigid and secure to prevent vibrations and ensure optimal sound quality.

Immaġni: Side profile of the Kicker C104 subwoofer, illustrating its depth for mounting considerations.

Rekwiżiti tal-għeluq:

The Kicker C104 subwoofers can be used in both sealed and vented enclosures. Refer to the specifications for recommended enclosure volumes:

• Volum Minimu tal-Kaxxa Ssiġillata: 1.0 cu. ft (28.3 L)
• Volum Massimu tal-Kaxxa Ssiġillata: 2.4 cu. ft (68 L)
• Volum Minimu tal-Kaxxa Ventilata: 1.25 cu. ft (35.4 L)
• Volum Massimu tal-Kaxxa Ventilata: 1.75 cu. ft (49.6 L)

Wiring u AmpTqabbil tal-Lifier:

These subwoofers feature a single 4-ohm voice coil. Ensure your amplifier is stable at a 4-ohm load per channel or when wired in parallel/series for multiple subwoofers to achieve the desired impedance. The recommended RMS power range is 50-150 watts per subwoofer. Overpowering or underpowering can lead to damage.

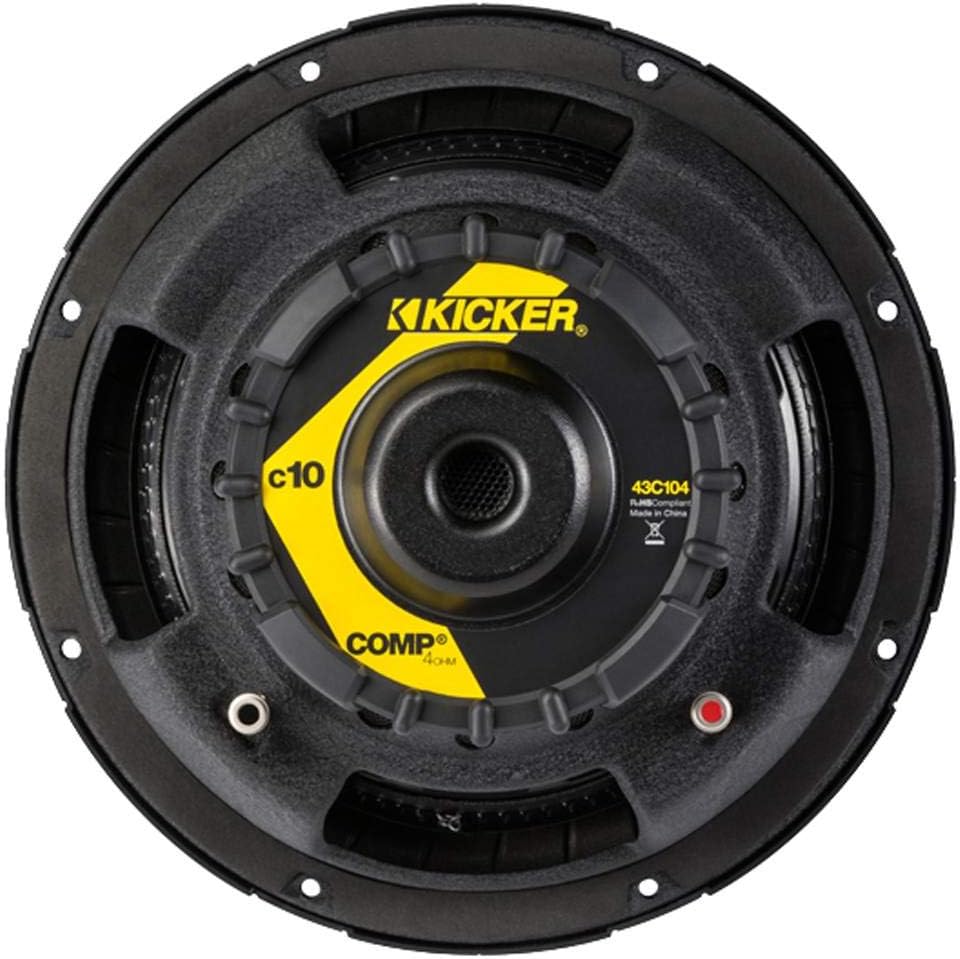

Immaġni: Wara view of the Kicker C104 subwoofer, displaying the model number, impedance, and wiring terminals.

Immaġni: Close-up view of a Kicker C104 subwoofer terminal, highlighting the connection point for speaker wire.

4. Istruzzjonijiet Operattivi

Once installed, proper tuning of your amplifier and head unit is essential for optimal sound quality and to prevent damage to your subwoofers.

• L-issettjar tal-gwadann: Issettja l- amplifier gain according to the manufacturer's instructions, typically by matching it to the output voltage of your head unit. Avoid setting the gain too high, as this can introduce distortion and damage the subwoofers.
• Settings tal-crossover: Use the low-pass filter (LPF) on your ampamplificatur jew unità ewlenija biex tibgħat biss frekwenzi baxxi lis-subwoofers. Punt tat-tluq komuni huwa 80-100 Hz.
• Spinta baxxa: Use bass boost sparingly, if at all. Excessive bass boost can lead to clipping and damage.
• Perjodu ta' Break-in: Allow a break-in period of several hours of moderate listening before playing at high volumes. This allows the subwoofer's suspension to loosen up, improving performance.

5. Manutenzjoni

Your Kicker C104 subwoofers require minimal maintenance to ensure long-term performance.

• Tindif: Use a soft, dry cloth to wipe down the subwoofer cone and surround. Avoid using harsh chemicals or excessive moisture.
• Spezzjoni: Periodically inspect the subwoofer for any signs of damage to the cone, surround, or terminals. Ensure all wiring connections remain secure.
• Fatturi Ambjentali: Protect the subwoofers from extreme temperatures, direct sunlight, and moisture.

6 Issolvi l-problemi

Jekk tesperjenza problemi bis-subwoofers tiegħek, irreferi għall-passi komuni li ġejjin għas-soluzzjoni tal-problemi:

• Ebda Ħsejjes:
  • Iċċekkja l-konnessjonijiet tal-wajers kollha mill- amplifier to the subwoofer and from the head unit to the ampaktar ħaj.
  • Ivverifika l- amplifier is powered on and not in protection mode.
  • Ensure the head unit's subwoofer output is enabled and volume is up.
• Ħoss Mgħawġ:
  • Naqqas il- amplifier gain setting.
  • Iċċekkja s-settings tal-crossover xierqa; kun żgur li l-frekwenzi baxxi biss jintbagħtu lis-subwoofer.
  • Verify the subwoofer is not over-excursing (moving too far in and out).
  • Inspect the subwoofer cone and surround for physical damage.
• Bass Dgħajjef:
  • Ensure the subwoofer is wired correctly for the amplifier's impedance load.
  • Check the phase setting on your amplifier jew head unit.
  • Verify the enclosure volume matches the recommended specifications.

If problems persist after following these steps, consult a professional car audio technician.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Kicker provides a Full Warranty for this product. For specific warranty terms, conditions, and to register your product, please refer to the official Kicker website or contact Kicker customer support.
