1. Introduzzjoni

The Votronic VBCS 30/20/250 Triple Battery Charger is an advanced power management unit designed for recreational vehicles and marine applications. It integrates three essential charging functions into a single compact device: an MPPT solar charge controller, an AC (shore power) charger, and a DC-DC (battery-to-battery) charger. This innovative combination simplifies your electrical system, ensuring optimal charging of your leisure and starter batteries from various power sources.

Il-karatteristiċi ewlenin jinkludu:

• Integrated MPPT Solar Charge Controller with up to 250 W panel output.
• AC Charger (110-230 V AC, 45-65 Hz) with a maximum charge current of 20 A.
• DC-DC Battery Charger with a maximum output of 30 A.
• Compact design for efficient space utilization.
• Suitable for various battery types including Gel, AGM, and LiFePO4.

2. Istruzzjonijiet tas-Sigurtà

Please read all safety instructions carefully before installation and operation. Failure to comply with these instructions may result in electric shock, fire, or serious injury.

• Persunal kwalifikat: Installation and maintenance should only be performed by qualified personnel familiar with electrical systems and battery handling.
• Periklu ta' Xokk Elettriku: Do not open the device. There are no user-serviceable parts inside. Disconnect all power sources (solar, AC, batteries) before making or breaking any connections.
• Sigurtà tal-batterija: Batteries can produce explosive gases. Ensure adequate ventilation. Avoid sparks and open flames near batteries. Wear eye protection and protective clothing when working with batteries.
• Polarità Korretta: Always observe correct polarity when connecting batteries and solar panels. Incorrect polarity can damage the device and connected components.
• Fjusis: Use appropriate fuses as specified in the installation diagrams to protect the wiring and the device.
• Ventilazzjoni: Ensure the device is installed in a well-ventilated area to prevent overheating. Do not block the cooling fans.
• Umdità: Protect the device from moisture, water, and excessive dust.

3. Prodott Aktarview

The Votronic VBCS 30/20/250 is housed in a robust aluminum casing, designed for durability and efficient heat dissipation. The front panel features various connection terminals and LED indicators, while the rear panel includes cooling fans and the AC power input.

Tqassim tal-Panew ta 'Quddiem

The front of the unit provides access to all DC connections and control interfaces:

• Solar Panels Input: Terminals for connecting solar panels.
• 12V Start II: Connection for the starter battery.
• Com. (Common Ground): Common negative terminal.
• 12V Bord I: Connection for the leisure battery.
• Blokk terminali: Various control and sensor connections (e.g., D+, temperature sensor, remote display).
• Indikaturi LED: Display charge status, battery type, and operational modes.
• Port tal-Wiri: For connecting an optional external display.
• BUS Port: For system communication with other Votronic devices.

Figura 1: Quddiem view of the Votronic VBCS 30/20/250 Triple Battery Charger, showing the solar panel input, 12V starter battery (Start II) and leisure battery (Bord I) connections, communication ports, and LED indicators for charge status and battery type.

Tqassim tal-Panew ta' wara

The rear panel houses the AC power input and cooling components:

• Input tal-Enerġija AC: Standard IEC C14 inlet for connecting shore power.
• Fannijiet li jkessħu: Two integrated fans for active cooling during operation.

Figura 2: Wara view of the Votronic VBCS 30/20/250 Triple Battery Charger, highlighting the two cooling fans and the AC power input socket.

Figura 3: Side profile of the Votronic VBCS 30/20/250 Triple Battery Charger, illustrating its compact design and heat sink fins.

4. Installazzjoni

Proper installation is critical for the safe and efficient operation of your VBCS 30/20/250. Refer to the wiring diagrams provided and ensure all connections are secure and correctly fused.

4.1 Immuntar

• Mount the unit in a dry, well-ventilated area, away from direct sunlight, heat sources, and flammable materials.
• Ensure sufficient clearance around the unit for airflow, especially around the cooling fans.
• Use appropriate fasteners to secure the charger to a solid surface.

4.2 Konnessjonijiet elettriċi

Before making any connections, ensure all power sources are disconnected (vehicle ignition off, shore power unplugged, solar panels covered or disconnected).

1. L-ertjar: Connect the common ground (Com.) terminal to the vehicle's chassis or common ground point.
2. Leisure Battery (Bord I): Connect the positive terminal of your leisure battery to the '12V Bord I' terminal. Connect the negative terminal of the leisure battery to the common ground. Install an appropriate fuse (e.g., 30A) as close to the battery as possible.
3. Starter Battery (Start II): Connect the positive terminal of your starter battery to the '12V Start II' terminal. Connect the negative terminal of the starter battery to the common ground. Install an appropriate fuse (e.g., 5A) as close to the battery as possible.
4. Pannelli Solari: Connect the positive and negative leads from your solar panels to the 'Solar Panels' input terminals. Observe correct polarity. Ensure the total power output of your solar panels does not exceed 250W.
5. Input AC: Once all DC connections are made and verified, connect the AC power cord to the unit's AC input and then to a suitable shore power outlet.
6. D+ Signal (Alternator): Connect the D+ terminal (or equivalent ignition-switched positive) from your vehicle's alternator to the corresponding terminal on the VBCS. This activates the DC-DC charging function when the engine is running.
7. Konnessjonijiet Fakultattivi: Connect any optional accessories such as a remote display, temperature sensor, or BUS system components as per their respective manuals.

4.3 Għażla tat-Tip ta' Batterija

The VBCS 30/20/250 supports various battery types. The correct battery type must be selected for optimal charging and battery longevity. Refer to the unit's internal settings or an optional display for configuration. Common settings include:

• Ġell: For Gel batteries.
• AGM1 / AGM2: For different types of AGM batteries.
• LiFePO4: Għal batteriji tal-litju-fosfat tal-ħadid.

4.4 Dijagrammi tal-Wiring

Below are illustrative wiring diagrams for common installation scenarios. Always consult these diagrams and ensure proper cable sizing and fusing.

Figura 4: Detailed standard wiring diagram for the Votronic VBCS 30/20/250, showing connections for solar panels, starter battery (Start II), leisure battery (Bord I), alternator (D+), AC input, and optional accessories like a display and temperature sensor. Includes notes on cable cross-sections and fuse placement.

Figura 5: Special wiring diagram for the Votronic VBCS 30/20/250, illustrating a TR-Bypass connection for managing high current consumers, such as air conditioning units, during driving. This setup ensures stable power supply by directly connecting the alternator to the leisure battery via a bypass.

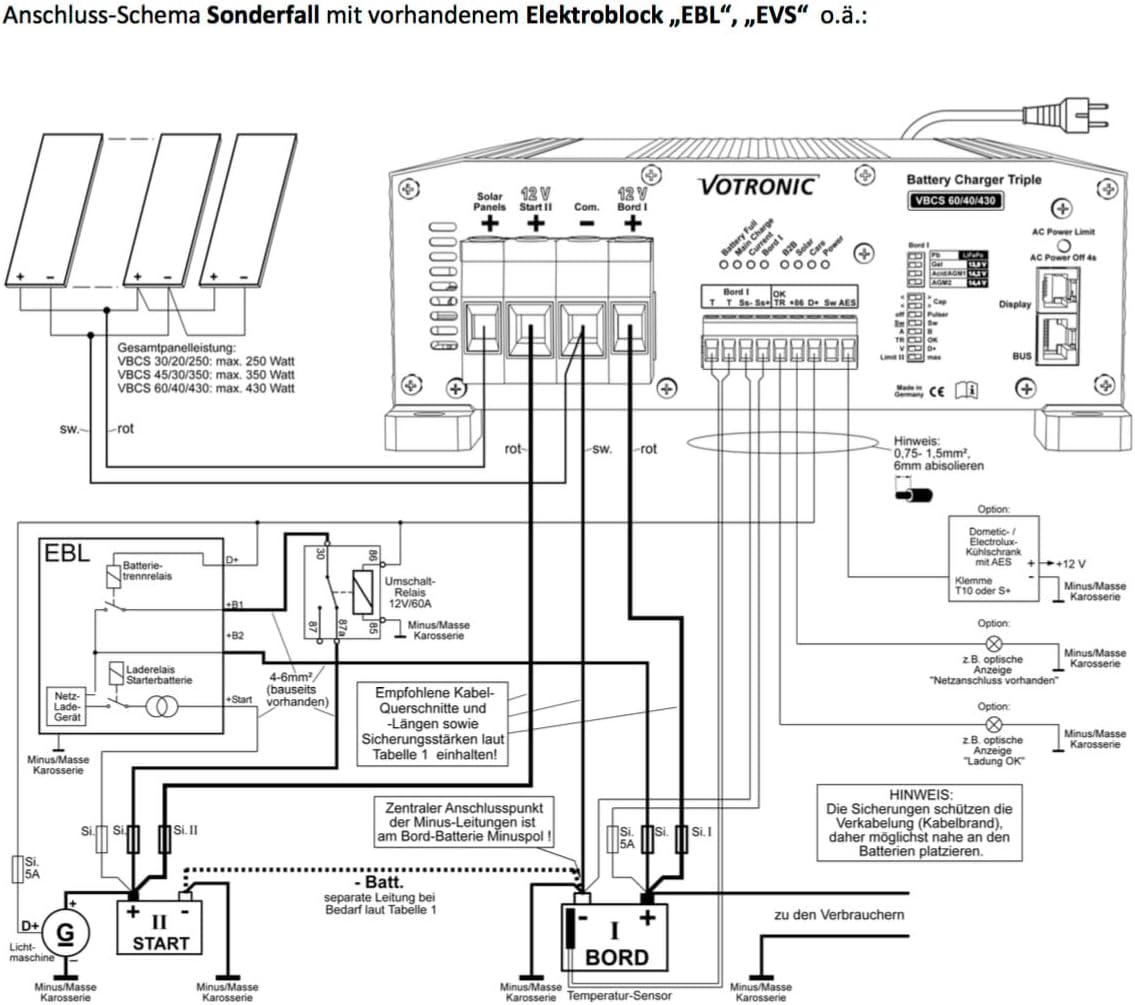

Figura 6: Special wiring diagram for the Votronic VBCS 30/20/250, demonstrating integration with an existing EBL (Elektroblock) or EVS electrical system. This diagram shows how to connect the charger to the vehicle's central electrical distribution unit, including battery isolation relays and charging lines.

5. Istruzzjonijiet Operattivi

The VBCS 30/20/250 operates largely automatically, prioritizing charging sources and optimizing the charging process for your batteries.

5.1 Iċċarġjar Awtomatiku

The unit intelligently manages charging from available sources:

• Iċċarġjar Solari: When solar panels are connected and sufficient sunlight is available, the MPPT controller will charge the leisure battery.
• Iċċarġjar AC: When connected to shore power, the integrated AC charger will charge the leisure battery.
• DC-DC Charging: When the vehicle engine is running (D+ signal active), the unit will charge the leisure battery from the starter battery/alternator.
• Prijorità: The charger typically prioritizes AC and DC-DC charging when available, supplementing with solar power. It also ensures the starter battery is maintained.

5.2 Indikaturi LED

The front panel LEDs provide visual feedback on the charger's status:

• LED tal-qawwa: Jindika li l-unità hija mixgħula.
• Charge Status LEDs: Show the current charging phase (e.g., bulk, absorption, float) or if the battery is full.
• Source LEDs: Indicate which power source (Solar, AC, DC-DC) is actively charging.
• LED tat-tip tal-batterija: Confirms the selected battery type setting.

Refer to the detailed manual (if available from Votronic) for a complete explanation of all LED indicators and their sequences.

6. Manutenzjoni

The VBCS 30/20/250 is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure its longevity and performance.

• Tindif: Keep the unit clean and free from dust. Use a dry, soft cloth. Do not use liquid cleaners or solvents. Ensure cooling vents and fans are unobstructed.
• Kontrolli tal-Konnessjoni: Periodically inspect all electrical connections for tightness and corrosion. Loose connections can cause overheating and poor performance.
• Verifiki tal-Fjusijiet: Verify that all inline fuses are intact and of the correct rating. Replace blown fuses only with fuses of the same type and rating.
• Saħħa tal-batterija: Regularly check the condition of your batteries. Ensure they are properly maintained according to their manufacturer's guidelines.

7 Issolvi l-problemi

If you encounter issues with your VBCS 30/20/250, perform the following basic troubleshooting steps:

• Ebda Qawwa/Ebda Iċċarġjar:
  • Check all power connections (AC, solar, batteries) for secure contact.
  • Verify that all fuses are intact.
  • Ensure AC shore power is active and the circuit breaker is not tripped.
  • For solar charging, confirm solar panels are exposed to sunlight and connections are correct.
  • For DC-DC charging, ensure the engine is running and the D+ signal is active.
• Is-sħana żejda:
  • Ensure the unit has adequate ventilation and cooling fans are not obstructed.
  • Check for excessive load or short circuits in the system.
• Tip ta' Batterija Mhux Korrett:
  • Verify that the correct battery type is selected on the unit for your leisure battery.
• Indikaturi ta' Żball:
  • Consult the full Votronic manual for specific error code interpretations if an optional display is used or if LED patterns indicate an error.

If the problem persists after performing these checks, contact your dealer or Votronic customer support for further assistance.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

9.1 Informazzjoni dwar Garanzija

For detailed warranty terms and conditions, please refer to the documentation included with your product or visit the official Votronic websit. Il-kopertura tal-garanzija tipikament tinkludi difetti fil-materjali u x-xogħol taħt użu normali.

9.2 Appoġġ għall-Klijent

If you require technical assistance, have questions about installation, or need to report a fault, please contact your authorized Votronic dealer or Votronic customer service directly. Have your product model number (VBCS 30/20/250) and purchase information ready when contacting support.
