1. Introduzzjoni
This manual provides instructions for the installation, operation, and maintenance of your Hansgrohe Bidette 1jet Hand Shower, Model 32127000. Please read this manual carefully before installation and use to ensure proper function and safety. Keep this manual for future reference.

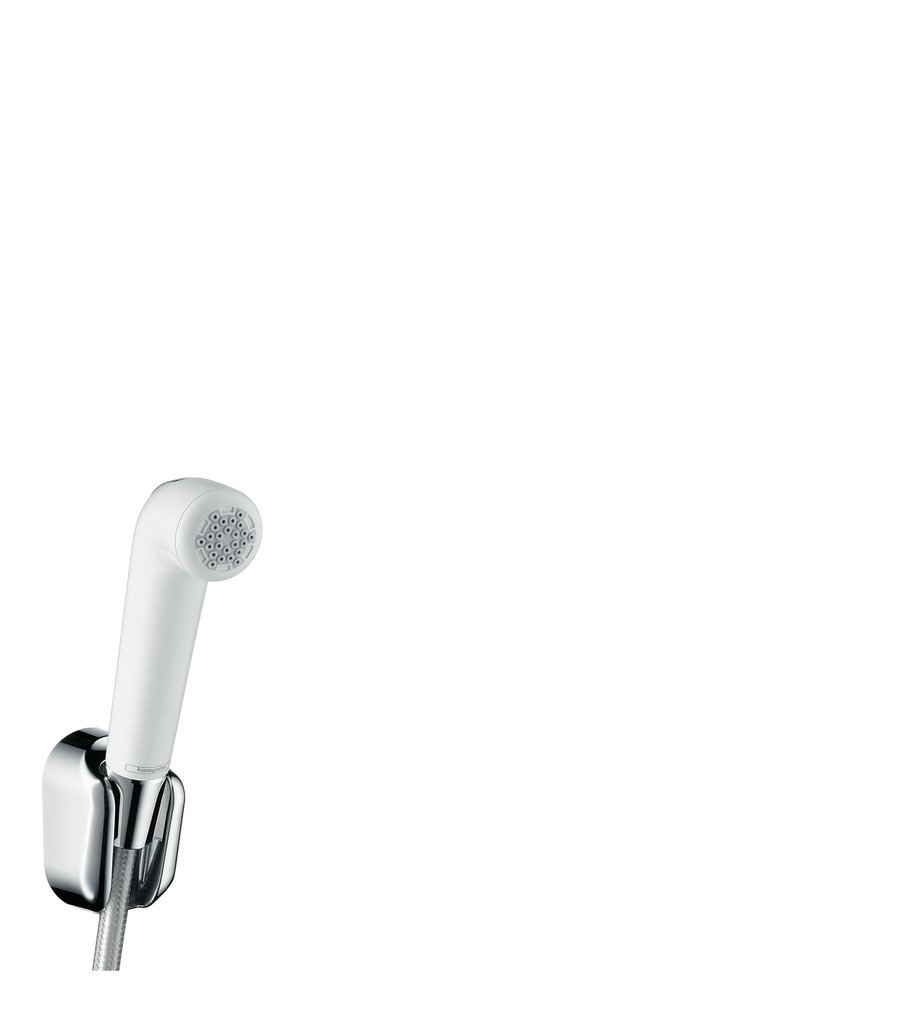

Image 1: Hansgrohe Bidette 1jet Hand Shower, including the hand shower, hose, and wall holder.
2. Informazzjoni dwar is-Sigurtà
Osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment jew ħsara:
- Kun żgur li l-konnessjonijiet kollha huma sikuri biex tevita t-tnixxijiet.
- Do not use abrasive cleaners or solvents on the product surfaces.
- L-installazzjoni għandha titwettaq minn professjonist kwalifikat jekk m'intix ċert.
- Ipproteġi l-prodott minn temperaturi ta' ffriżar.
3. Kontenut tal-Pakkett
Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:
- Bidette hand shower (1jet)
- Detentur tad-doċċa
- Pressure-resistant shower hose (125 cm)
4. Setup u Installazzjoni
Follow these general steps for installation. Specific plumbing requirements may vary.
- Preparazzjoni: Itfi l-provvista tal-ilma prinċipali qabel tibda l-installazzjoni.
- Qabbad il-Manka: Attach one end of the pressure-resistant shower hose to your existing water outlet (e.g., mixer tap). Ensure a watertight seal using appropriate sealing materials if necessary.
- Waħħal id-doċċa tal-idejn: Connect the other end of the shower hose to the bidette hand shower. Hand-tighten first, then use a wrench if needed, being careful not to overtighten.
- Install Shower Holder: Choose a suitable location on the wall for the shower holder. Mark the drilling points, drill holes, insert wall plugs, and secure the holder with screws.
- Test: Turn on the main water supply and check for any leaks at all connection points.
Nota: It is recommended to consult a professional plumber for installation if you are unfamiliar with plumbing work.
5. Istruzzjonijiet Operattivi
The Hansgrohe Bidette 1jet Hand Shower is designed for simple and efficient use.
- Attivazzjoni tal-Fluss tal-Ilma: To activate the water flow, press the button or lever on the hand shower. Release to stop the flow.
- Pressjoni tal-Ilma: The hand shower delivers a single jet (1jet) with a maximum flow rate of 6 liters per minute at 3 bar pressure.
- Konservazzjoni tal-Ilma: This product incorporates Hansgrohe's EcoSmart technology, which helps reduce water consumption by up to 60% compared to conventional products, without compromising performance.
6. Manutenzjoni u Tindif
Regular cleaning ensures the longevity and optimal performance of your hand shower.
- Tindif Ġenerali: Clean the surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Rinse thoroughly with water and dry with a soft cloth.
- Limescale Removal (QuickClean): The hand shower features QuickClean technology. To remove dirt and limescale deposits from the spray nozzles, simply rub the flexible silicone nubs with your finger. This should be done regularly to maintain spray performance.
- Evita: Do not use cleaning agents containing hydrochloric acid, formic acid, chlorine bleach, or acetic acid, as these can cause damage. Avoid abrasive sponges or brushes.
7 Issolvi l-problemi
Jekk tiltaqa' ma' problemi, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Fluss ta 'ilma baxx | Limescale buildup in nozzles | Rub the QuickClean silicone nubs to remove limescale. |
| Fluss ta 'ilma baxx | Partially closed stopcock or clogged filter | Check if the stopcock is fully open. Clean or replace any filters in the water supply line. |
| Tnixxijiet fil-konnessjonijiet | Konnessjonijiet maħlula jew siġilli milbusa | Tighten connections. Check and replace rubber seals/washers if damaged. |
If the problem persists after attempting these solutions, please contact Hansgrohe customer support.
8. Speċifikazzjonijiet
- Mudell: 32127000
- Materjal: White/Chrome finish
- Tip ta' Sprej: 1ġett
- Rata massima tal-fluss: 6 l/min f'3 bar
- Tul tal-manka: 125 ċm
- Teknoloġija: EcoSmart (water-saving), QuickClean (easy limescale removal)
- Karatteristiċi: Valv ta 'non-return
9. Informazzjoni dwar Garanzija
This Hansgrohe product is covered by a 5-year International Manufacturer Warranty. This warranty covers defects in material and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the official Hansgrohe warranty documentation or websit.
10. Appoġġ għall-Klijent
For further assistance, technical support, or warranty claims, please contact Hansgrohe customer service. Contact details can typically be found on the official Hansgrohe websit għar-reġjun tiegħek.
Websit: www.hansgrohe.com
