Introduzzjoni
The Maclean MCE135 is an infrared motion sensor designed for automatic control of lighting based on door movement. This device detects when a door is opened or closed, triggering connected lights to turn on or off. It is suitable for various indoor applications such as wardrobes, cabinets, storage rooms, and other areas where automatic illumination upon entry is desired.
Informazzjoni dwar is-Sigurtà
- Dejjem skonnettja l-enerġija qabel l-installazzjoni jew il-manutenzjoni biex tevita xokk elettriku.
- L-installazzjoni għandha titwettaq minn elettriċista kwalifikat jew skont il-kodiċijiet elettriċi lokali.
- Do not exceed the maximum load capacity specified in the product specifications.
- Ensure the device is installed in a dry environment, away from direct moisture or extreme temperatures.
- Żomm fejn ma jintlaħaqx mit-tfal.
Prodott Overview
The Maclean MCE135 sensor unit consists of a main control box and a connected infrared sensor head. The control box houses the wiring terminals and internal electronics, while the sensor head detects proximity changes, typically when a door opens or closes within its detection range.
Figure 1: Maclean MCE135 Infrared Motion Sensor unit, showing the main control box, connecting cable, and the sensor head.
Figura 2: Close-up view of the compact infrared sensor head, designed for discreet installation.
Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Input Voltage | 110-240 V/AC |
| Frekwenza tal-Enerġija | 50/60 Hz |
| Kurrent Rated | 5 A |
| Tagħbija Massima (Inkandexxenti) | 500 W |
| Max Load (LED) | 200 W |
| Firxa ta 'Sejbien | 5-6 ċm |
| Temperatura operattiva | -20 ℃ sa +50 ℃ |
| Dimensions (Control Box) | Appross. 10 x 5 x 5 cm |
| Piż | 80 gramma |
| Sors tal-Enerġija | AC adapter powered |
| Tip ta 'Immuntar | Bieb impunjazzjoni |
Setup
Follow these steps for proper installation of your Maclean MCE135 motion sensor:
- Ipprepara ż-Żona tal-Installazzjoni: Choose a suitable location for the sensor head and the control box. The sensor head should be positioned near the edge of the door frame or inside the cabinet, facing the door, to detect its opening and closing movement. Ensure the detection range of 5-6 cm is considered.
- Immonta l-Kaxxa tal-Kontroll: Secure the control box in a hidden but accessible location using the provided screws and wall plugs.

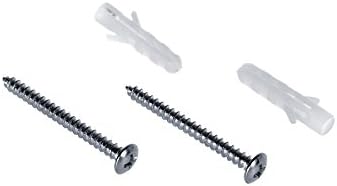

Figure 3: Included mounting hardware: screws and wall plugs.
- Wiring:
- Skonnettja l-Enerġija: Before making any electrical connections, ensure the main power supply to the circuit is turned off at the breaker.
- Qabbad il-Qawwa tad-Dħul: Connect the live (L) and neutral (N) wires from your main power supply to the 'IN' terminals on the control box. Refer to the diagram on the unit for correct polarity.
- Connect Output Load: Connect the live (L) and neutral (N) wires of your light fixture (load) to the 'OUT' terminals on the control box.
- Connect Sensor Head: The sensor head is pre-wired to the control box. Ensure the connection is secure.
Figura 4: Dettaljat view of the wiring terminals on the control box. Ensure correct connection of Live (L) and Neutral (N) for both input power and output load.
- Ittestja l-Installazzjoni: Once all connections are secure and the control box is mounted, restore power to the circuit. Test the sensor by opening and closing the door. The light should turn on when the door opens and turn off when the door closes.
Istruzzjonijiet Operattivi
The Maclean MCE135 operates automatically based on the detection of door movement:
- Bieb Miftuħ: When the door moves away from the sensor head, breaking the proximity, the sensor will detect this change and activate the connected light.
- Door Closed: When the door moves back towards the sensor head, restoring the proximity, the sensor will detect this change and deactivate the connected light.
There are no adjustable settings for this sensor; its operation is purely based on the presence or absence of the door within its detection range.
Manutenzjoni
The Maclean MCE135 motion sensor requires minimal maintenance:
- Tindif: Periodically wipe the sensor head with a soft, dry cloth to remove dust or debris that might obstruct its detection capabilities. Do not use abrasive cleaners or solvents.
- Spezzjoni: Regularly check the wiring connections for any signs of wear, damage, or looseness. Ensure the sensor head and control box are securely mounted.
- Ċiklu tal-Enerġija: If the sensor appears to be malfunctioning, try turning off the power to the circuit for a few minutes and then restoring it. This can sometimes resolve minor electronic glitches.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Light does not turn on when door opens. | No power to the sensor. Wajers mhux korretti. Sensor head obstructed or out of range. Bozza tad-dawl difettuża. | Iċċekkja s-circuit breaker u l-provvista tal-enerġija. Ivverifika l-konnessjonijiet tal-wajers skont id-dijagramma. Ensure sensor head is clean and within 5-6 cm of the door. Test the light bulb with another fixture. |
| Light does not turn off when door closes. | Sensor head not detecting door closure. Sensor head obstructed. | Ensure the door fully closes within the sensor's detection range. Clean the sensor head. |
| Id-dawl jitteptep jew jaġixxi b'mod irregolari. | Konnessjonijiet tal-wajers sfużi. Interferenza. Ċirkwit mgħobbi żżejjed. | Iċċekkja u issikka l-konnessjonijiet tal-wajers kollha. Ensure no other devices are causing electrical interference. Ivverifika l-ilma totalitage of connected lights does not exceed the sensor's maximum load. |
Garanzija u Appoġġ
Maclean products are designed for reliability and performance. For warranty information, please refer to the specific terms and conditions provided at the point of purchase or contact your retailer. For technical support or further assistance, please reach out to Maclean customer service or visit the official Maclean websit.
Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal kwalunkwe talba taħt garanzija.
