1. Introduzzjoni
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Open Trail 105740 UTV Plow Mount Kit. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
2. Informazzjoni dwar is-Sigurtà
Always prioritize safety during installation and operation.
- Ilbes tagħmir protettiv personali (PPE) xieraq, inklużi nuċċalijiet u ingwanti tas-sigurtà.
- Ensure the UTV is parked on a level surface with the engine off and parking brake engaged before beginning installation.
- Do not exceed the weight capacity of your UTV or plow system.
- Regularly inspect all components for wear, damage, or loose fasteners.
- If you are unsure about any part of the installation or operation, consult a qualified technician.
3. Kontenut tal-Pakkett
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni.
- Open Trail 105740 UTV Plow Mount Kit

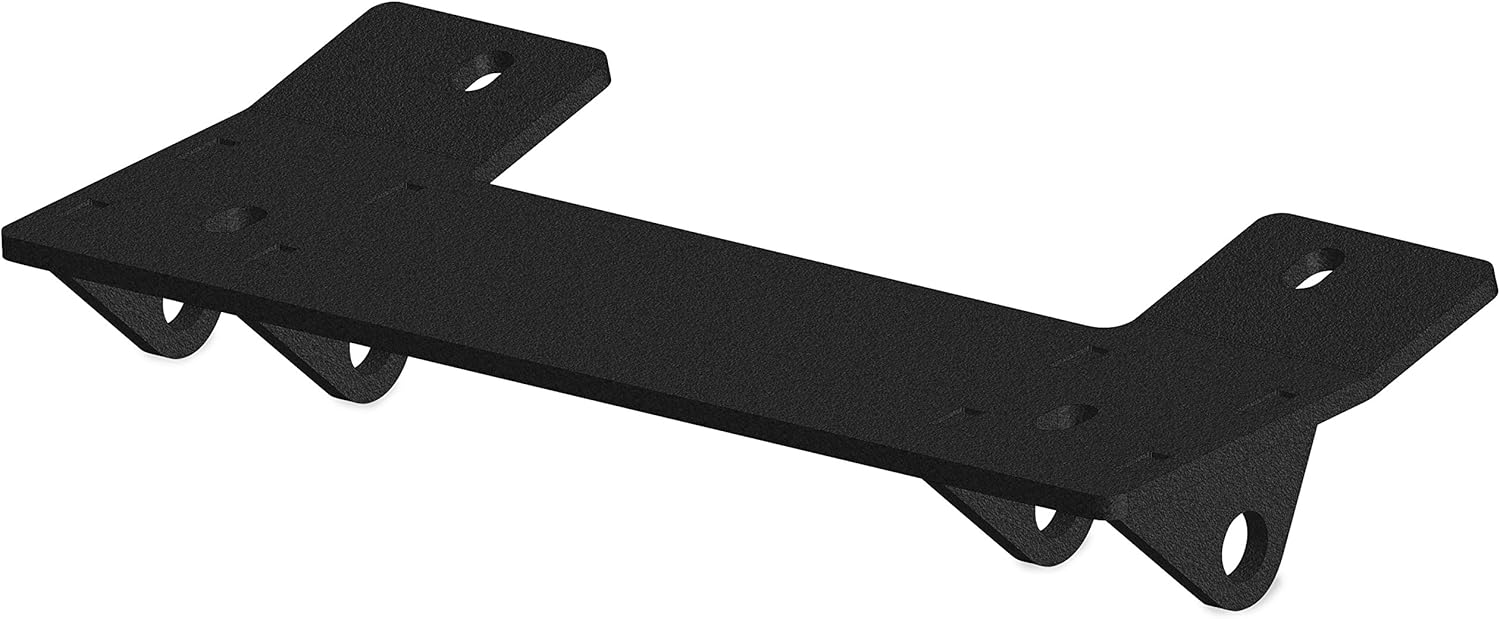

Image 1: The Open Trail 105740 UTV Plow Mount Kit. This image displays the main component of the kit, a robust black metal bracket designed for mounting a plow to a UTV. It features a flat central section with several bolt holes and two wider, angled ends, each with a larger circular hole and additional smaller holes for secure attachment. The surface has a textured, matte finish.
4. Setup u Installazzjoni
The following steps outline the general installation process for the Open Trail 105740 UTV Plow Mount Kit. Specific UTV models may require slight variations. Refer to your UTV's owner's manual for additional guidance.
- Ipprepara l-UTV: Park the UTV on a flat, stable surface. Engage the parking brake and turn off the engine. Allow the engine and exhaust to cool if recently operated.
- Sib il-Punti tal-Immuntar: Identify the designated mounting points on your UTV's frame, typically beneath the front section. These points are designed to accept the plow mount.
- Pożizzjona l-Muntanja: Carefully lift the plow mount kit into position, aligning its holes with the UTV's frame mounting points.
- Sikur bil-Ħardwer: Insert the appropriate bolts, washers, and nuts (not included with the kit, typically supplied with the plow system or UTV) through the aligned holes. Hand-tighten all fasteners initially.
- Iċċekkja l-Allinjament: Before final tightening, ensure the mount is level and properly aligned. Some users have reported minor discrepancies in hole alignment on certain UTV models, which may require slight adjustment or careful reaming of holes (up to 1/16 inch) for a perfect fit. Proceed with caution if modifications are necessary.
- Issikkar finali: Once aligned, securely tighten all fasteners to the UTV manufacturer's recommended torque specifications. Do not overtighten.
- Iċċekkja ta' wara l-installazzjoni: Double-check all connections to ensure they are tight and secure. Verify that the mount does not interfere with any UTV components or moving parts.
5. Operazzjoni
Once the plow mount kit is securely installed, it provides the attachment point for your UTV plow system.
- Attaching the Plow: Follow the instructions provided with your specific UTV plow system to attach it to the Open Trail 105740 mount. Ensure all quick-attach pins or bolts are fully engaged and secured.
- Detaching the Plow: Reverse the attachment process to remove the plow when not in use. This allows for greater ground clearance and prevents unnecessary wear on the plow components.
- Iċċekkja ta' qabel l-Operazzjoni: Before each use, inspect the plow mount and plow for any loose connections, damage, or obstructions.
6. Manutenzjoni
Regular maintenance will extend the life of your plow mount kit.
- Tindif: Clean the mount regularly, especially after exposure to salt, snow, or mud, to prevent corrosion. Use a mild detergent and water.
- Spezzjoni: Periodically inspect the mount for signs of wear, cracks, bends, or corrosion. Pay close attention to weld points and bolt holes.
- Iċċekkja tal-Qafliet: Check all bolts and nuts for tightness before and after each plowing season. Re-tighten as necessary.
- Ħażna: When not in use for extended periods, store the plow mount in a dry environment to protect it from elements.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Mount holes do not align with UTV frame | Minor manufacturing tolerance or UTV model variation | Carefully ream or file holes up to 1/16 inch for proper fit. Do not force bolts. |
| Mount feels loose after installation | Fasteners not tightened to specification | Re-tighten all mounting hardware to UTV manufacturer's recommended torque. |
| Vibrazzjoni eċċessiva waqt it-tħaddim | Konnessjonijiet sfużi jew komponenti bil-ħsara | Inspect all mounting points and plow connections. Replace any damaged parts. |
8. Speċifikazzjonijiet
- Ditta: Open Trail
- Mudell: 105740
- Piż tal-oġġett: 6 liri
- Dimensjonijiet tal-Prodott: 12.5 x 6.5 x 5.5 pulzieri
- Numru tal-Parti tal-Manifattur: 105740
- Numru tal-Parti OEM: 105740 / 10-5740
- Tlestija ta' barra: Miżbugħa
- ASIN: B01AXDDUIC
9. Informazzjoni dwar Garanzija
For specific warranty details regarding your Open Trail 105740 UTV Plow Mount Kit, please refer to the warranty documentation included with your purchase or visit the official Open Trail websit.
10. Appoġġ
If you require further assistance or have questions not covered in this manual, please contact Open Trail customer support through their official website or authorized dealer.
