Manwal tal-Utent tal-Apparament tad-Dawl tal-Kanupew LED RAB VANLED20 20W

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of the RAB VANLED20 20W LED Canopy Light Fixture. Please read this manual thoroughly before installation and retain it for future reference. This fixture is designed for commercial lighting applications, offering high efficiency and durability.

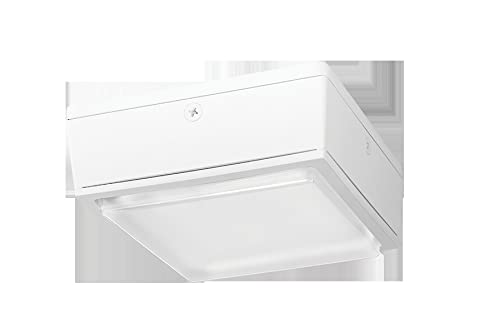

Image 1.1: The RAB VANLED20 20W LED Canopy Light Fixture. This image shows the compact, low-profile design of the white LED canopy light, suitable for various commercial installations.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: Riskju ta' xokk elettriku. Skonnettja l-provvista tal-enerġija mill-fjuż jew mis-circuit breaker qabel l-installazzjoni jew is-servizz.

• L-installazzjoni għandha titwettaq minn elettriċista kwalifikat skont il-kodiċijiet elettriċi nazzjonali u lokali kollha.
• Tiżgura l-provvista voltage is correct (120V-277V AC).
• Do not handle live components.
• Ilbes tagħmir protettiv personali (PPE) xieraq waqt l-installazzjoni.
• Dan l-apparat huwa adattat għal postijiet imxarrbin.
• Timmodifikax l-apparat. Kwalunkwe modifika tista' tħassar il-garanzija u toħloq perikli għas-sigurtà.

3. Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:

• RAB VANLED20 20W LED Canopy Light Fixture (1)
• Mounting Hardware (Screws, Gaskets, etc.)
• Gwida għall-Installazzjoni (Dan id-dokument)

4. Setup u Installazzjoni

The VANLED20 is designed for ceiling mount installation to a recessed junction box or directly to the ceiling surface. It features side conduit entry points for flexible wiring.

1. Ipprepara s-sit tal-installazzjoni:
   • Itfi l-enerġija fis-circuit breaker.
   • Ensure the mounting surface is structurally sound to support the fixture's weight (approximately 10.76 lbs).
2. Għażliet ta 'Immuntar:
   • Recessed Junction Box: Use the provided knockout template to align and secure the fixture to the junction box.
   • Direct Ceiling Surface: Utilize the side conduit entry points for wiring. Secure the fixture directly to the ceiling using appropriate mounting hardware (not always included, check package contents).
3. Wiring:
   • Connect the fixture's wires to the building's electrical supply wires according to local electrical codes.
   • Żgura ertjar xieraq.
   • The fixture supports 120V-277V AC input.
   • Seal all conduit entries and the rear wire plug with weatherproof sealant to maintain the IP66 rating.
4. Secure the Lens:
   • Ensure the vandal-resistant polycarbonate textured opaque drop lens is securely fastened to the die-cast aluminum housing.
5. Irrestawra l-Enerġija:
   • Ladarba l-installazzjoni tkun tlestiet u l-konnessjonijiet kollha jkunu siguri, erġa' daħħal l-enerġija fis-circuit breaker.

5. Istruzzjonijiet Operattivi

The RAB VANLED20 is an automatic LED light fixture. Once properly installed and powered, it will illuminate. It does not feature manual on/off switches on the unit itself. Control is typically managed via the building's electrical circuit or an external remote control system, if integrated.

• Qawwa Mixgħul: Ensure the circuit breaker supplying power to the fixture is in the "ON" position.
• Kontroll mill-bogħod (Mhux obbligatorju): If your installation includes a compatible remote control system, refer to the instructions provided with that system for operation. The fixture itself supports remote control functionality.
• Ħruġ tad-Dawl: The 20W LED provides cool 5000K illumination.

6. Manutenzjoni

The RAB VANLED20 LED Canopy Light Fixture is designed for minimal maintenance, offering a long operational life of up to 100,000 hours.

• Tindif: Periodically clean the exterior of the fixture and lens with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or lens. Ensure power is off before cleaning.
• Spezzjoni: Annually inspect the fixture for any signs of damage, loose connections, or wear. Pay attention to the integrity of the housing and lens.
• LEDs: The integrated LED array is not user-serviceable. If the LEDs fail, the entire fixture typically requires replacement.

7 Issolvi l-problemi

If troubleshooting steps do not resolve the issue, contact RAB Lighting customer support or a qualified electrician.

8. Speċifikazzjonijiet

• Mudell: VANLED20W
• Wattage: 20W
• Sors tad-Dawl: LED
• Temperatura tal-Kulur: 5000K (abjad kiesaħ)
• Input Voltage: 120V-277V AC
• It-tul tal-ħajja: 100,000 Sigħat
• Materjal: Die-cast Aluminum Housing, Polycarbonate Lens
• Klassifikazzjoni tal-Protezzjoni tad-Dħul (IP): IP66 (Protett kontra t-trab u ġettijiet qawwija tal-ilma)
• Elenku UL: Adattat għal postijiet imxarrba
• Immuntar: Ceiling mount (recessed junction or direct surface)
• Piż: Madwar 10.76 lbs (4.88 kg)
• Metodu ta' Kontroll: Remote (via external system) / Push Button (via external system)
• UPC: 019813266299

9. Informazzjoni dwar Garanzija

RAB Lighting products are backed by a comprehensive warranty. For specific warranty terms and conditions applicable to the VANLED20W fixture, please refer to the official RAB Lighting webis-sit jew ikkuntattja l-appoġġ għall-klijenti tagħhom. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.

Note: The provided product data mentions optional protection plans (e.g., 4-Year Protection Plan). These are typically third-party plans and separate from the manufacturer's standard warranty.

10. Appoġġ għall-Klijent

For technical assistance, replacement parts, or further information regarding your RAB VANLED20 20W LED Canopy Light Fixture, please contact RAB Lighting directly:

• Websit: www.rablighting.com
• Telefon: Irreferi għar-RAB Lighting websit għal numri ta' kuntatt attwali.
• Email: Irreferi għar-RAB Lighting website for current contact email addresses.

When contacting support, please have your model number (VANLED20W) and purchase date available.
