Introduzzjoni
The RCA DTA880 is a versatile device designed to convert free digital broadcasts for viewing on analog televisions. It also features DVR recording capabilities when an external USB drive is connected. This manual provides detailed instructions for setting up, operating, and maintaining your converter box, along with troubleshooting tips and product specifications.
Kontenut tal-Pakkett
- RCA DTA880 Digital TV Converter and Recorder Unit
- Kontroll mill-bogħod
- Adapter tal-Enerġija
- A/V Cables (RCA composite)
- Manwal għall-Utent (dan id-dokument)
Note: An HDMI cable and external USB drive are not included and must be purchased separately for full functionality.
Setup
Follow these steps to connect your RCA DTA880 converter box to your television and antenna.
1. Identify Ports
Familiarize yourself with the input and output ports on the rear panel of the converter box.

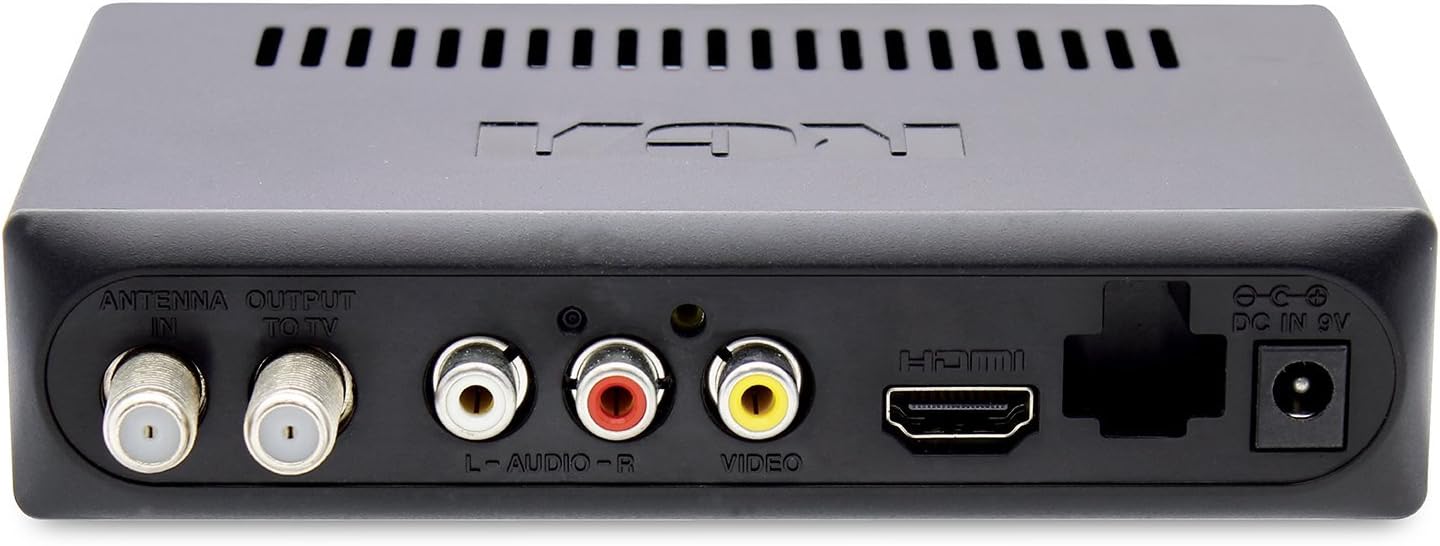

Image 1: Rear Panel Connections. This image displays the back of the RCA DTA880 unit, highlighting the 'ANTENNA IN', 'OUTPUT TO TV', 'L-AUDIO-R', 'VIDEO', 'HDMI', and 'DC IN 9V' ports. The USB port is visible on the side.
2. Connect Antenna
- Connect your digital antenna's coaxial cable to the ANTENNA FIL port on the RCA DTA880.
3. Qabbad mat-TV
Choose one of the following connection methods based on your television's available inputs:
- For Analog TVs (RCA Composite): Connect the included A/V cables (red, white, yellow) from the L-AUDIO-R u VIDEO ports on the converter box to the corresponding input ports on your analog TV.
- For Digital TVs (HDMI): Connect an HDMI cable (not included) from the HDMI port on the converter box to an available HDMI input on your digital TV.
- RF Output (Coaxial): Qabbad kejbil koassjali mill- OUTPUT TO TV port on the converter box to the antenna input on your TV. This method is generally for older TVs without composite or HDMI inputs.
4. Qabbad Qawwa
- Ipplaggja l-adapter tal-enerġija fil- DC FI 9V port on the converter box.
- Ipplaggja t-tarf l-ieħor tal-adapter tal-enerġija f'sokit elettriku standard.
5. Initial Scan
- Turn on your TV and select the correct input source (e.g., HDMI 1, Video 1, TV/Antenna).
- Power on the RCA DTA880 using the remote control or the power button on the unit.
- Follow the on-screen prompts to perform an initial channel scan. This will detect available digital channels in your area.

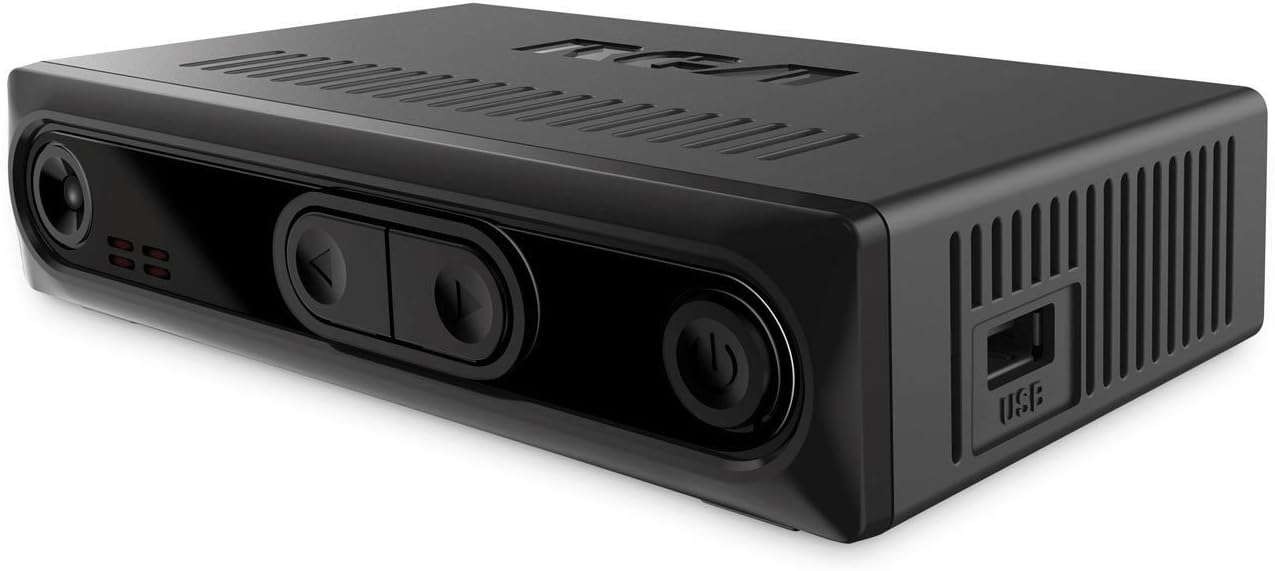

Image 2: Front and Side View. This image shows the front panel with control buttons and the side panel featuring the USB port for external storage.
Istruzzjonijiet Operattivi
TV Bażiku Viewing
- Uża l- KANALL +/- buttons on the remote to change channels.
- Aġġusta l-volum billi tuża l- VOL +/- buttuni fuq il-remote.
- Agħfas il- INFO button to display current program information.
DVR Recording (with external USB drive)
To utilize the DVR functionality, an external USB storage device (e.g., USB flash drive or hard drive) must be connected to the USB port on the side of the converter box.
- Qabbad USB Drive: Insert a compatible USB drive into the USB port.
- Format USB Drive: Access the system settings menu to format the USB drive if prompted or if it's a new drive. Formatting will erase all data on the drive.
- Record Instantly: While watching a program, press the REKORD button on the remote to begin recording. Press STOP biex itemm ir-reġistrazzjoni.
- Skeda Reġistrazzjoni: Uża l- EPG (Gwida tal-Programm Elettroniku) buttuna biex view program listings. Select a program and follow the on-screen instructions to schedule a recording.
- Reġistrazzjonijiet tal-Daqq: Agħfas il- MEDIA or DABBA button (refer to your remote for exact labeling) to access your recorded programs.
Note: The recording quality and performance may vary depending on the speed and capacity of the connected USB drive. A USB 3.0 drive is recommended for optimal performance.
Kontroll tal-Ġenituri
The converter box includes a parental control function to restrict access to certain programs based on ratings. Access this feature through the main menu settings. A PIN will be required to set up and modify parental control settings.
Manutenzjoni
- Tindif: Use a soft, dry cloth to clean the exterior of the converter box. Do not use liquid cleaners or abrasive materials.
- Ventilazzjoni: Ensure the unit has adequate ventilation. Do not block the ventilation slots on the top and sides of the device.
- Ħażna: When not in use for extended periods, disconnect the power adapter and store the unit in a cool, dry place.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda stampa jew ħoss | Incorrect TV input selected; Loose cable connections; Power not connected. | Verify TV input matches converter box connection (e.g., HDMI 1, Video 1). Check all cable connections (antenna, A/V, HDMI, power). Ensure power adapter is securely plugged in. |
| No digital channels found | Antenna not connected or positioned correctly; Channel scan not performed. | Ensure antenna is properly connected and positioned for optimal reception. Perform a channel scan through the setup menu. |
| Il-kontroll mill-bogħod ma jaħdimx | Batteriji mejta; Ostruzzjoni bejn ir-remote u l-unità; Sensur tar-remote imblukkat. | Replace remote batteries. Ensure no objects are blocking the line of sight between the remote and the converter box's IR sensor. |
| Recording issues (stuttering, failure) | Slow or incompatible USB drive; USB drive not formatted. | Use a high-speed USB 3.0 drive. Ensure the USB drive is properly formatted via the converter box's menu. Check available storage space. |
| Volume resets to high after power cycle | Issettjar default. | This may be a default behavior. Adjust volume manually after powering on. Check settings for a persistent volume option if available. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | RCA |
| Numru tal-Mudell | DTA880 |
| Tip ta' Interface | HDMI, USB |
| Tip ta 'Immuntar | Surface Mount, Plug Mount |
| Numru ta 'Kanali | 4 |
| Dimensjonijiet tal-Prodott | 6 x 5 x 2 pulzieri |
| Piż tal-oġġett | 12.8 uqija |
| UPC | 062118488002 |
Informazzjoni dwar Garanzija
This product is covered by a limited manufacturer's warranty. Please refer to the warranty card included in the product packaging or visit the official RCA websit għal termini u kundizzjonijiet dettaljati, inkluż il-perjodu tal-garanzija u l-proċeduri tat-talbiet.
Appoġġ
For technical assistance, troubleshooting not covered in this manual, or general inquiries, please contact RCA customer support:
- Appoġġ onlajn: Visit the official RCA support website (refer to product packaging for URL).
- Appoġġ bit-Telefon: Consult your product packaging or the RCA websit għal numri tat-telefon tas-servizz tal-konsumatur.
When contacting support, please have your product model number (DTA880) and purchase information ready.
