CLY Solar Lights Outdoor Security Flood Light User Manual

1. Introduzzjoni

The CLY Solar Lights Outdoor Security Flood Light is designed to provide efficient and eco-friendly illumination for various outdoor spaces. Featuring a durable, waterproof design and multiple lighting modes, this floodlight automatically charges during the day and illuminates at night, offering reliable security and landscape lighting.

2. Karatteristiċi tal-prodott

• High Brightness & Wide Coverage: Equipped with 14 super bright spherical LED lamp beads, delivering 400 lumens with a 120-degree beam angle, providing effective lighting up to 5-6 meters (16.4-19.7 feet).
• Iċċarġjar Solari Effiċjenti: Features a 4W/6V solar panel for maximum illumination, eliminating the need for external electricity and promoting environmental friendliness.
• Temperatura tal-Kulur Aġġustabbli: Offers three color temperature options: Warm White (3000K), Natural White (4500K), and Daylight White (6000K) to suit different preferences and applications.
• Modi ta' Luminożità Doppja: Includes a Highlight mode for 6 hours of illumination and a Lowlight mode for 12 hours, with a power display on the switch box for convenience.
• Installazzjoni versatili: Can be installed as a wall-mounted security light using the adjustable bracket or as a landscape light with the included ground pile.
• Durabilità għal kull Temp: IP66 waterproof rating ensures reliable operation in various weather conditions, including rain, sleet, and snow.
• Operazzjoni Awtomatika minn Dusk to-Dawn: Integrated light sensor automatically turns the floodlight on at dusk and off at dawn, providing hassle-free operation.

3. Kontenut tal-Pakkett

Please check the package to ensure all components are present and in good condition.

• CLY Solar Flood Light (1 unit)
• Pannell Solari (unità 1)
• Control Box / Switch Box (1 unit)
• Adjustable Wall Mount Bracket (1 unit)
• Ground Pile / Stake (1 unit)
• Ħardwer tal-Immuntar (viti, ankri)
• Manwal għall-Utent (dan id-dokument)

4. Speċifikazzjonijiet

5. Informazzjoni dwar is-Sigurtà

• Ensure the solar panel is installed in a location that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging.
• Do not disassemble or modify the product. Unauthorized modifications may cause damage and void the warranty.
• Żomm il-prodott 'il bogħod minn nar jew sorsi ta' sħana estrema.
• Evita l-espożizzjoni diretta tal-għajnejn għad-dawl LED, għax jista' jkun qawwi ħafna.
• Clean the solar panel regularly to remove dust and debris, which can affect charging efficiency.
• Armi l-batteriji skont ir-regolamenti lokali.

6. Setup u Installazzjoni

The CLY Solar Flood Light offers two primary installation methods: ground mounting and wall mounting.

6.1 Għażla ta' Post ta' Installazzjoni

Select a location for the solar panel that receives maximum direct sunlight throughout the day, free from obstructions like trees or buildings. The floodlight itself can be positioned to illuminate the desired area.

Image: Illustration of solar panel placement for optimal daytime charging and floodlight operation at night.

6.2 Ground Mounting (Landscape Light)

1. Attach the ground pile to the bottom of the solar panel bracket.
2. Insert the ground pile firmly into the soil in your chosen sunny location.
3. Adjust the angle of the solar panel to face the sun for optimal charging.
4. Connect the solar panel cable to the control box.
5. Connect the floodlight cable to the control box.
6. Position the floodlight in the desired area, using its integrated stand to angle it as needed.

Image: The main components of the CLY Solar Flood Light, showing the solar panel, control box, and floodlight, ready for assembly.

6.3 Wall Mounting (Security Light)

1. Using the adjustable wall mount bracket, mark the drilling points on the wall for both the solar panel and the floodlight.
2. Drill toqob u daħħal l-ankri tal-ħajt jekk meħtieġ.
3. Securely attach the solar panel bracket and the floodlight bracket to the wall using the provided screws.
4. Aġġusta l-angolu tal-pannell solari biex timmassimizza l-espożizzjoni għax-xemx.
5. Connect the solar panel cable to the control box.
6. Connect the floodlight cable to the control box.
7. Kun żgur li l-konnessjonijiet kollha huma siguri u reżistenti għall-ilma.

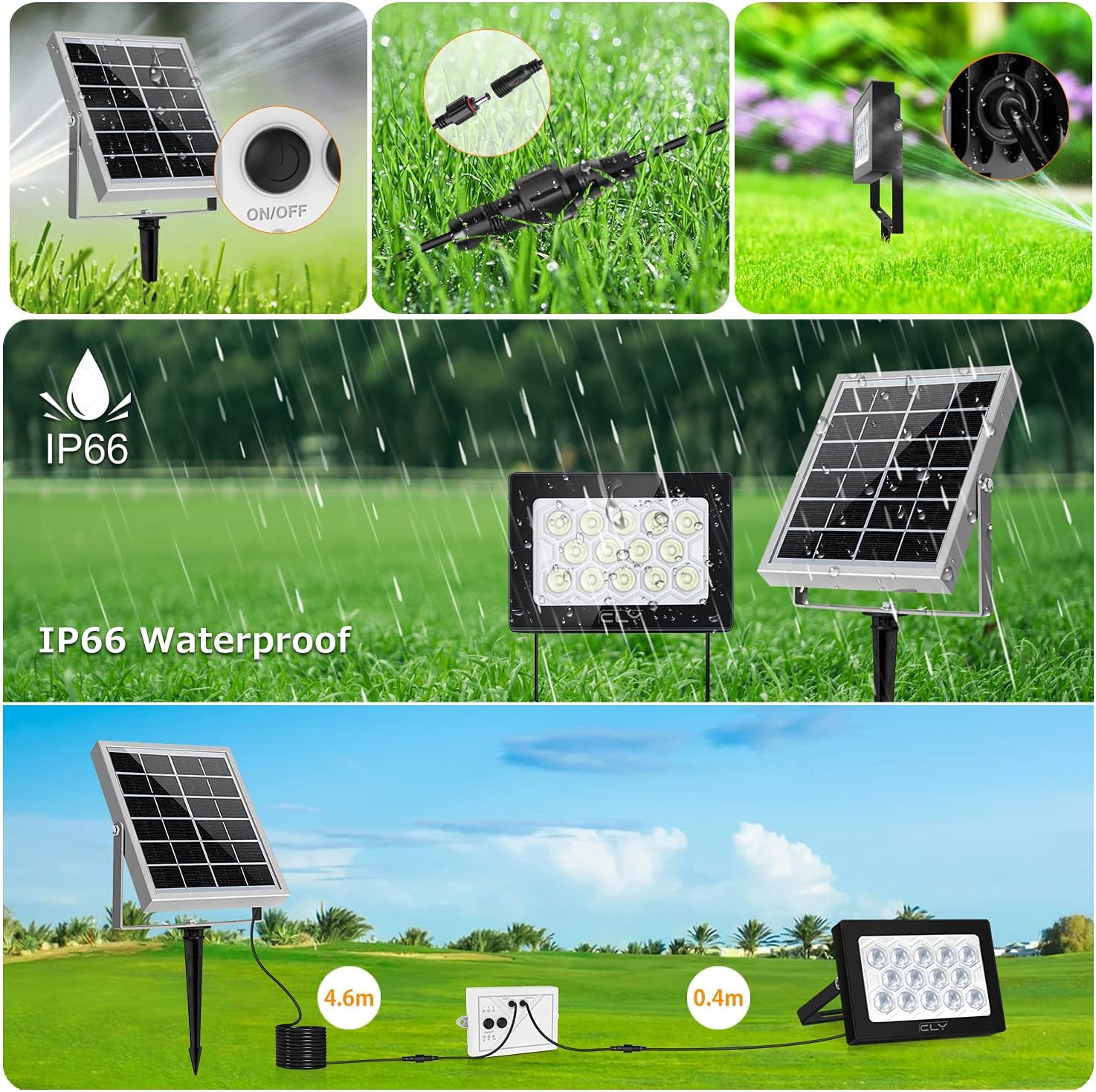

Image: Visual representation of the IP66 waterproof feature, secure cable connections, and both ground stake and wall mount installation methods.

7. Istruzzjonijiet Operattivi

The CLY Solar Flood Light is designed for automatic operation, but offers customizable settings via its control box.

7.1 Attivazzjoni Inizjali

After installation, ensure the solar panel has received sufficient sunlight for initial charging. The light will automatically activate at dusk.

7.2 Using the Control Box

The control box allows you to select color temperature and brightness modes.

• Għażla tat-Temperatura tal-Kulur: Use the dedicated button on the switch box to cycle through Warm White (3000K), Natural White (4500K), and Daylight White (6000K).
• Brightness Mode Selection: Use the dedicated button to switch between:
  • Modalità Enfasi: Provides maximum brightness for approximately 6 hours.
  • Lowlight Mode: Provides reduced brightness for approximately 12 hours.
• Wiri tal-Qawwa: The switch box includes an indicator for the current power level.

Image: Demonstrates the visual difference between Warm, Natural, and Daylight White light settings, and illustrates the effective lighting distance of the CLY floodlight compared to other brands.

Image: Shows the visual effect of Highlight and Lowlight modes, along with icons indicating the product's resilience to high temperatures, rain, and low temperatures.

7.3 Automatic Dusk-to-Dawn Function

The integrated light sensor ensures the floodlight automatically turns on when ambient light levels drop (dusk) and turns off when light levels increase (dawn), conserving battery life.

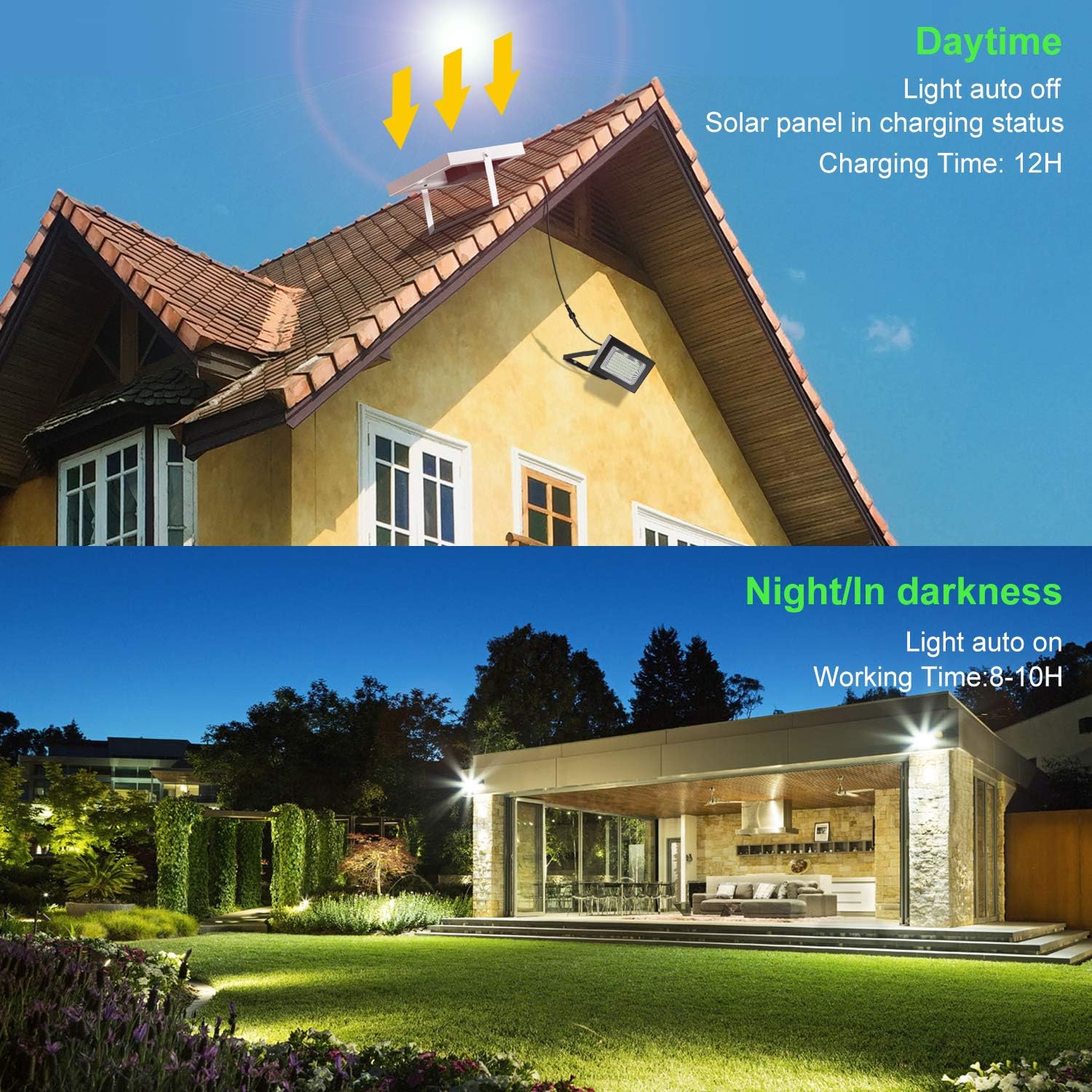

Image: Depicts the automatic light sensor function, showing the light turning off during the day for charging and turning on automatically at night.

8. Manutenzjoni

• Tindif tal-Panel Solari: Imsaħ regolarment il-wiċċ tal-pannell solari b'ċarruta ratba u damp drapp biex tneħħi t-trab, il-ħmieġ, jew il-fdalijiet. Pannell nadif jiżgura l-akbar assorbiment tad-dawl tax-xemx u l-effiċjenza tal-iċċarġjar.
• Iċċekkjar tal-Konnessjonijiet: Periodically inspect all cable connections between the solar panel, control box, and floodlight to ensure they remain secure and free from corrosion.
• Aġġustamenti staġjonali: In regions with significant seasonal changes, consider adjusting the angle of the solar panel to optimize sun exposure during winter months when the sun's path is lower.
• Lonġevità tal-batterija: The integrated Lithium Ion battery is designed for long-term use. Avoid prolonged periods of complete discharge to maximize battery lifespan.

9 Issolvi l-problemi

10. Garanzija u Appoġġ

For warranty information and technical support, please refer to the product packaging or contact CLY customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

You can visit the official CLY store for more information and product updates: CLY Official Store
