1. Prodott Aktarview
The Volteck TEM-8 Digital Timer is designed to automate the power supply to electrical appliances, allowing for precise scheduling of on/off cycles. This device features 8 programmable events per day, offering flexibility for various applications.
Figura 1: Quddiem view of the Volteck TEM-8 Digital Timer, showing the LCD display, control buttons, and power outlet.
Karatteristiċi ewlenin:
- 8 Programmable Events: Set up to 8 distinct ON/OFF programs daily.
- Skedar Flessibbli: Programs can be set for specific days of the week or daily.
- Display LCD: Clear digital display for time and program settings.
- Batterija Rikarikabbli Integrata: Maintains program settings during power outages.
- Kostruzzjoni Durabbli: Made from polycarbonate for longevity.
Figure 2: Key features of the timer, including the LCD screen, integrated rechargeable battery, and polycarbonate construction.
2. Setup u Konfigurazzjoni Inizjali
2.1 Tneħħija tal-ippakkjar u l-Iċċarġjar Inizjali
Remove the timer from its packaging. Before first use, plug the timer into a standard electrical outlet for at least 30 minutes to charge the internal rechargeable battery. This ensures that the timer retains its settings even if unplugged or during a power interruption.
Figure 3: The Volteck TEM-8 Digital Timer plugged into a wall outlet for initial charging and operation.
2.2 Issettjar tal-Ħin Attwali
- Agħfas il- ARLOĠĠ button. The display will show the current time.
- Waqt li żżomm il- ARLOĠĠ buttuna, agħfas il- ĠIMGĦA button to select the current day of the week (e.g., MO, TU, WE, TH, FR, SA, SU).
- Waqt li żżomm il- ARLOĠĠ buttuna, agħfas il- SIEGĦA buttuna biex tissettja s-siegħa kurrenti.
- Waqt li żżomm il- ARLOĠĠ buttuna, agħfas il- MIN buttuna biex tissettja l-minuta kurrenti.
- Irrilaxxa l- ARLOĠĠ buttuna. Il-ħin issa huwa ssettjat.
3. Istruzzjonijiet Operattivi
3.1 Programmazzjoni ta' Avvenimenti ON/OFF
The TEM-8 timer allows for up to 8 ON/OFF programs. Each program consists of an ON time and an OFF time.
- Agħfas il- PROGRAMM button once. The display will show "1 ON". This is for setting the first ON time.
- Agħfas il- ĠIMGĦA button to select the desired day(s) for this program. Options include individual days, weekdays, weekends, or all days.
- Agħfas il- SIEGĦA button to set the desired hour for the ON time.
- Agħfas il- MIN button to set the desired minute for the ON time.
- Agħfas il- PROGRAMM button again. The display will show "1 OFF". This is for setting the first OFF time.
- Repeat steps 2-4 to set the desired day(s), hour, and minute for the OFF time. Ensure the OFF time is after the ON time for the same program.
- Kompli agħfas il - PROGRAMM button to cycle through "2 ON", "2 OFF", up to "8 ON", "8 OFF", setting each program as needed.
- Wara li tissettja l-programmi mixtieqa kollha, agħfas il-buttuna ARLOĠĠ buttuna biex terġa' lura għall-wiri tal-ħin attwali.
Figure 4: A user pressing buttons on the timer to set programs or adjust settings.
3.2 Manual Override (ON/AUTO/OFF)
Il- ON/AUTO/MITFI button allows you to manually control the timer's output, overriding programmed settings temporarily.
- Agħfas darba għal ON: The connected appliance will turn ON immediately and stay ON, ignoring all programs.
- Agħfas mill-ġdid għal AUTO: The timer will follow the programmed ON/OFF events. This is the standard operating mode.
- Agħfas għat-tielet darba għal OFF: The connected appliance will turn OFF immediately and stay OFF, ignoring all programs.

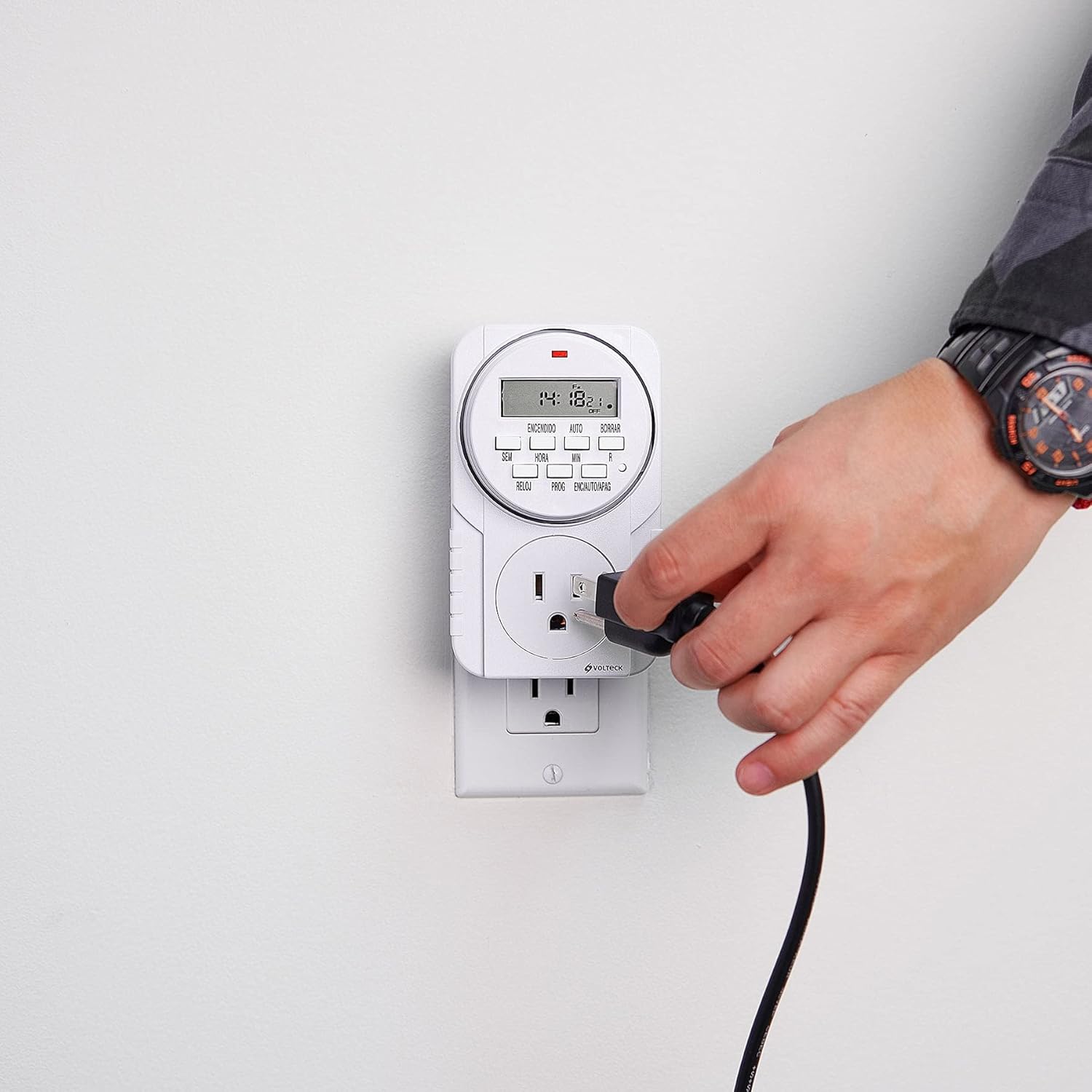

Figure 5: A power cord being plugged into the timer's outlet, ready for automated control.
3.3 Clearing Programs
To clear a specific program, navigate to the desired "ON" or "OFF" setting using the PROGRAMM buttuna, imbagħad agħfas il- Ħassar (Clear) button. This will reset the time for that specific event to "--:--". To clear all programs, a full reset may be required (see Troubleshooting).
4. Manutenzjoni
4.1 Tindif
To clean the timer, first unplug it from the wall outlet. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners, abrasive materials, or immerse the device in water.
4.2 Informazzjoni dwar il-batterija
The Volteck TEM-8 features an integrated rechargeable Ni-MH battery. This battery is designed to maintain the time and program settings during power interruptions or when the timer is unplugged. The battery is not user-replaceable. If the display becomes dim or settings are lost frequently, ensure the timer is plugged into a live outlet for sufficient charging time.
5 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-displej huwa vojt jew mudlam. | Il-batterija interna hija baxxa jew eżawrita. | Plug the timer into a live electrical outlet for at least 30 minutes to charge the internal battery. |
| Il-programmi mhux qed jiġu eżegwiti. | Timer is not in AUTO mode. Incorrect program settings. | Tiżgura l- ON/AUTO/MITFI buttuna hija ssettjata fuq AUTO. Riview program settings for correct ON/OFF times and days. Ensure OFF time is after ON time. |
| Time or programs are lost after unplugging. | Internal battery is not sufficiently charged. | Plug the timer into a live outlet for an extended period (e.g., 4 hours) to fully charge the internal battery. |
| Timer is unresponsive. | Ħsara elettronika temporanja. | Perform a full reset by pressing the recessed R (Reset) button using a pointed object (e.g., a pen tip). This will clear all settings, and you will need to re-set the time and programs. |
6. Speċifikazzjonijiet
- Mudell: TEM-8
- Ditta: Volteck
- Kulur: Iswed
- Materjal: Polikarbonat
- Numru ta' Settings: 8 (ON/OFF events)
- Piż tal-oġġett: 0.26 Kilograms (approximately 9.2 ounces)
- Dimensjonijiet tal-Prodott: Approximately 7 cm (width) x 12 cm (height) x 4 cm (depth). Note: Product packaging dimensions may vary.
- Batterija Interna: Rechargeable Ni-MH (non-user replaceable)
- L-Ewwel Disponibbli: 8 ta’ Diċembru 2015
Figure 6: Dimensions of the Volteck TEM-8 Digital Timer (approximately 7 cm width, 12 cm height, 4 cm depth).
7. Garanzija u Appoġġ
7.1 Informazzjoni dwar Garanzija
Based on product packaging, the Volteck TEM-8 Digital Timer typically includes a garanzija ta 'sena from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
7.2 Appoġġ għall-Klijent
For further assistance, technical support, or warranty inquiries, please contact Volteck customer service. Refer to the product packaging or the official Volteck webis-sit għall-aktar informazzjoni ta' kuntatt aġġornata.
