Introduzzjoni
This service manual provides detailed instructions and specifications for the maintenance, repair, and overhaul of Chrysler 318 and 400 series industrial engines. It is intended for use by qualified service technicians and individuals with a thorough understanding of internal combustion engines.
The information contained herein is based on the latest available data at the time of publication. Always refer to the most current service bulletins and updates from the manufacturer for critical procedures and specifications.
Informazzjoni dwar is-Sigurtà
Always prioritize safety when working on engines. Failure to follow safety precautions can result in serious injury or death. Observe the following general safety guidelines:
- Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and protective footwear.
- Żgura li ż-żona tax-xogħol tkun ventilata tajjeb u ħielsa minn materjali li jaqbdu.
- Skonnettja l-batterija qabel ma tagħmel xi xogħol elettriku.
- Ħalli l-magna tiksaħ kompletament qabel ma tagħmel is-servizz biex tevita l-ħruq.
- Use proper lifting equipment when handling heavy components.
- Refer to specific safety warnings within each section of this manual.
Informazzjoni Ġenerali
This section covers general details about the Chrysler 318 and 400 engines, including identification and basic operational principles.

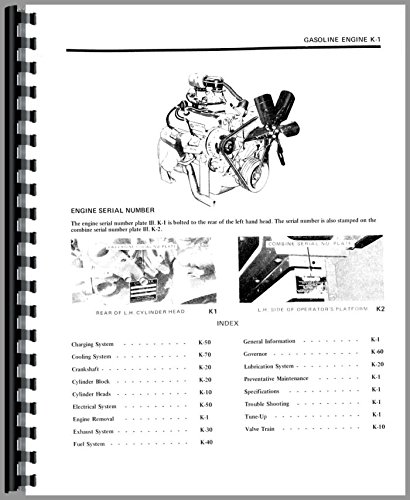

Figura 1: Diagram illustrating the location of the engine serial number on the Chrysler 318 engine. The serial number plate is bolted to the rear of the left-hand head. Additional views show the combined serial number plate and the serial number on the operator's platform.
The engine serial number is crucial for identifying the specific engine model and its manufacturing details. It is typically located on a plate bolted to the rear of the left-hand cylinder head. Always verify the engine serial number before ordering parts or performing major repairs.
Speċifikazzjonijiet
This section provides critical specifications for the Chrysler 318 and 400 engines, including torque values for various fasteners.

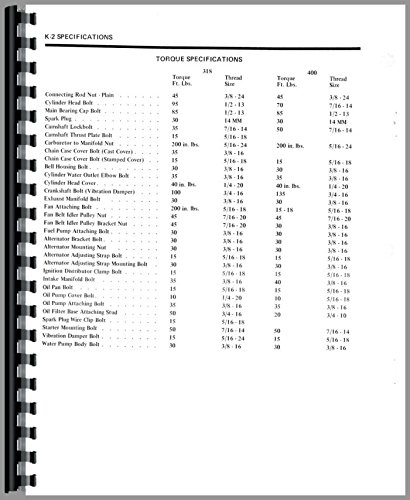

Figura 2: Table detailing torque specifications for various components of the Chrysler 318 and 400 engines. Values are provided in Ft. Lbs. and include thread sizes for accurate tightening.
| Komponent | Torque (318 Ft. Lbs.) | Thread Size (318) | Torque (400 Ft. Lbs.) | Thread Size (400) |
|---|---|---|---|---|
| Connecting Rod Nut - Plain | 45 | 3/8 - 24 | 70 | 7/16 - 14 |
| Bolt tar-ras taċ-ċilindru | 80 | 1/2 - 13 | 80 | 1/2 - 13 |
| Main Bearing Cap Bolt | 85 | 1/2 - 13 | 85 | 1/2 - 13 |
| Spark Plug | 30 | 14 MM | 30 | 14 MM |
Always use a calibrated torque wrench when tightening fasteners to the specified values. Incorrect torque can lead to component failure or damage.
Manutenzjoni preventiva
Regular preventative maintenance is essential for the longevity and optimal performance of your Chrysler engine. This includes routine inspections, fluid changes, and component checks.
- Tibdil taż-Żejt u l-Filtru: Refer to the engine's operating conditions and manufacturer recommendations for oil change intervals. Use only specified oil types and filters.
- Verifika tas-Sistema tat-Tkessiħ: Inspect coolant levels, hose condition, and radiator for blockages. Ensure proper antifreeze concentration.
- Spezzjoni tal-Filtru tal-Arja: Check the air filter regularly and replace it if dirty or damaged to ensure proper air intake.
- Sistema ta' Tqabbid: Inspect spark plugs, ignition wires, and distributor components (if applicable) for wear and proper function.
- Spezzjoni taċ-ċinturin: Check drive belts for cracks, fraying, and proper tension.
Issolvi l-problemi
This section provides guidance for diagnosing common engine problems. For detailed repair procedures, refer to the relevant sections of this manual.
| Sintomu | Kawżi Possibbli |
|---|---|
| Il-magna tonqos milli tibda | Dead battery, faulty starter, no fuel, ignition system issues, clogged fuel filter. |
| Tisħin żejjed tal-magna | Low coolant, faulty thermostat, clogged radiator, malfunctioning water pump, broken fan belt. |
| Telf ta' Qawwa | Clogged air filter, fuel delivery issues, worn spark plugs, low compression, timing issues. |
| Duħħan Eċċessiv mill-Egżost | Blue Smoke: Burning oil (worn piston rings/valve seals). Black Smoke: Rich fuel mixture (carburetor/fuel injection issue). White Smoke: Burning coolant (head gasket failure). |
Always perform a thorough diagnostic process before attempting repairs. Consult a qualified technician if you are unsure about any troubleshooting steps.
Detailed System Sections
This manual contains dedicated sections for each major engine system, providing in-depth information for diagnosis, disassembly, inspection, repair, and reassembly. Refer to the specific section for detailed procedures.
- Sistema tal-Iċċarġjar: Covers alternator, voltage regulator, and battery.
- Sistema tat-tkessiħ: Details radiator, water pump, thermostat, and hoses.
- Crankshaft: Procedures for inspection, repair, and bearing replacement.
- Cylinder Block & Heads: Information on block inspection, cylinder boring, valve train components, and head reconditioning.
- Sistema Elettrika: Wiring diagrams, sensor information, and component testing.
- Engine Removal: Step-by-step guide for safely removing the engine from the vehicle/equipment.
- Sistema tal-egżost: Manifolds, pipes, and muffler considerations.
- Sistema tal-Fjuwil: Carburetor/fuel injection, fuel pump, and fuel lines.
- Gvernatur: Adjustment and troubleshooting for engine speed control.
- Sistema tal-lubrikazzjoni: Oil pump, oil pan, and oil passages.
- Irfinar: Procedures for ignition timing, valve lash adjustment, and carburetor settings.
- Ferrovija tal-Valv: Camshaft, lifters, pushrods, rocker arms, and valves.
Garanzija u Appoġġ
This service manual is published by Jensales. For specific warranty information regarding your Chrysler engine, please refer to the original engine manufacturer's documentation or contact an authorized Chrysler service center. This manual itself does not come with a product warranty from the publisher beyond its intended purpose as an informational guide.
For support related to the content of this manual, or for inquiries about other publications, please contact Jensales directly. Contact information is typically found on the publisher's official website or on the manual's cover page.
Figura 3: Cover page of the Chrysler 318 & 400 Engine Service Manual, published by Jensales. This image provides a visual reference for the manual's appearance and confirms its coverage of both 318 and 400 industrial engines.
