Polti Vaporetto Lecoaspira FAV80 Turbo Intelligence User Manual

1. Introduzzjoni

The Polti Vaporetto Lecoaspira FAV80 Turbo Intelligence is an advanced appliance designed for comprehensive home cleaning. It combines the hygienic power of steam with the efficiency of a water-filtered vacuum cleaner. This dual functionality allows for deep cleaning of various surfaces, effective removal of dust and allergens, and contributes to healthier indoor air quality. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your appliance.

2. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok aqra l-istruzzjonijiet kollha tas-sigurtà bir-reqqa qabel ma tuża l-apparat. Jekk ma ssegwix dawn l-istruzzjonijiet, dan jista' jirriżulta f'xokk elettriku, nar, jew korriment serju.

• Always ensure the appliance is unplugged before performing any maintenance or cleaning tasks.
• Tgħaddix l-apparat fl-ilma jew likwidi oħra.
• Żomm l-apparat fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
• Do not direct steam towards people, animals, or electrical appliances.
• Use only Polti original accessories and spare parts.
• Never open the boiler cap when the appliance is hot or under pressure.
• Tiżgura l-voltagIndikat fuq l-apparat jikkorrispondi għall-vol tal-mejn lokali tiegħektage (220V).

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti fl-imballaġġ:

• Polti Vaporetto Lecoaspira FAV80 Turbo Intelligence main unit
• Flexible steam and vacuum hose with handle
• Tubi ta' estensjoni
• Universal brush with inserts for hard floors and carpets
• Pinzell żgħir
• Lanza tal-fwar
• Window cleaning tool
• Żennuna tal-konċentratur
• Various small brushes and accessories
• Cloth covers for brushes
• Funnel and measuring jug for water filling
• Manwal għall-utent

4. Prodott Aktarview

Familiarize yourself with the main components of your Polti Vaporetto Lecoaspira FAV80 Turbo Intelligence.

Figure 1: The Polti Vaporetto Lecoaspira FAV80 Turbo Intelligence main unit, showcasing its compact design with the water tank visible and the hose and floor tool attached.

The appliance features a main body housing the boiler, water filter system, and motor. The flexible hose connects to the main unit and allows for attachment of various cleaning tools. The transparent water tank for the vacuum function is clearly visible on the front.

5. Setup

5.1 Filling the Boiler (Steam Function)

1. Ensure the appliance is unplugged and cold.
2. Unscrew the safety cap of the boiler.
3. Using the provided funnel and measuring jug, fill the boiler with approximately 1.8 liters of clean tap water. Do not overfill.
4. Securely screw the safety cap back on.

5.2 Filling the Water Filter Tank (Vacuum Function)

1. Remove the water filter tank from the main unit.
2. Fill the tank with clean tap water up to the 'MAX H2O' level indicated.
3. Place the water filter tank back into the main unit, ensuring it is correctly seated.

5.3 Aċċessorji twaħħil

Connect the flexible hose to the main unit. Attach the desired accessory (e.g., universal brush, steam lance) to the end of the hose or extension tubes by pushing it firmly until it clicks into place.

6. Istruzzjonijiet Operattivi

6.1 Ixgħel u Tisħin

1. Ipplaggja l-apparat f'bokk tal-enerġija adattat ta' 220V.
2. Press the ON/OFF switch. The indicator light will illuminate.
3. Wait for the steam ready indicator light to turn on (approximately 5-8 minutes), indicating the boiler has reached operating pressure.

6.2 L-Użu tal-Funzjoni Steam

Once the steam ready indicator is on, you can activate the steam. The handle typically has a steam activation button or lever. Adjust the steam output using the control dial on the main unit or handle, if available.

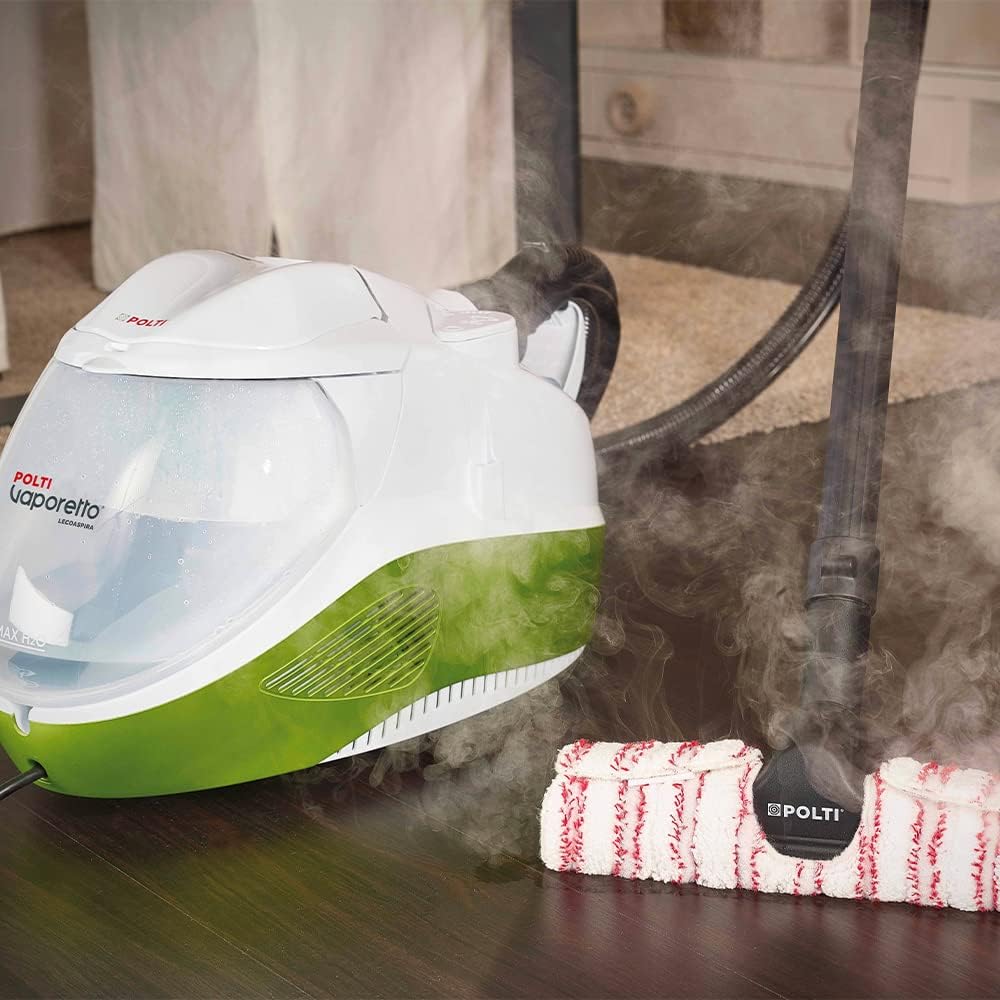

Figure 2: Demonstrates the appliance actively steam cleaning a hard floor surface using the universal brush attachment, with visible steam indicating operation.

Figure 3: Shows the appliance being used to steam clean upholstery, specifically a cushion, with a small brush attachment covered by a cloth for gentle yet effective cleaning.

Figure 4: Illustrates the steam cleaning process on a mattress, utilizing a small brush attachment with a cloth cover to sanitize and refresh the fabric surface.

Figure 5: Depicts the precise application of steam to tile grout using a specialized concentrator nozzle, effectively loosening and cleaning embedded dirt.

Figure 6: Shows the appliance being used to steam clean a sink basin and faucet, demonstrating its versatility for sanitizing bathroom and kitchen fixtures with a small brush.

6.3 Using the Vacuum Function

Activate the vacuum function using the dedicated switch on the main unit or handle. The appliance can vacuum both dry debris and liquids.

Figure 7: Illustrates the vacuum function in action, collecting dry debris such as dust and crumbs from a hard floor surface using the universal brush attachment.

6.4 Combined Steam and Vacuum

For deep cleaning and immediate drying, both functions can be used simultaneously. This is particularly effective for hard floors and carpets.

6.5 ECO and TURBO Modes

• Modalità ECO: Reduces steam output and power consumption for lighter cleaning tasks and energy saving.
• Modalità TURBO: Provides maximum steam power and suction for stubborn dirt and heavy-duty cleaning.

7. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-apparat tiegħek.

7.1 Emptying and Cleaning the Water Filter Tank

After each use, or when the tank is full, empty the dirty water from the water filter tank. Rinse the tank thoroughly with clean water and allow it to air dry before reassembling.

7.2 Boiler Descaling

Depending on water hardness in your area, periodic descaling of the boiler may be necessary. Refer to the specific descaling instructions in the full product manual or contact Polti customer support for recommended descaling solutions and procedures.

7.3 Aċċessorji tat-Tindif

Wash all removable accessories with water after use. Ensure they are dry before storing.

8 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bl-apparat tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

For more complex issues, please consult the comprehensive user manual or contact Polti customer support.

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

Your Polti Vaporetto Lecoaspira FAV80 Turbo Intelligence comes with a manufacturer's warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the warranty card included with your product or visit the official Polti website. For technical assistance, spare parts, or service, please contact Polti customer support in your region. Keep your proof of purchase for warranty claims.
