Prodott Overview
The Pelican 8060 Tactical LED Flashlight is engineered for durability and high performance, designed for professionals and demanding environments. This robust lighting tool provides multiple light modes and is powered by a rechargeable NiMH battery pack, offering reliable illumination when needed.
Karatteristiċi Ewlenin
- Ħruġ Lumen Għoli: Up to 803 lumens in high mode for powerful illumination.
- Modi multipli: Features high, medium, low, and strobe modes for versatile use.
- Batterija rikarikabbli: Operates on a rechargeable NiMH battery pack (included) or 4 C batteries.
- Kostruzzjoni Durabbli: Constructed with a Xenoy body for enhanced resilience.
- Ħin ta' tħaddim estiż: Up to 69 hours in low mode.
- Reżistenti għall-Ilma: Iddisinjat biex jiflaħ l-espożizzjoni għall-ilma.
Kontenut tal-Pakkett
- Pelican 8060 Tactical LED Flashlight
- 4 C NiMH rechargeable batteries
- Charging unit (docking station)
Setup u Iċċarġjar
Installazzjoni tal-batterija
The Pelican 8060 flashlight comes with 4 C NiMH rechargeable batteries pre-installed. If replacing batteries, ensure they are inserted with the correct polarity as indicated inside the battery compartment.
Iċċarġjar tal-flashlight
To charge the flashlight, place it into its designated charging dock. The flashlight features two metal contacts on its body that align with the contacts in the charging unit. Ensure a secure connection.

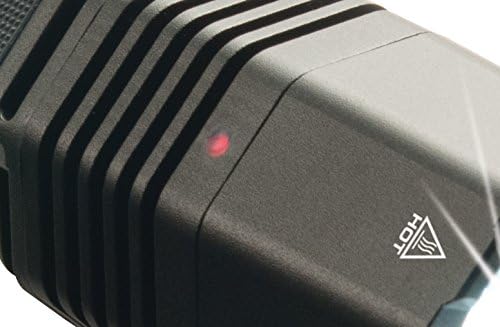

A red indicator light on the flashlight will illuminate to confirm that it is charging. The light will change color or turn off once charging is complete, depending on the specific charging unit model.
Istruzzjonijiet Operattivi
Tixgħel/Titfi u Għażla tal-Modalità
The Pelican 8060 features two activation points: a side switch and a tail-cap switch. Both switches can be used to turn the flashlight on and off, and to cycle through its various light modes.
- Swiċċ tal-ġenb: Press the textured side switch to activate the flashlight. Subsequent presses will cycle through the available modes (High, Medium, Low, Strobe). Press and hold to turn off.
- Tail-Cap Switch: Press the tail-cap switch for momentary activation or click for constant on. Rapid presses can also cycle through modes.
Modalità Programmazzjoni
The Pelican 8060 allows for customizable mode sequences. Refer to the detailed programming instructions in the full user manual for specific steps on how to set your preferred sequence of high, medium, low, and strobe modes.
Manutenzjoni
Tindif
Imsaħ il-qafas tal-flashlight b'reklamaramp cloth to remove dirt and debris. For the lens, use a soft, lint-free cloth. Avoid abrasive cleaners or solvents that could damage the finish or lens coating.
Kura tal-batterija
To maximize battery life, avoid completely discharging the NiMH battery pack. Recharge the flashlight regularly, especially after prolonged use. If storing the flashlight for an extended period, ensure the battery is fully charged and recharge every few months to prevent deep discharge.
Issolvi l-problemi
- Il-flashlight ma tixgħel: Ensure the battery pack is properly inserted and fully charged. Check the charging contacts for any obstruction or corrosion.
- Dim output tad-dawl: Recharge the battery pack. If using standard C batteries, replace them with fresh ones. Clean the lens surface.
- Modes not switching: Ensure the switches are clean and free of debris. Press the switches firmly and deliberately to cycle through modes.
- Charging indicator not lighting up: Verify the flashlight is correctly seated in the charging dock and the power adapter is connected to a live outlet. Check charging contacts for cleanliness.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | 8060 |
| Tip ta' Sors tad-Dawl | LED |
| Lumens (High) | 803 lumens |
| Lumens (Medium) | 447 lumens |
| Lumens (Low) | 25 lumens |
| Distanza tar-raġġ | Sa 359 metri |
| Ħin ta' Tħaddim (Għoli) | 2 sigħat 30 minuta |
| Ħin ta' Tħaddim (Medju) | 4 sigħat |
| Ħin ta' Tħaddim (Baxx) | 69 sigħat |
| Tul | 12.67 pulzieri |
| Materjal tal-Korp | Xenoy (Plastic) |
| Tip ta 'batterija | 4 C NiMH (rechargeable) |
| Reżistenza għall-Ilma | Reżistenti għall-Ilma |
| Kulur | Iswed |
Garanzija u Appoġġ
Informazzjoni dwar Garanzija
The Pelican 8060 Tactical LED Flashlight is backed by Pelican's legendary lifetime warranty: "You break it, we replace it... forever." This warranty covers defects in materials and workmanship for the lifetime of the product.
Appoġġ għall-Klijent
For technical assistance, warranty claims, or further inquiries, please visit the official Pelican website or contact their customer service department. Keep your purchase receipt for warranty validation.
