Introduzzjoni
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Kalamera KRC-52SZF 4.2 Cu.ft 50 Bottle Single Zone Wine Refrigerator. This freestanding unit is designed with premium black and silver stainless steel and a tempered dual pane glass front, ideal for showcasing your wine collection while maintaining optimal chilling temperatures.
Karatteristiċi Ewlenin
- Disinn Freestanding: Built from premium black and silver stainless steel with tempered dual pane glass front to highlight your wine collection in any room of your home.
- Quiet Compressor: Advanced cooling technology keeps compressor quiet without disturbing wine sediments.
- Dimensjonijiet tal-Prodott: 19.5” W x 33.1” H x 22.8” D || Inner Capacity: 4.2 Cu.Ft Wine Storage Space.
- 50 Bottle Capacity: 7 beech wood racks hold up to 50 standard 750ml Bordeaux bottles, allowing you to stock your favorite wine vintages. Shelves can be removed for larger bottles.
- Cools Evenly: Interior fan and slat-style shelves allow even airflow around all bottles for perfectly chilled wine every time!
- Single Zone with Touch Control: Blue LED Display shows temperature from 40°F-66°F and can be easily adjusted with up/down arrows.
Setup u Installazzjoni
Upon receiving your wine refrigerator, please follow these steps for proper setup:
- Unboxing: The unit arrives in a large, well-packed box. Carefully unbox the unit, removing all packaging materials. Be prepared for some Styrofoam residue.
- Pjazzament: Position the refrigerator on a flat, stable surface. Ensure adequate clearance around the unit for proper ventilation.
- Standby Inizjali: Allow the refrigerator to stand upright for at least 24 hours before plugging it in. This allows the compressor oils to settle.
- It-twaħħil tal-manku: Attach the stainless steel door handle using the provided hardware. This is a simple process.
- Second Standby: After plugging in the unit, allow it to run for another 24 hours to reach its stable operating temperature before loading bottles.
Quddiem view of the Kalamera KRC-52SZF wine refrigerator.
Dimensions of the Kalamera KRC-52SZF wine refrigerator.
Close-up of the stainless steel door handle.
Istruzzjonijiet Operattivi
The Kalamera KRC-52SZF features an intuitive touch control panel for easy operation.
- Kontroll tat-temperatura: Use the up and down arrows on the control panel to adjust the desired temperature between 40°F and 66°F. The blue LED display will show the current set temperature.
- Dawl Intern: The unit includes a blue LED interior light. You can turn this light on or off using the dedicated light button on the control panel.
- Karatteristika Lock: For security, the unit comes with a key to lock the door, preventing unauthorized access to your wine collection.
Close-up of the digital control panel with temperature display.
Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your wine refrigerator.
- Tindif: Naddaf l-uċuħ ta’ ġewwa u ta’ barra b’ċarruta ratba u deterġent ħafif. Evita prodotti tat-tindif li joborxu.
- Shelf Removal: The beech wood shelves are removable. To accommodate larger bottles or for cleaning, gently pull the shelves out. Ensure they are reinserted correctly for stability.
- Skrun: The unit features an automatic defrost system, minimizing the need for manual defrosting.

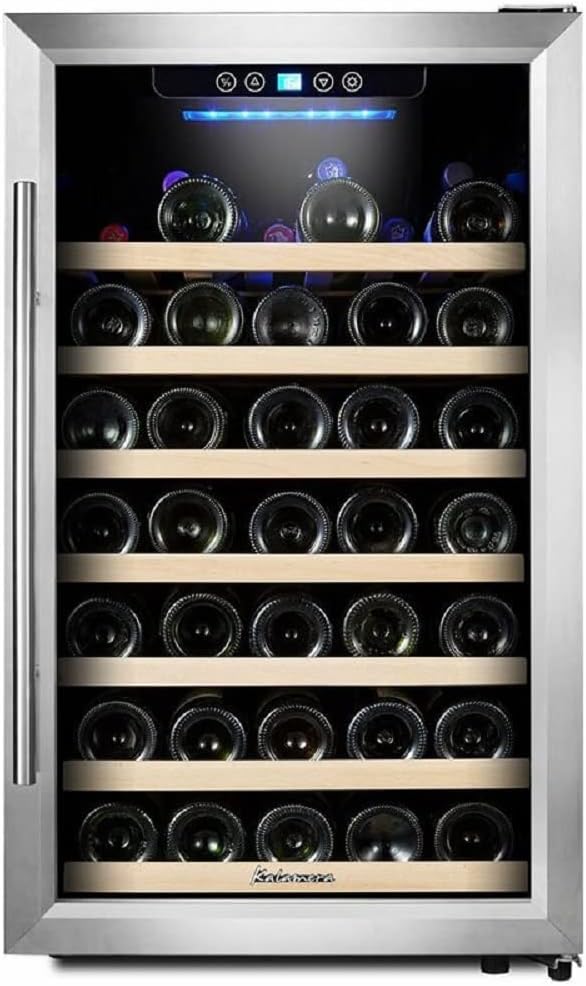

Intern view of the wine refrigerator showing wooden shelves.
Intern view of the wine refrigerator with the door open, showing bottle arrangement.

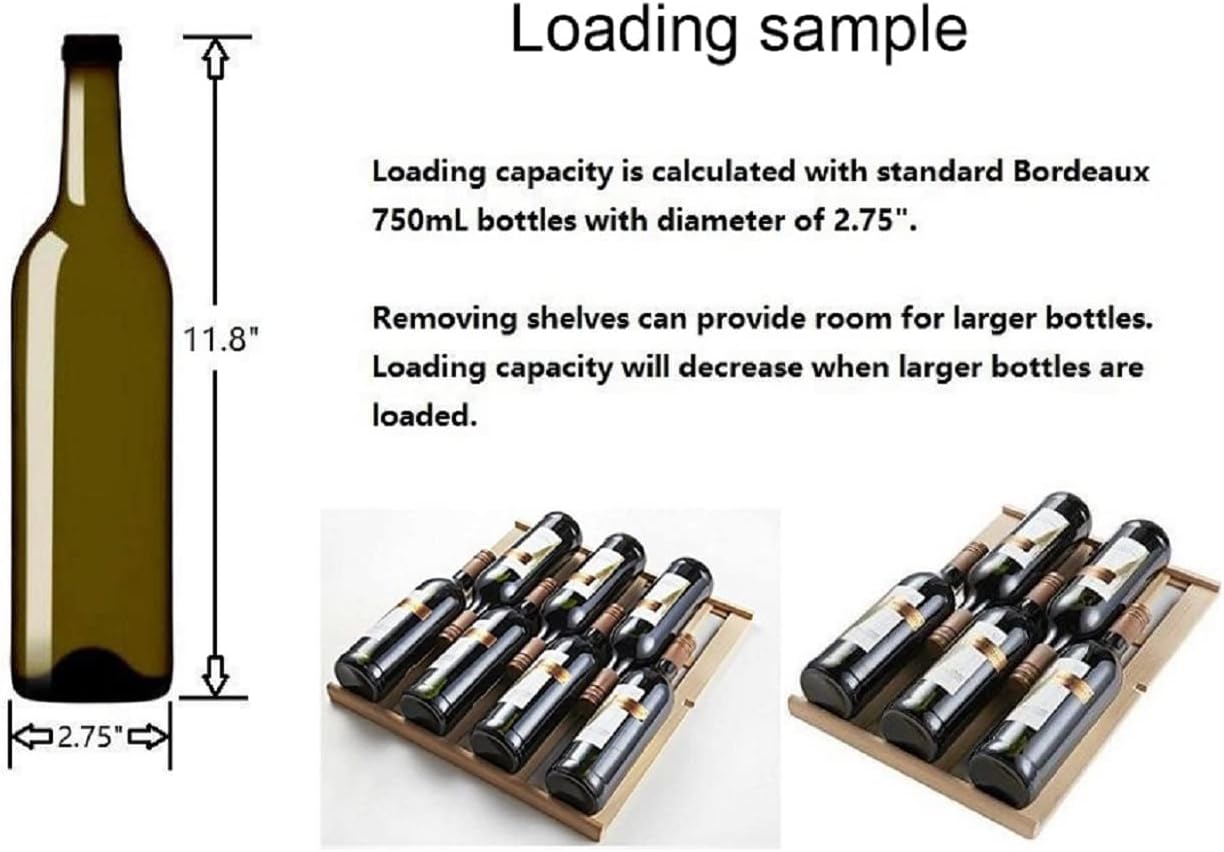

Diagram illustrating bottle loading capacity and shelf removal for larger bottles.
Issolvi l-problemi
If you encounter issues with your wine refrigerator, consider the following common solutions:
- Inkonsistenza fit-temperatura: If the unit is not maintaining the set temperature, ensure it is placed in a suitable environment (e.g., a cool cellar, away from direct heat sources). Verify the door seal is intact and not compromised. Allow sufficient time for the unit to stabilize after initial setup or temperature adjustments.
- Storbju mhux tas-soltu: The unit features a quiet compressor. If unusual noises occur, check for proper leveling of the unit and ensure no items inside are vibrating against the walls or shelves.
- Tkessiħ Insuffiċjenti: Ensure adequate ventilation around the unit, especially if it's a freestanding model. Avoid placing it in direct sunlight or near heat sources. Confirm the power supply is stable and the unit is not overloaded with bottles.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Isem tad-Ditta | Kalamera |
| Mudell Info | KRC-52SZF |
| Piż tal-oġġett | 68 liri |
| Dimensjonijiet tal-Prodott | 22.8 x 19.5 x 33.1 pulzieri |
| Kapaċità | 118.29 Litri |
| Konsum Annwali tal-Enerġija | 261 Kilowatt Siegħa |
| Bottle Count | 50 |
| Tip ta' Installazzjoni | Freestanding |
| Fattur tal-Formola | Kantina tal-Inbid |
| Karatteristiċi Speċjali | Kontroll tat-Tkessiħ |
| Kulur | Iswed |
| Voltage | 110 Volts (AC) |
| Wattage | 90 watt |
| Xtillieri | 7 |
| Sistema ta 'Defrost | Awtomatiku |
| Ċappetti tal-Bibien | Dritt |
| Tip ta' Materjal tal-Bieb | Ħġieġ |
| Tip ta' xkaffa | Injam |
| Komponenti Inklużi | handle, shelves |
Garanzija u Appoġġ
For detailed warranty information, product registration, or technical assistance, please refer to the official user guide provided with your product or visit the Kalamera websit.
You can also access the official user guide PDF hawn.
