Introduzzjoni
The DigiTech TRIO is an innovative electric guitar multi-effect pedal designed to be your personal band. It listens to your guitar playing and automatically generates accompanying bass and drum parts. This manual provides comprehensive instructions for setting up, operating, and maintaining your TRIO pedal, ensuring you get the most out of its unique features.
Karatteristiċi Ewlenin
- Seven Music Genres and Twelve Song Styles Per Genre to Choose From
- The TRIO can learn up to three different song parts that can be recalled on-the-fly
- Adjustable Tempo & Alternate Half Time/Double Time Variants Bass & Drum Level Controls
- Hands-Free Control Using a DigiTech FS3X Footswitch (optional)
- Amp & Mixer Outputs Headphone Output w/Level Control Power Supply Included
Gwida ta' Setup
Follow these steps to set up your DigiTech TRIO pedal:
- Qabbad il-provvista tal-enerġija 9V DC inkluża mal- QAWWA input on the pedal and plug it into a power outlet.
- Connect your electric guitar to the KITTAR IN jack bl-użu ta' kejbil standard tal-istrument ta' 1/4 pulzier.
- Qabbad il- AMP BARRA jack to your guitar ampL-input tal-lifer bl-użu ta' kejbil ieħor tal-istrument ta' 1/4 ta' pulzier.
- For connecting to a mixer or PA system, use the MIXER BARRA jack.
- Għal prattika privata, qabbad il-headphones mal- HEADPHONE BARRA jack.
- Optionally, connect a DigiTech FS3X Footswitch to the KONTROLL FI jack for extended hands-free control.

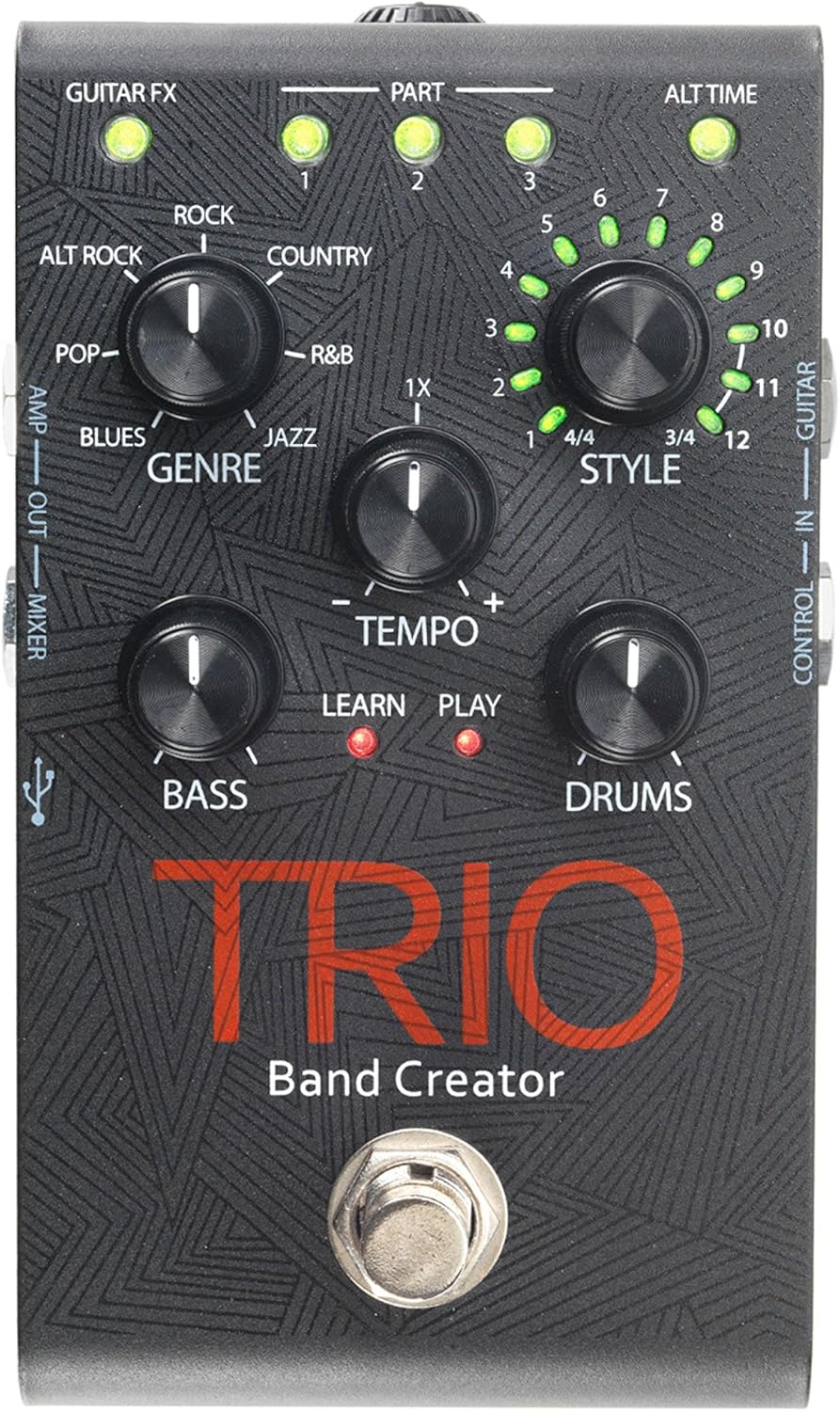

Figura 1: Fuq view of the DigiTech TRIO pedal, showing the main controls and footswitch.
Istruzzjonijiet Operattivi
Basic Operation: Teaching the TRIO a Song
- Agħfas il- BANDA footswitch once to enter 'Listen' mode. The Tgħallem LED se jdawwal.
- Play your desired chord progression and rhythm clearly. The TRIO will analyze your playing.
- Agħfas il- BANDA footswitch again to stop 'Listen' mode. The PLAY LED will illuminate, and the TRIO will immediately begin playing generated bass and drum parts.
- You can now play along with your virtual band.
Genre and Style Selection
- Uża l- GENERE knob to select from Blues, Pop, Alternative Rock, Rock, Country, R&B, and Jazz. The genre affects the overall feel of the generated bass and drum parts.
- Uża l- STIL knob to choose from twelve different song styles available for each genre. This allows for further customization of the rhythm and feel.
- Il- ALT TIME button allows you to switch between 3/4 and 4/4 time signatures.
Looping and Song Parts
- The TRIO can learn up to 3 different song parts. To record a new part, select an empty PARTI slot (1, 2, or 3) using the corresponding buttons.
- Follow the 'Basic Operation' steps to teach the TRIO the new song part.
- During playback, you can switch between learned song parts on-the-fly by pressing the corresponding PARTI buttuna.
- Il- LOOPER footswitch allows you to record and playback your own guitar loops. Press once to start recording, press again to stop recording and start playback, and press and hold to clear the loop.
Adjusting Levels and Tempo
- Il- TEMPO knob adjusts the playback speed of the band and loops.
- Il- BASS knob controls the volume level of the generated bass line.
- Il- DAMBRI knob controls the volume level of the generated drum track.
- Il- LOOP knob controls the volume level of your recorded guitar loop.
Figura 2: Angolat view of the DigiTech TRIO pedal, highlighting the control knobs and input/output jacks.
Kontrolli u Konnessjonijiet
The DigiTech TRIO pedal features a user-friendly layout with clearly labeled controls and versatile connection options:
Kontrolli tal-Panew ta' Quddiem:
- GUITAR FX: Activates built-in guitar effects tailored to the selected genre.
- PART 1, 2, 3: Buttons to select and recall different learned song parts.
- ALT TIME: Toggles between 3/4 and 4/4 time signatures.
- TEMPO Knob: Adjusts the overall playback speed.
- GENRE Knob: Selects the musical genre (Blues, Pop, Alt Rock, Rock, Country, R&B, Jazz).
- STYLE Knob: Selects one of twelve styles within the chosen genre.
- LOOP Knob: Controls the volume of your recorded guitar loop.
- Pum tal-BASS: Jikkontrolla l-volum tal-linja tal-bass iġġenerata.
- DRUMS Knob: Jikkontrolla l-volum tat-trakka tad-drum iġġenerat.
- Swiċċ tas-saqajn LOOPER: Records/plays/clears guitar loops.
- Swiċċ tas-saqajn BAND: Enters 'Listen' mode to learn chords/rhythm, or starts/stops band playback.
Side and Rear Panel Connections:
- KITTAR FIL: 1/4-inch input for your electric guitar.
- AMP BARRA: 1/4-inch output to your guitar ampaktar ħaj.
- MIXER OUT: 1/4-inch output for connecting to a mixer or PA system.
- Ħruġ tal-headphone: 1/8-inch stereo output for headphones.
- KONTROLL FI: 1/4-inch input for optional DigiTech FS3X Footswitch.
- QAWWA: 9V DC input for the included power supply.
- USB: Mini-USB port for firmware updates.
Figura 3: Wara view of the DigiTech TRIO pedal, showing the power input and headphone jack.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Piż tal-oġġett | 10.6-il uqija (0.3 kg) |
| Dimensjonijiet tal-Prodott | 4.63 x 3.19 x 2.13 pulzieri (11.76 x 8.10 x 5.41 ċm) |
| Numru tal-Mudell tal-Oġġett | TRIO |
| Batteriji | 1 9V battery required (for internal use, not primary power) |
| Interface tal-Ħardwer | Awdjo 1/4-il pulzier |
| Format tas-Sinjal | Analogu |
| Sors tal-Enerġija | Corded Electric (9V DC adapter included) |
| Voltage | 9 Volts |
| Ampetà | 300 Milliamps |
Manutenzjoni
- Żomm il-pedala nadifa billi timsaħha b'ċarruta ratba u niexfa. Evita li tuża prodotti tat-tindif jew solventi li joborxu.
- Aħżen il-pedala f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
- Ensure all cables are securely connected to prevent signal loss or damage.
- Evita li twaqqa’ l-pedala jew li tissottomettiha għal impatti qawwija.
Issolvi l-problemi
- Ebda Ħsejjes: Check all cable connections (guitar, amp, power). Ensure the pedal is powered on and the volume knobs are not set to zero.
- Kwalità tal-Ħoss Fqira: Ivverifika li l-istrument tiegħek u amplifier are functioning correctly. Check for damaged cables.
- Band Not Generating Correctly: Ensure you are playing clear, distinct chords during the 'Listen' phase. Try different genres and styles to see if a different setting better interprets your playing.
- Footswitch Unresponsive: Disconnect and reconnect the power supply. If using an optional FS3X footswitch, ensure it is properly connected.
Garanzija u Appoġġ
Għal informazzjoni dwar il-garanzija u appoġġ tekniku, jekk jogħġbok irreferi għad-DigiTech uffiċjali webis-sit jew ikkuntattja s-servizz tal-konsumatur tagħhom. Żomm il-prova tax-xiri tiegħek għal talbiet ta’ garanzija.
